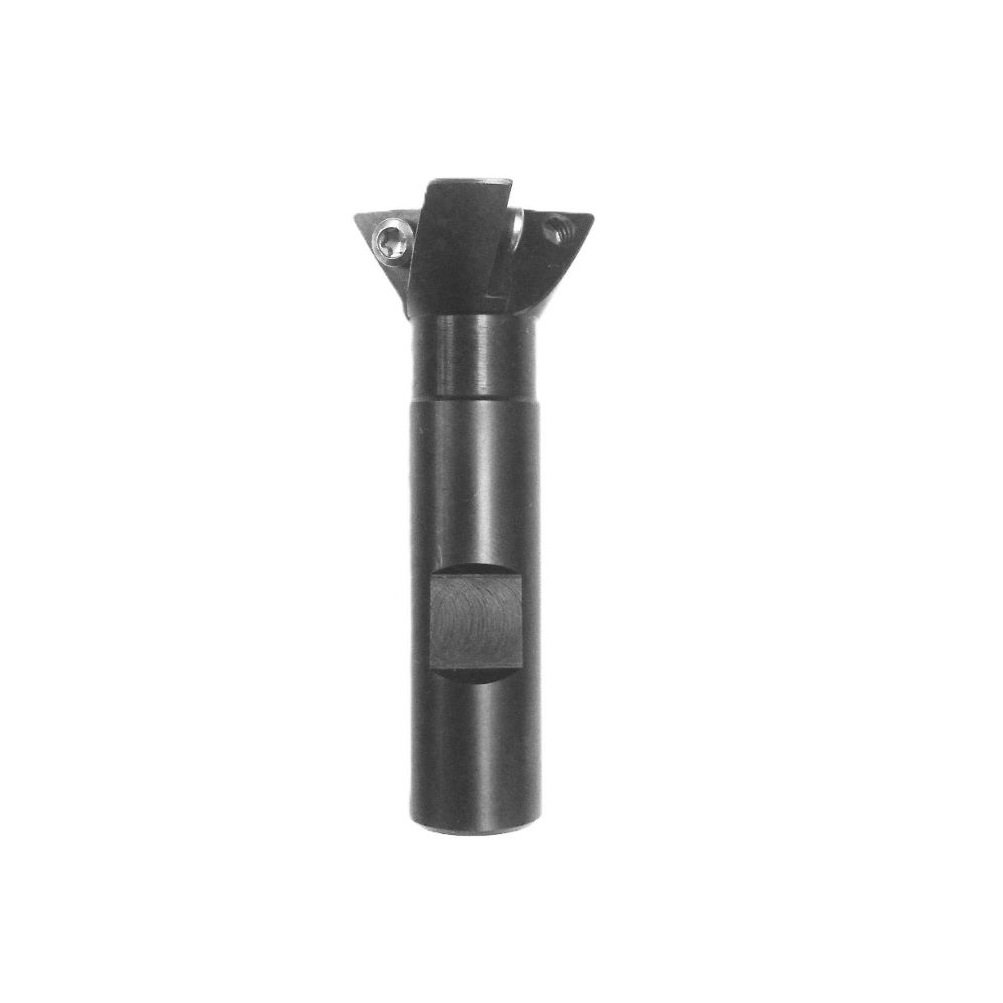

1-7/8″ X 3/4 SHANK 3 FLUTE 60 DEGREE INDEXABLE DOVETAIL CUTTER (2075-0508)

1-7/8″ X 3/4 SHANK 3 FLUTE 60 DEGREE INDEXABLE DOVETAIL CUTTER (2075-0508) (SKU: 2075-0508)

1-7/8″ X 3/4 Shank 3 Flute 60 Degree Indexable Dovetail Cutter

• Right hand cut
• 60° angle 15° clearance
• For milling roughing & finishing at high speeds & feeds
• Use with TDEX carbide nserts which are not included
• Overall length L is 2.95″
• Cutting depth F is 0.51″
• Height H is 0.550″
• Takes 3 TDEX32 inserts #6062-0320
• Insert screw is M4 X 10 #2100-0074
• Cutting diameter D is 1-7/8″
• Shank d is 3/4″

Specifications

• 1-7/8″ X 3/4 Shank 3 Flute 60 Degree Indexable Dovetail Cutter
• Right hand cut.
• 60° angle 15° clearance.
• For milling roughing & finishing at high speeds & feeds.
• Use with TDEX32 carbide nserts which are not included.
• Overall length L is 2.95″.
• Cutting depth F is 0.51″.
• Height H is 0.550″.
• Takes 3 TDEX1603 inserts #6062-0320.
• Insert screw is M4 X 10 #2100-0074.
• Cutting diameter D is 1-7/8″.
• Shank d is 3/4″.
• Weight: 0.55
• Dimensions: L 6, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
