10″ D1-5 3-JAW CAMLOCK LATHE CHUCK (3900-4630)

10″ D1-5 3-JAW CAMLOCK LATHE CHUCK (3900-4630) (SKU: 3900-4630)

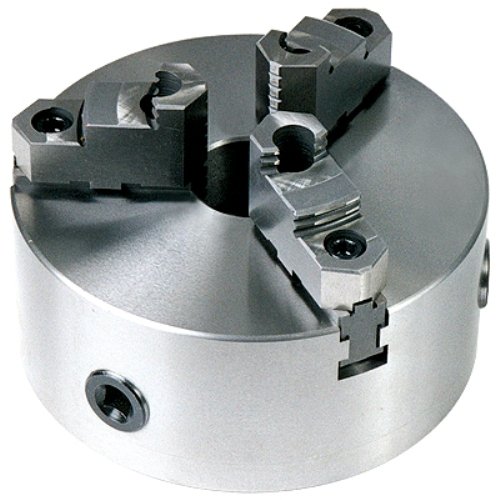

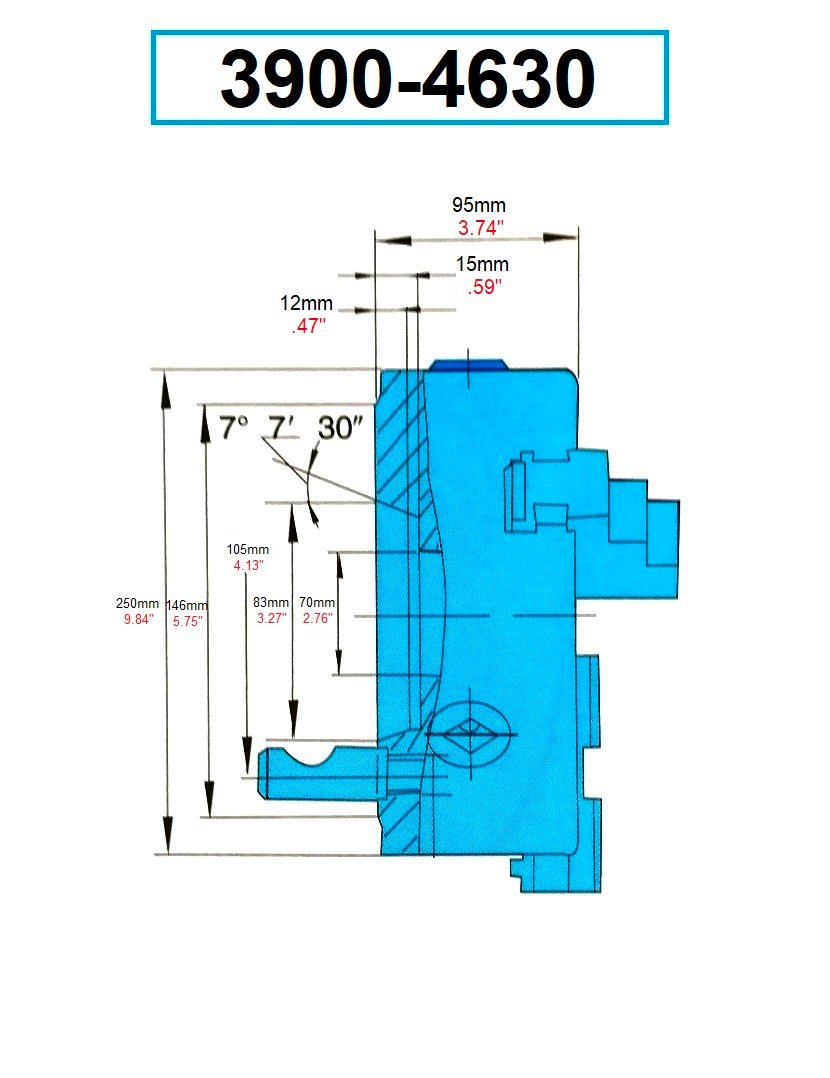

10″ D1-5 3-Jaw Camlock Lathe Chuck

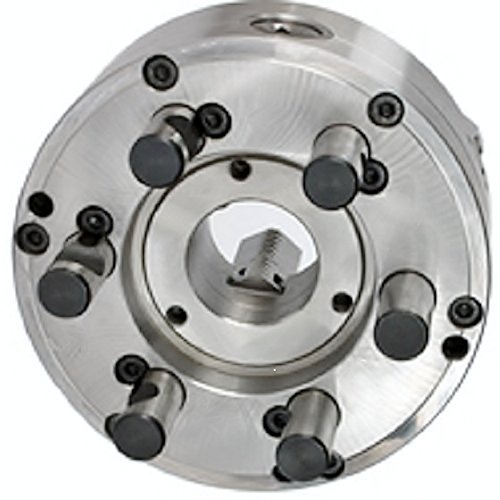

• Direct mounting chuck with camlock nose
• Body is made of high grade semi-steel
• 2 piece top jaws are reversible
• Self centering jaws that are hardened and precision ground

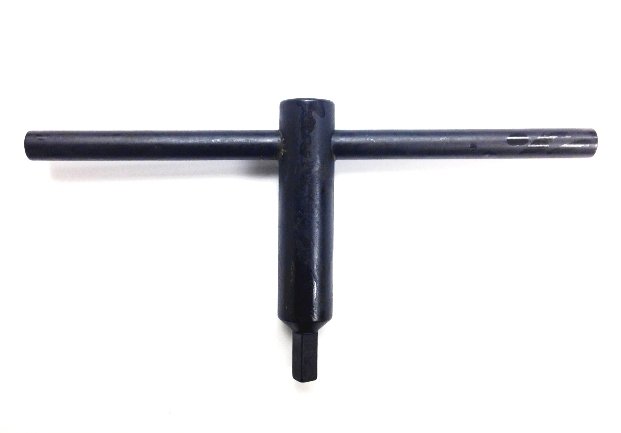

• Lathe chuck wrench is included
• Weight is 75 lbs
• 6 pieces of a 3/4″ diameter stud are included
• Maximum RPM is 1,600
• T.I.R. is .004″

Specifications

• 10″ D1-5 3-Jaw Camlock Lathe Chuck
• Direct mounting chuck with camlock nose.
• Body is made of high grade semi-steel.
• 2 piece top jaws are reversible.
• Self centering jaws that are hardened and precision ground.
• Lathe chuck wrench is included.
• Weight is 75 lbs.
• 6 pieces of a 3/4″ diameter stud are included.
• Maximum RPM is 1,600.
• T.I.R. is .004″.
• Weight: 75
• Dimensions: L 14, W 10, H 16

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
