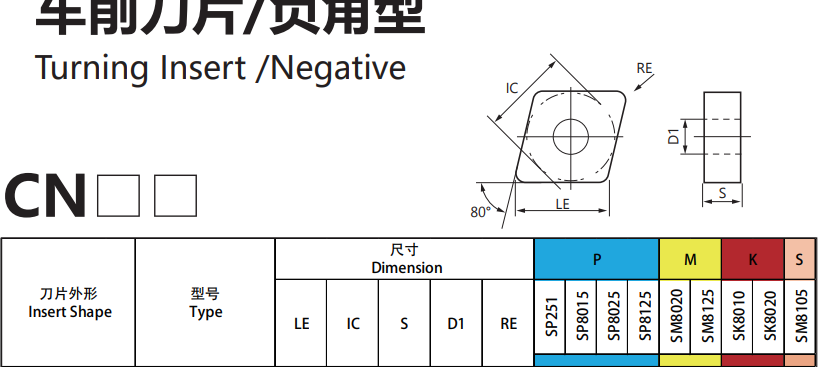

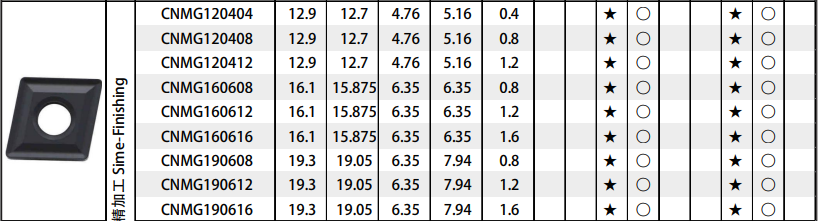

10pc Carbide Insert CNMG 120412 / CNMG433 Grade ISO K10-K30 Cast Iron Tuning
These carbide inserts, suitable for automotive and general turning of nodular cast iron, feature a medium-coarse substrate combined with thick TiCN and textured Al2O3 coating for strong wear resistance. Ideal for high-speed semi-finishing under stable conditions.
Industry application Automotive and general turning nodular cast Iron
– **Features**:
– CVD coating
– Main application: K10–K30
– Suitable for continuous to slightly interrupted cuts
– High fracture toughness
– Thermal stability
– Optional use in high-alloy steels
SK8010 CVD Grade Features
(thick TiCN+ textured A2lO3)
black K10-K30
The medium-coarse substrate combine with thick TiCN and textured
Al2O3, after special coating treatment, it has strong wear-resistance.
The grade is suitable for high-speed semi-finishing cast iron
processing under stable working condition.
- CVD coating
- Main application K10–K30
- Continuous to slightly interrupted cut
- High fracture toughness
- Thermal stability
- Optional use in high-alloy steels
TC chip breaker
- Main application: ap:1.0–4.0 mm; f: 0.2–0.4 mm
- Wide range of application
- Negative primary chamfer
- Suitable for high feed rates
- Encircling chip breaker
