12″ / 300MM OPTICAL LINEAR GLASS SCALE (3129-0262)

12″ / 300MM OPTICAL LINEAR GLASS SCALE (3129-0262) (SKU: 3129-0262)

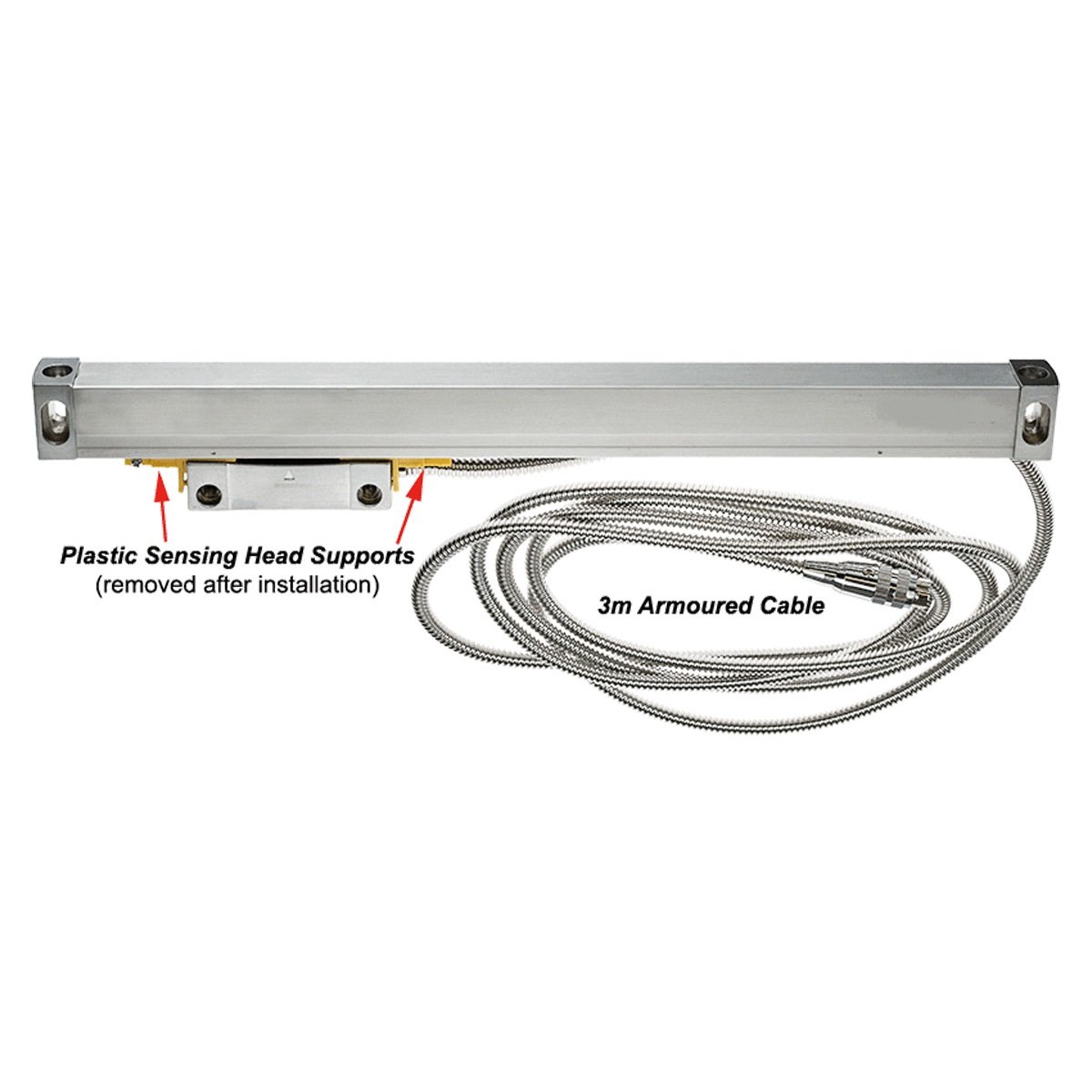

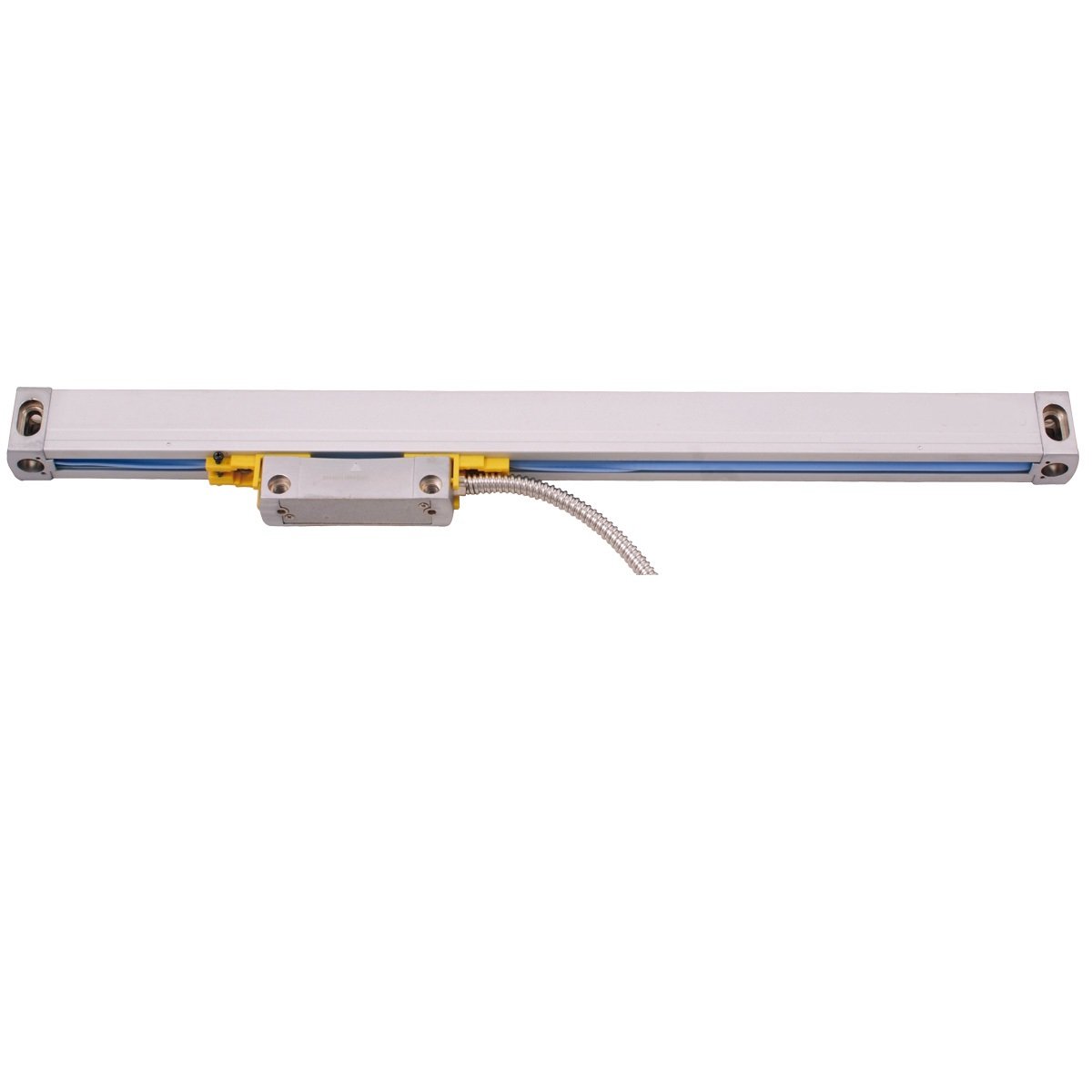

12 Inch / 300mm Optical Linear Glass Scale

• Grating pitch is 0.001″/0.02mm
• Accuracy: ±.0005″/0.01mm (200C1000mm)
• 2 reference mark every 2″/50mm
• Maximum traversing speed is 60m/minute
• Output signal is TTL
• Connector is 7 pin DIN (screw locking)
• Operating temperature is 0-45℃
• 0002″/.005mm resolution
• IP 53

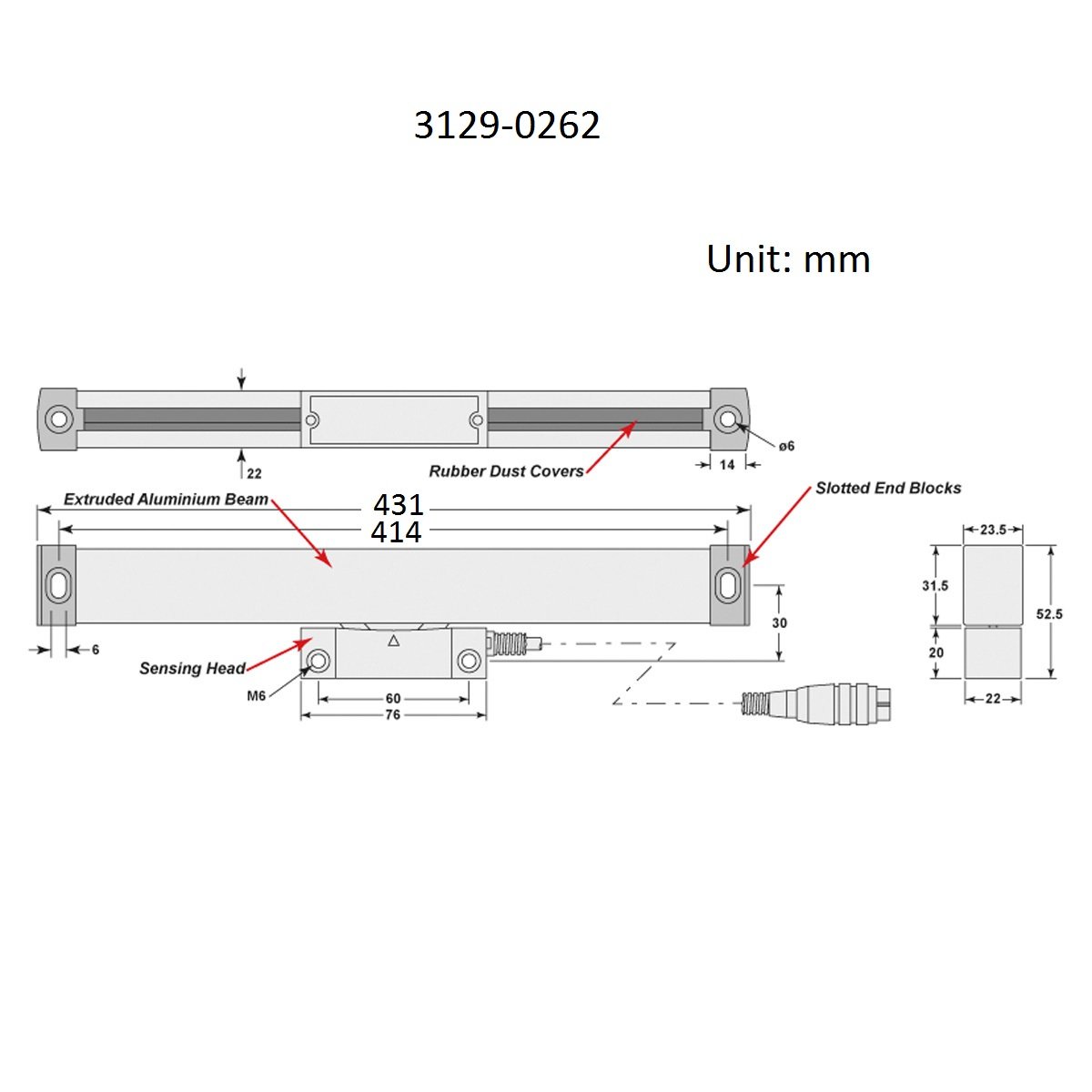

• L1 is 414
• L2 is 431

Specifications

• 12 Inch / 300mm Optical Linear Glass Scale
• Grating pitch is 0.001″/0.02mm.
• Accuracy: ±.0005″/0.01mm (200C1000mm).
• 2 reference mark every 2″/50mm.
• Maximum traversing speed is 60m/minute.
• Output signal is TTL.
• Connector is 7 pin DIN (screw locking).
• Operating temperature is 0-45℃.
• .0002″/.005mm resolution.
• IP 53
• L1 is 414.
• L2 is 431.
• Weight: 2.2
• Dimensions: L 5, W 6, H 19

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
