12 X 9 X 8″ WEBBED SLOTTED ANGLE PLATE (3402-0312)

12 X 9 X 8″ WEBBED SLOTTED ANGLE PLATE (3402-0312) (SKU: 3402-0312)

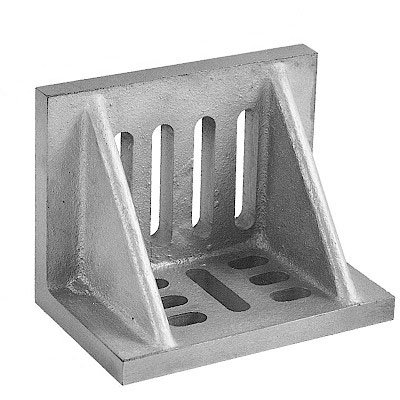

12(A) X 9(B) X 8(C) Webbed Slotted Angle Plate

• Made of high tensile cast iron properly seasoned against distortion
• Clamping slots are widely used for machining, layout and inspection
• Accurately machined and ground square and parallel on outside and ends
• D is 0.67
• E is 0.79
• F is 5.91
• G is 0.79
• H is 6.70

Specifications

• 12(A) X 9(B) X 8(C) Webbed Slotted Angle Plate
• Made of high tensile cast iron properly seasoned against distortion.
• Clamping slots are widely used for machining, layout and inspection.
• Accurately machined and ground square and parallel on outside and ends.
• D is 0.67.
• E is 0.79.
• F is 5.91.
• G is 0.79.
• H is 6.70.
• Weight: 34
• Dimensions: L 15, W 10, H 15

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
