3-1/2 X 3 X 2-1/2″ WEBBED SLOTTED ANGLE PLATE (3402-0301)

3-1/2 X 3 X 2-1/2″ WEBBED SLOTTED ANGLE PLATE (3402-0301) (SKU: 3402-0301)

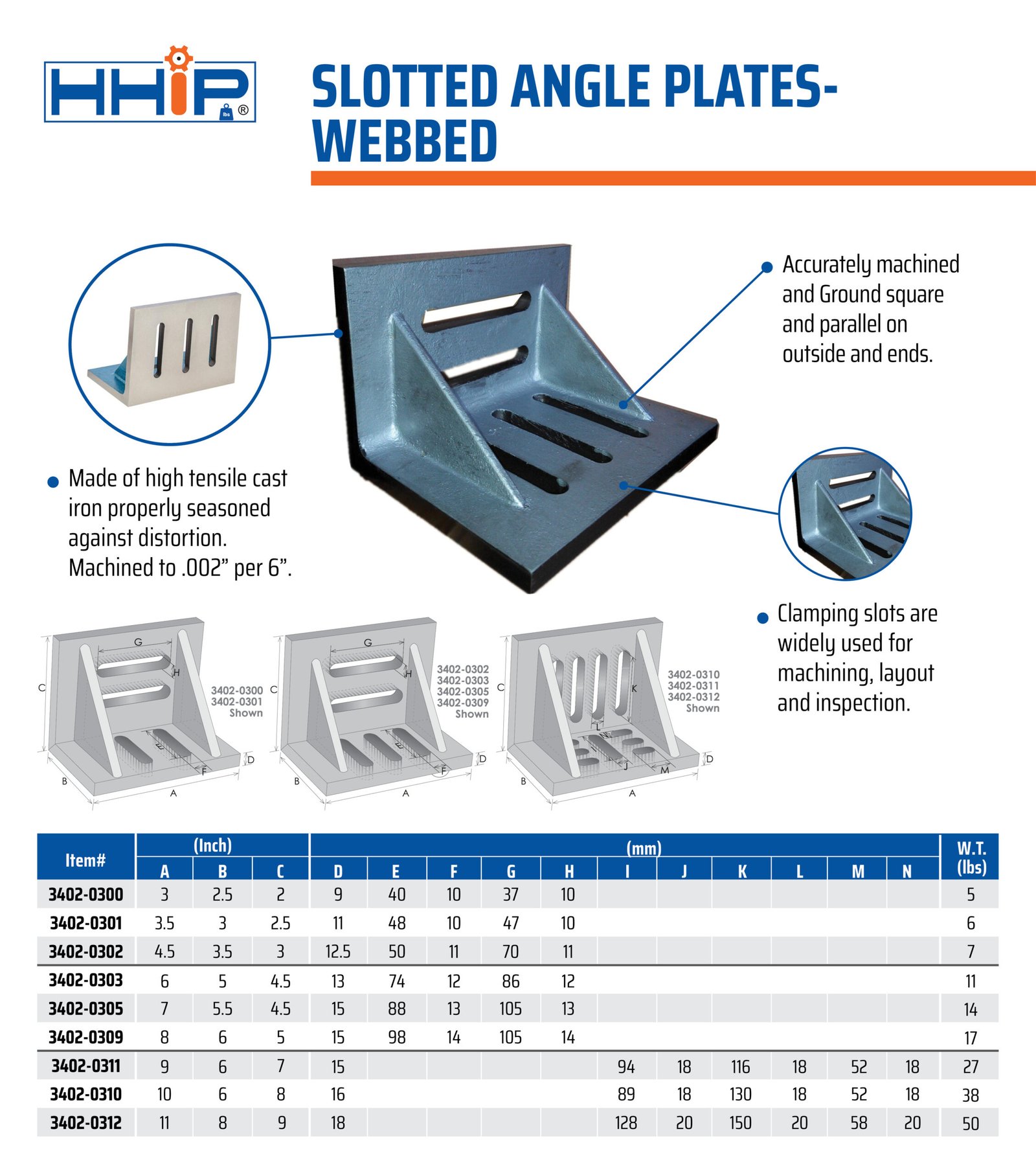

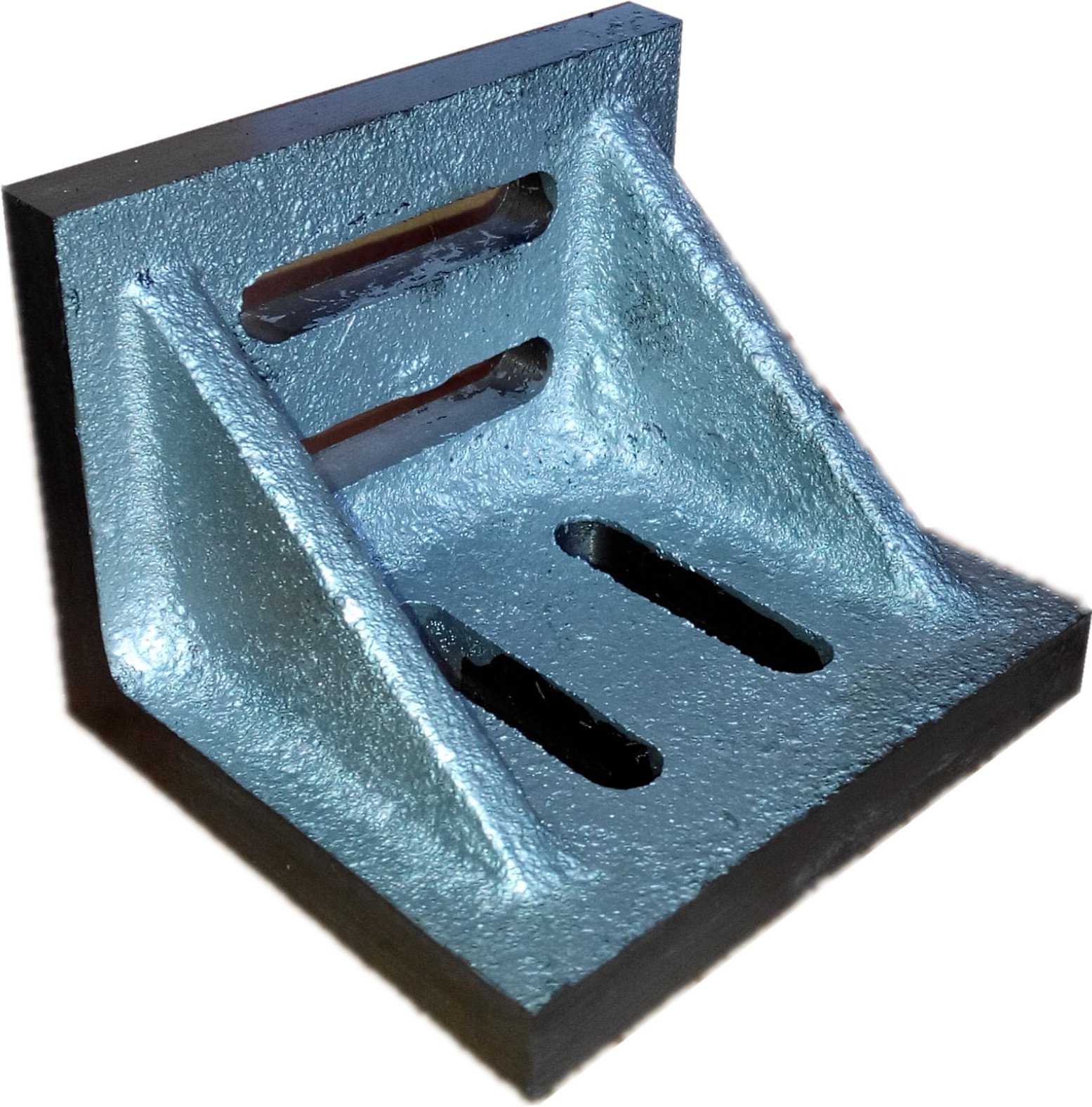

3-1/2 X 3 X 2-1/2″ Webbed Slotted Angle Plate

• Made of high tensile cast iron properly seasoned against distortion
• Clamping slots are widely used for machining, layout and inspection
• Accurately machined and ground square and parallel on outside and ends

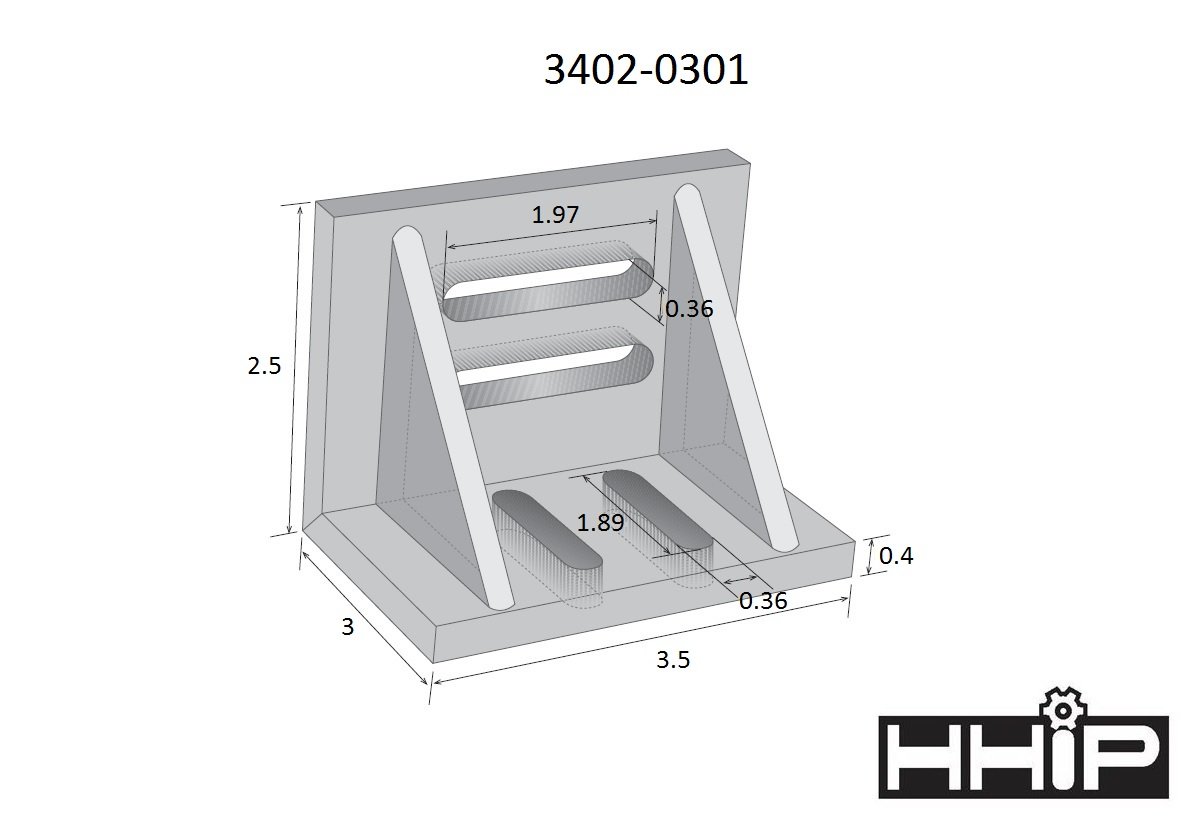

• A is 3.5
• B is 3
• C is 2.5
• D is 0.4
• E is 0.36
• F is 1.89
• G is 0.36
• H is 1.97

Specifications

• 3-1/2 X 3 X 2-1/2″ Webbed Slotted Angle Plate
• Made of high tensile cast iron properly seasoned against distortion.
• Clamping slots are widely used for machining, layout and inspection.
• Accurately machined and ground square and parallel on outside and ends.
• A is 3.5.
• B is 3.
• C is 2.5.
• D is 0.4.
• E is 0.36.
• F is 1.89.
• G is 0.36.
• H is 1.97.
• Weight: 3
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
