9 X 7 X 6″ WEBBED SLOTTED ANGLE PLATE (3402-0311)

9 X 7 X 6″ WEBBED SLOTTED ANGLE PLATE (3402-0311) (SKU: 3402-0311)

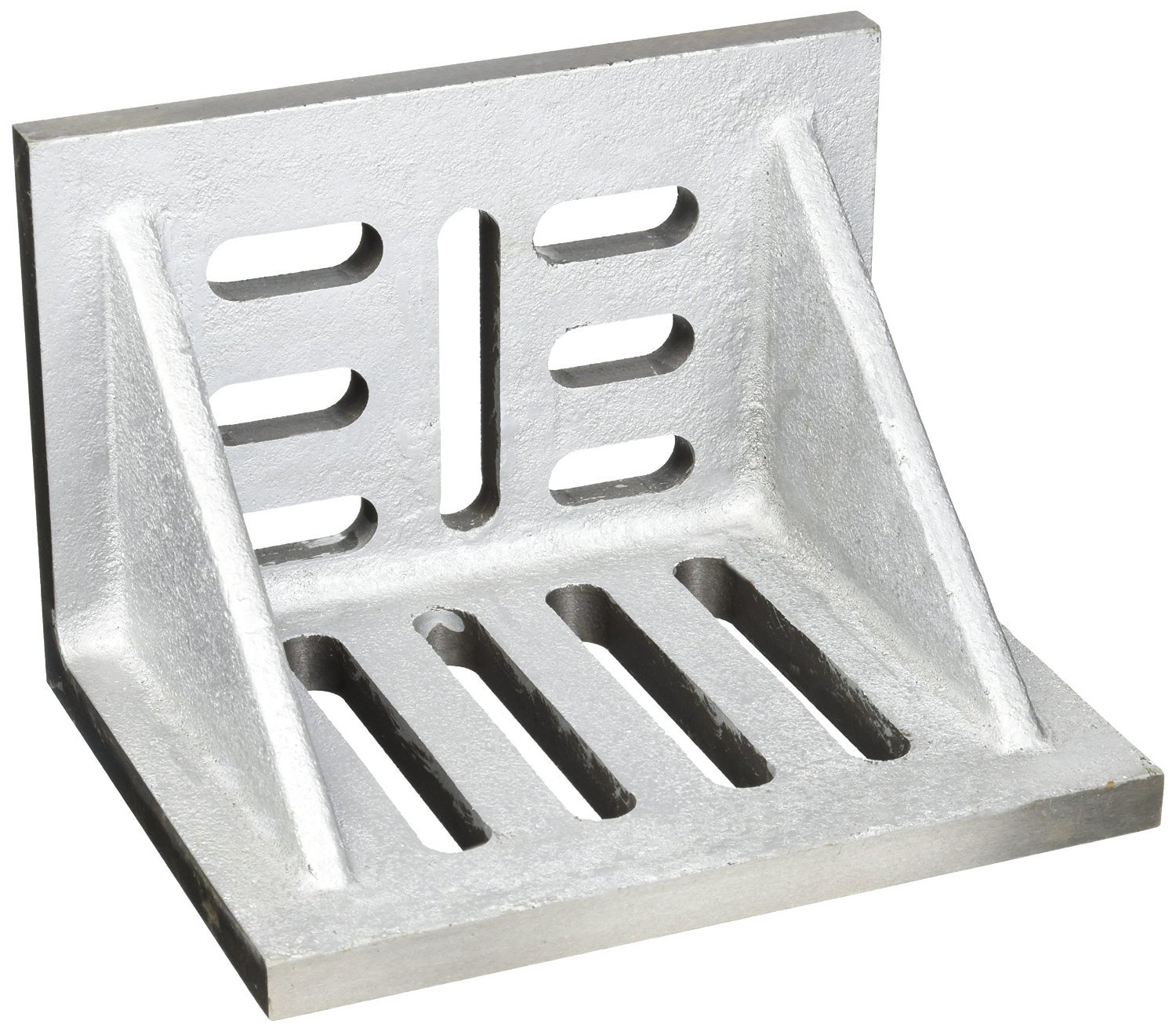

9(A) X 7(B) X 6(C) Webbed Slotted Angle Plate

• Made of high tensile cast iron properly seasoned against distortion
• Clamping slots are widely used for machining, layout and inspection
• Accurately machined and ground square and parallel on outside and ends
• D is 0.60
• E is 0.63
• F is 4.73
• G is 0.63
• H is 5.12

Specifications

• 9(A) X 7(B) X 6(C) Webbed Slotted Angle Plate
• Made of high tensile cast iron properly seasoned against distortion.
• Clamping slots are widely used for machining, layout and inspection.
• Accurately machined and ground square and parallel on outside and ends.
• D is 0.60.
• E is 0.63.
• F is 4.73.
• G is 0.63.
• H is 5.12.
• Weight: 15
• Dimensions: L 8, W 12, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
