3 TON PRO-SERIES RATCHET TYPE ARBOR PRESS (8600-4401)

3 TON PRO-SERIES RATCHET TYPE ARBOR PRESS (8600-4401) (SKU: 8600-4401)

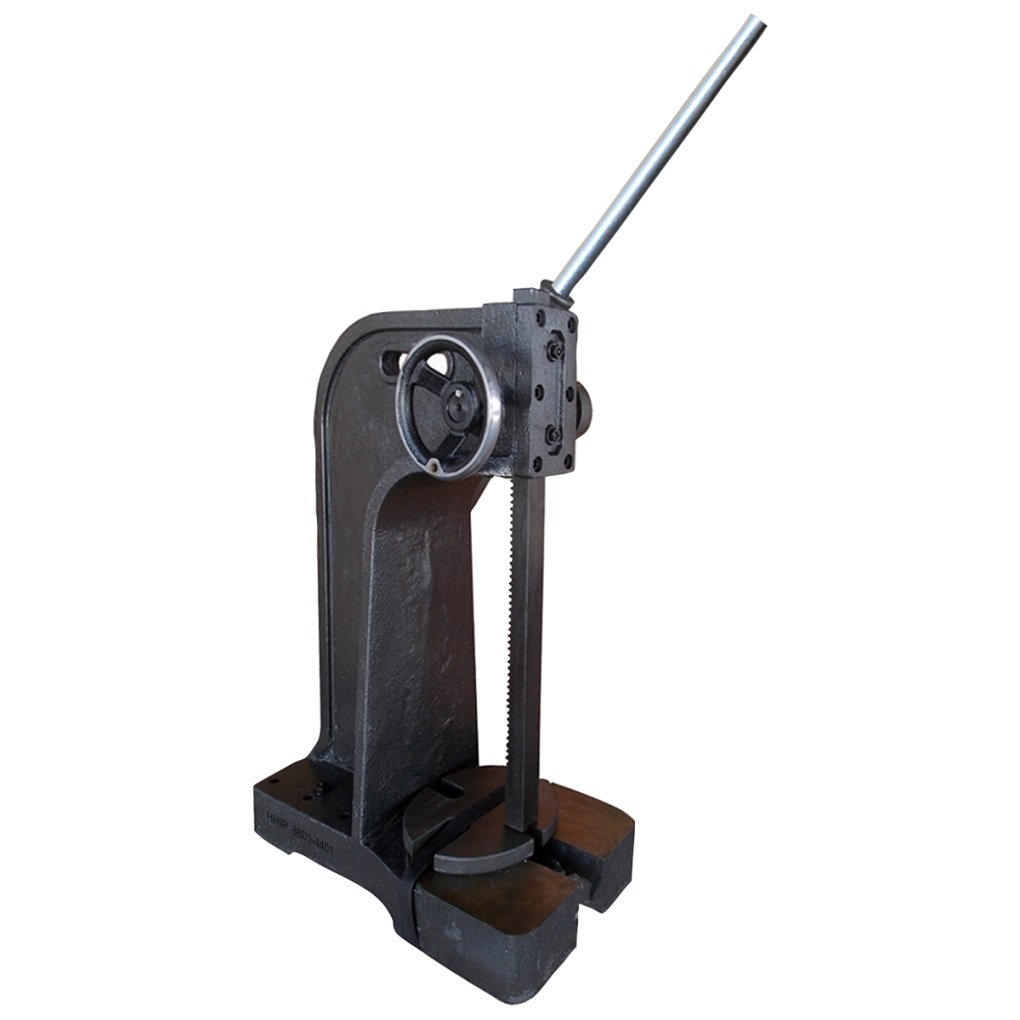

3 Ton Pro-Series Ratchet Type Arbor Press

• 3 Ton capacity delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications
• The extra large clearance over the table allows for broaching or pressing larger items
• It is counterweighted for a quick handle return and has a rapid ram feature that is advanced by using the press’s convenient side-mounted handwheel
• The 1-1/4″ square, rugged & reversible steel ram is driven by a machined piston
• Punches or tools may be added to the pre-drilled end of the ram with the aid of a magnetic insert
• The three-bit set includes one-pointed bit, one round bit, and one square end bit along with a removable steel anvil
• The removable 4-slotted anvil has a diameter of 8″
• The sturdy cast-iron base is pre-drilled for mounting on either a bench or pedestal (HHIP #8600-3610), and it is also machined to hold the included three-bit punch set
• All parts are interchangeable with PALMGREN RP30

Specifications

• 3 Ton Pro-Series Ratchet Type Arbor Press
• 3 Ton capacity delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications.
• The extra large clearance over the table allows for broaching or pressing larger items.
• It is counterweighted for a quick handle return and has a rapid ram feature that is advanced by using the press’s convenient side-mounted handwheel.
• The 1-1/4″ square, rugged & reversible steel ram is driven by a machined piston.
• Punches or tools may be added to the pre-drilled end of the ram with the aid of a magnetic insert.
• The three-bit set includes one-pointed bit, one round bit, and one square end bit along with a removable steel anvil.
• The removable 4-slotted anvil has a diameter of 8″.
• The sturdy cast-iron base is pre-drilled for mounting on either a bench or pedestal (HHIP #8600-3610), and it is also machined to hold the included three-bit punch set.
• All parts are interchangeable with PALMGREN RP30.
• Weight: 217
• Dimensions: L 48, W 40, H 39

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
