4″ TILTING ROTARY TABLE (3906-2338)

4″ TILTING ROTARY TABLE (3906-2338) (SKU: 3906-2338)

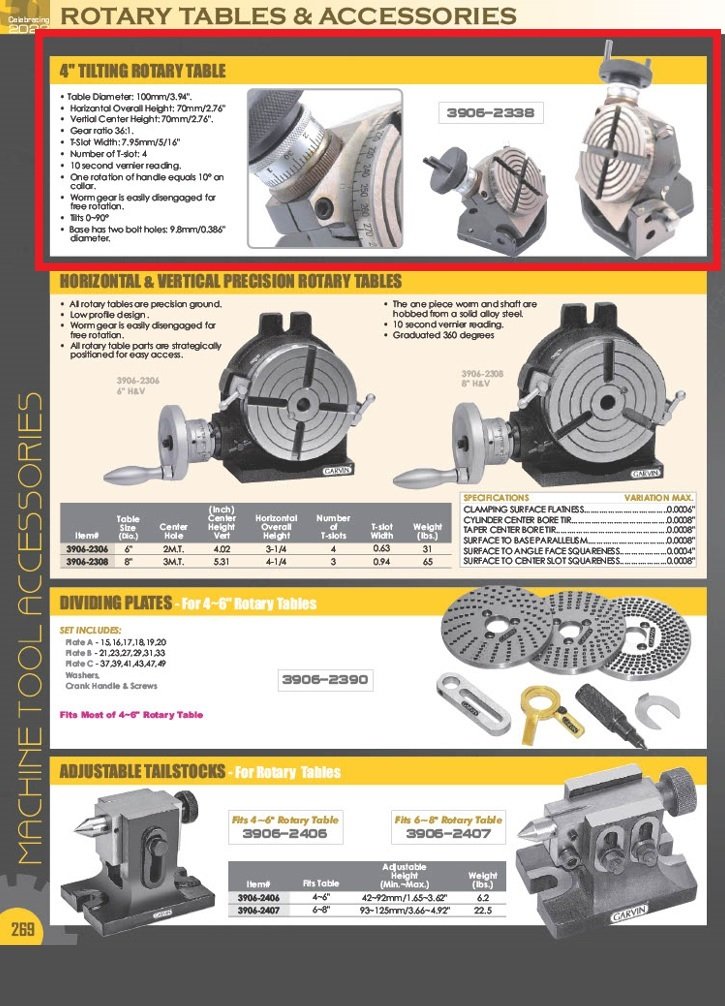

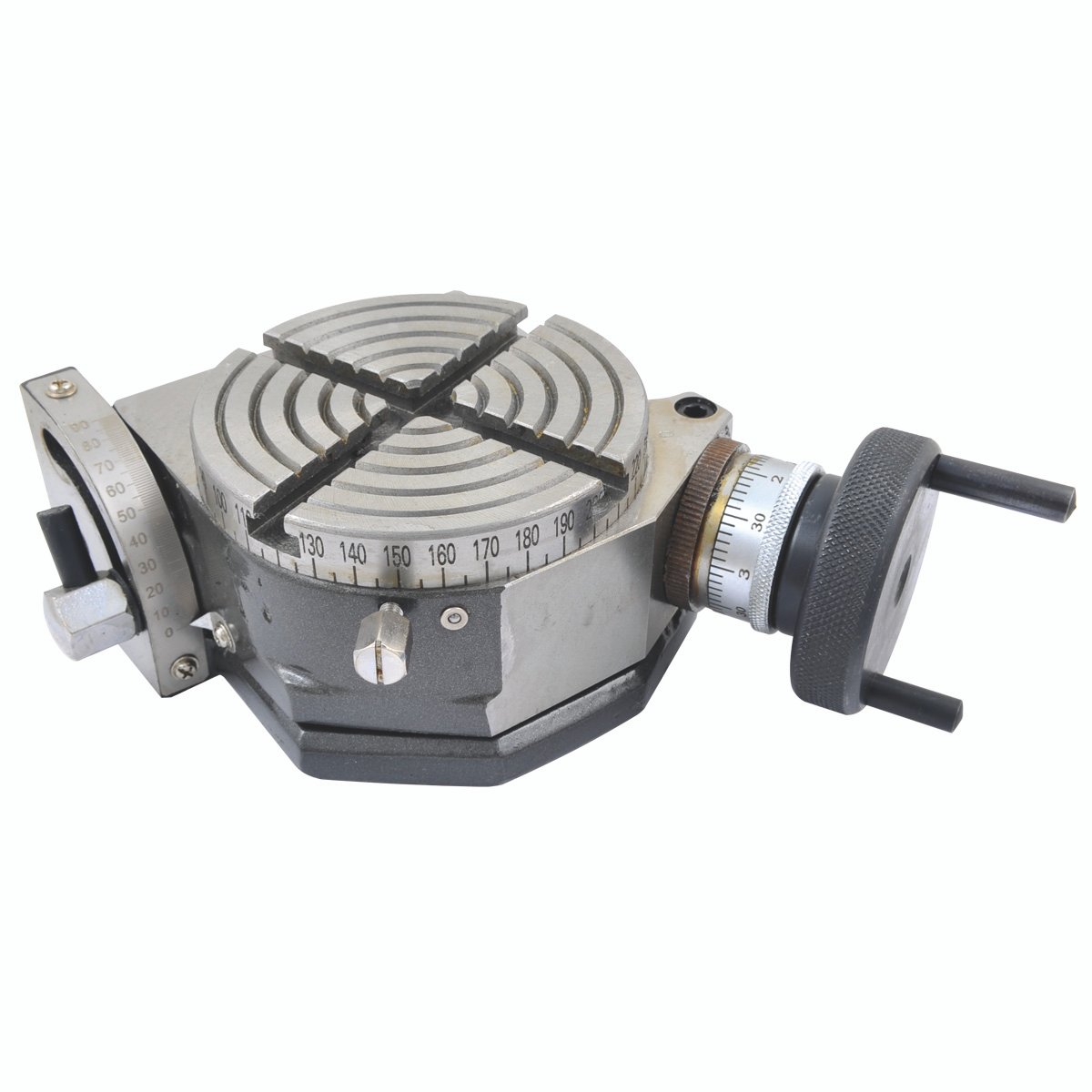

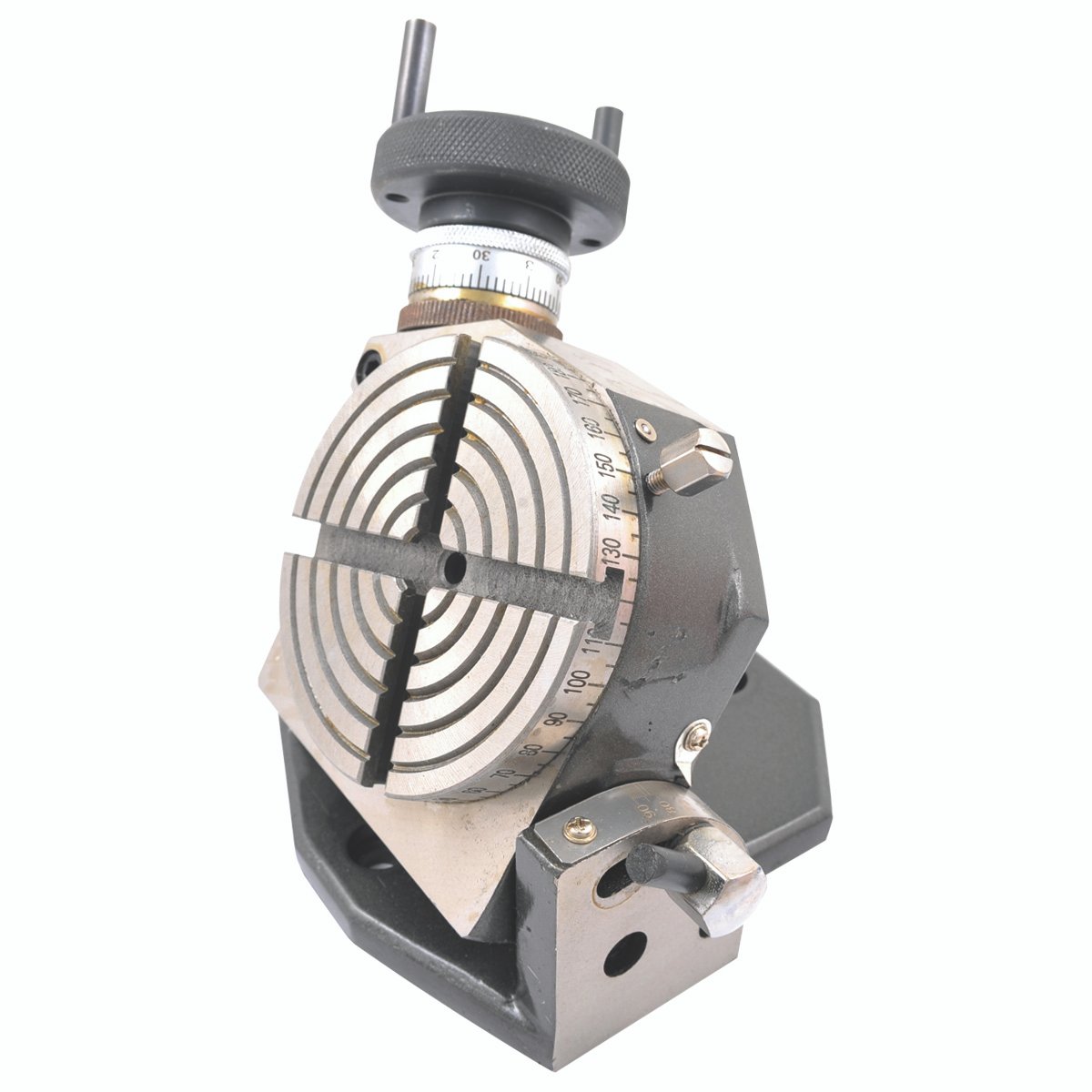

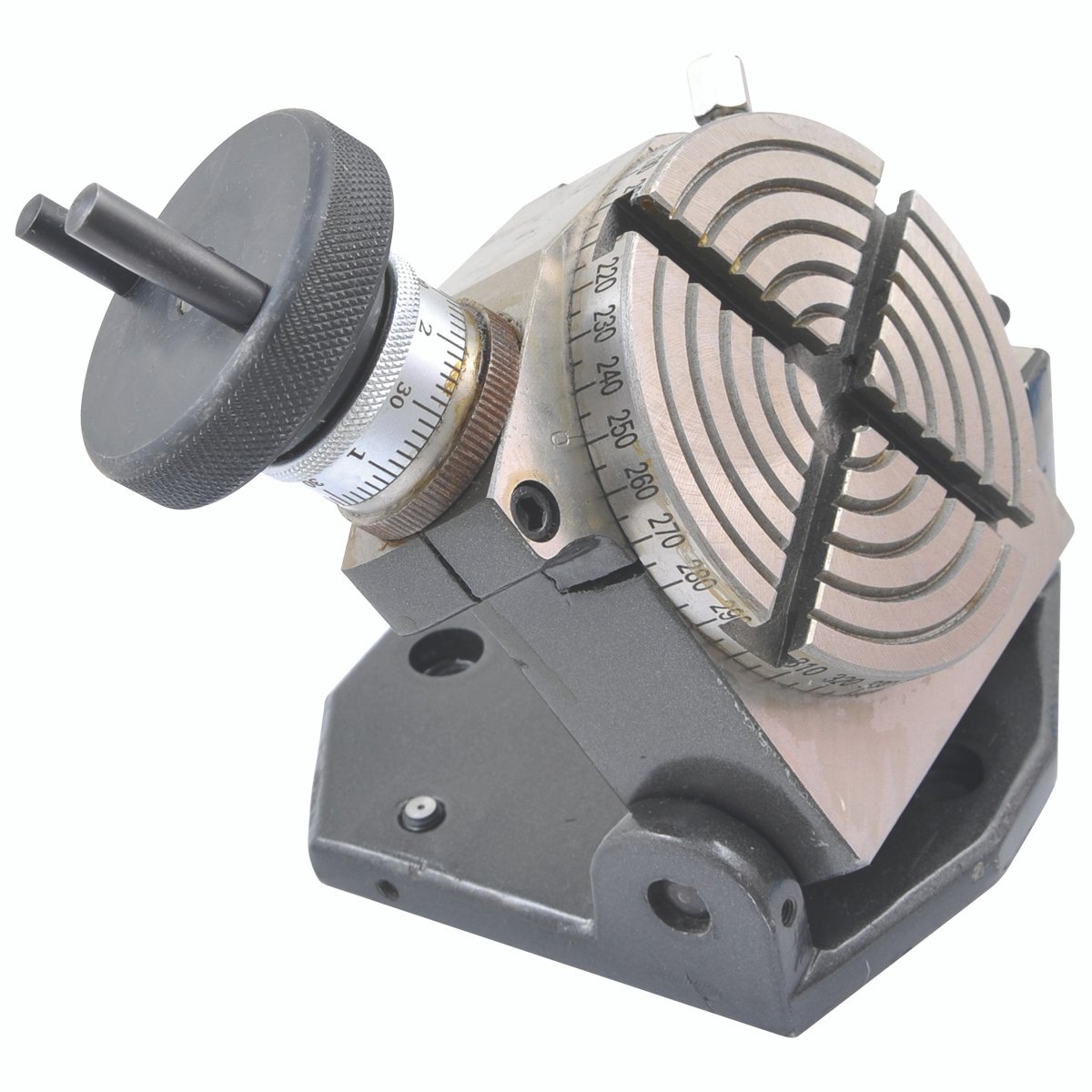

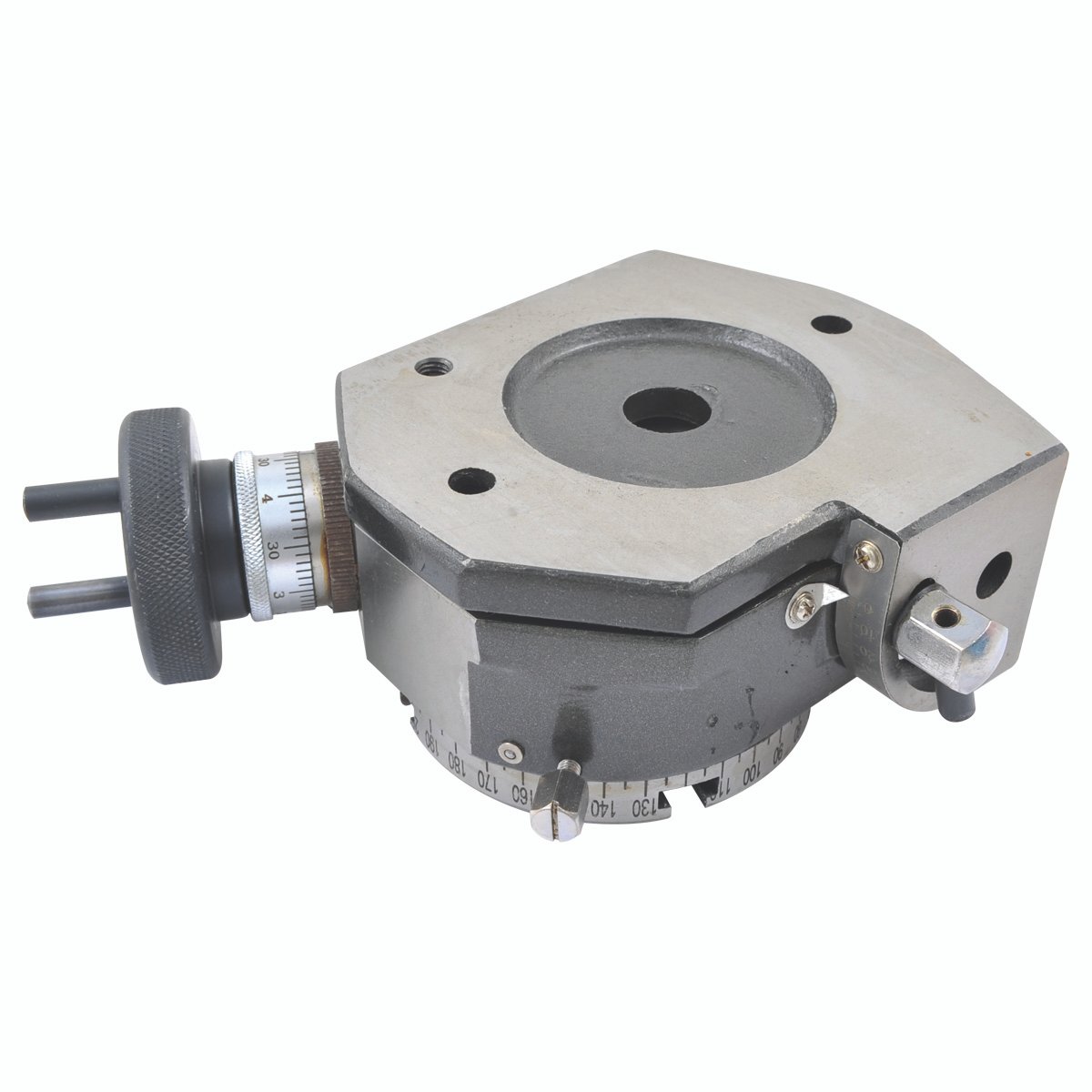

4″ Tilting Rotary Table

• Table diameter is 110mm or 3.94″
• Horizontal overall height is 70mm or 2.76″
• Vertical overall height is 70mm
• Gear ratio is 36:1
• T-slot width is 7.95mm or 5/16″
• 4 t-slots

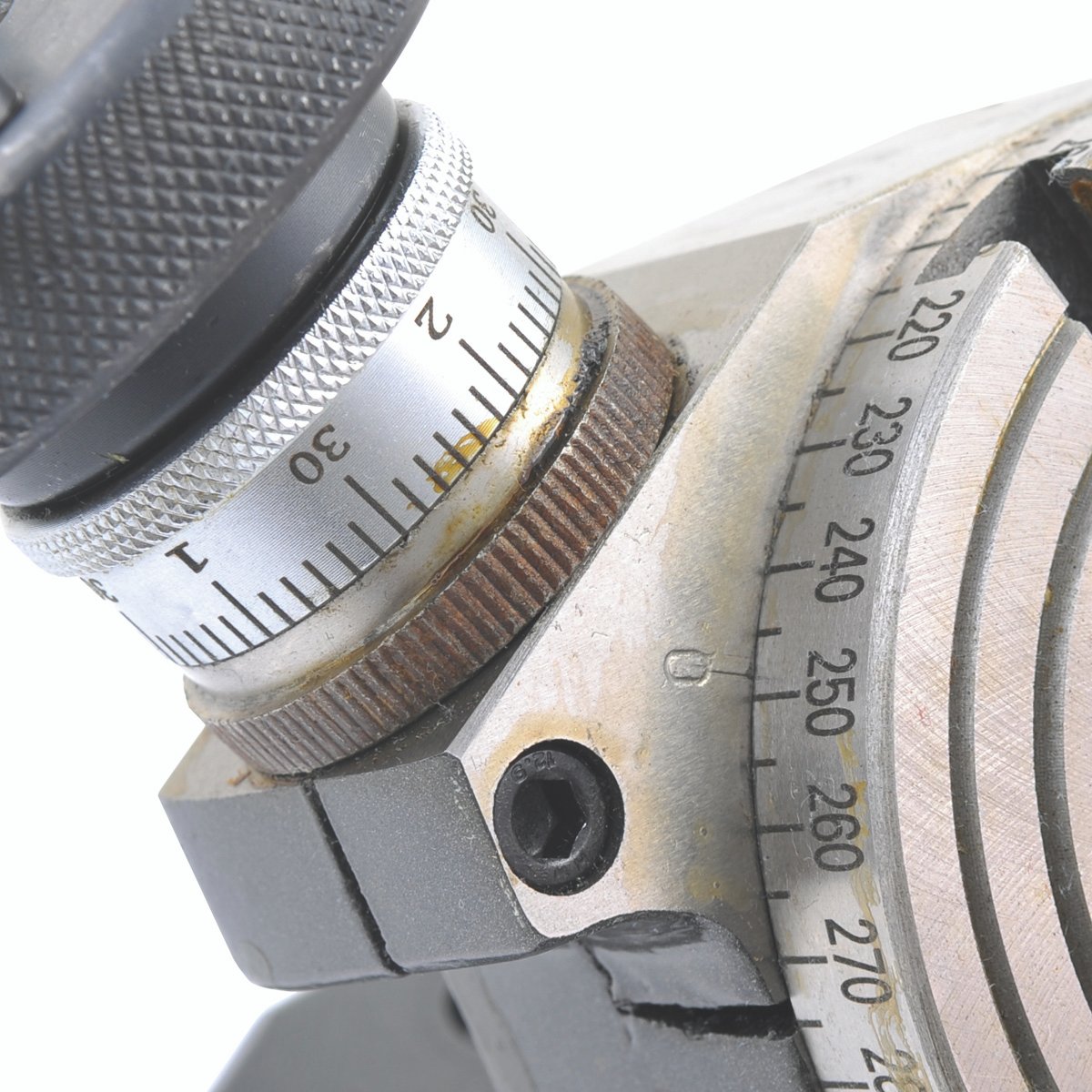

• 10 second vernier reading
• One rotation of handle equals 10 degrees on the collar
• Worm gear is easily disengaged for free rotation

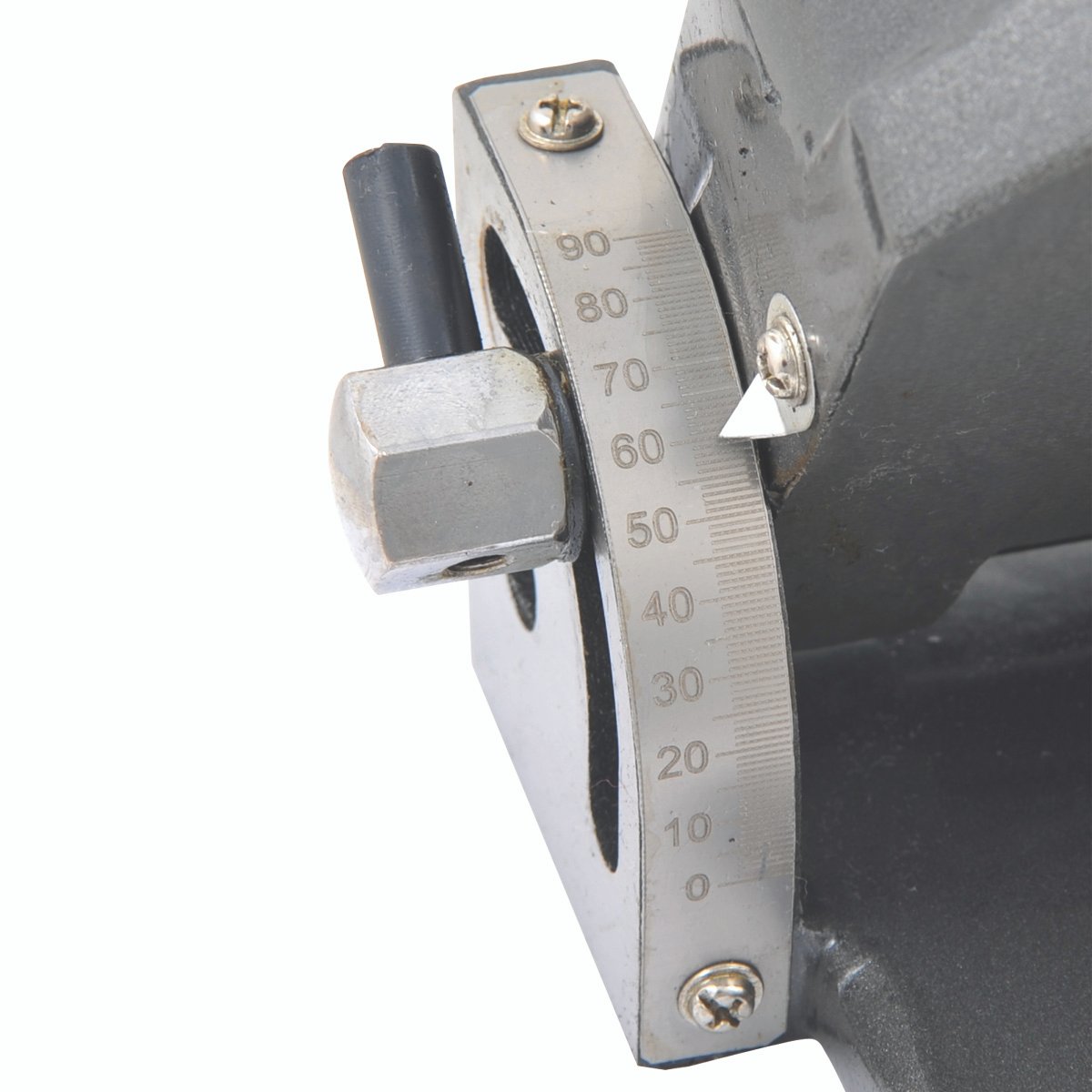

• Tilts 0-90 degrees
• Base has two bolt holes that are 9.8mm or 0.386″ in diameter

Specifications

• 4″ Tilting Rotary Table
• Table diameter is 110mm or 3.94″.
• Horizontal overall height is 70mm or 2.76″.
• Vertical overall height is 70mm.
• Gear ratio is 36:1.
• T-slot width is 7.95mm or 5/16″.
• 4 t-slots.
• 10 second vernier reading.
• One rotation of handle equals 10 degrees on the collar.
• Worm gear is easily disengaged for free rotation.
• Tilts 0-90 degrees.
• Base has two bolt holes that are 9.8mm or 0.386″ in diameter.
• Weight: 12.05
• Dimensions: L 7, W 4, H 10

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
