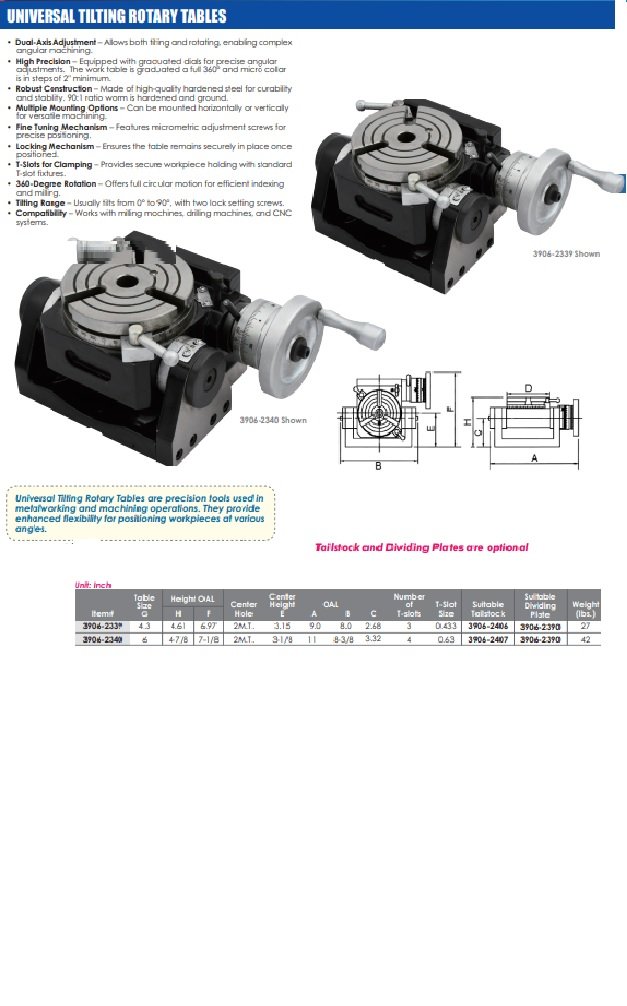

HHIP 4.3″ TILTING ROTARY TABLE (3906-2339)

HHIP 4.3″ TILTING ROTARY TABLE (3906-2339) (SKU: 3906-2339)

HHIP 4.3″ Tilting Rotary Table Universal tilting rotary tables are precision tools used in metalworking and machining operations. They provide enhanced flexibility for positioning workpieces at various angles. Dual-axis adjustment allows for both tilting and rotating, enabling complex angular machining. Equipped with graduated dials for precise angular adjustments. The work table is graduated a full 360°and micro collar is in steps of 2″ minimum. Made of high-quality hardened steel for durability and stability. 90:1 ratio worm is hardened and ground. Can be mounted horizontally or vertically for versatile machining. Features micrometric adjustment screws for precise positioning. Locking mechanism ensures the table remains securely in place once positioned. Provides secure workpiece holding with standard T-slot fixtures. 360-degree rotation offers full circular motion for efficient indexing and milling. Usually tilts from 0 to 90 degrees with two lock setting screws. Works with milling machines, drilling machines, and CNC systems.

Specifications

• HHIP 4.3″ Tilting Rotary Table
• Universal tilting rotary tables are precision tools used in metalworking and machining operations. They provide enhanced flexibility for positioning workpieces at various angles.
• Dual-axis adjustment allows for both tilting and rotating, enabling complex angular machining.
• Equipped with graduated dials for precise angular adjustments. The work table is graduated a full 360°and micro collar is in steps of 2″ minimum.
• Made of high-quality hardened steel for durability and stability. 90:1 ratio worm is hardened and ground.
• Can be mounted horizontally or vertically for versatile machining.
• Features micrometric adjustment screws for precise positioning.
• Locking mechanism ensures the table remains securely in place once positioned.
• Provides secure workpiece holding with standard T-slot fixtures.
• 360-degree rotation offers full circular motion for efficient indexing and milling.
• Usually tilts from 0 to 90 degrees with two lock setting screws.
• Works with milling machines, drilling machines, and CNC systems.
• Weight: 29.8
• Dimensions: L 9, W 7, H 7

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
