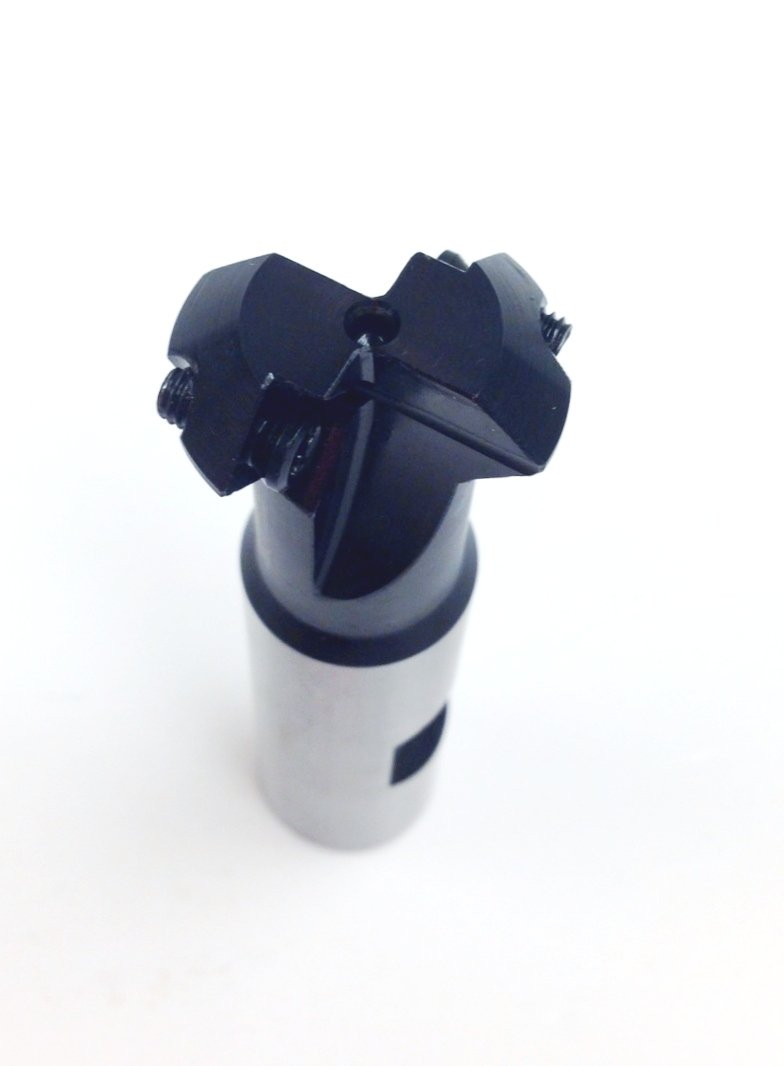

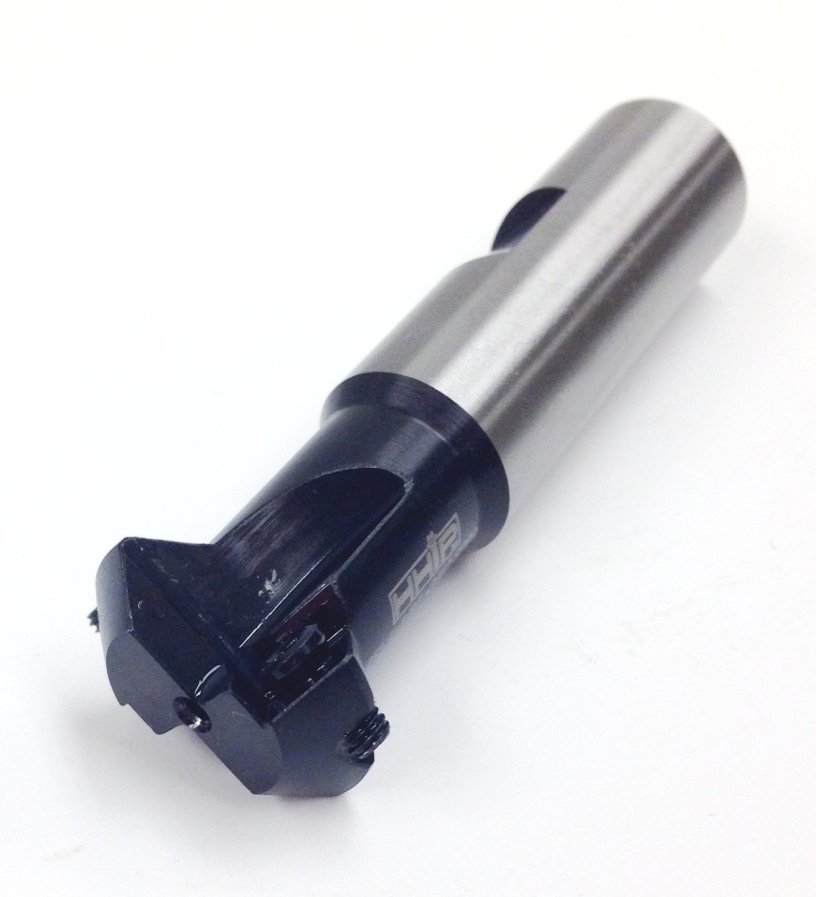

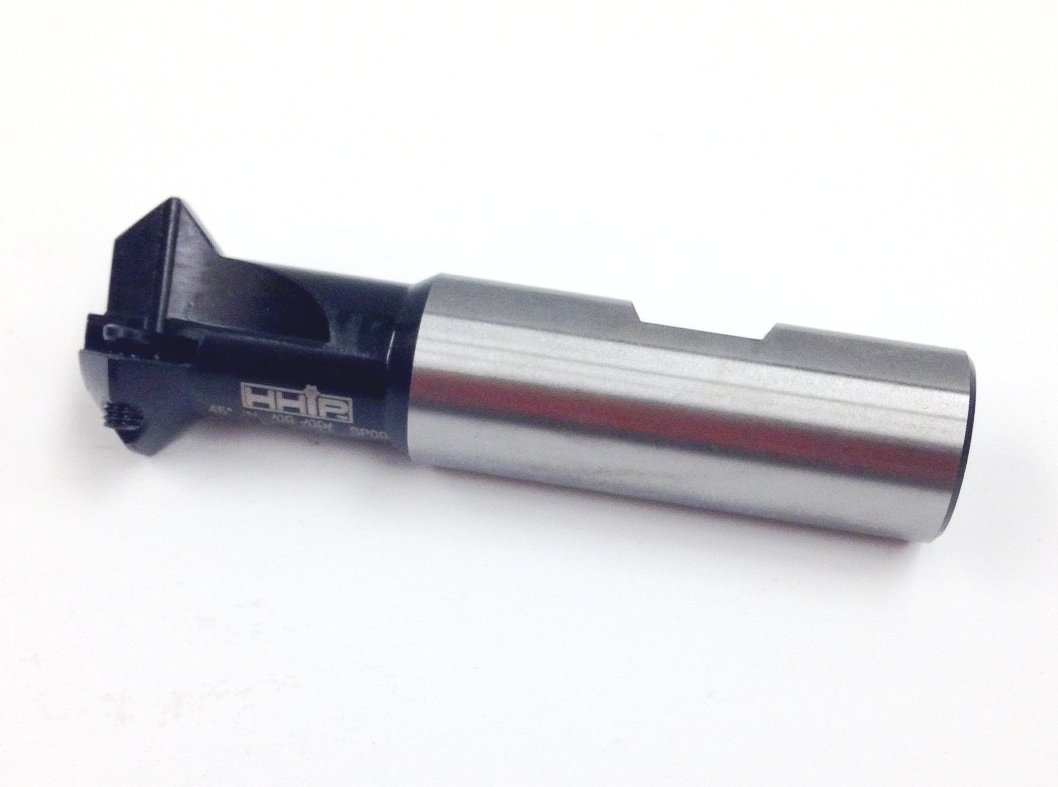

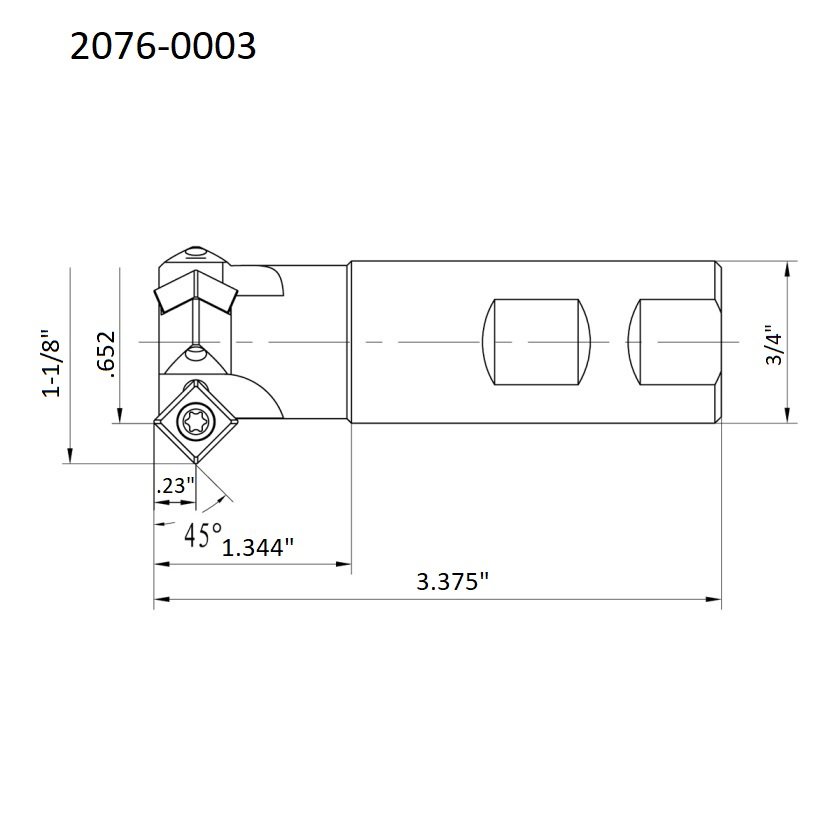

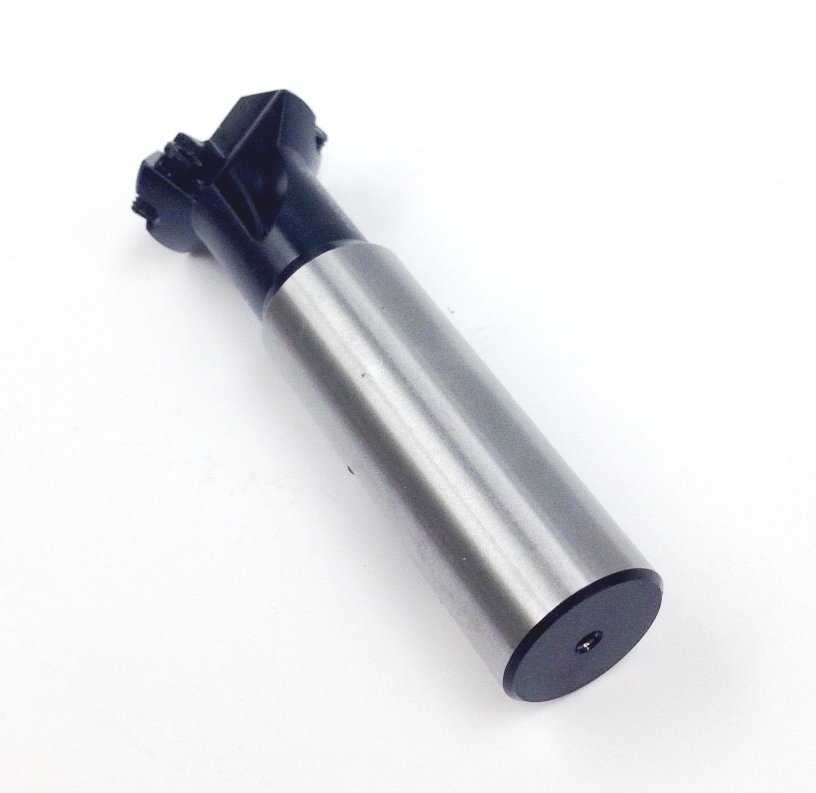

45 DEGREE 1-1/8 X 3/4 SHANK 2-INSERT INDEXABLE CHAMERING END MILL (2076-0003)
45 Degree 1-1/8″ X 3/4 Shank 2-Insert Indexable Chamering End Mill
2 SPMT32 carbide inserts are not included.
Minimum cutting diameter is 0.59″.
Overall length is 3.35″.
Cutting diameter is 0.23″.
Insert screw size is M4 X 8.
Used for chamfering and deburring on the top surface and the underside of the workpiece, can also be used for face milling of v-shaped slots.
The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN Coated or 6018-3252 for the SPMT 32.52 TiN Coated.
