Indexable Boring Bar Tool Holder 1/2 x 5″ Shank S-SCLCR08R-2 with Insert
1/2 X 5″ Shank S-SCLCR08R-2 Indexable Boring Bar With Insert
Style: S08R-SCLCR2

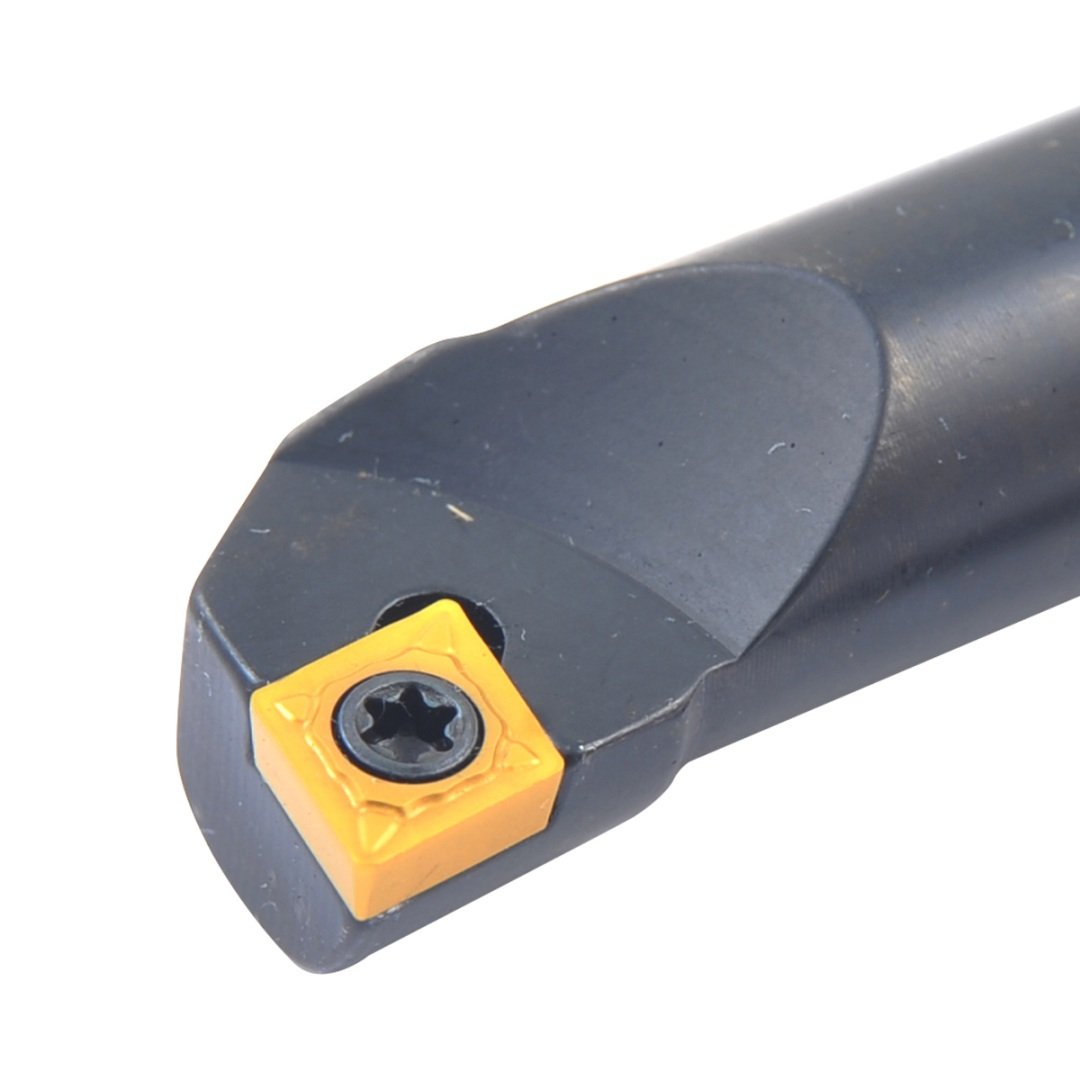

Utilizes CCMT-21.5 80° diamond inserts. CCMT insert included.
7° Relief angle.
Negative 5° Lead angle for boring.
3° Side & end cutting edge angle.
Set/Style C
Diameter x Overall Length 1/2 x 5″
Minimum Bore .625″

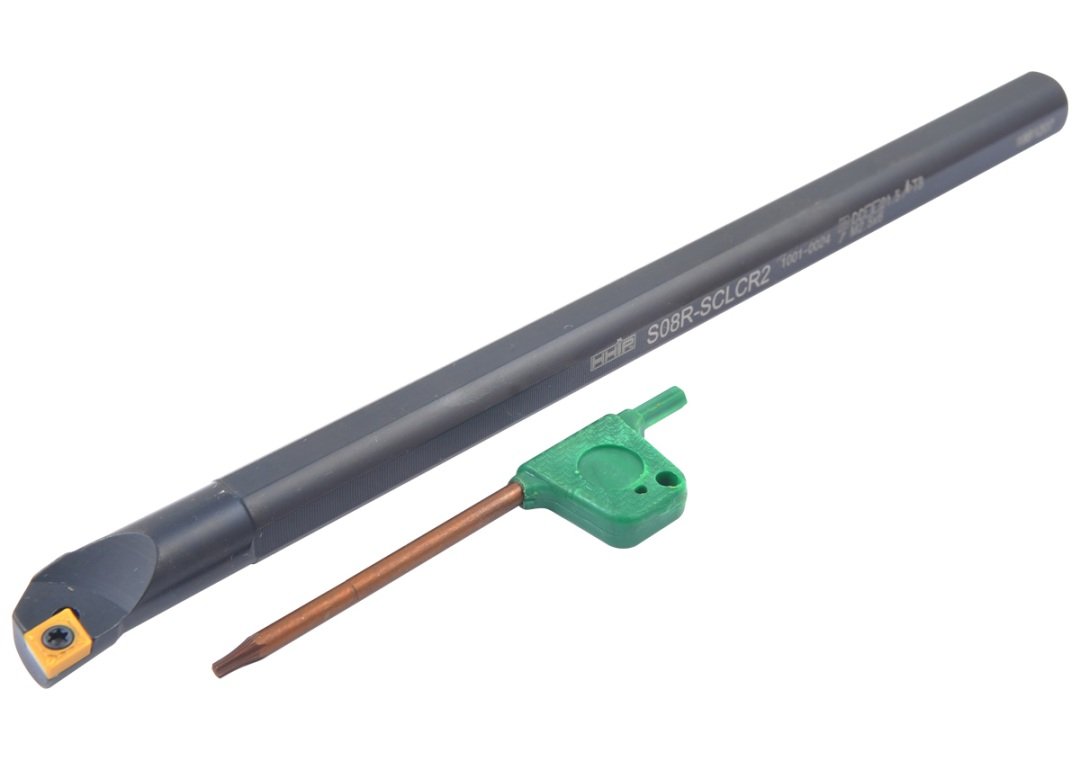

Torx wrench T-8 included.
Screw size is M2.5 X 8
Replacement Inserts are the CCMT-21.51 (#6003-5021)
This is a profiling bar for semi-finishing and finishing turning operation operations. Can used in manual metal lathe or cnc machines
