Indexable Chamfer End Mill 45 Degree 1-1/2 X 1 Shank 3 SPMT32 Carbide Insert

$107.99

DELIVERY 3 – 5 DAYS

Out of stock

SKU: 2076-0010 Category:

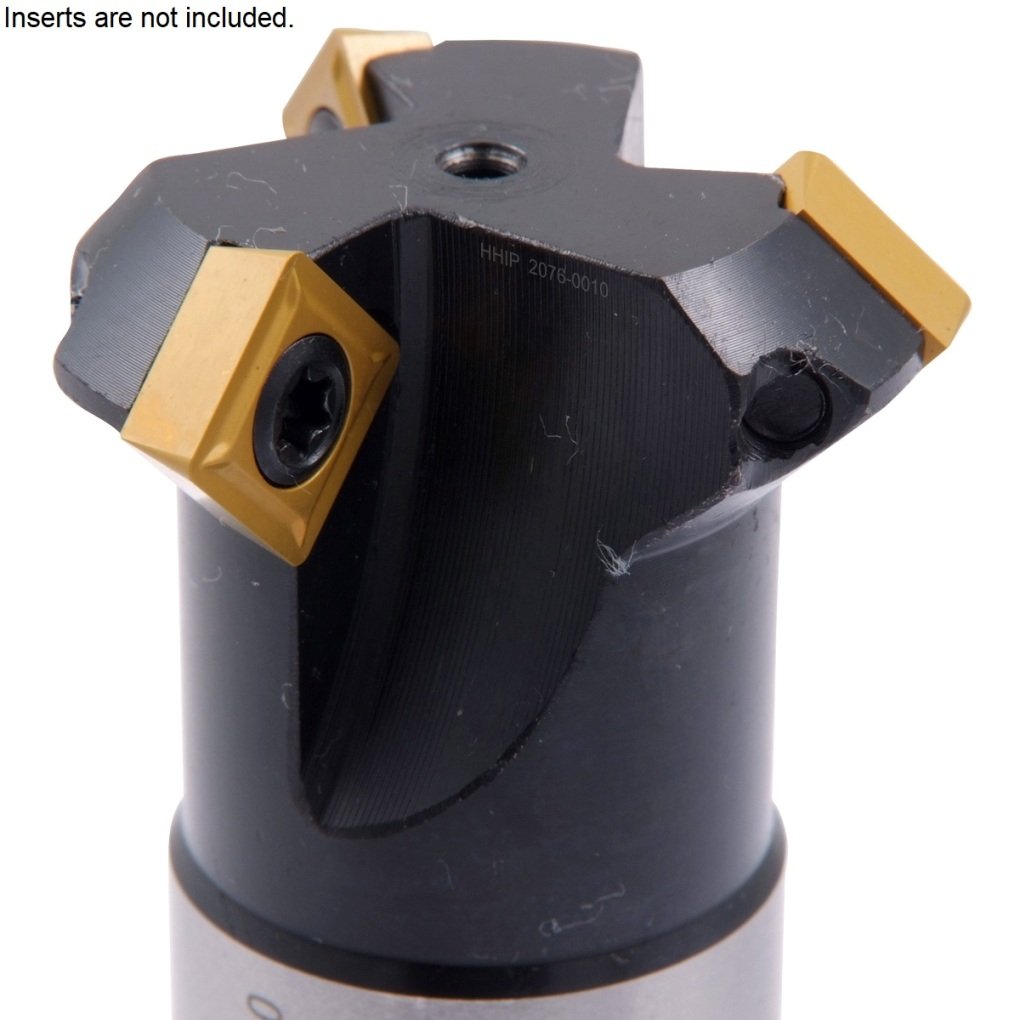

Indexable Chamfer End Mill 45 Degree 1-1/2 X 1 Shank 3 SPMT32 Carbide Insert

45 Degree 1-1/2″ X 1 Shank 3-Insert Indexable Chamering End Mill
Straight shank.

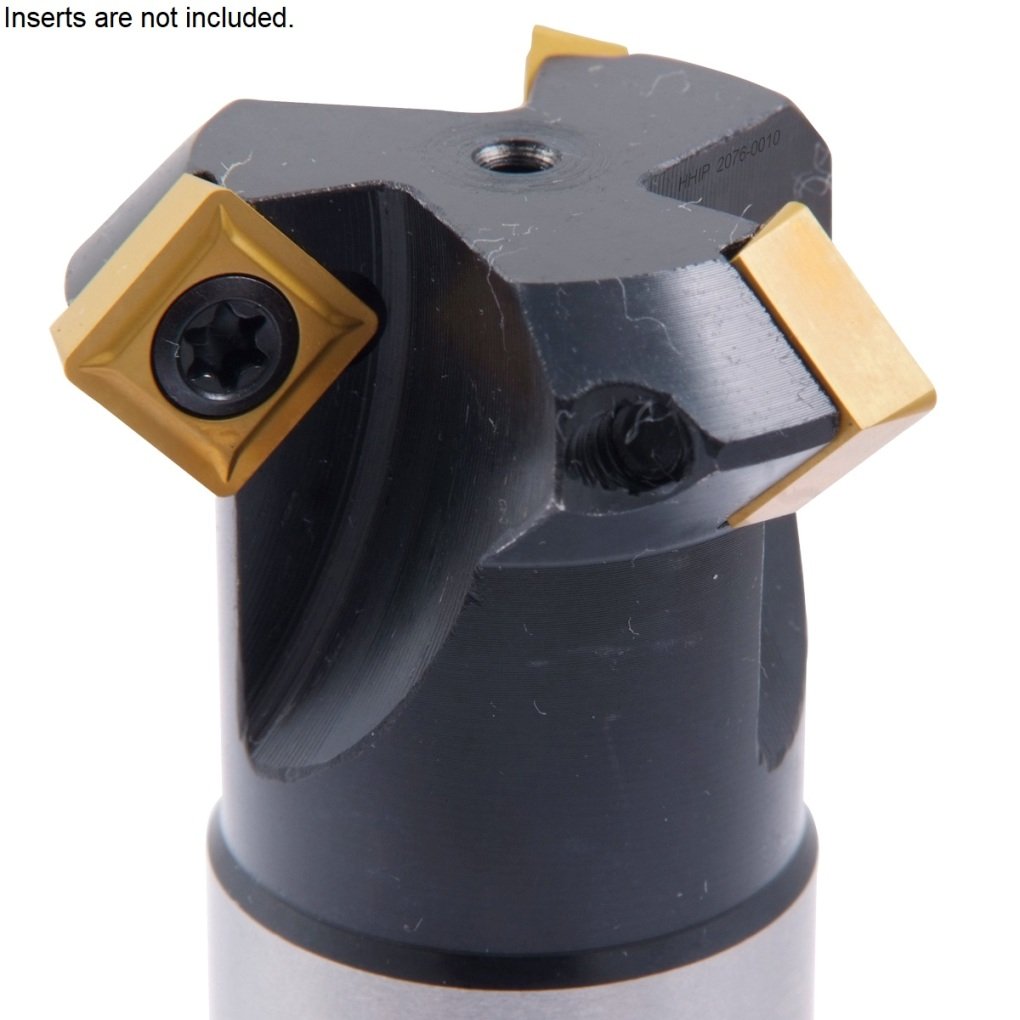

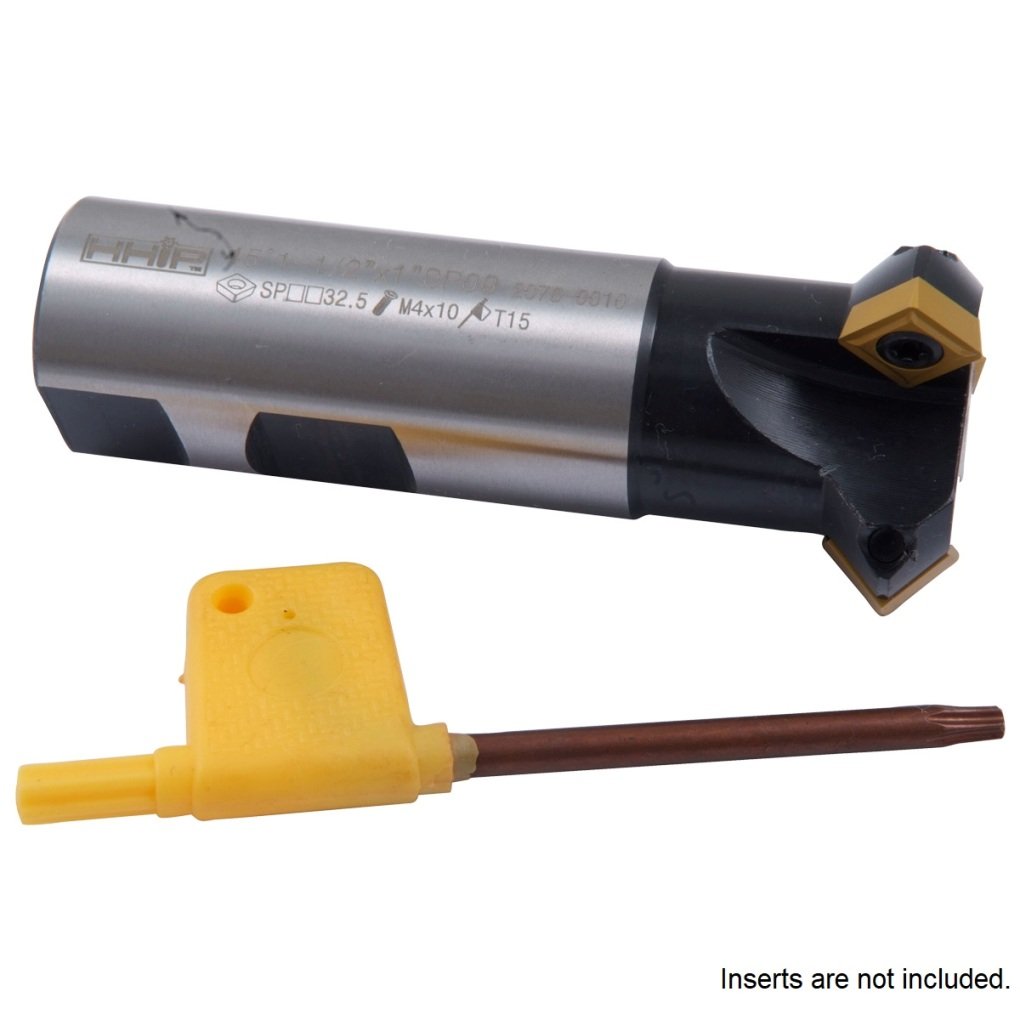

3 SPMT32 carbide inserts are not included.

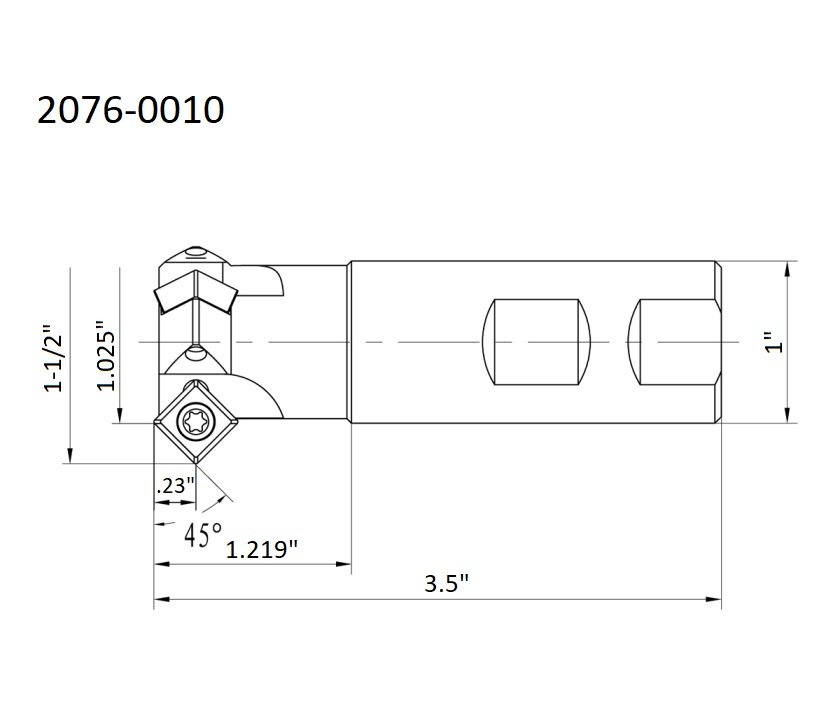

Minimum cutting diameter is 0.78″.
Overall length is 3.74″.
Cutting diameter is 0.23″.
Insert screw size is M4 X 8.
Used for chamfering and deburring on the top surface and the underside of the workpiece, can also be used for face milling of v-shaped slots
The inserts that fit this tool are our 6018-3251 for the SPMT 32.51 TiN Coated or 6018-3252 for the SPMT 32.52 TiN Coated.







Weight 6 lbs
Brand

Unbranded

UPC

769053089409

MPN

2076-0010
