5-1/2 X 12″ COMPOUND SLIDE TABLE (3900-0027)

5-1/2 X 12″ COMPOUND SLIDE TABLE (3900-0027) (SKU: 3900-0027)

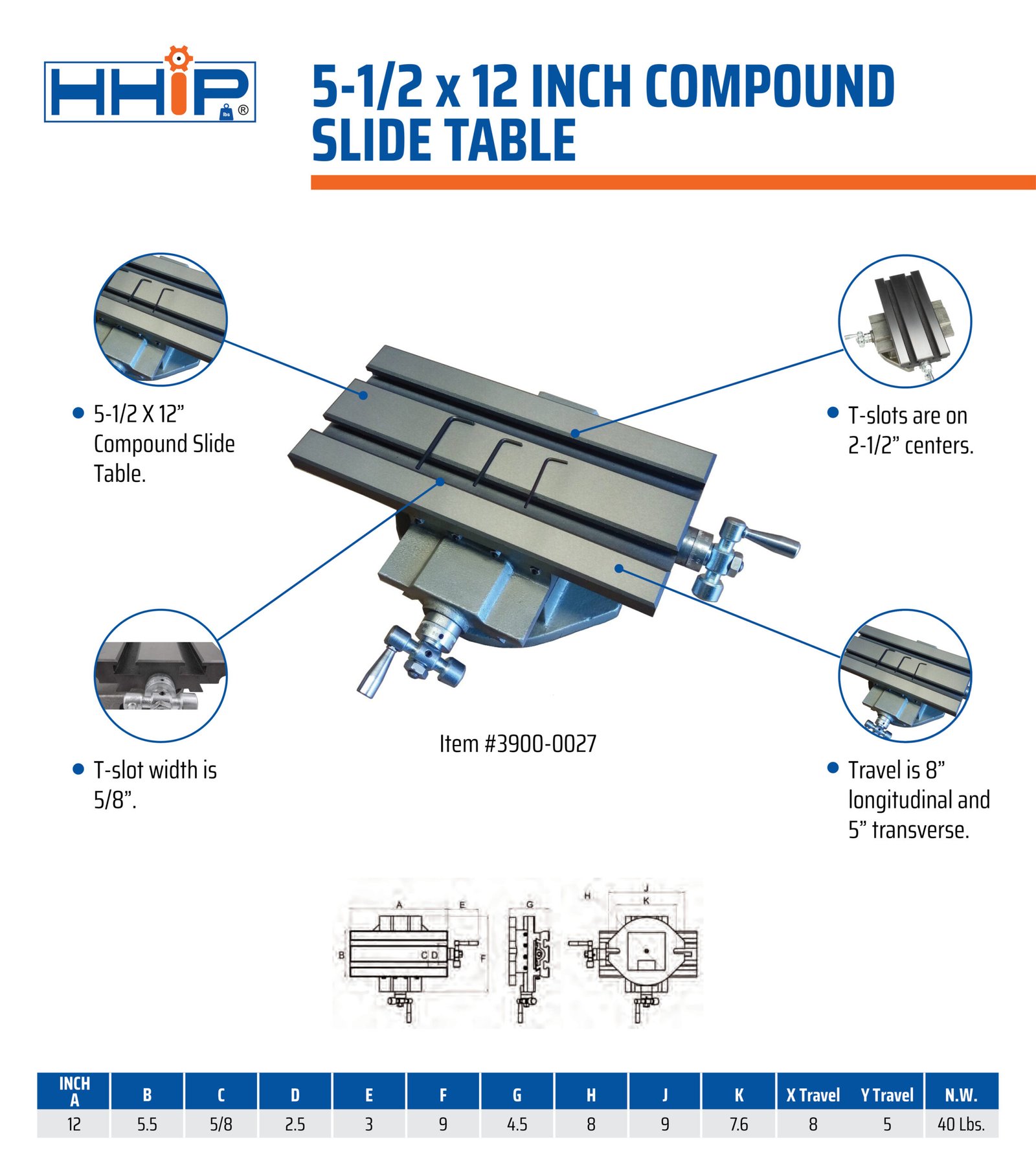

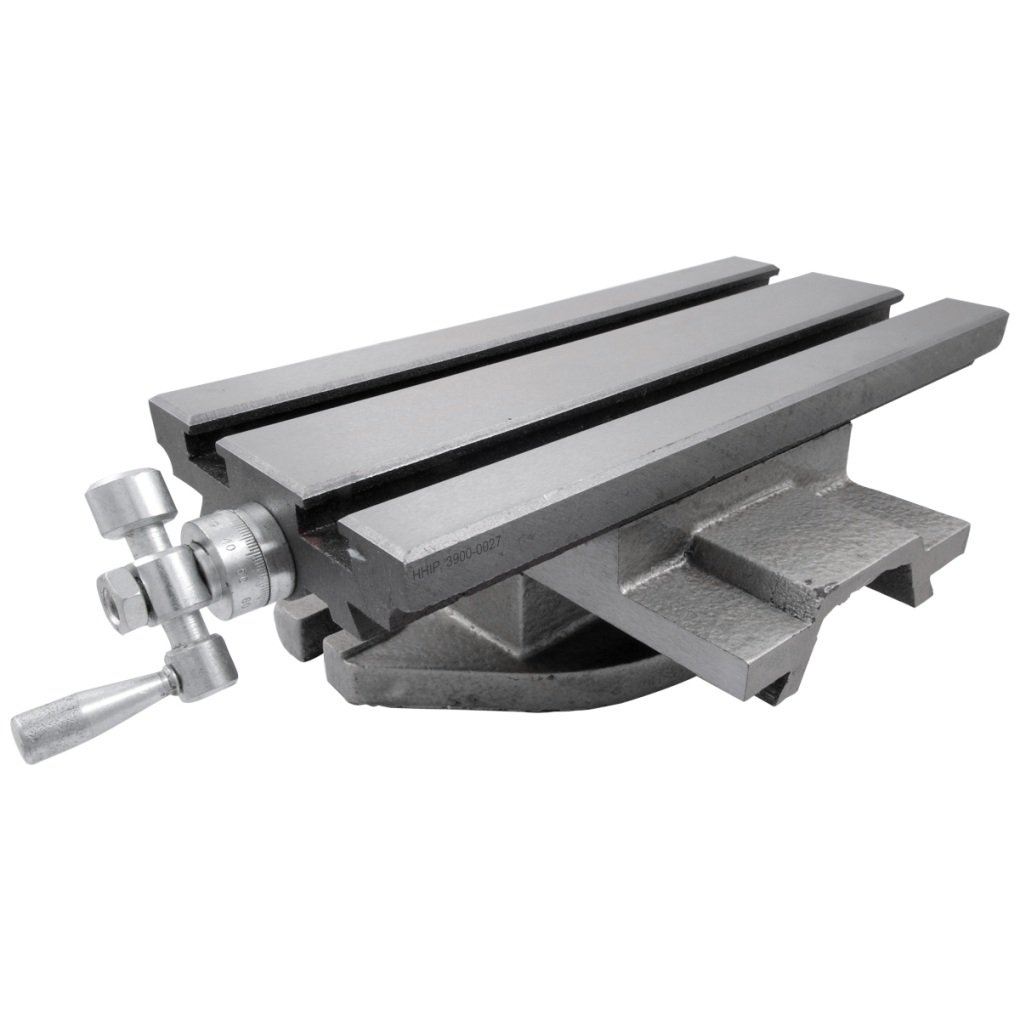

5-1/2 X 12″ Compound Slide Table

• A heavy, rugged slide used in positioning, milling, drilling, microscope viewing and staging
• Adjustable base for heavy loads, small jig boring, and precision cut-off operations

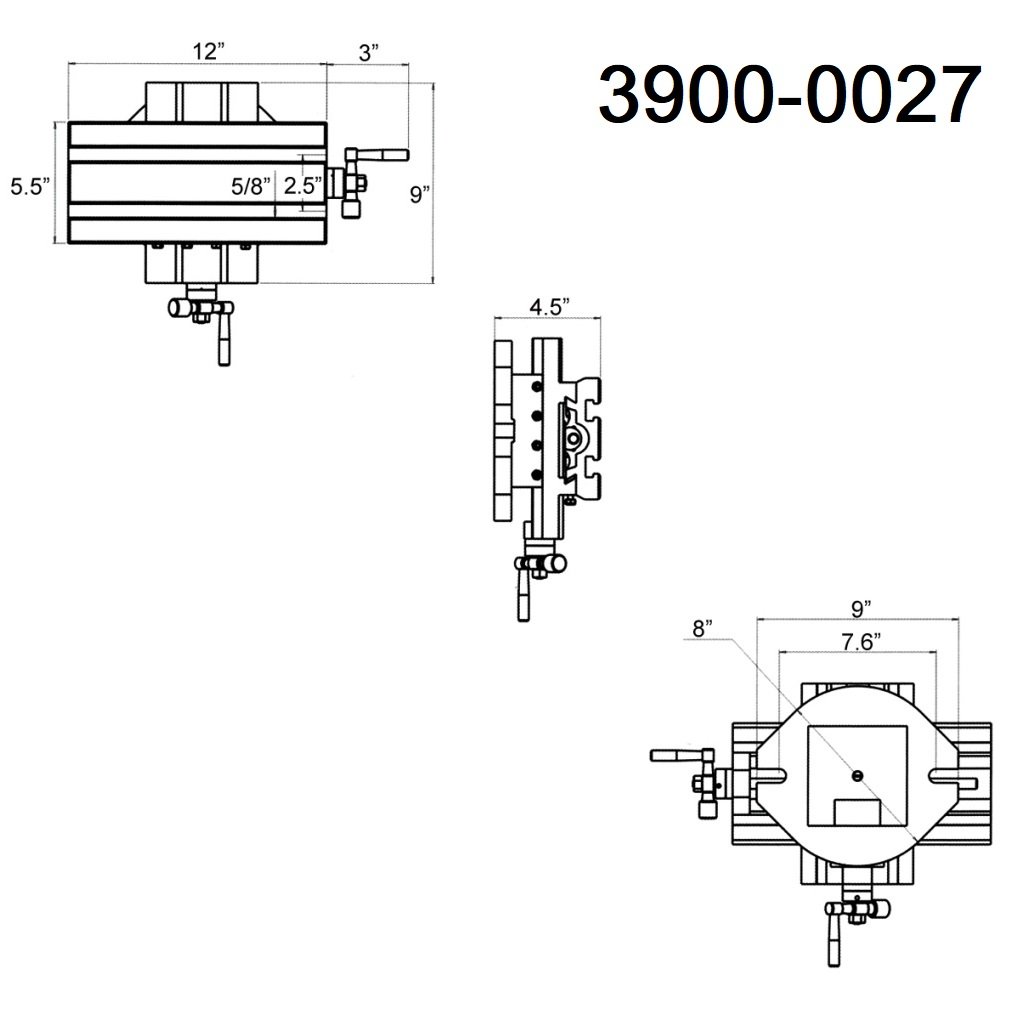

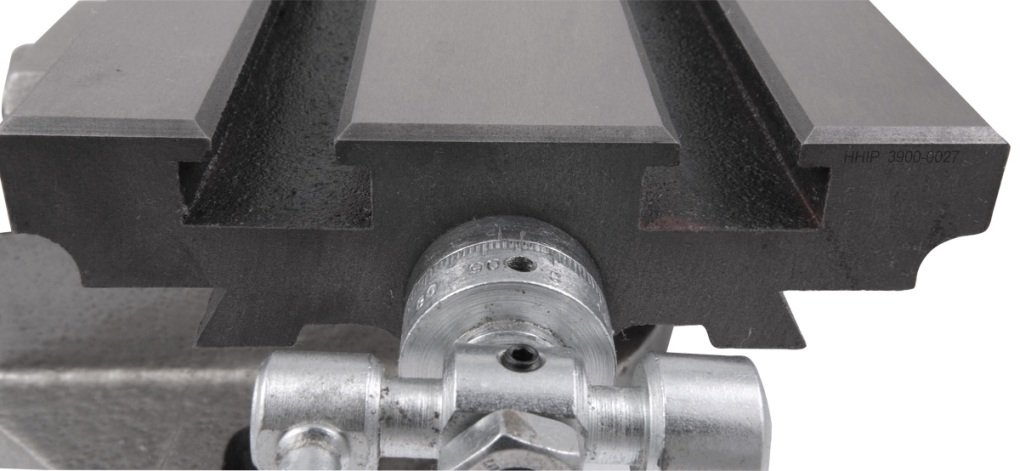

• T-slot width is 5/8″
• T-slots are on 2-1/2″ centers
• Overall height is 4-1/2″
• Travel is 8″ longitudinal and 5″ transverse

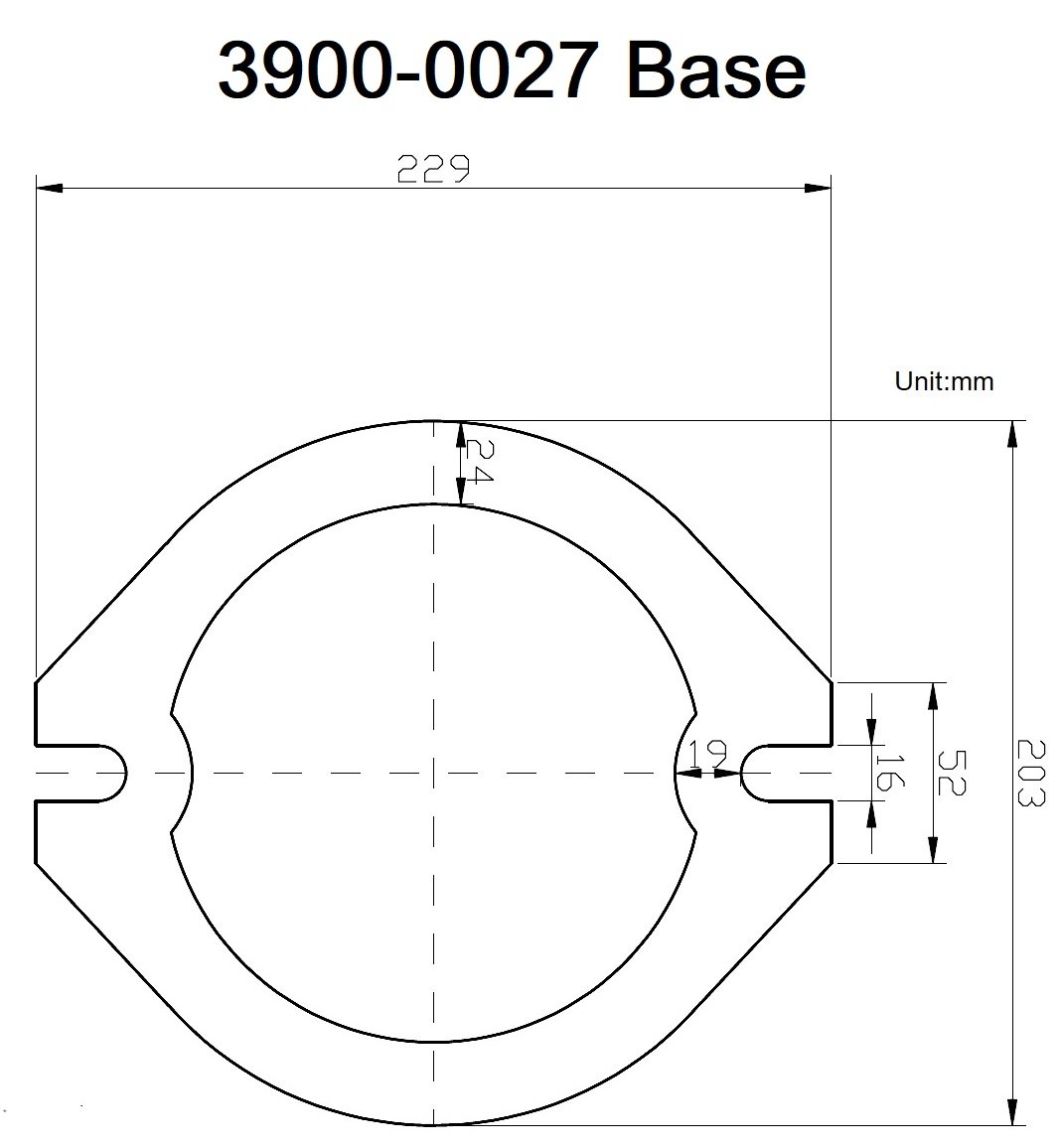

• The base is an 8 X 9″ oval with u-slots for up to 5/8″ bolts on a 7-3/4″ to 8-1/2″ bolt circle
• Maximum moving is 9-3/4″

Specifications

• 5-1/2 X 12″ Compound Slide Table
• A heavy, rugged slide used in positioning, milling, drilling, microscope viewing and staging.
• Adjustable base for heavy loads, small jig boring, and precision cut-off operations.
• T-slot width is 5/8″.
• T-slots are on 2-1/2″ centers.
• Overall height is 4-1/2″.
• Travel is 8″ longitudinal and 5″ transverse.
• The base is an 8 X 9″ oval with u-slots for up to 5/8″ bolts on a 7-3/4″ to 8-1/2″ bolt circle.
• Maximum moving is 9-3/4″.
• Weight: 37
• Dimensions: L 13, W 6, H 16

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
