125 X 100MM VERTICAL SLIDE TABLE (3906-2720)

125 X 100MM VERTICAL SLIDE TABLE (3906-2720) (SKU: 3906-2720)

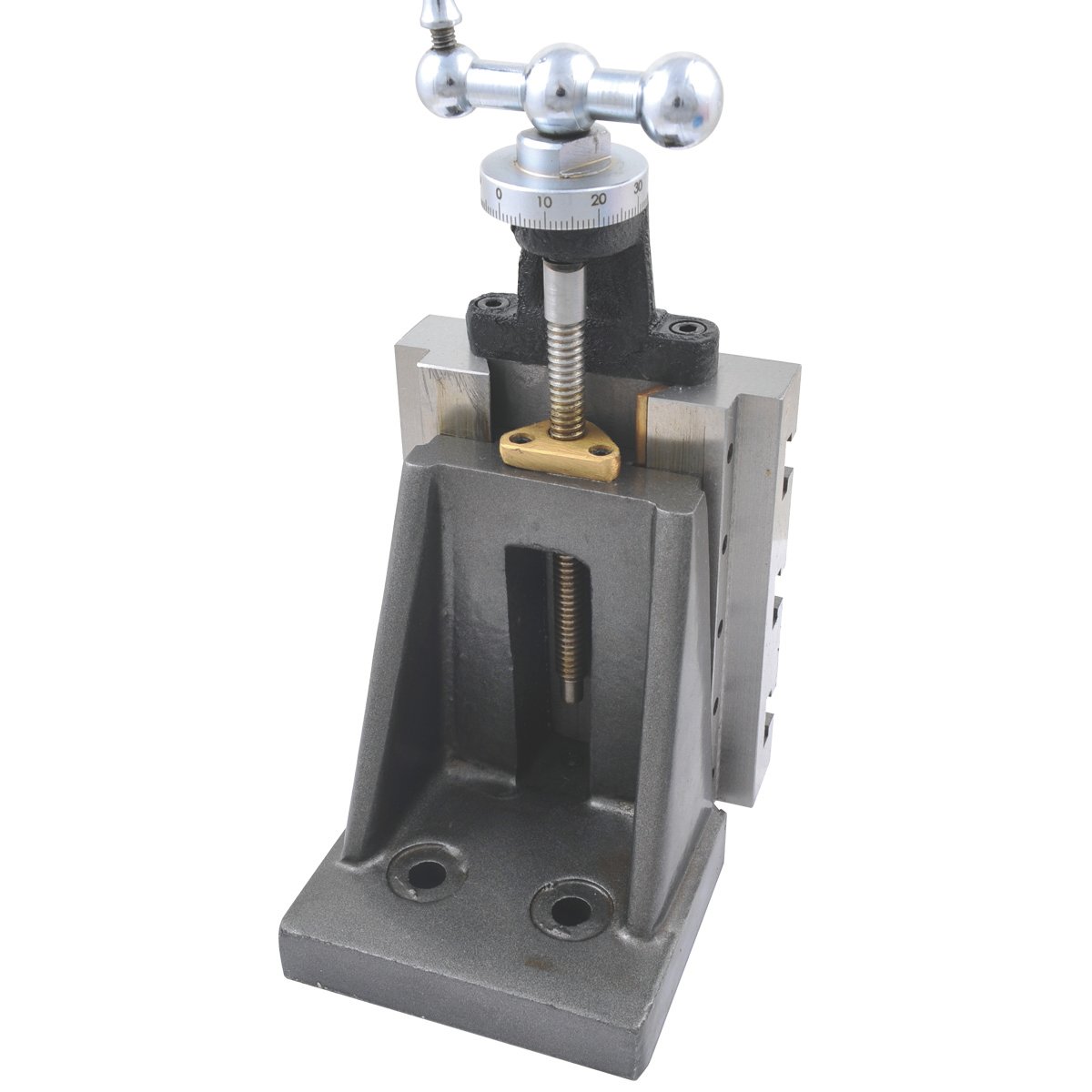

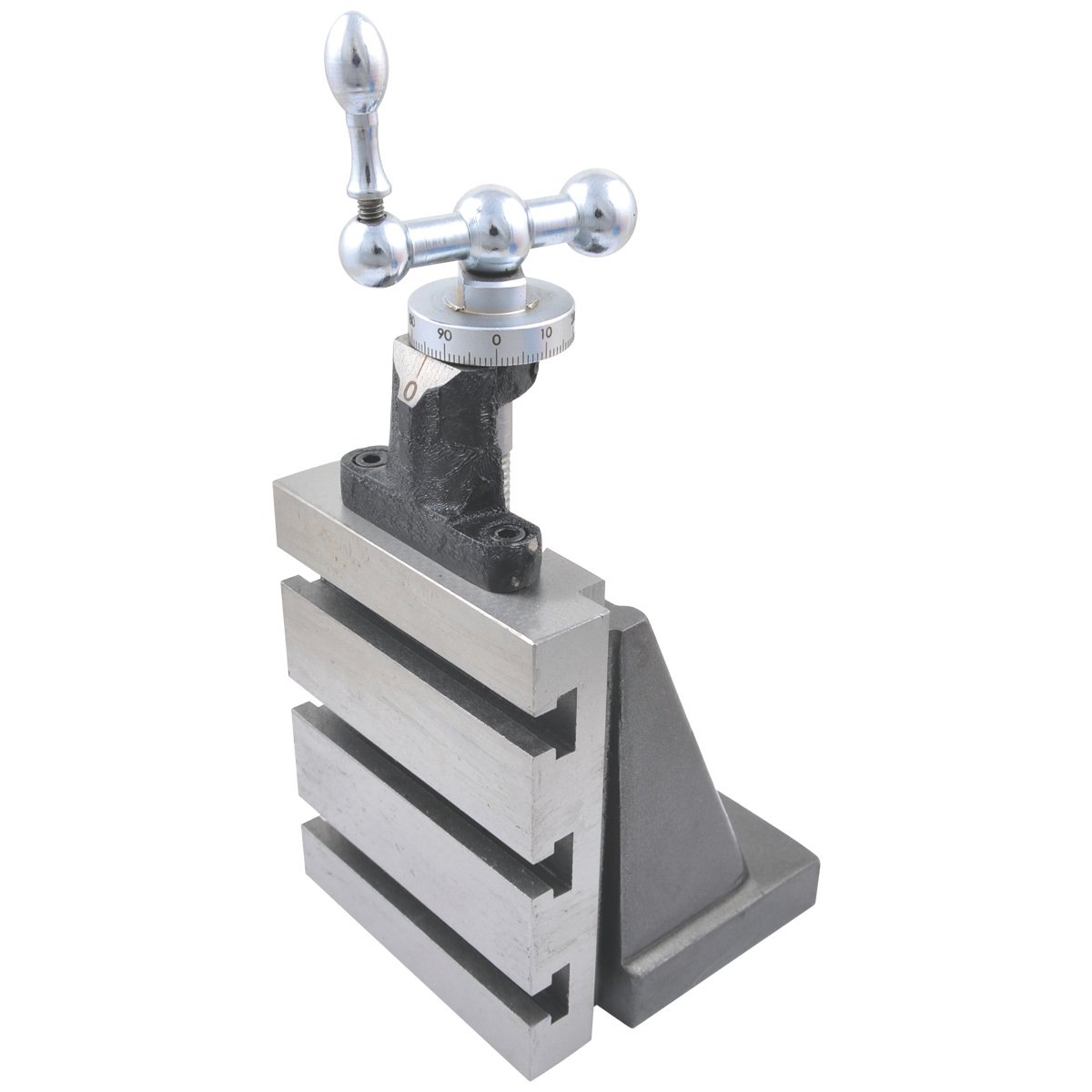

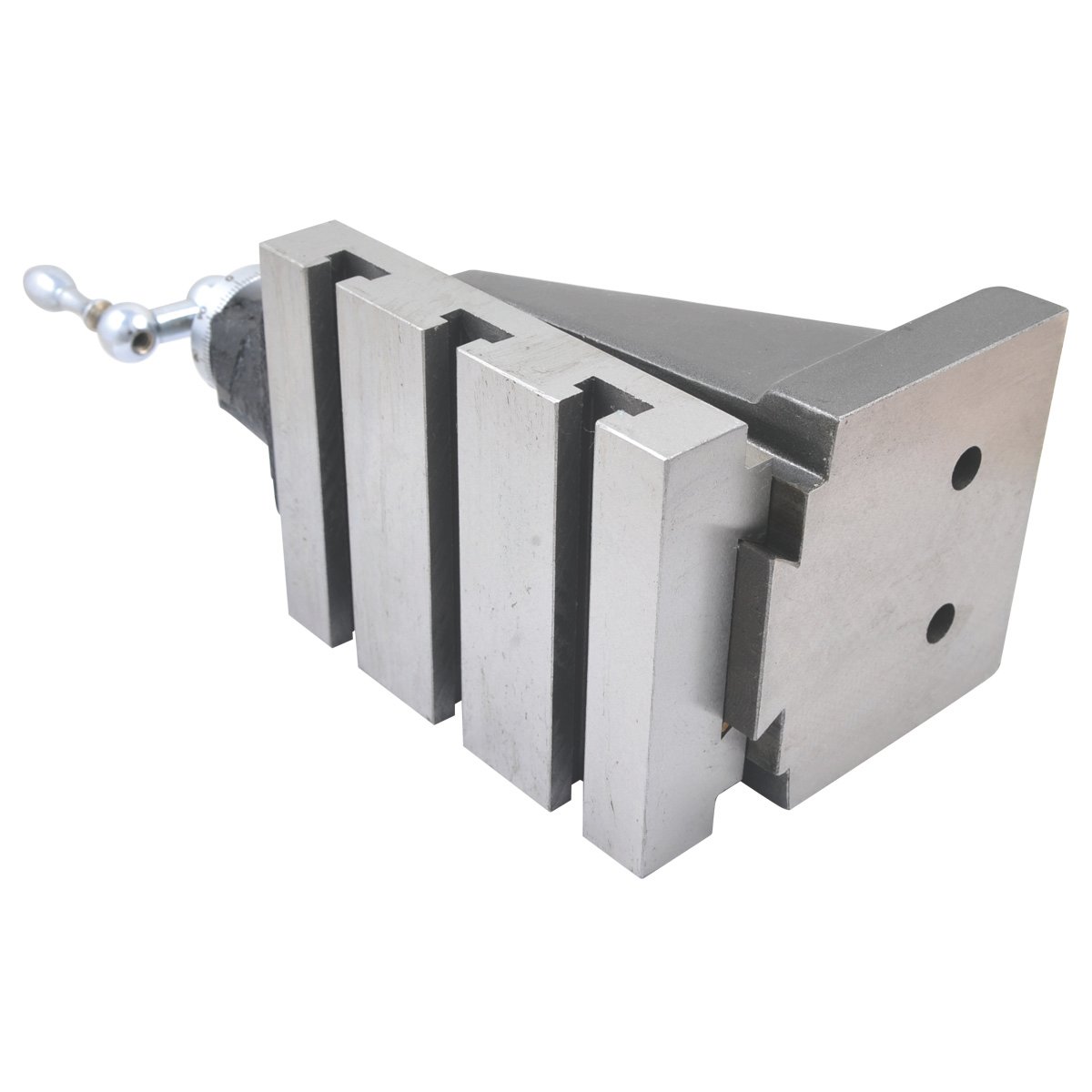

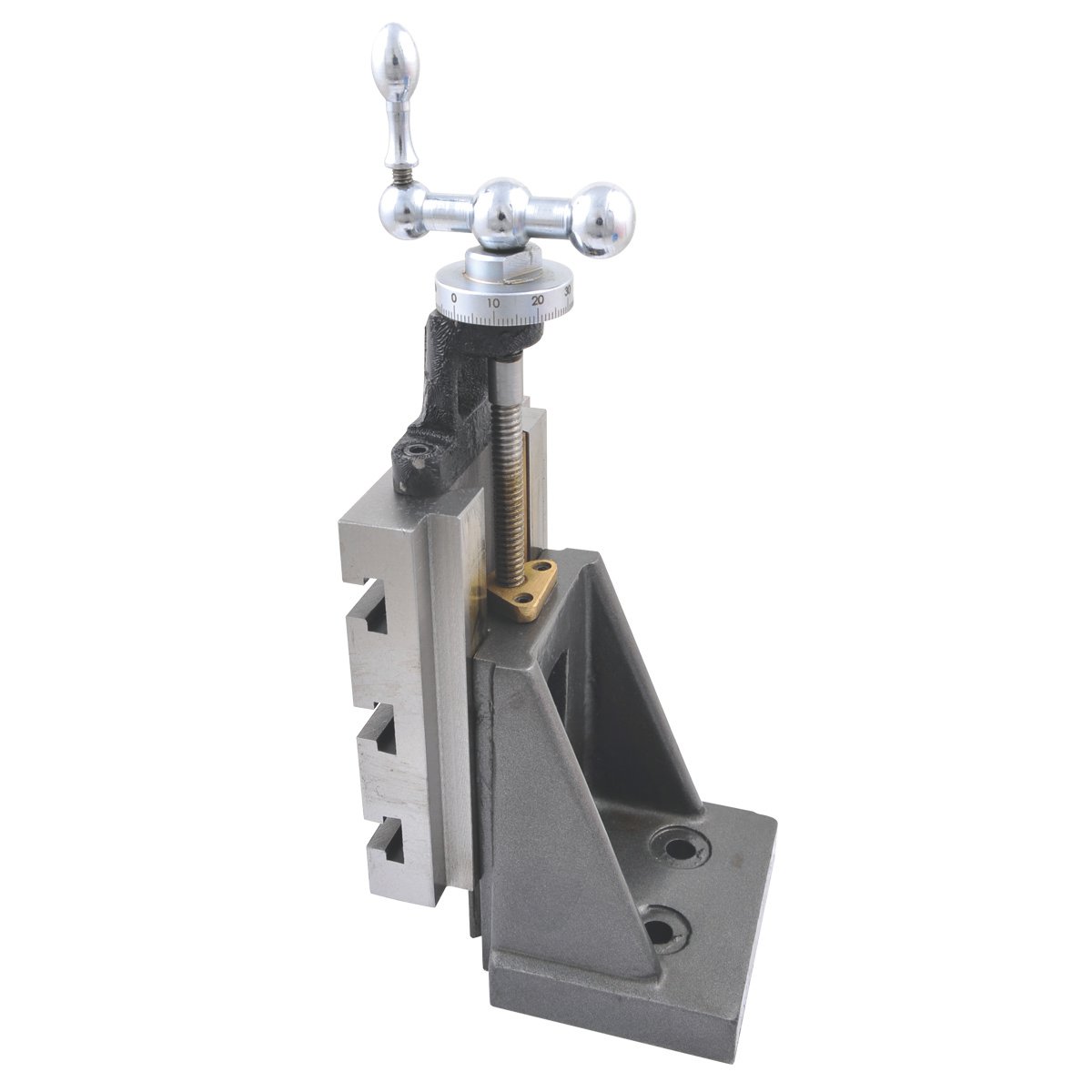

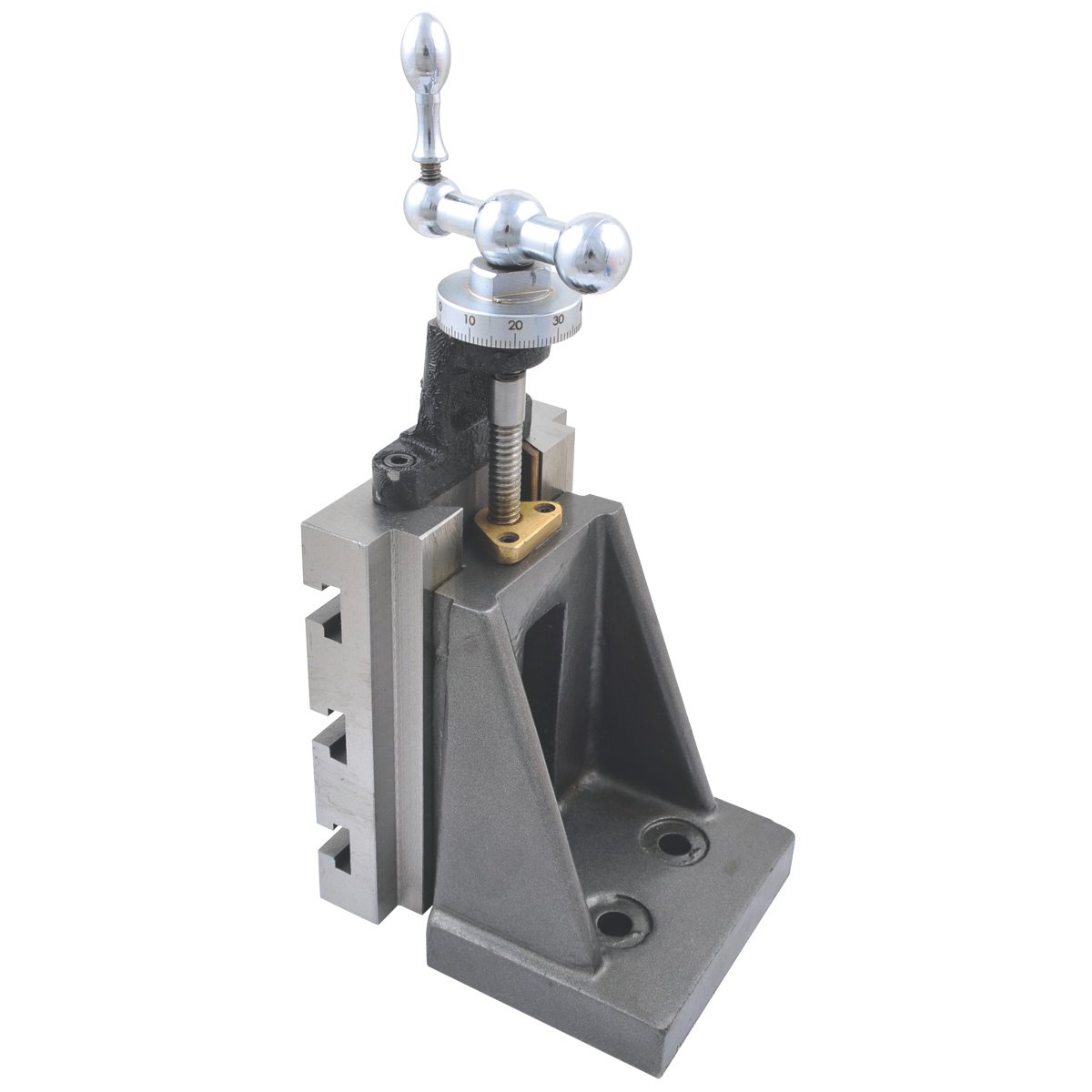

125 X 100mm Vertical Slide Table

• 80mm up and down travel distance
• Solid cast iron construction
• 3 t-slots
• Easy to bolt on a mill table with 2 bolt holes (9mm/0.354″ diameter)
• T- Slots are 9.8mm/0.386″ wide at the top of the T & 16.5mm/0.65″ wide at the bottom of the T
• Table size is 125 x 100mm/4.92 x 3.94″
• 11 lbs

Specifications

• 125 X 100mm Vertical Slide Table
• 80mm up and down travel distance.
• Solid cast iron construction.
• 3 t-slots.
• Easy to bolt on a mill table with 2 bolt holes (9mm/0.354″ diameter).
• T- Slots are 9.8mm/0.386″ wide at the top of the T & 16.5mm/0.65″ wide at the bottom of the T.
• Table size is 125 x 100mm/4.92 x 3.94″.
• 11 lbs.
• Weight: 10.3
• Dimensions: L 7, W 5, H 11

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
