5C HORIZONTAL & VERTICAL COLLET INDEXER (3903-1607)

5C HORIZONTAL & VERTICAL COLLET INDEXER (3903-1607) (SKU: 3903-1607)

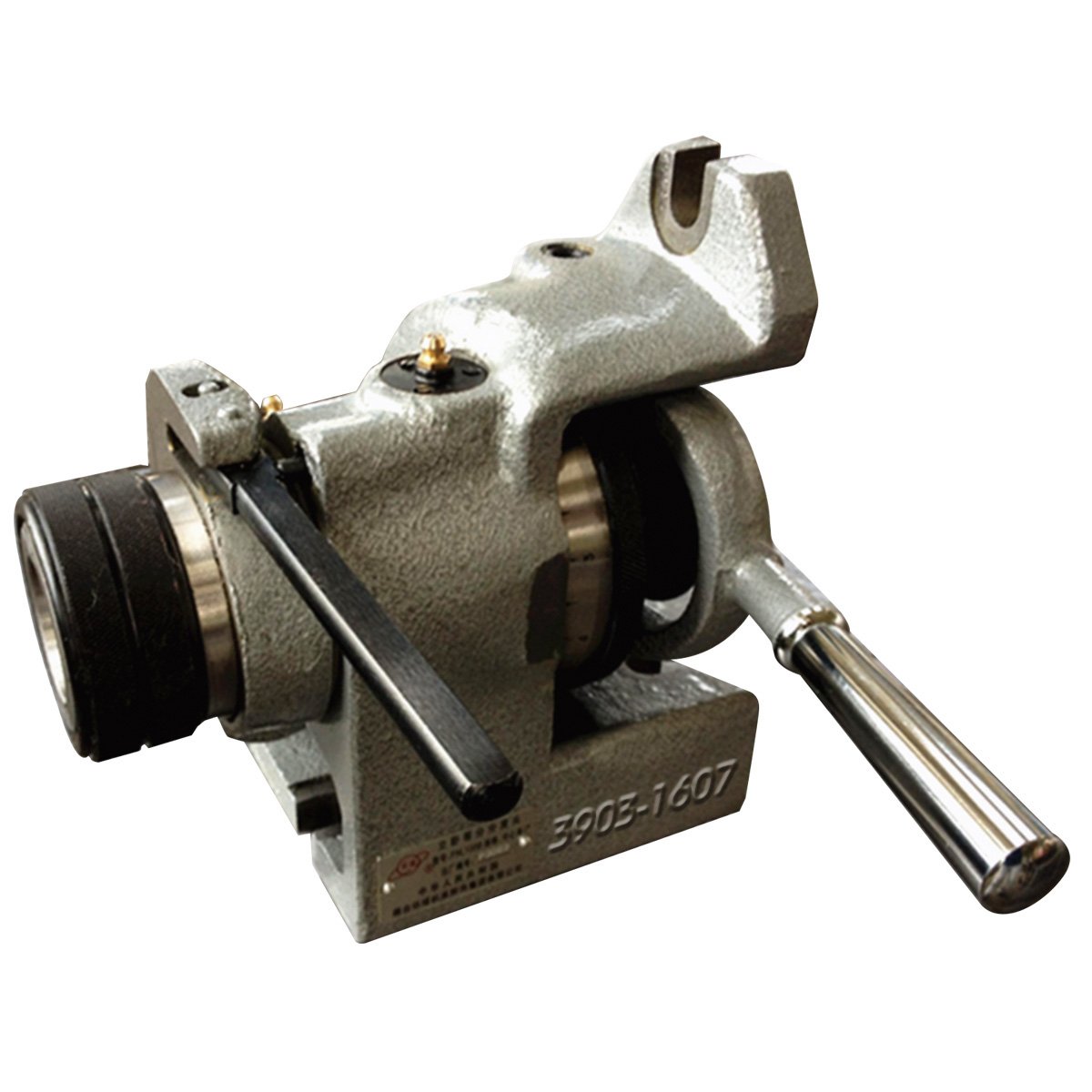

5C Horizontal & Vertical Collet Indexer

• 2 1/4″-8 TPI Threaded spindle is hardened and ground
• Spindle is manufactured with tapered seat in body frame
• Lever operated collet closer with 100:1 leverage ratio
• Front mounted ratchet control for rapid indexing
• Furnished with a 24 space indexing plate
• Single lever design
• Parts are interchangeable with Phase II
• Center height is 4″

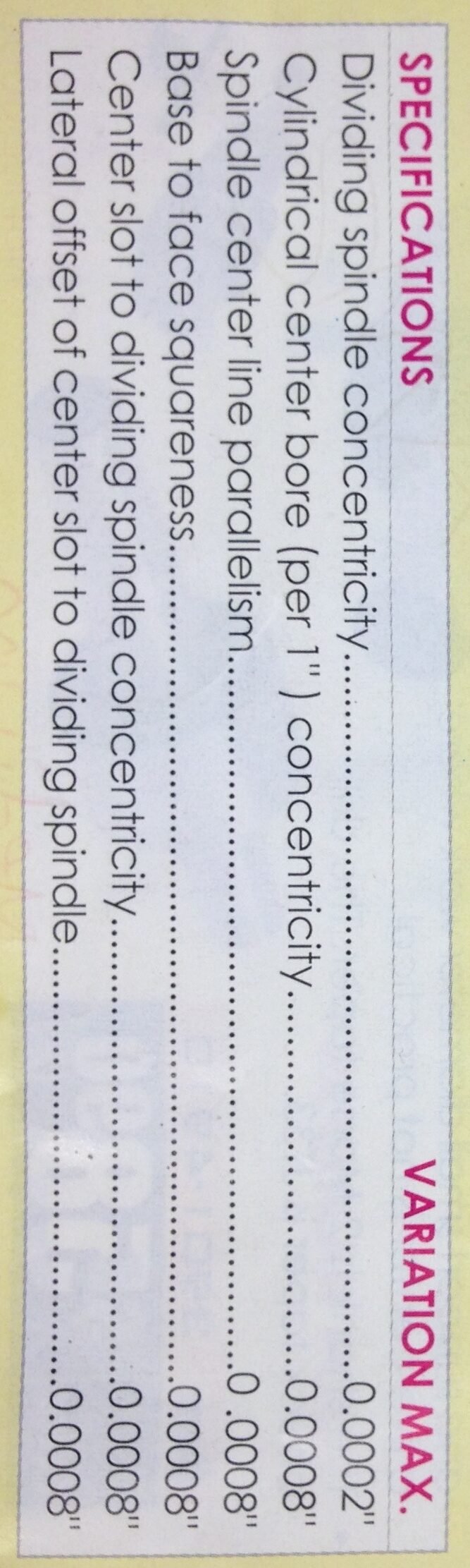

• Dividing spindle oncentricity is .0002″ maximum variation

Specifications

• 5C Horizontal & Vertical Collet Indexer
• 2 1/4″-8 TPI Threaded spindle is hardened and ground.
• Spindle is manufactured with tapered seat in body frame.
• Lever operated collet closer with 100:1 leverage ratio.
• Front mounted ratchet control for rapid indexing.
• Furnished with a 24 space indexing plate.
• Single lever design.
• Parts are interchangeable with Phase II.
• Center height is 4″.
• Dividing spindle oncentricity is .0002″ maximum variation.
• Weight: 35

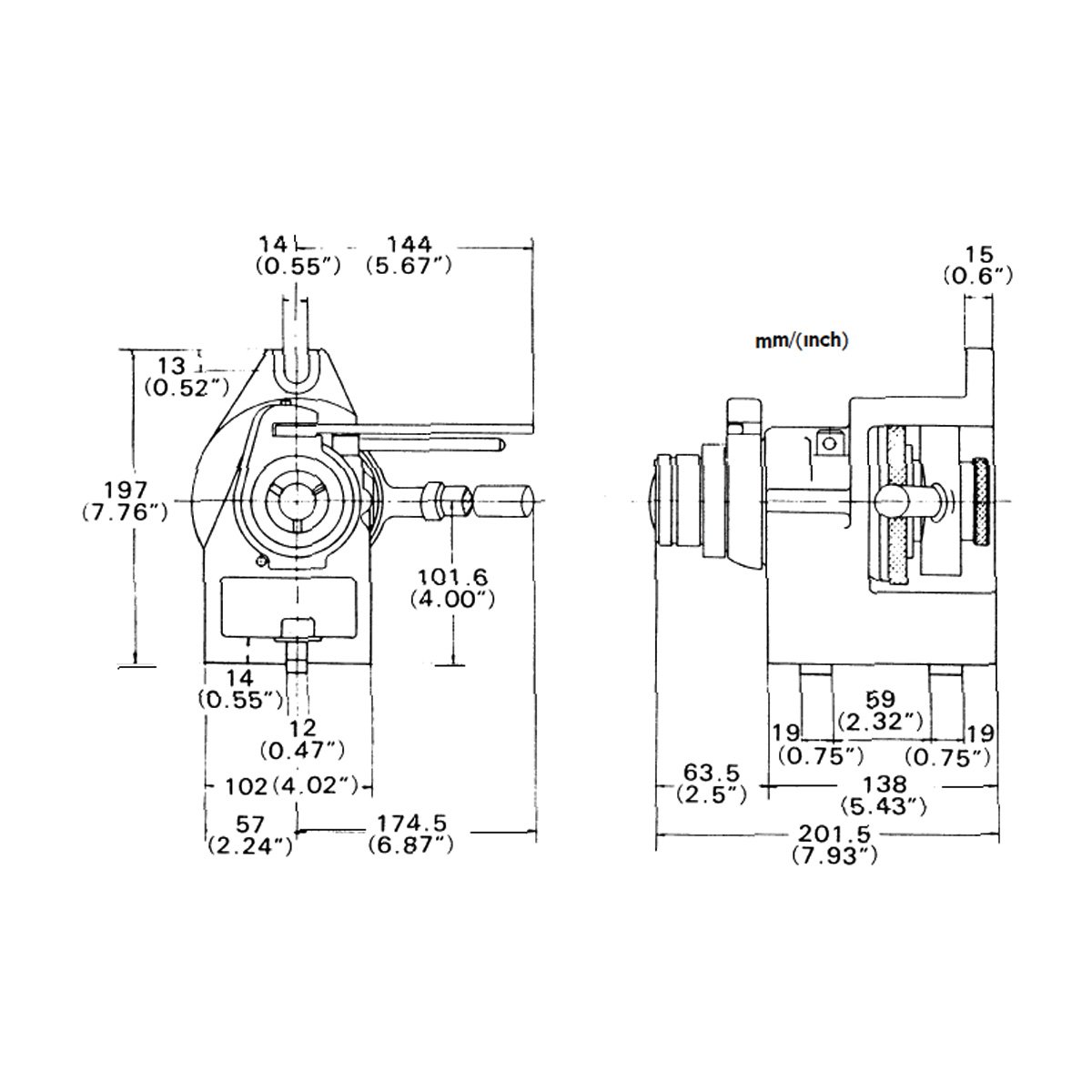

• Dimensions: L 10, W 14, H 10

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
