5C INDEXING SPIN JIG (3900-1604)

5C INDEXING SPIN JIG (3900-1604) (SKU: 3900-1604)

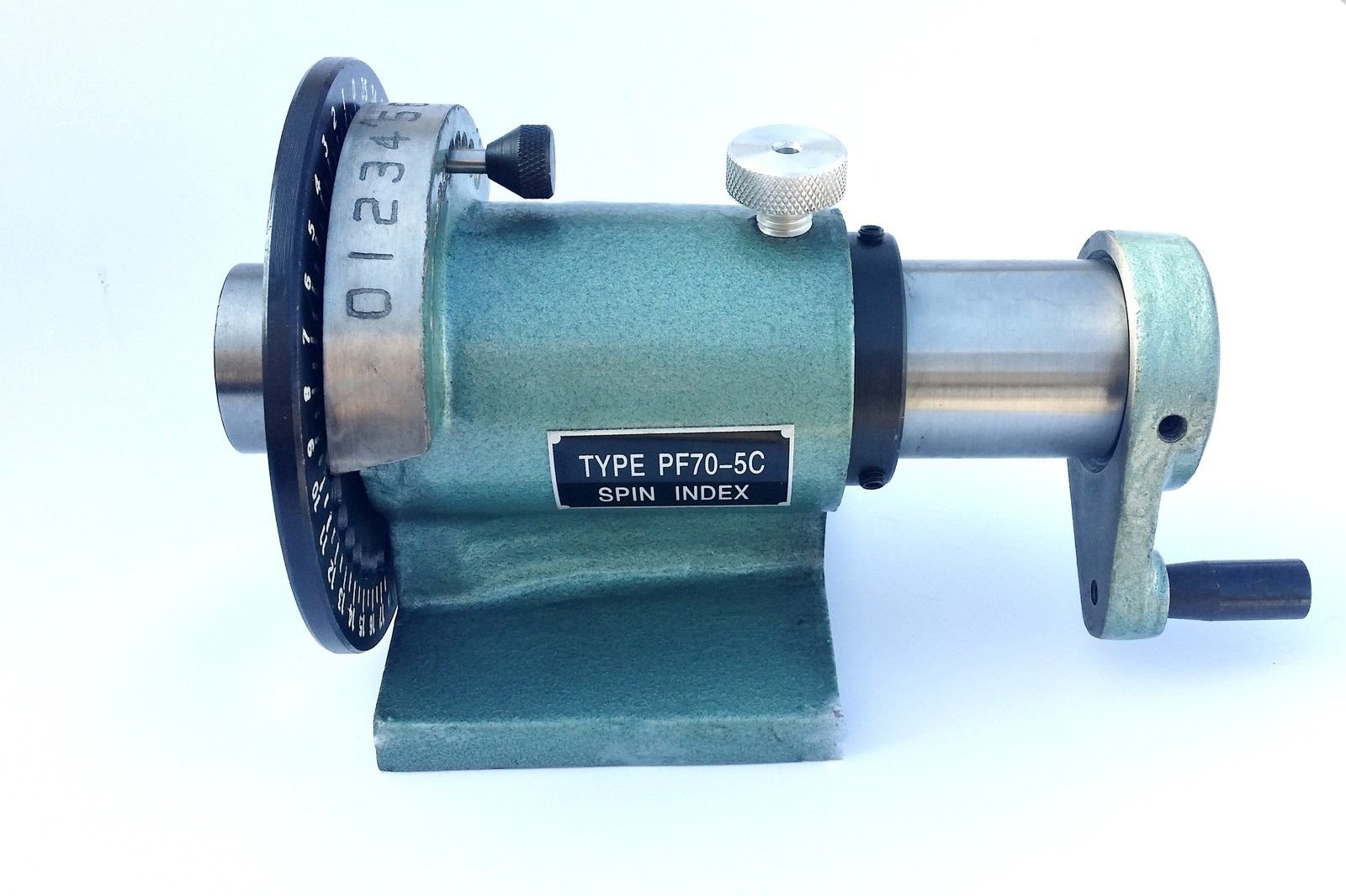

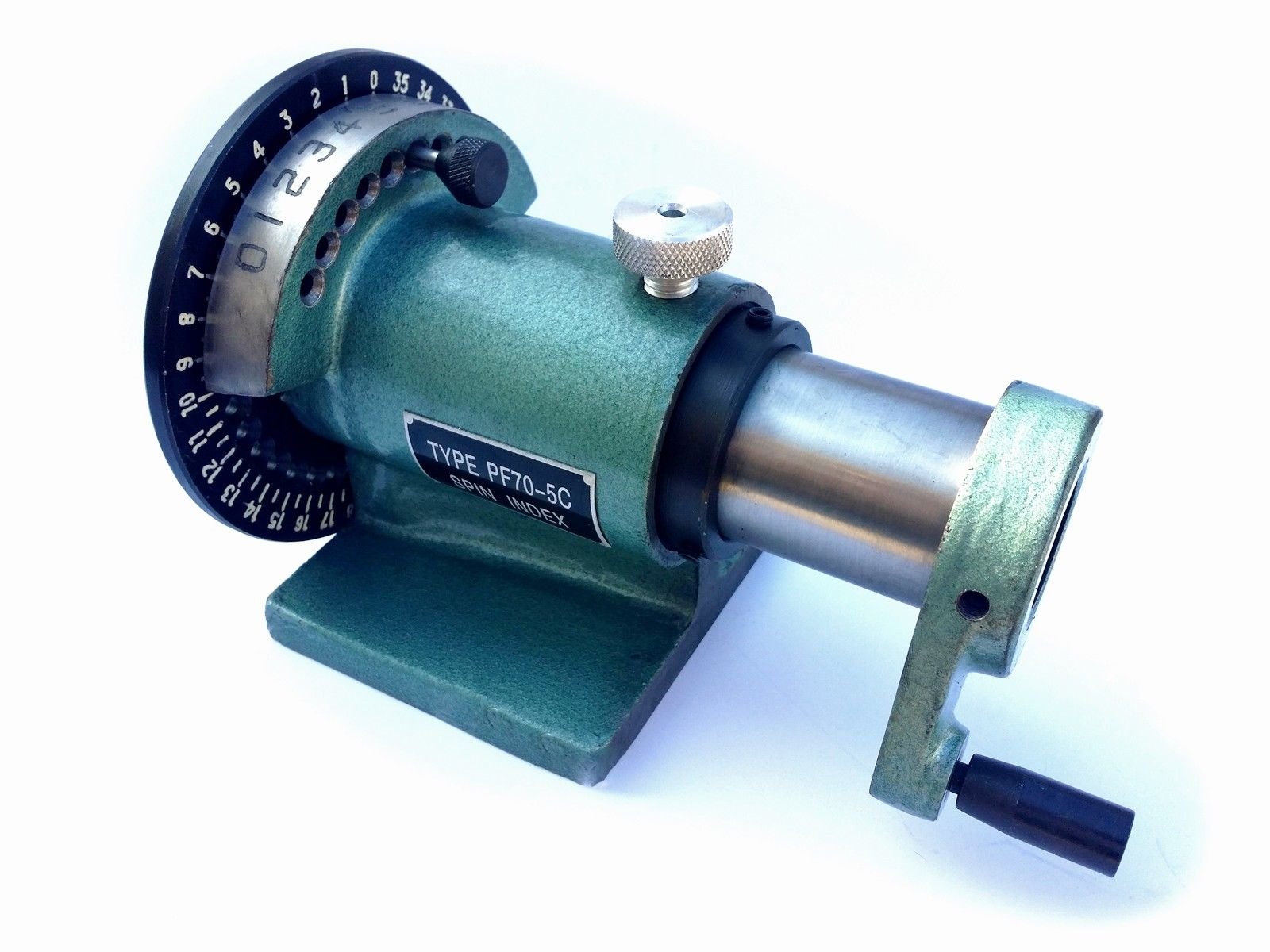

5C Indexing Spin Jig

• Uses standard 5C collets to 1-1/8″
• Indexing fixture is intended for use on milling machines, grinders and inspection equipment
• Hardened and ground spindle
• 0.0004 T.I.R. spindle accuracy
• Direct indexing in 10 steps
• Graduated in 5° increments
• Precision ground indexing plate

Specifications

• 5C Indexing Spin Jig
• Uses standard 5C collets to 1-1/8″.
• Indexing fixture is intended for use on milling machines, grinders and inspection equipment.
• Hardened and ground spindle.
• 0.0004 T.I.R. spindle accuracy.
• Direct indexing in 10 steps.
• Graduated in 5° increments.
• Precision ground indexing plate.
• Weight: 13.5

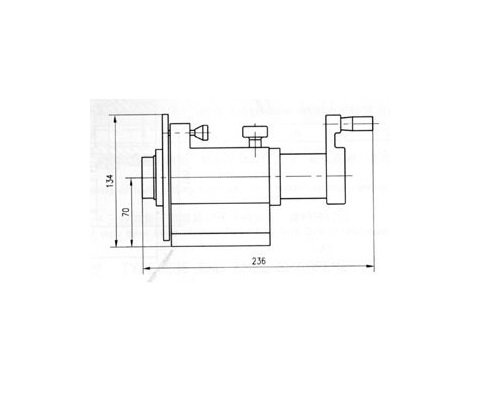

• Dimensions: L 8, W 12, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
