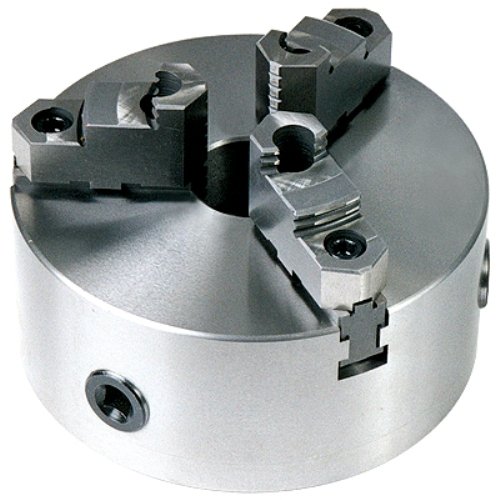

6″ D1-3 3-JAW CAMLOCK LATHE CHUCK (3900-4605)

6″ D1-3 3-JAW CAMLOCK LATHE CHUCK (3900-4605) (SKU: 3900-4605)

6″ D1-3 3-Jaw Camlock Lathe Chuck

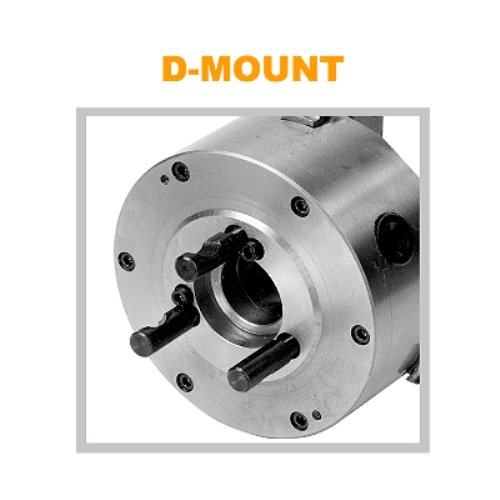

• Direct mounting chuck with camlock nose
• Body is made of high grade semi-steel
• 2 piece top jaws are reversible
• Self centering jaws that are hardened and precision ground
• Lathe chuck wrench is included
• Weight is 23 lbs
• 3 pieces of a 9/16″ diameter stud are included
• Maximum RPM is 2,500
• T.I.R. is .003″

Specifications

• 6″ D1-3 3-Jaw Camlock Lathe Chuck
• Direct mounting chuck with camlock nose.
• Body is made of high grade semi-steel.
• 2 piece top jaws are reversible.
• Self centering jaws that are hardened and precision ground.
• Lathe chuck wrench is included.
• Weight is 23 lbs.
• 3 pieces of a 9/16″ diameter stud are included.
• Maximum RPM is 2,500.
• T.I.R. is .003″.
• Weight: 28
• Dimensions: L 10, W 14, H 10

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
