6″ HORIZONTAL/VERTICAL ROTARY TABLE (3906-2306)

6″ HORIZONTAL/VERTICAL ROTARY TABLE (3906-2306) (SKU: 3906-2306)

6″ Horizontal/Vertical Rotary Table

• All rotary tables are precision ground
• Low profile design
• Worm gear is easily disengaged for free rotation

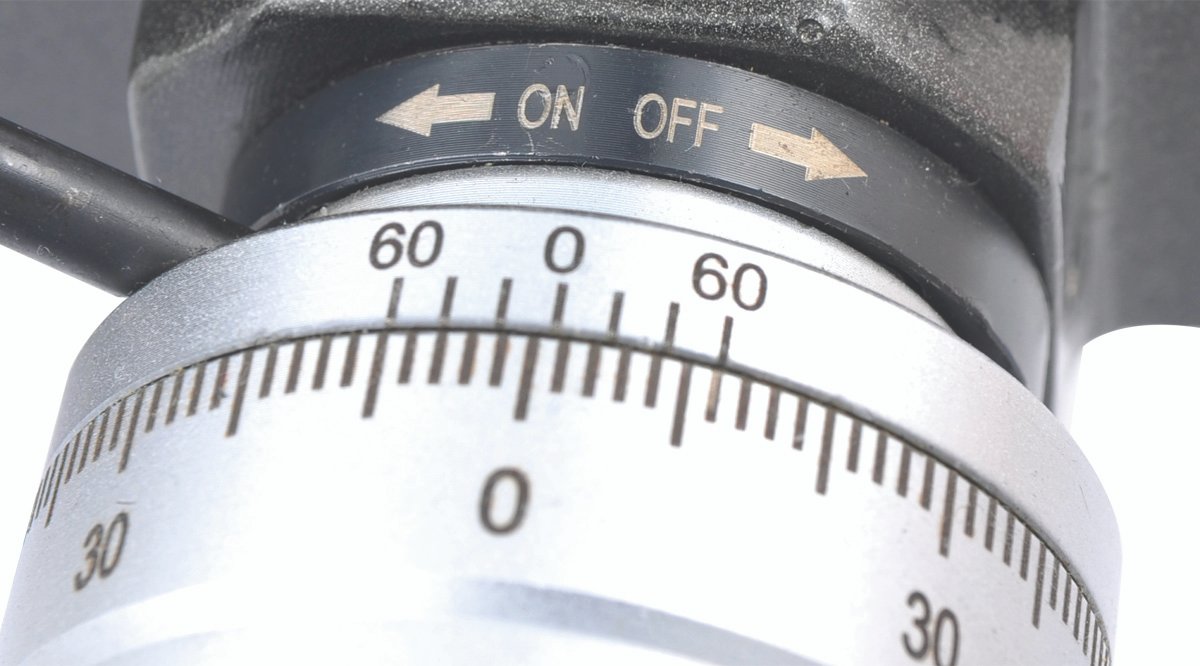

• 10 second vernier reading

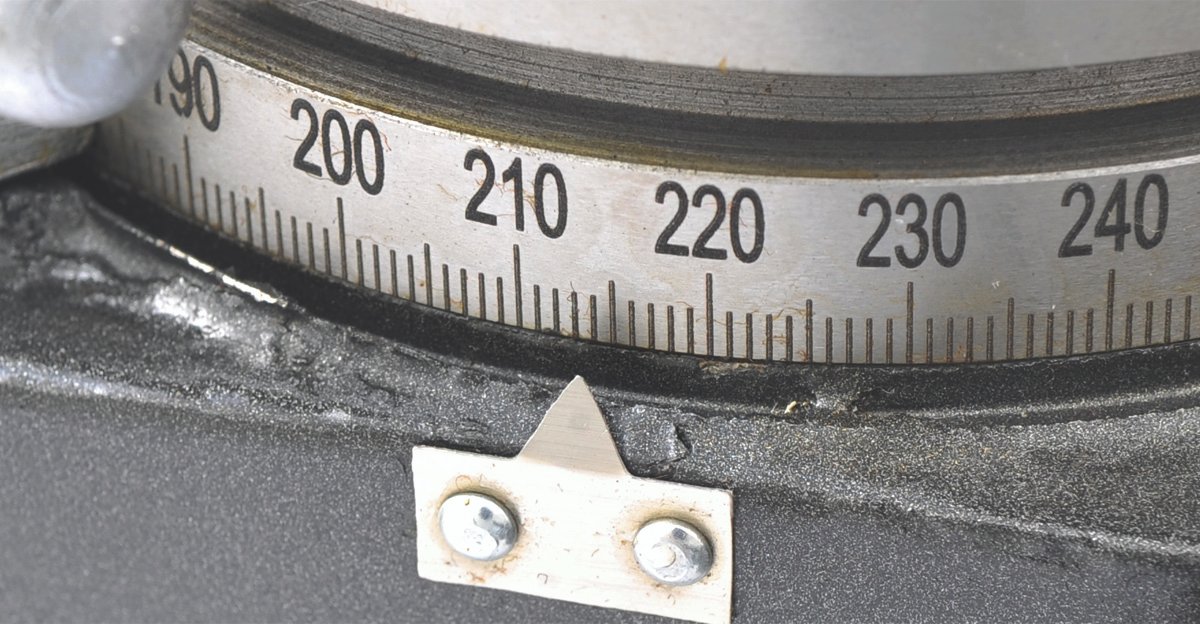

• Graduated 360 degrees
• All rotary table parts are strategically positioned for easy access
• The one piece worm and shaft are hobbed from a solid alloy steel
• Center hole is 2MT
• Vertical center height is 4.02″
• Horizontal overall height is 3 1/4″
• 4 t-slots
• T-slot width is 0.63″
• 31 lbs

Specifications

• 6″ Horizontal/Vertical Rotary Table
• All rotary tables are precision ground.
• Low profile design.
• Worm gear is easily disengaged for free rotation.
• 10 second vernier reading.
• Graduated 360 degrees.
• All rotary table parts are strategically positioned for easy access.
• The one piece worm and shaft are hobbed from a solid alloy steel.
• Center hole is 2MT.
• Vertical center height is 4.02″
• Horizontal overall height is 3 1/4″.
• 4 t-slots.
• T-slot width is 0.63″.
• 31 lbs.
• Weight: 30.25
• Dimensions: L 10, W 6, H 12

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
