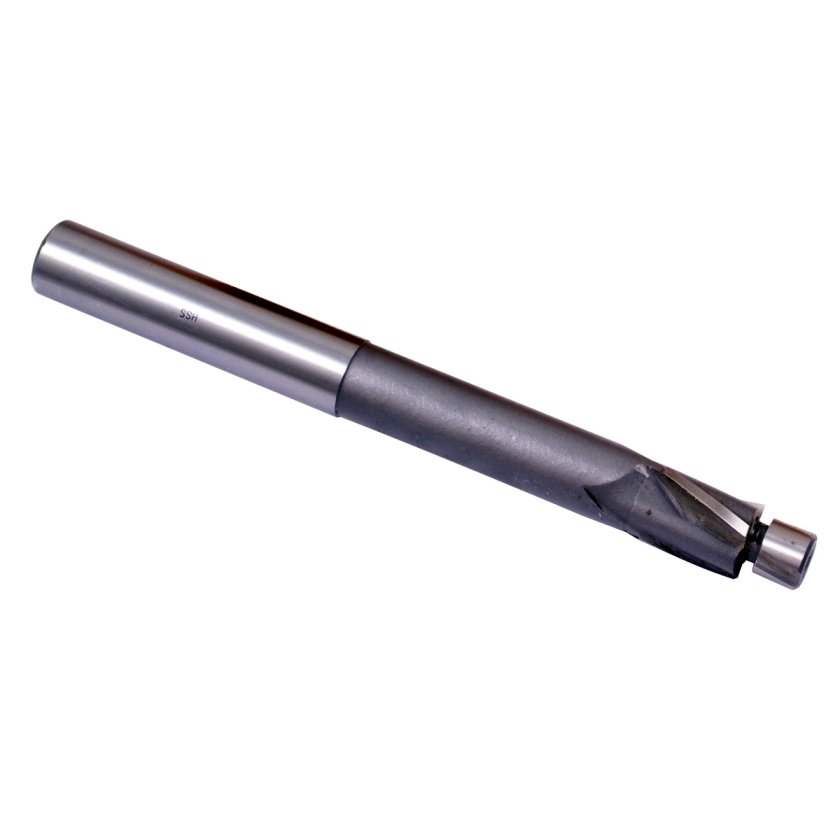

#6 X .150″ HIGH SPEED STEEL 3 FLUTE SOLID PILOT COUNTERBORE (2007-0006)

#6 X .150″ HIGH SPEED STEEL 3 FLUTE SOLID PILOT COUNTERBORE (2007-0006) (SKU: 2007-0006)

#6 X .150″ High Speed Steel 3 Flute Solid Pilot Counterbore

• Continuous pilot counterbores cut rapidly, smoothly and accurately, producing long spiraling chips rather than small metal particles
• The pilot extends the full length of the flute portion of the tool
• As cutter flutes are ground back due to wear, a new section of pilot becomes exposed
• The pilot head may be cut off to any desired length when repeated sharpening makes it too long for practical use
• Continuous pilot counterbores have a life many times that of the conventional type counterbore
• Cutter diameter is .242″
• Shank diameter is 7/32″
• Overall length is 3″
• Cap Screw is #6
• Pilot Diameter is .150″

Specifications

• #6 X .150″ High Speed Steel 3 Flute Solid Pilot Counterbore
• Cutter diameter is .242″.
• Shank diameter is 7/32″.
• Overall length is 3″.
• Continuous pilot counterbores cut rapidly, smoothly and accurately, producing long spiraling chips rather than small metal particles.
• The pilot extends the full length of the flute portion of the tool.
• As cutter flutes are ground back due to wear, a new section of pilot becomes exposed.
• The pilot head may be cut off to any desired length when repeated sharpening makes it too long for practical use.
• Continuous pilot counterbores have a life many times that of the conventional type counterbore.
• Cap Screw is #6.
• Pilot Diameter is .150″.
• Weight: 0.05
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
