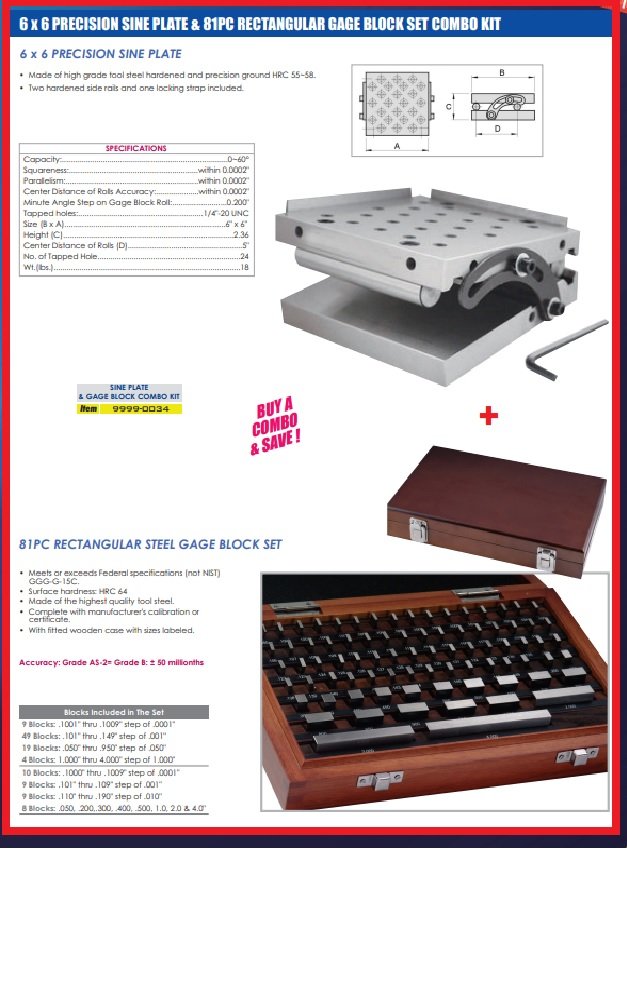

6 X 6″ SINE PLATE & 81 PIECE GAGE BLOCK SET (9999-0034)

6 X 6″ SINE PLATE & 81 PIECE GAGE BLOCK SET (9999-0034) (SKU: 9999-0034)

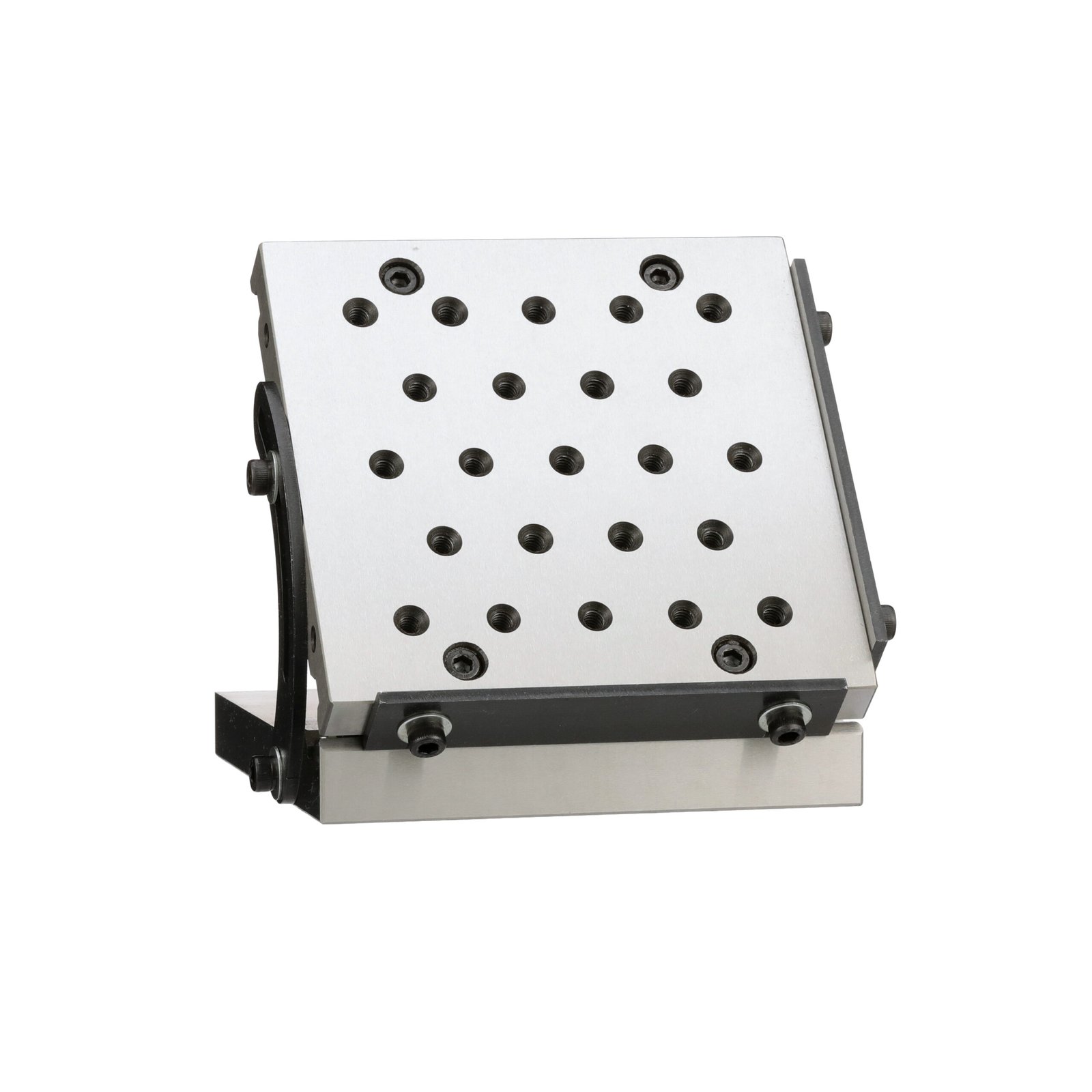

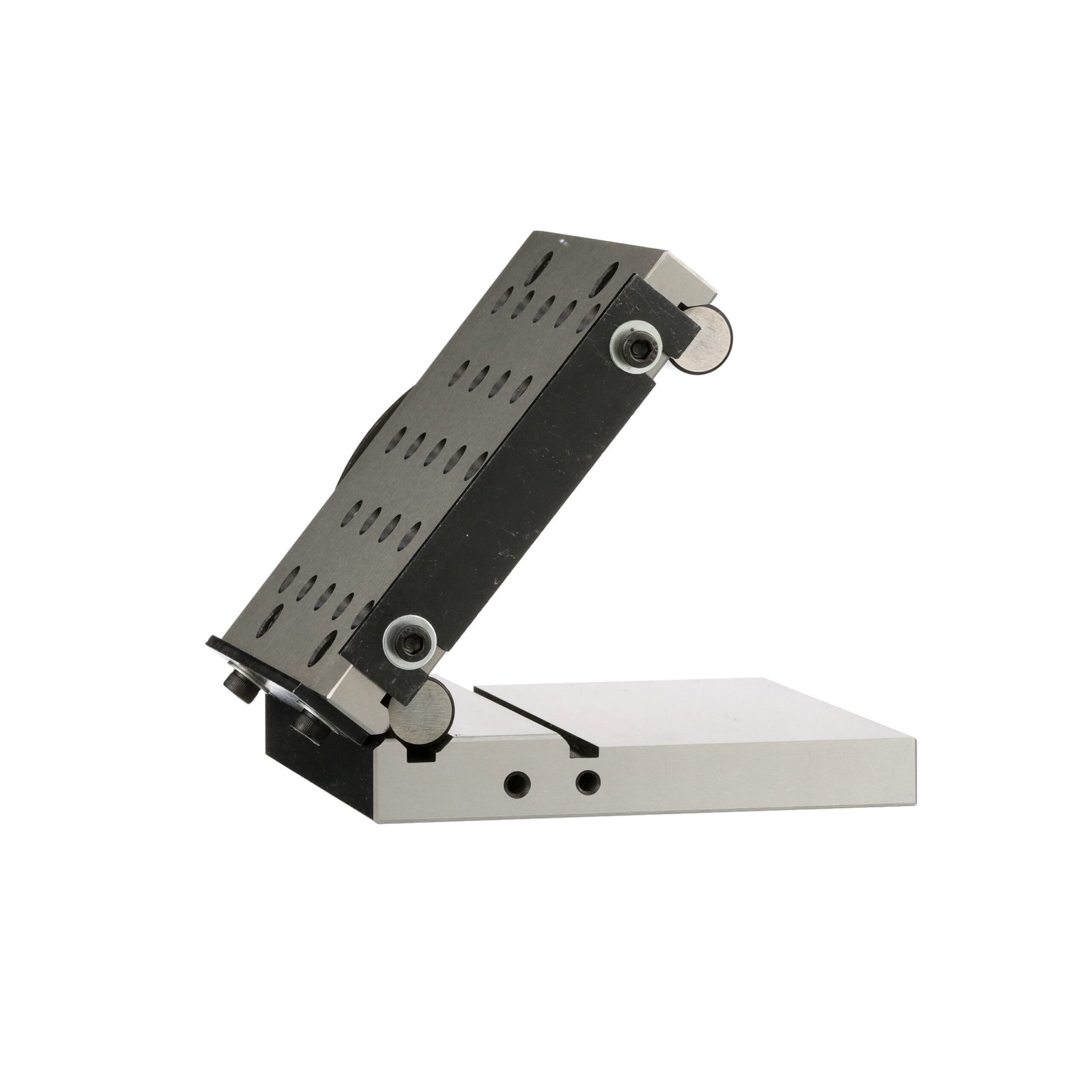

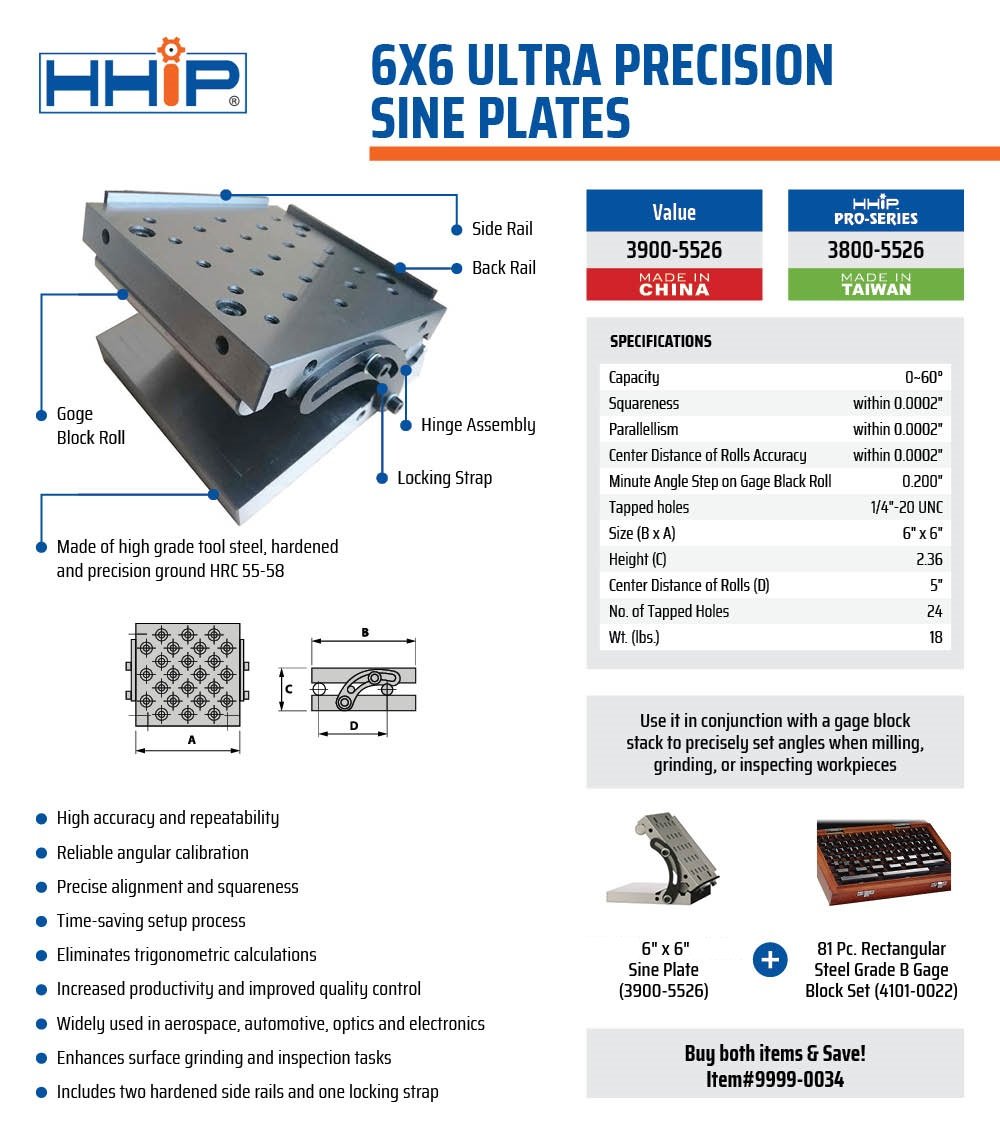

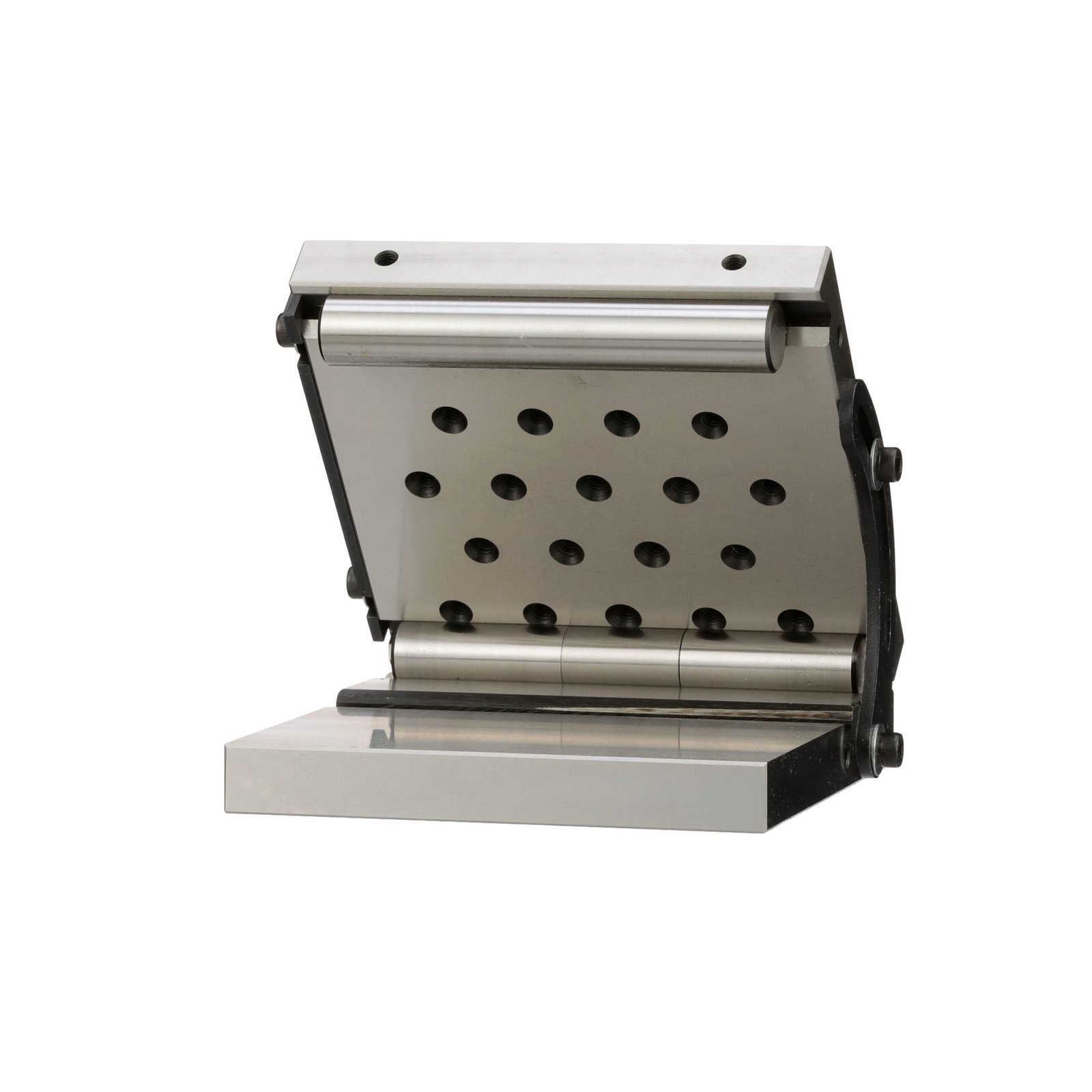

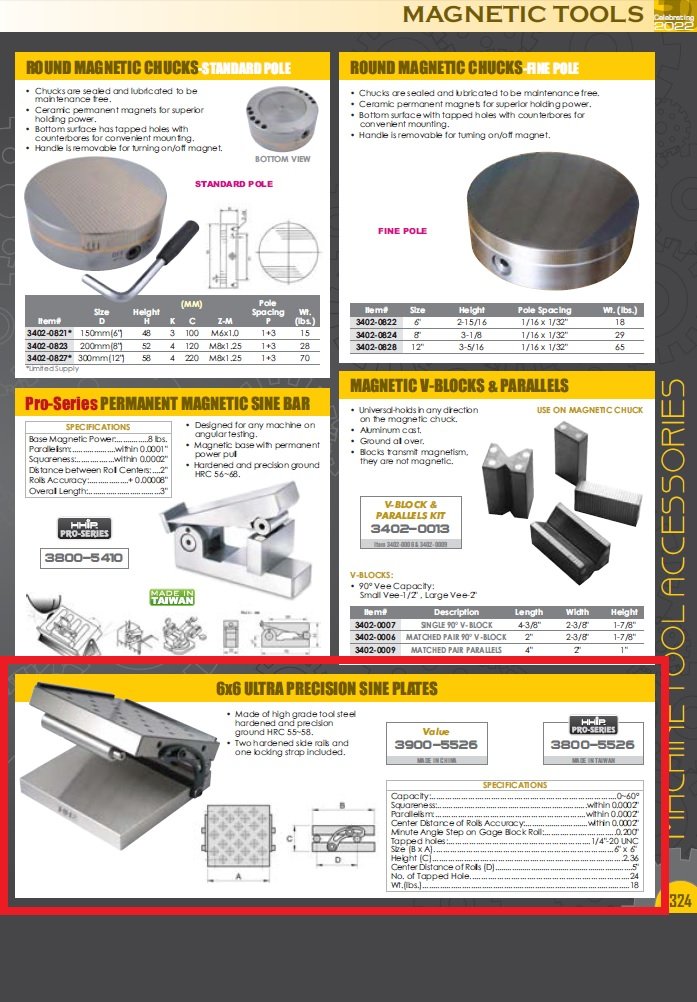

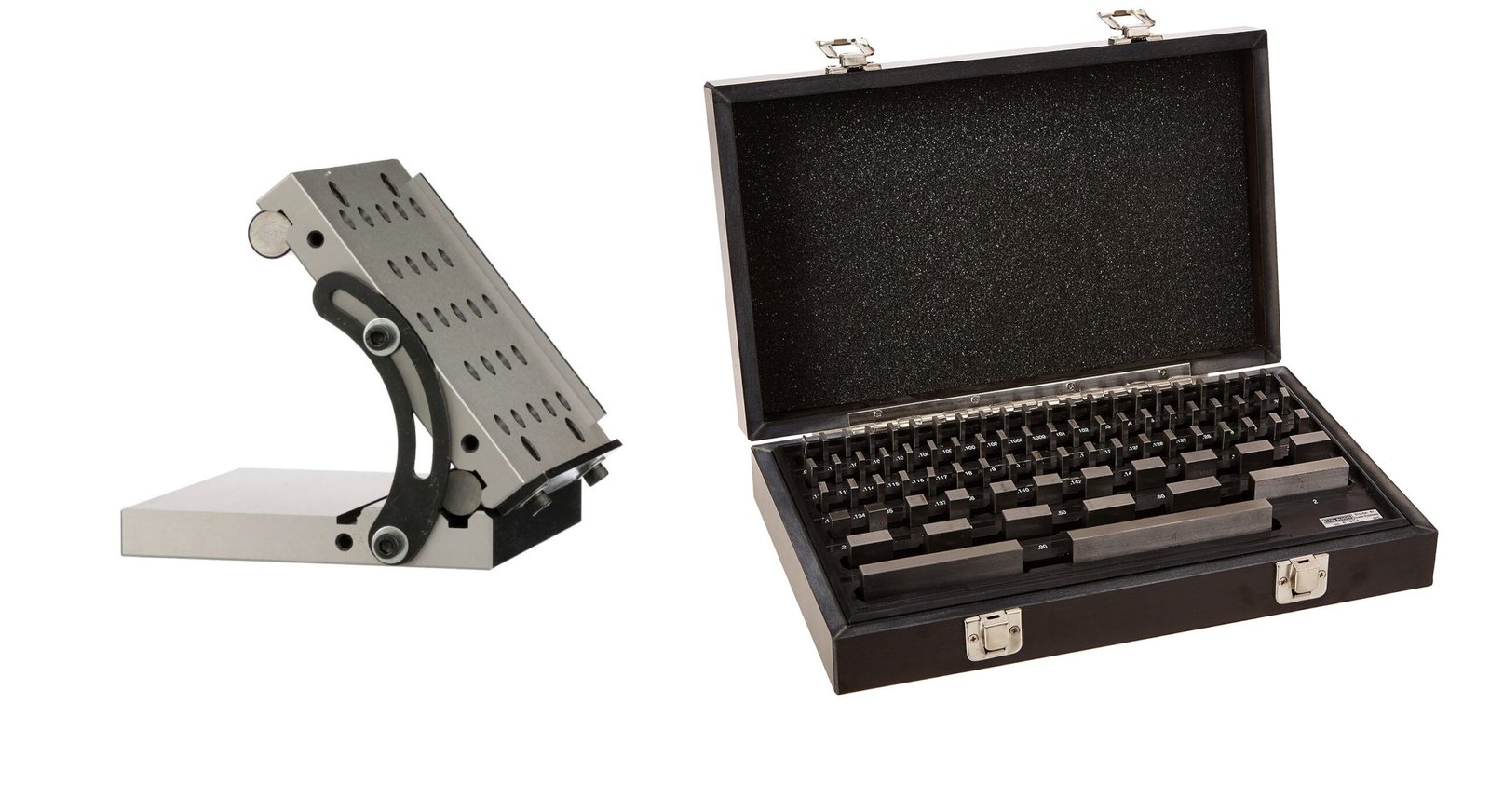

HHIP 6 X 6″ Sine Plate & 81 Piece Gage Block Set The since plate is made of high grade tool steel that is hardened and precision ground to HRC 55

• 58. The plate has two hardened side rails and one locking strap. The gage block set is grade AS-2(B) +/-50 millionths. These blocks Meet or exceed Federal GGG-G-15C. They are made of the highest quality tool steel with a surface hardness of HRC 64. The blocks are supplied in a fitted case with sizes labeled. Blocks included in set are 9 blocks that are .1001″ thru .1009″ with a step of .0001″, 49 blocks that are .101″ thru .149″ with a step of .001″, 19 blocks that are .050″ thru .950″ with a step of .050″ and 4 blocks that are 1.000″ thru 4.000″ with a step of 1.000″

Specifications

• HHIP 6 X 6″ Sine Plate & 81 Piece Gage Block Set
• The since plate is made of high grade tool steel that is hardened and precision ground to HRC 55~58.
• The plate has two hardened side rails and one locking strap.

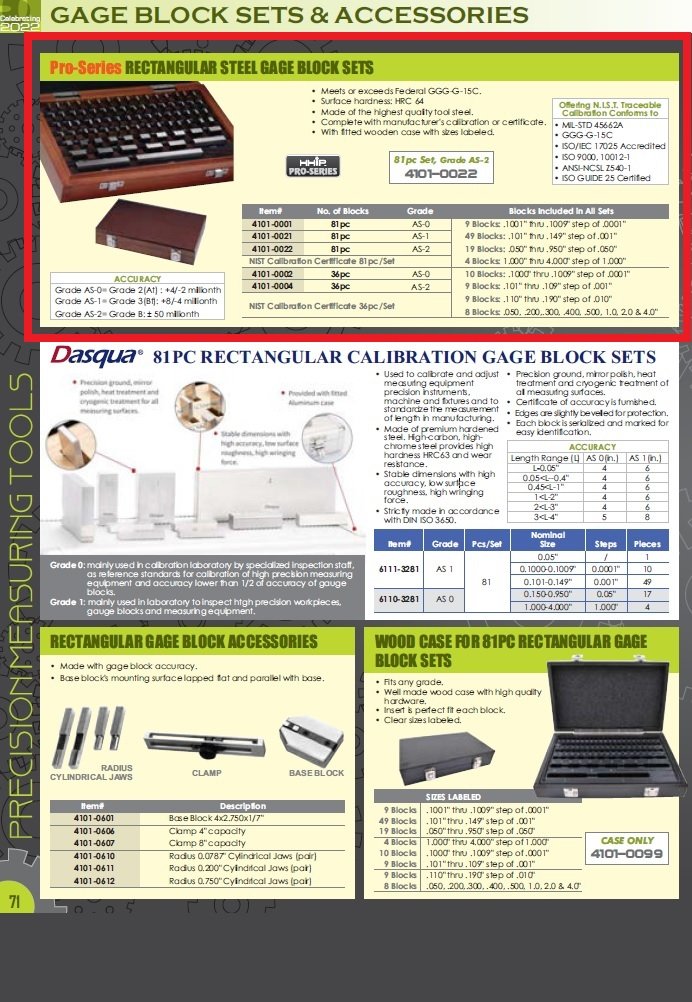

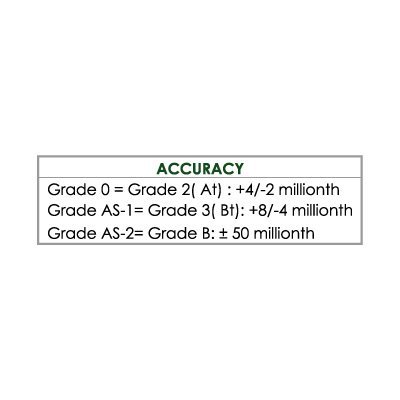

• The gage block set is grade AS-2(B) +/-50 millionths.
• These blocks Meet or exceed Federal GGG-G-15C.
• They are made of the highest quality tool steel with a surface hardness of HRC 64.

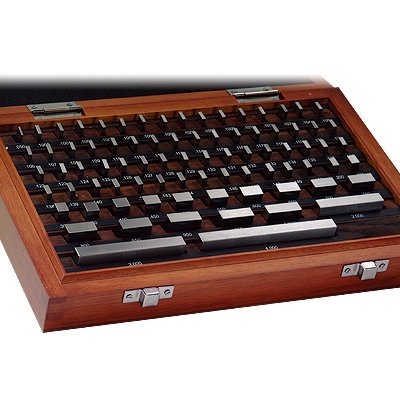

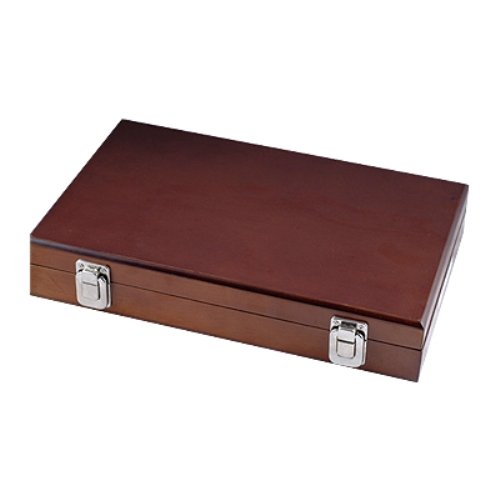

• The blocks are supplied in a fitted case with sizes labeled.
• Blocks included in set are 9 blocks that are .1001″ thru .1009″ with a step of .0001″, 49 blocks that are .101″ thru .149″ with a step of .001″, 19 blocks that are .050″ thru .950″ with a step of .050″ and 4 blocks that are 1.000″ thru 4.000″ with a step of 1.000″.
• Weight: 2.05
• Dimensions: L 15, W 10, H 10

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.

USA Warehouse Stock — Fast U.S. fulfillment.
