8″ Horizontal/Vertical Rotary Table – 3906-2308

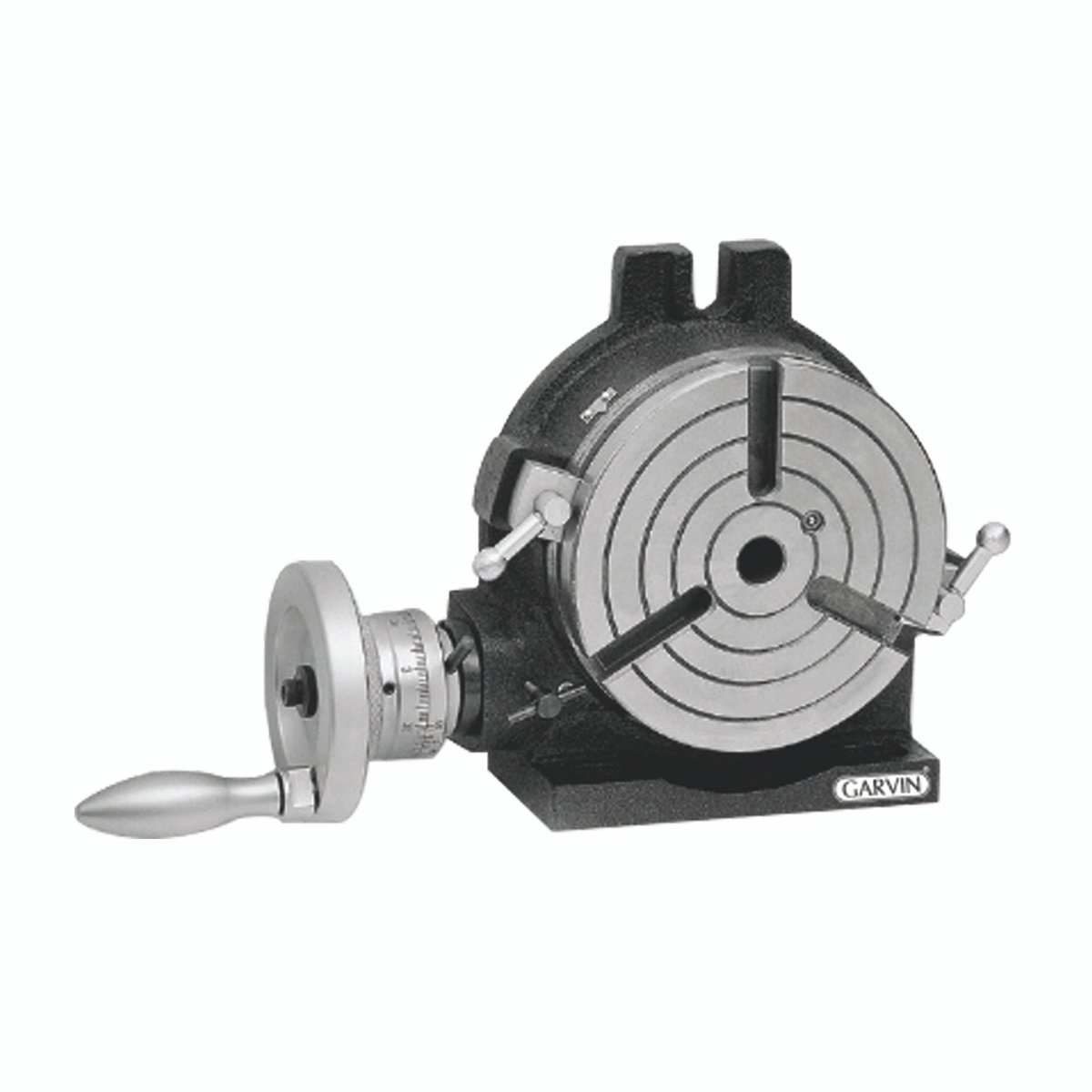

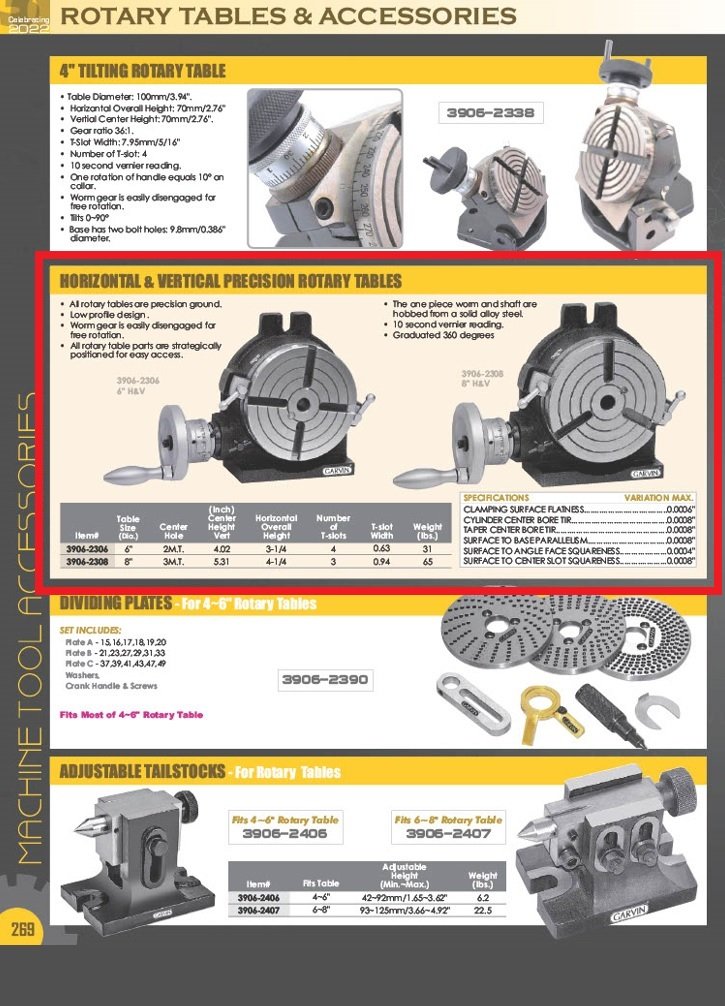

The 8-inch horizontal/vertical rotary table provides accurate angular positioning for milling, drilling, boring and other precision machining operations. Its versatile design allows the table to be mounted horizontally or vertically to accommodate different workpiece geometries and machining setups.
All table surfaces are precision ground to support accurate workpiece alignment and consistent machining results. The low-profile construction helps preserve available working space between the machine table and spindle.
Precise Angular Positioning

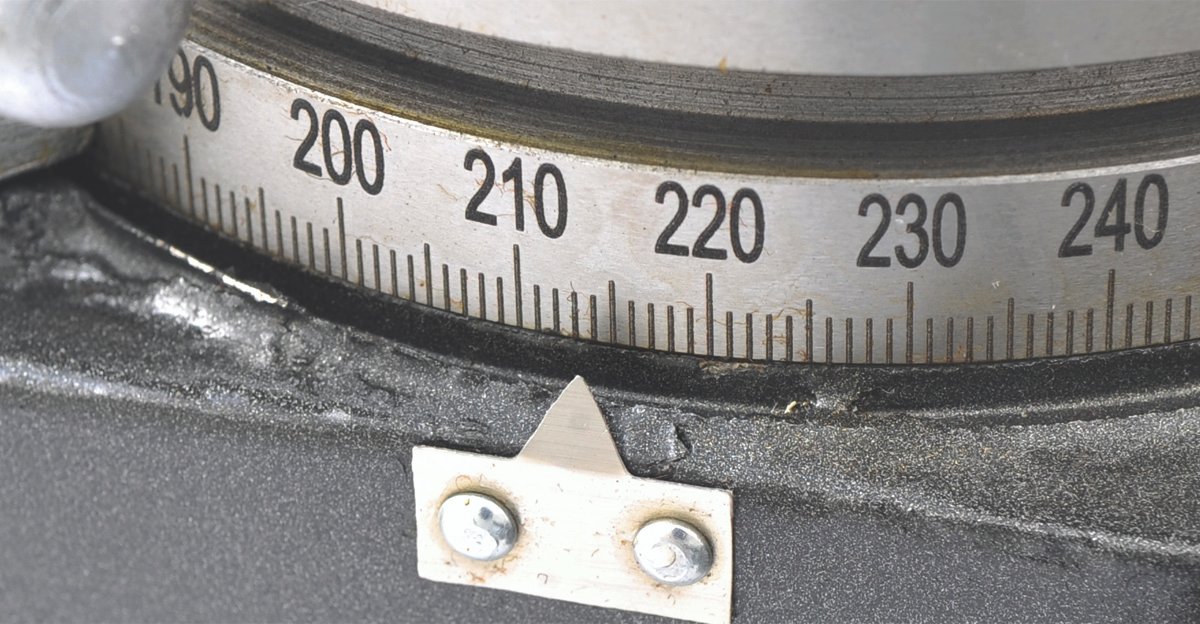

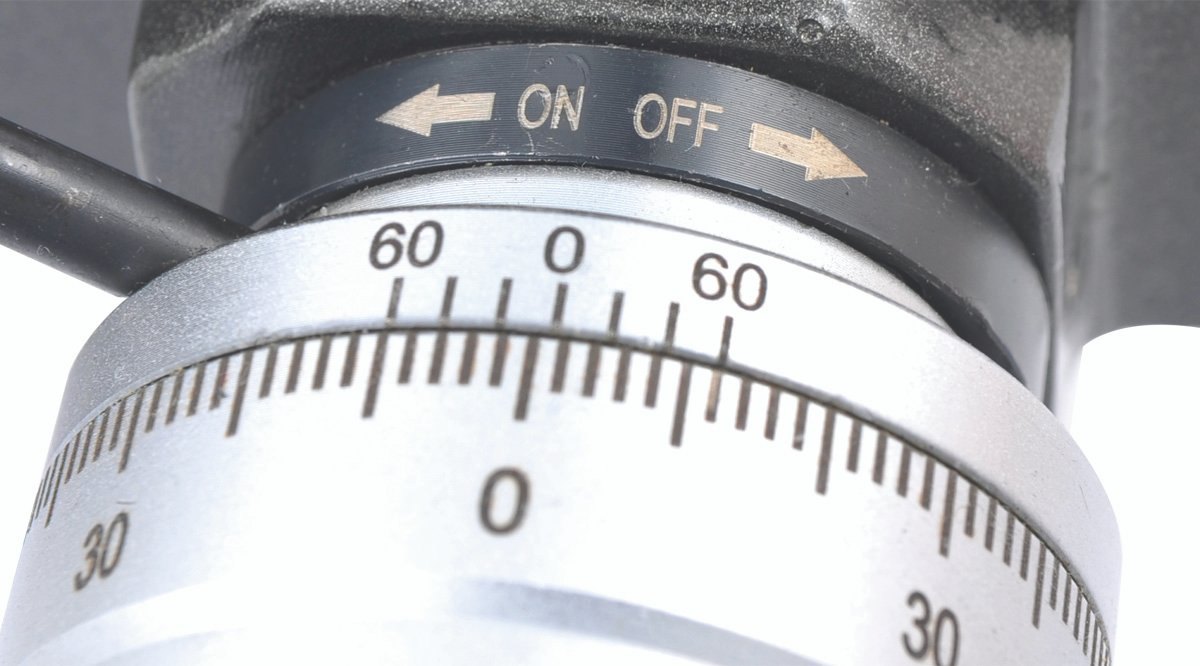

The table is graduated through a full 360 degrees and features a 10-second vernier reading for fine angular adjustment. These features make it suitable for circular machining, radial hole patterns, angular indexing and equally spaced machining operations.

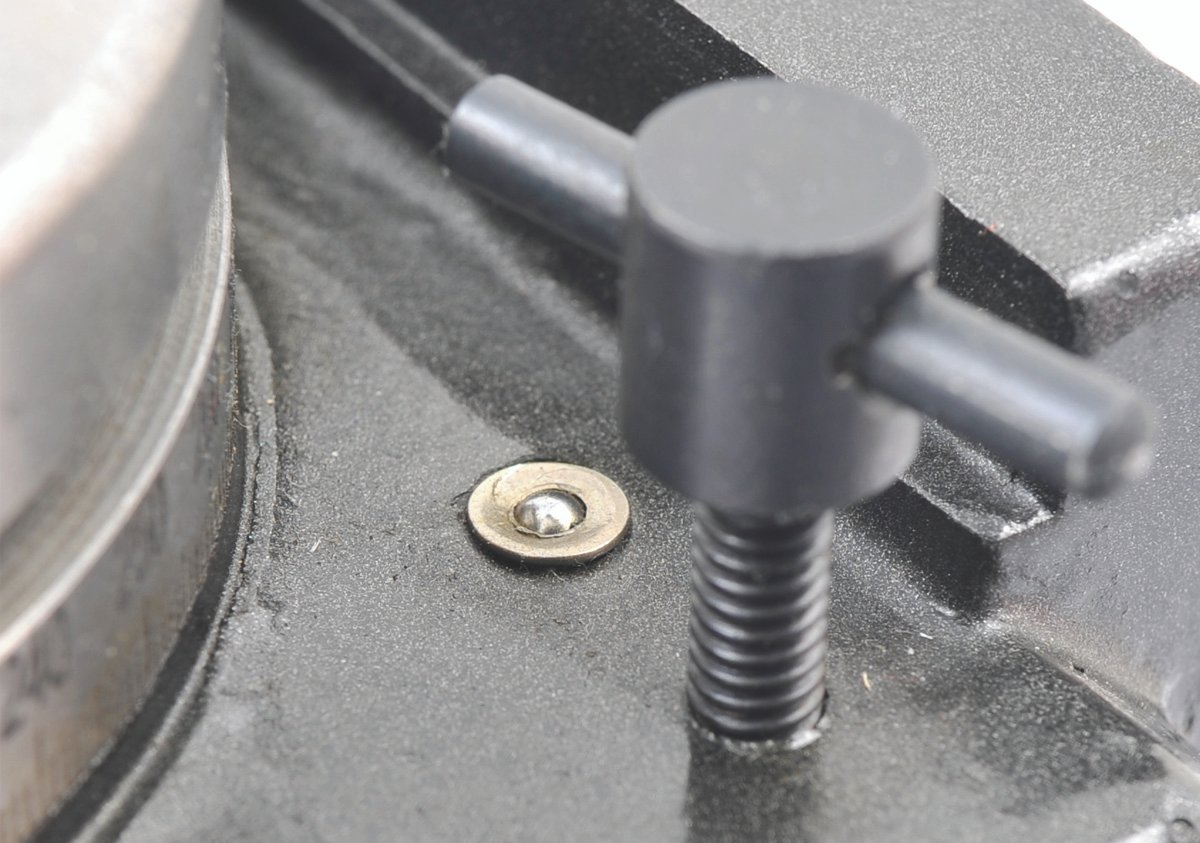

The one-piece worm and shaft are hobbed from solid alloy steel for dependable operation in industrial machine-shop environments. The worm gear can be easily disengaged when free table rotation is required, simplifying workpiece positioning during setup.
Horizontal and Vertical Operation
This rotary table can be used in either the horizontal or vertical position. Its strategically positioned controls remain accessible during common setup and machining operations.
- Table diameter: 8″
- Vertical center height: 4.02″
- Horizontal overall height: 4.25″
- Center hole: 3MT
- Angular graduation: 360°
- Vernier reading: 10 seconds
Flexible Workpiece Mounting
The table incorporates three T-slots for mounting compatible workpieces, fixtures and clamping components. The 3MT center hole can assist with workpiece alignment and compatible tooling setups.
Key Features
- Horizontal and vertical mounting capability
- Precision-ground rotary table surfaces
- Low-profile design for improved machine clearance
- Full 360-degree graduated table
- 10-second vernier reading for fine positioning
- Easily disengaged worm gear for free rotation
- One-piece alloy-steel worm and shaft
- Controls strategically positioned for easy access
- Three T-slots for workholding and fixture mounting
- 3MT center hole

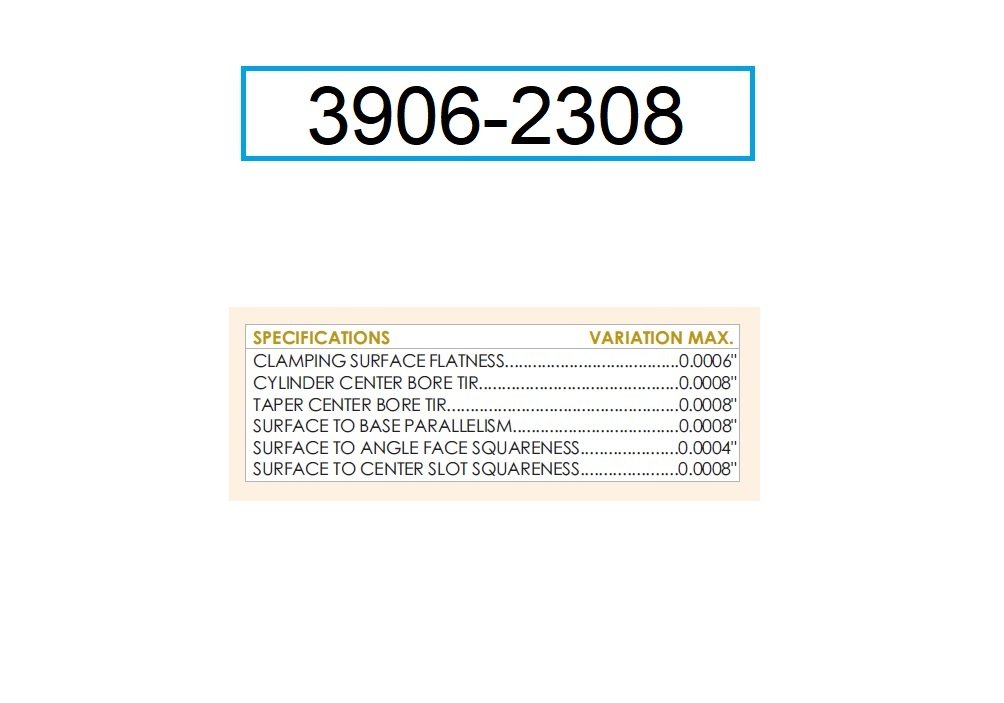

Technical Specifications
| Product | 8″ Horizontal/Vertical Rotary Table |
|---|---|
| SKU | 3906-2308 |
| Table Diameter | 8″ |
| Operating Positions | Horizontal and vertical |
| Table Graduation | 360° |
| Vernier Reading | 10 seconds |
| Center Hole | 3MT |
| Vertical Center Height | 4.02″ |
| Horizontal Overall Height | 4.25″ |
| Number of T-Slots | 3 |
| T-Slot Width | 0.94″ |
| Product Weight | 64.1 lbs |
| Approximate Shipping Weight | 65 lbs |
| Listed Dimensions | 11″ L × 6″ W × 13″ H |
| Stock Location | USA warehouse |
Recommended Applications
- Angular indexing and positioning
- Circular and arc milling
- Radial drilling patterns
- Boring operations
- Machining equally spaced features
- Fixture and maintenance work
- General machine-shop applications
Setup Recommendations
Confirm the table dimensions, 3MT center-hole interface, T-slot size and machine capacity before ordering. For best results, use a rigid mounting setup, suitable clamping components and machining parameters appropriate for the workpiece material and operation.
Always follow safe operating procedures and use the required personal protective equipment.
Fast Fulfillment from Our USA Warehouse
USA warehouse stock: Available for fast fulfillment within the United States. Contact us before ordering if you need to confirm current availability, compatibility or shipping options.
