9/64″ W10 COLLET (3900-4968)

9/64″ W10 COLLET (3900-4968) (SKU: 3900-4968)

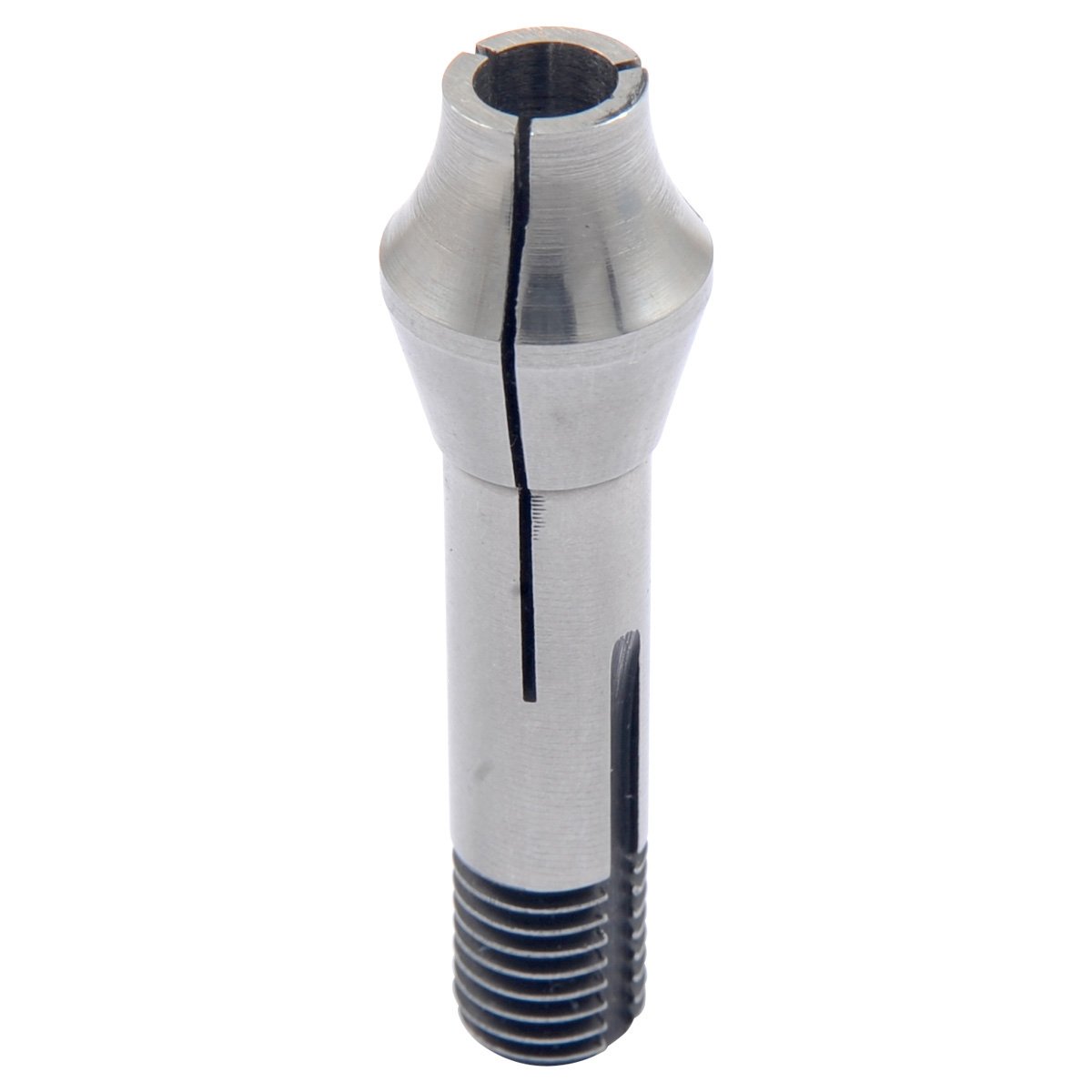

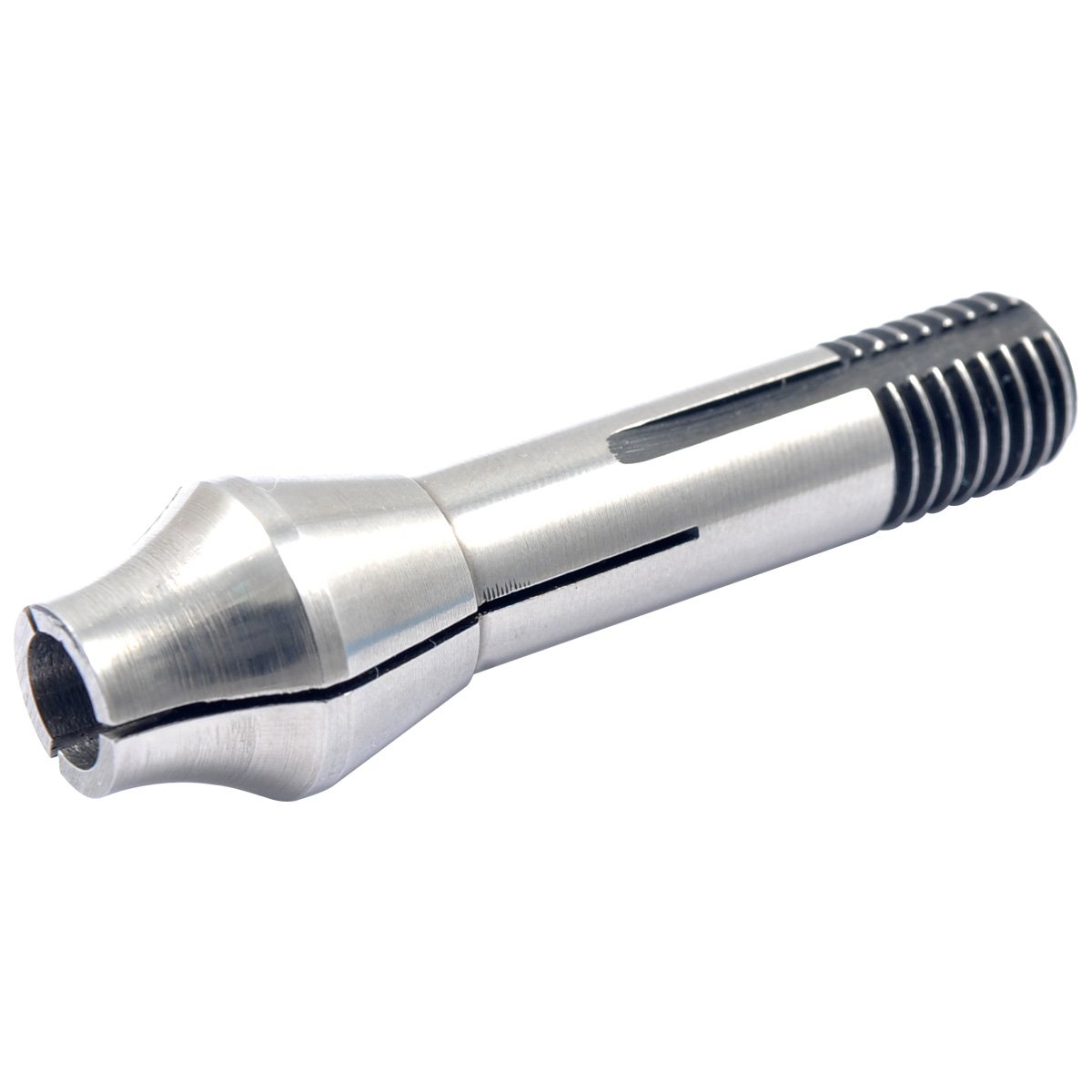

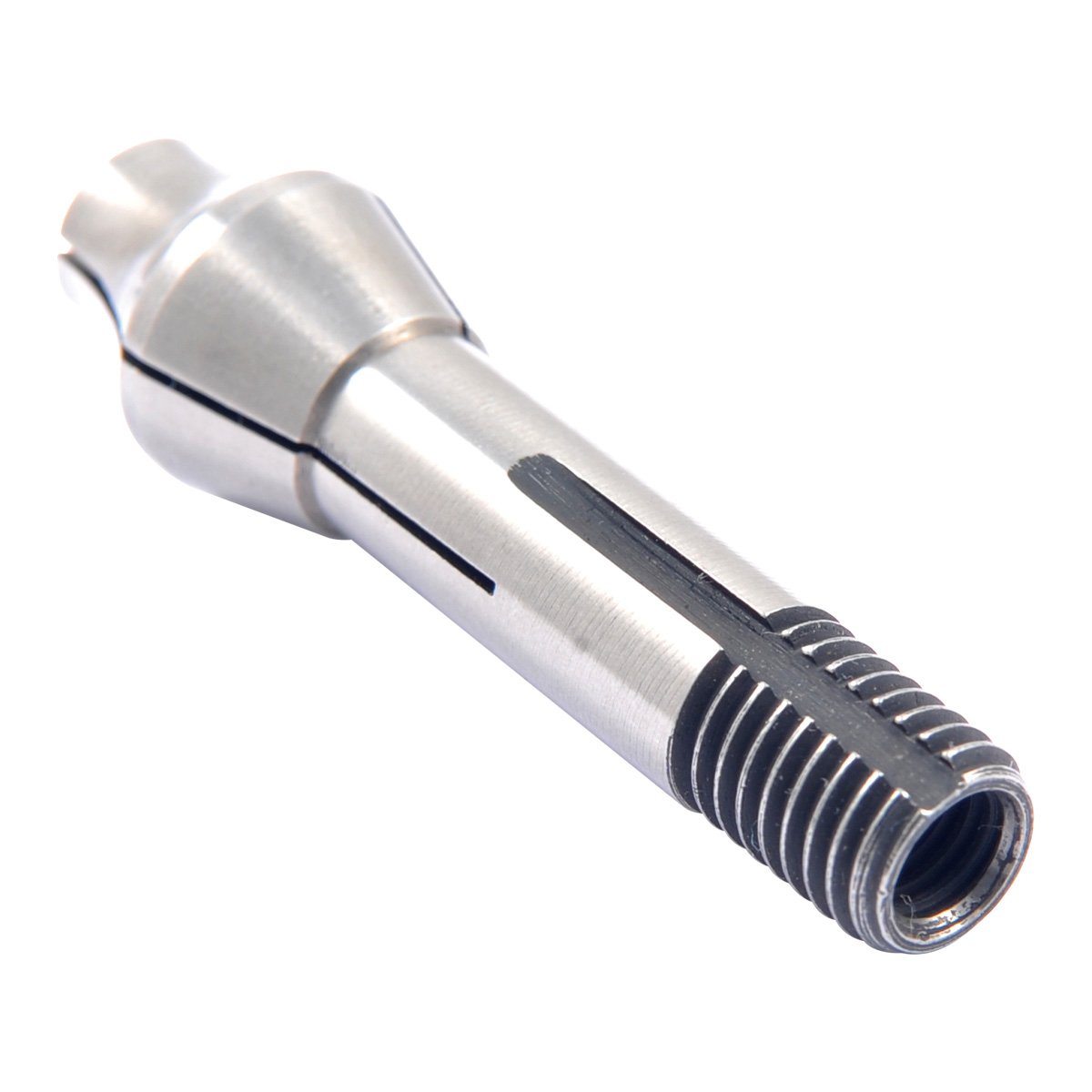

9/64″ W10 Collet

• Made of high quality tool steel
• Hardened and precision ground to highest concentricity
• These collets are closed by being drawn back into the collet seating by means of a draw bar
• The collets only open a minimal amount
• The W10 collets differ from the other pull-type collets because of their external thread, which has a nominal diameter almost identical to the collet shank diameter
• The pull-type collets generally only clamp the nominal diameter
• To obtain optimal concentricity, it is recommended not to clamp less than 0.1 mm below the nominal diameter

Specifications

• 9/64″ W10 Collet
• Made of high quality tool steel.
• Hardened and precision ground to highest concentricity.
• These collets are closed by being drawn back into the collet seating by means of a draw bar.
• The collets only open a minimal amount.
• The W10 collets differ from the other pull-type collets because of their external thread, which has a nominal diameter almost identical to the collet shank diameter.
• The pull-type collets generally only clamp the nominal diameter.
• To obtain optimal concentricity, it is recommended not to clamp less than 0.1 mm below the nominal diameter.
• Weight: 0.1
• Dimensions: L 4, W 1, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
