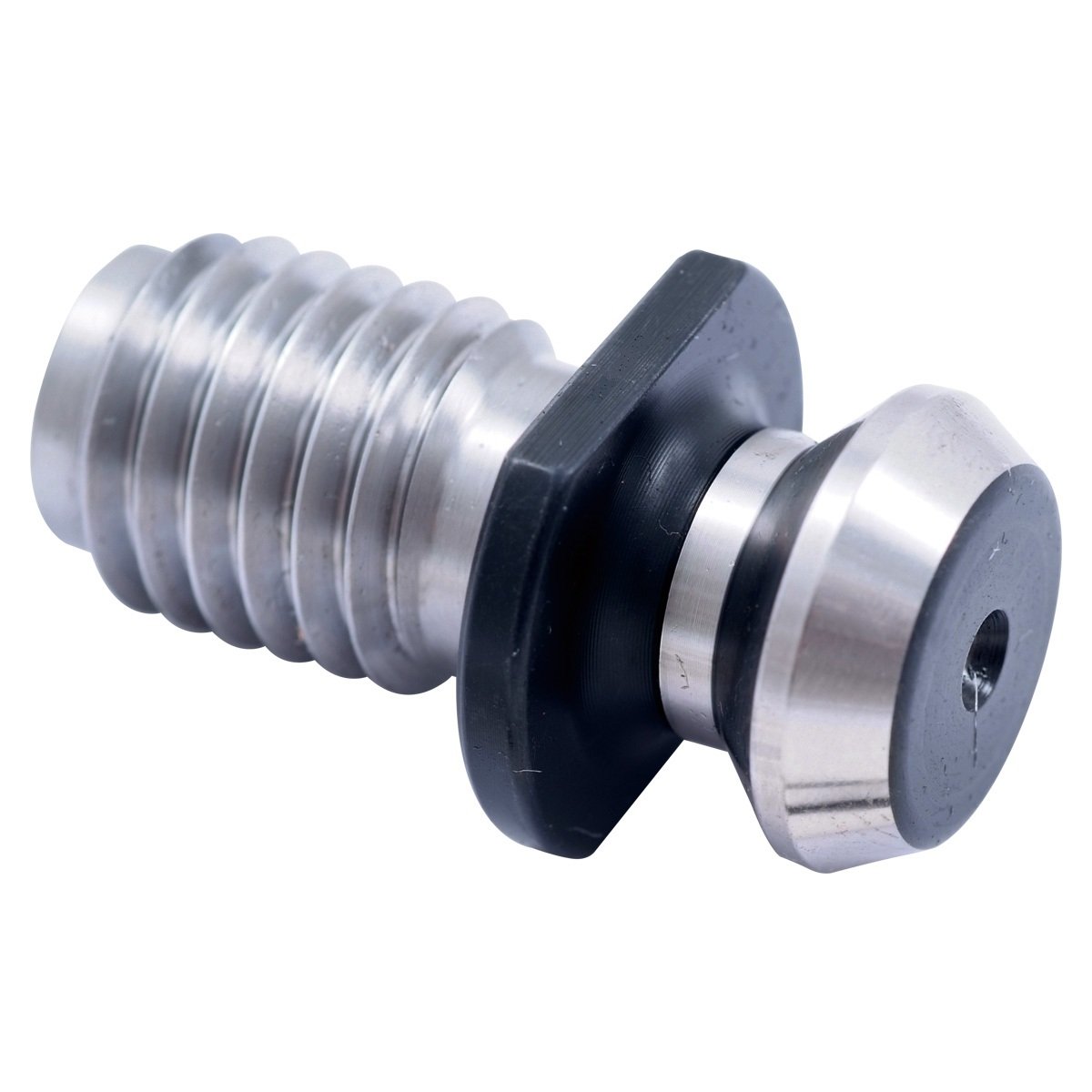

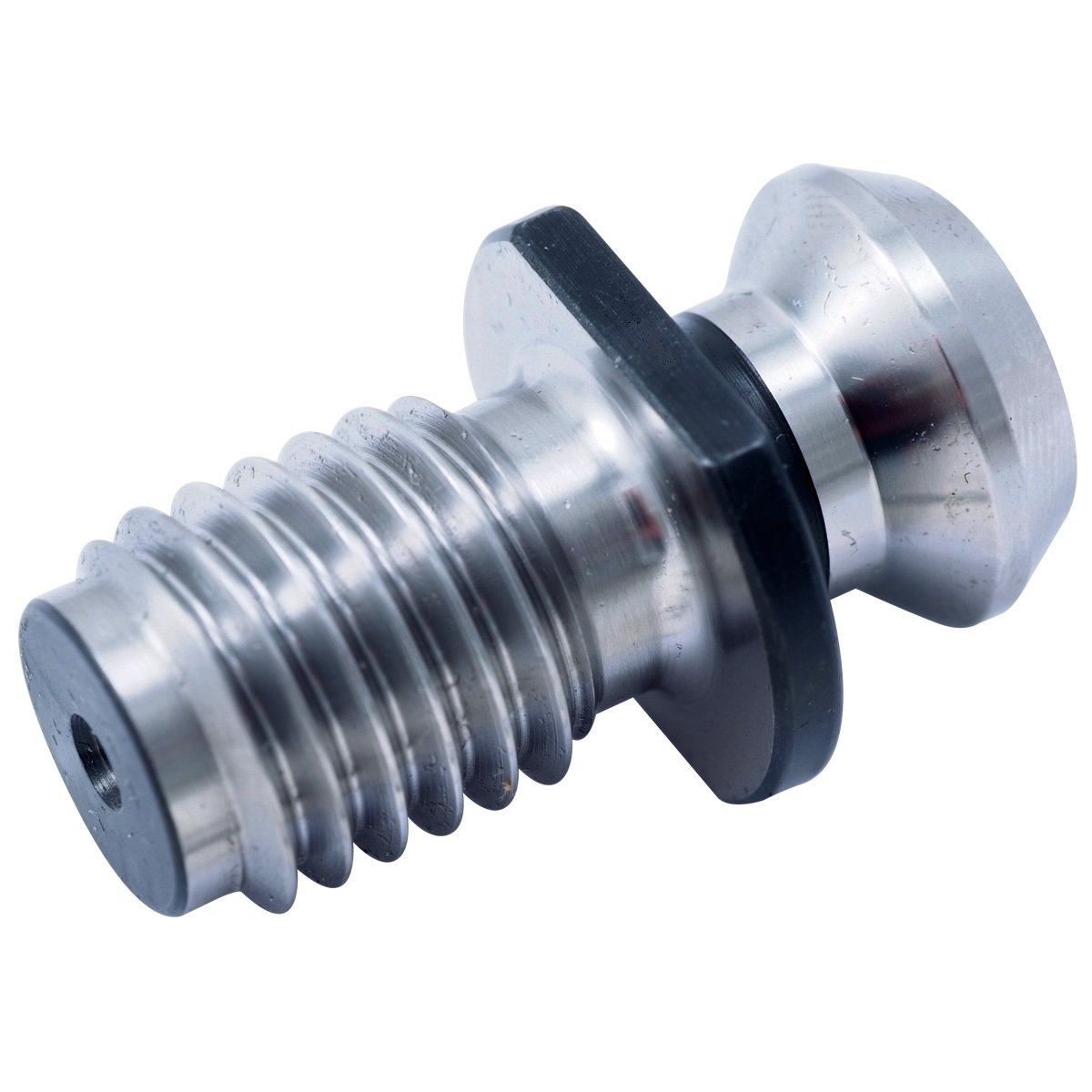

ANSI CAT40 X 45 DEGREE 5/8-11 COOLANT THRU PULL STUD PS11122 FITS FADAL (3900-5520)

ANSI CAT40 X 45 DEGREE 5/8-11 COOLANT THRU PULL STUD PS11122 FITS FADAL (3900-5520) (SKU: 3900-5520)

ANSI CAT40 X 45 Degree 5/8-11 Coolant Thru Pull Stud PS11122 Fits Fadal

• TPI is 5/8″-11
• Heat treated alloy steel hardened to HRC 52
• 56°
• ANSI/AMSE B5.50-1994
• Coolant thru

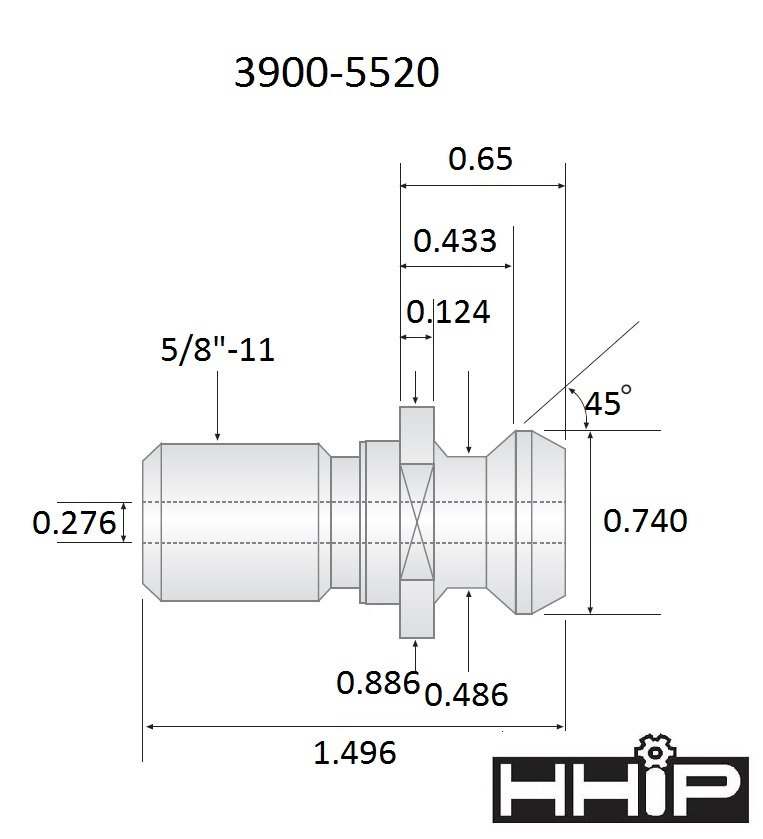

• L is 1.50
• L1 is .44
• L2 is .13
• D is .94
• d1 is .74
• d2 is .49
• d3 is .28
• A is 45°

Specifications

• ANSI CAT40 X 45 Degree 5/8-11 Coolant Thru Pull Stud PS11122 Fits Fadal
• TPI is 5/8″-11.
• Heat treated alloy steel hardened to HRC 52~56°.
• Coolant thru.
• L is 1.50
• L1 is .44
• L2 is .13
• D is .94
• d1 is .74
• d2 is .49
• d3 is .28
• A is 45°.
• ANSI/AMSE B5.50-1994.
• Weight: 0.1
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
