CNMG-431-DF BLACK DIAMOND COATED CARBIDE INSERT (6000-1431)

CNMG-431-DF BLACK DIAMOND COATED CARBIDE INSERT (6000-1431) (SKU: 6000-1431)

CNMG-431-DF -Rake Diamond Insert

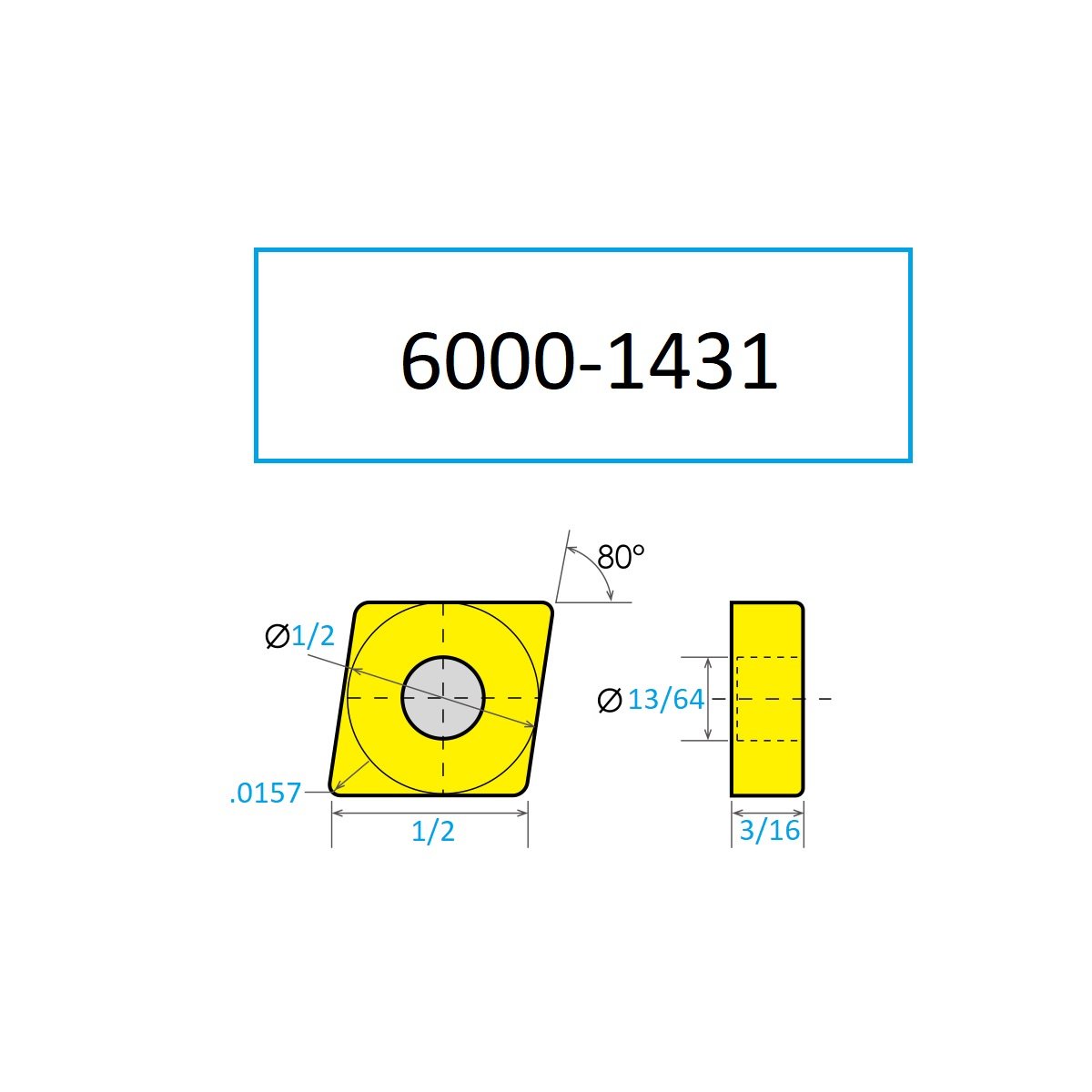

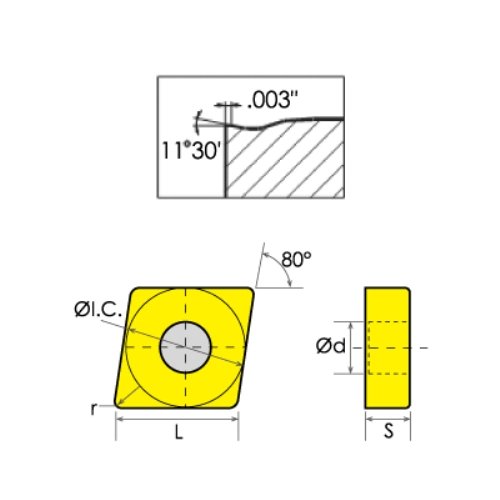

• I.C. is 1/2″
• L is 1/2″
• S is 3/16″
• d is 13/64″
• r is .0157″

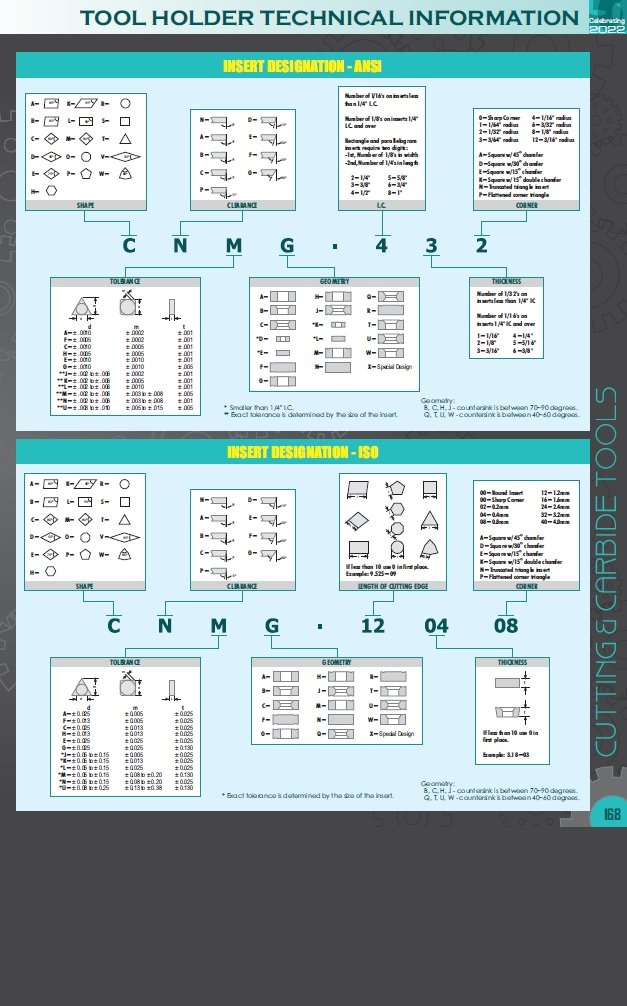

• ISO insert number is CNMG120404DF
• Chip-breaker with special angle design allows for easy cuttings
• Controls chip flow and provides good surface finish

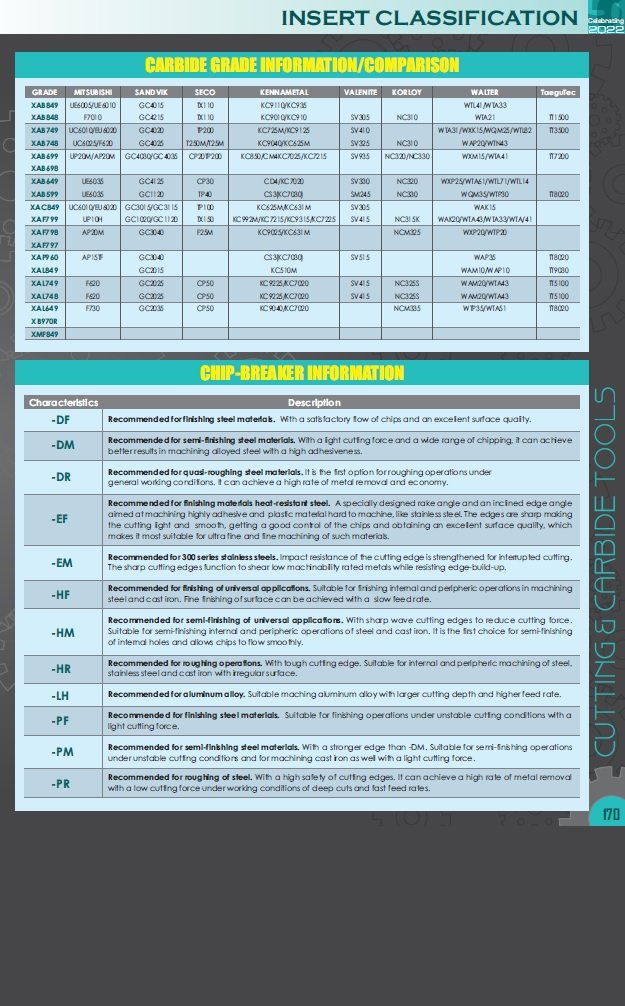

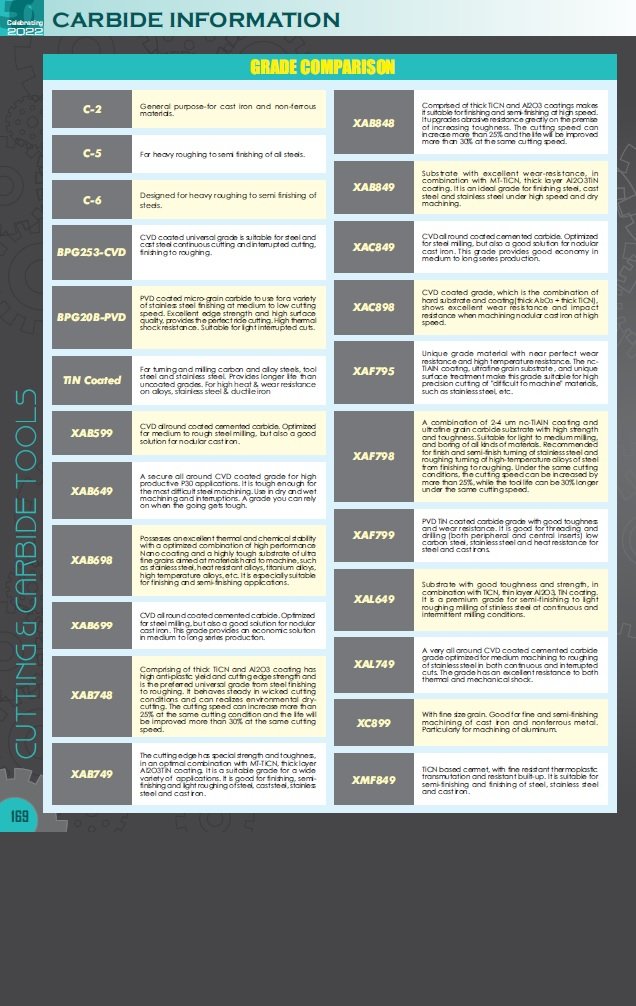

• Grade XAB849 is substrate with excellent wear-resistance, in combination with MT-TiCN and a thick layer of Al2O3TiN coating
• It is an Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining

Specifications

• CNMG-431-DF Negative Rake Black Diamond Coated Carbide Insert
• I.C. is 1/2″.
• L is 1/2″.
• S is 3/16″.
• d is 13/64″.
• r is .0157″.
• ISO insert number is CNMG120404DF.
• Chip-breaker with special angle design allows for easy cuttings.
• Controls chip flow and provides good surface finish.
• Grade XAB849 is substrate with excellent wear-resistance, in combination with MT-TiCN and a thick layer of Al2O3TiN coating.
• It is an Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
