CPMT-432 BLACK DIAMOND COATED CARBIDE INSERT (6060-0431)

CPMT-432 BLACK DIAMOND COATED CARBIDE INSERT (6060-0431) (SKU: 6060-0431)

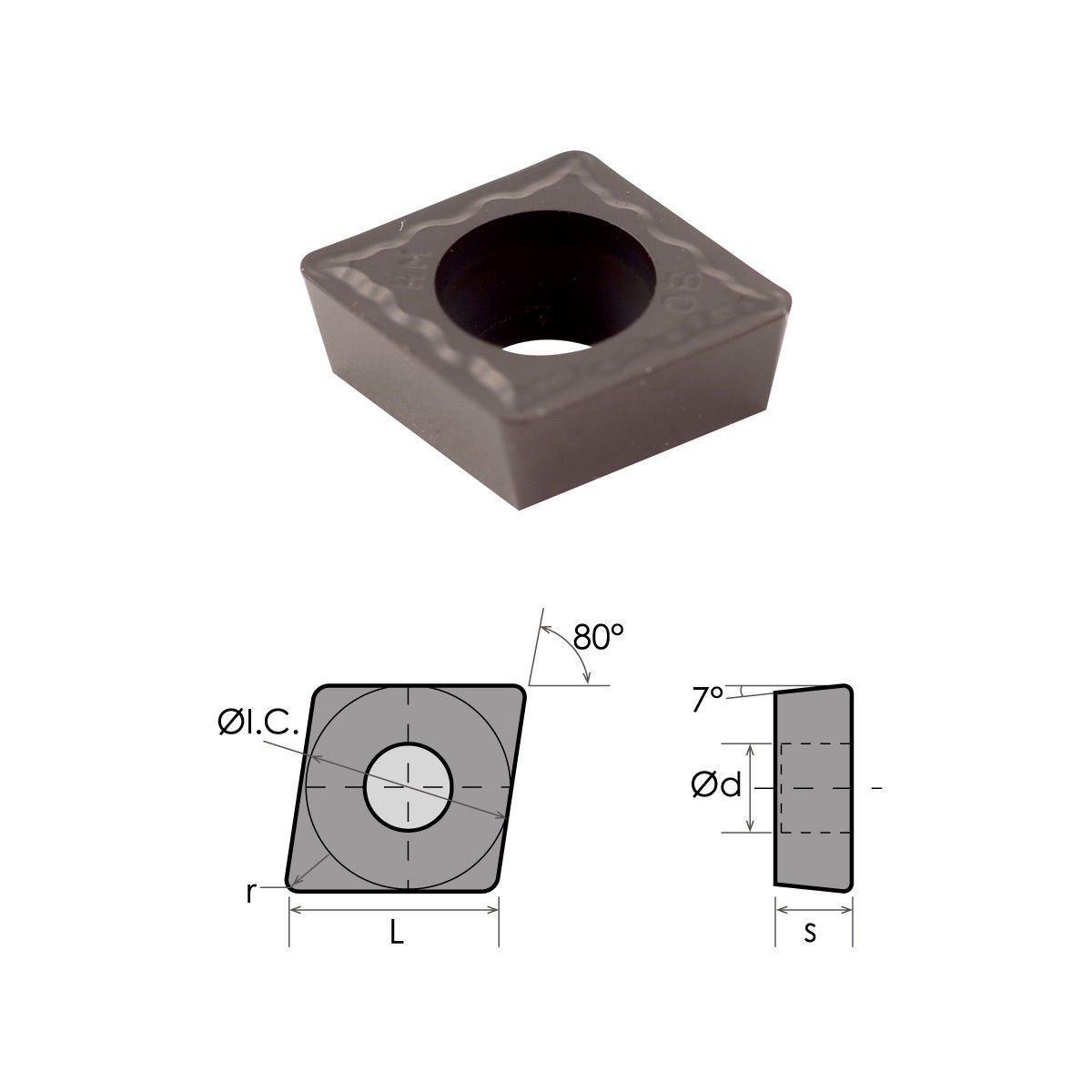

CPMT-432 Black Diamond Positive Rake Carbide Insert

• I.C. is 1/2
• L is 1/2
• S is 3/16
• d is 0.217
• r is .0315
• Used for boring & facing
• 11° relief angle
• Single sided with chip control

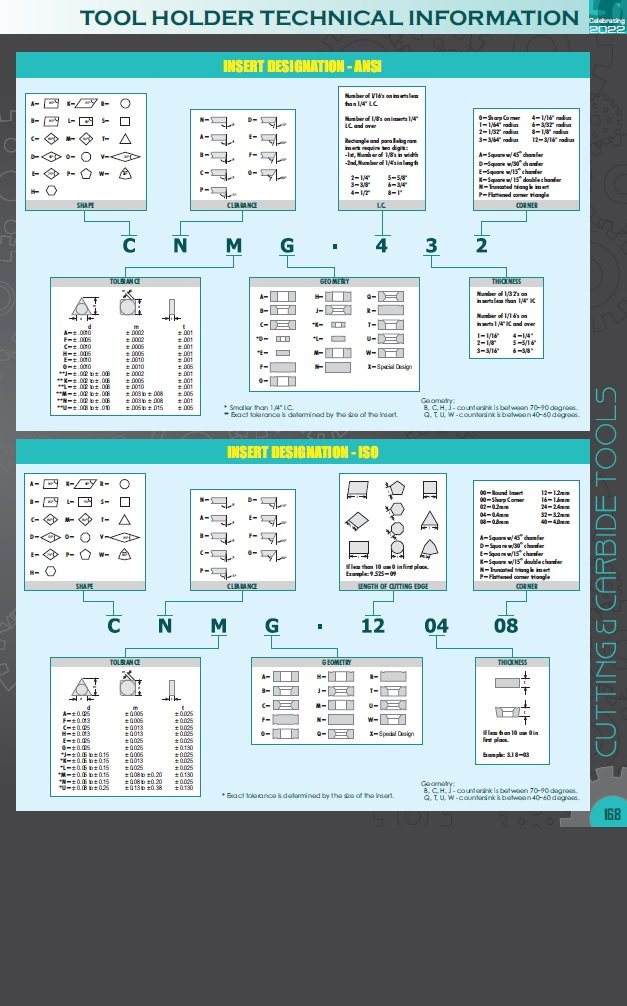

• ISO insert number is CPMT120408

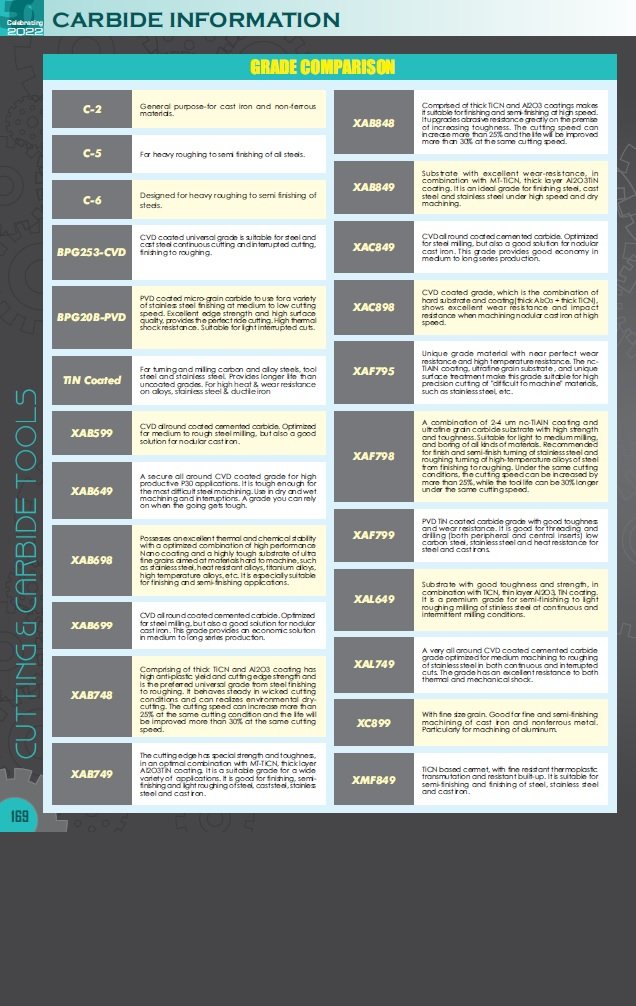

• Grade XAC898 is a CVD coated insert which is the combination of hard substrate and a thick coating of Al2O3 & TiCN
• Excellent wear and impact resistance when machining nodular cast iron at high speed

Specifications

• CPMT-432 Black Diamond Coated Carbide Insert
• 11° relief angle.
• Used for boring & facing.
• ISO insert number is CPMT120408.
• I.C. is 1/2.
• L is 1/2.
• S is 3/16.
• d is 0.217.
• r is .0315.
• Single sided with chip control.
• Weight: 0.02
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
