Precision Alignment for Professionals

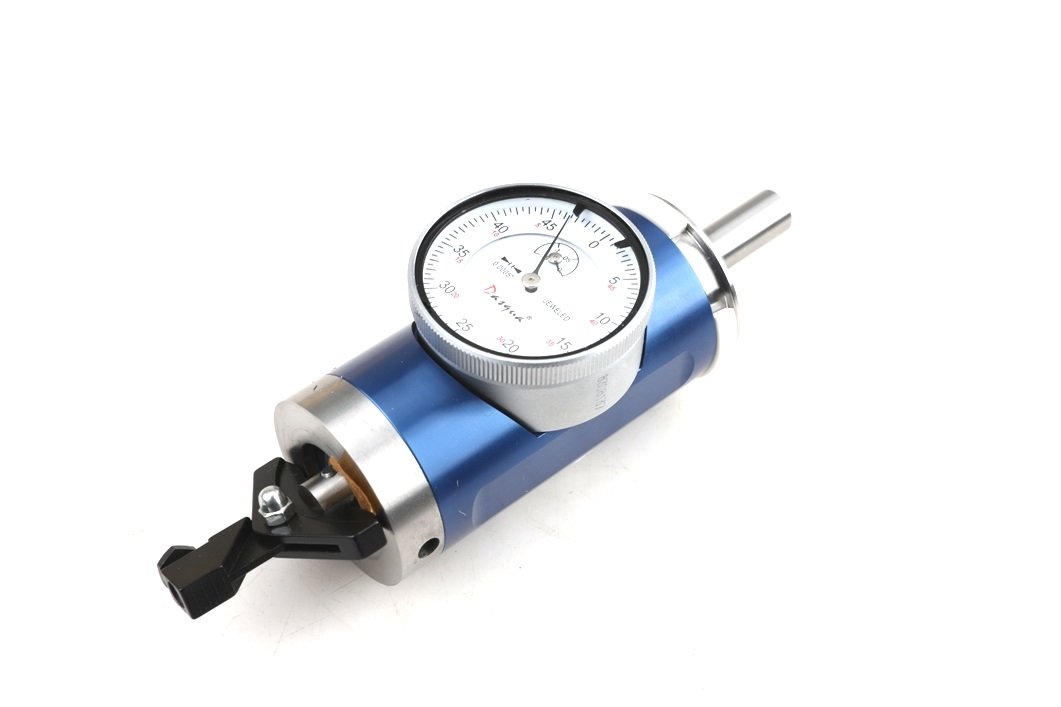

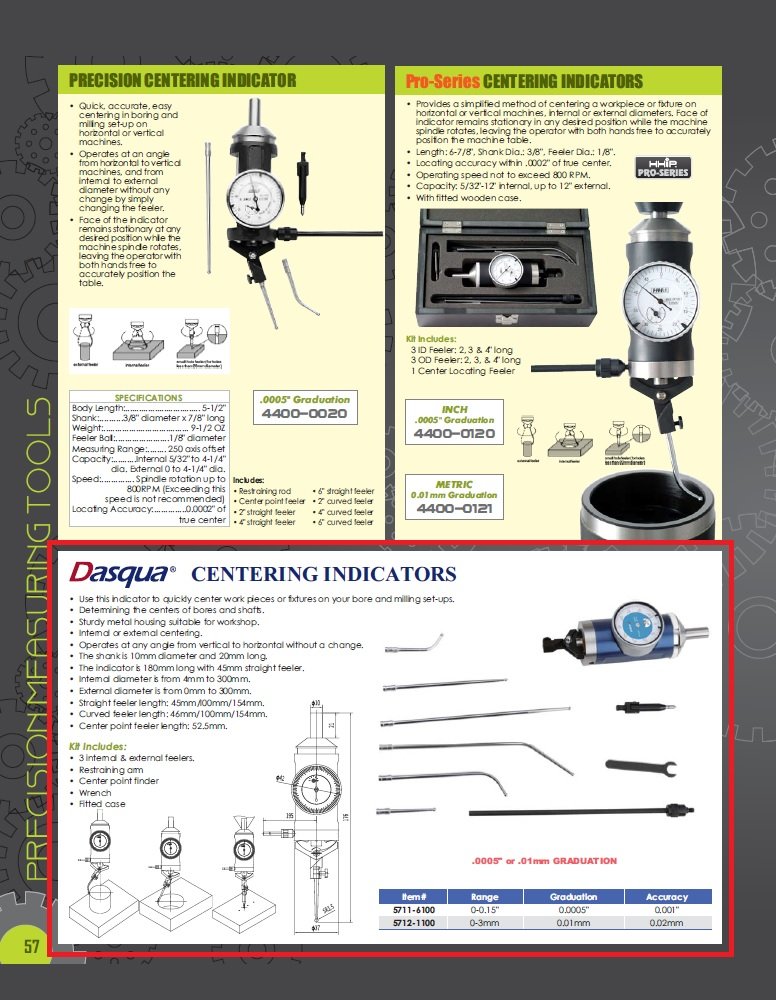

The Dasqua 5711-6100 Centering Indicator is an essential setup tool for CNC programmers and manual machinists who demand speed without sacrificing accuracy. Designed to find the center of a bore or boss quickly, this coaxial indicator remains stationary while the spindle rotates, allowing the operator to use both hands to adjust the machine table until the dial stops moving.
Technical Performance & Construction
Built to strict industrial standards, this indicator features a 0.0005″ graduation, providing the sensitivity required for high-tolerance setups. The unit operates smoothly at speeds up to 250 RPM, offering a stable reading that isn’t affected by centrifugal force. The internal mechanism is crafted for durability, ensuring that the needle response remains consistent over thousands of setup cycles.
Shop-Floor Benefits
- Reduced Setup Time: Drastically cuts the time needed to find center compared to traditional test indicators.
- Enhanced Accuracy: 0.0005″ resolution ensures your workpiece is perfectly aligned for critical machining operations.
- Reduced Fatigue: The face of the indicator remains in a fixed position, making it easy to read while adjusting the X and Y axes.
- Versatile Application: Works equally well on internal diameters (bores) and external diameters (shafts).
Recommended Applications
This centering indicator is a “must-have” for job shops, aerospace manufacturing, and automotive prototyping. It is ideally suited for:
- Quickly indicating the center of a hole or cylindrical workpiece.
- Aligning fixtures on CNC milling centers.
- Setup on Bridgeports and other manual knee mills.

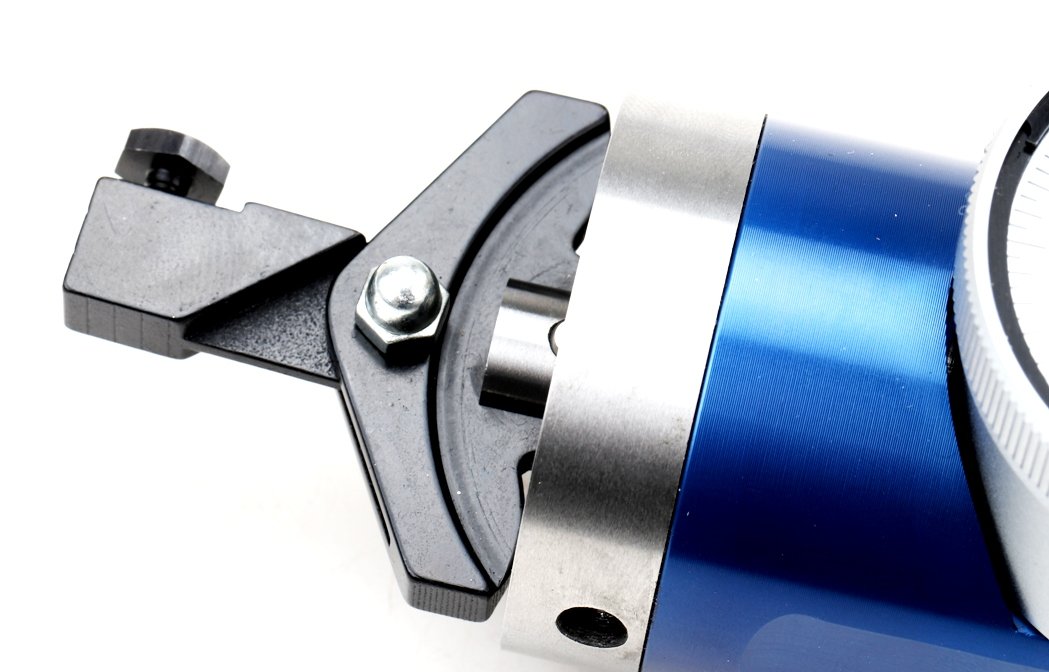

- Precise centering of large diameter bosses or bores using the included extended feelers.

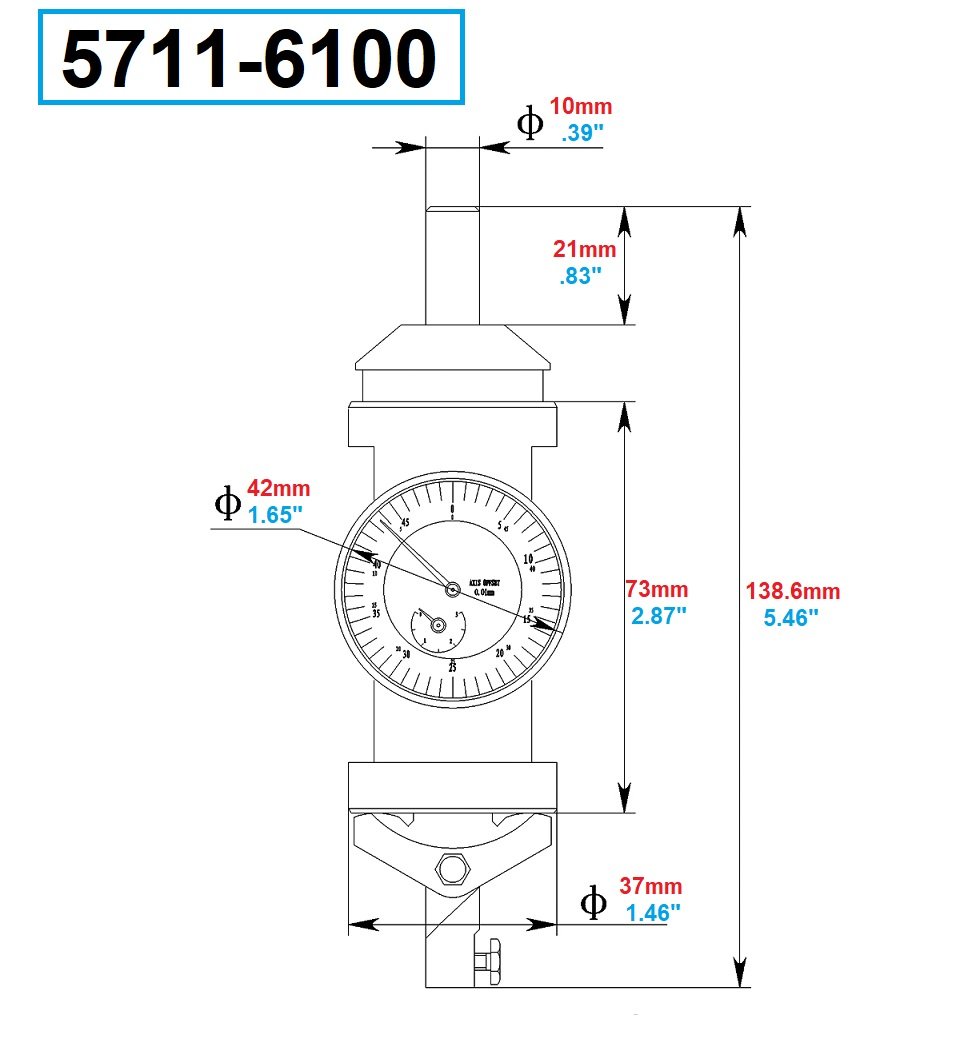

Technical Specifications
| Part Number | 5711-6100 |
|---|---|
| Brand | Dasqua |
| Product Category | Centering Indicators / Coaxial Indicators |
| Measuring Range | 0 – 0.15″ |
| Graduation | 0.0005″ |
| Accuracy | ±0.0002″ |

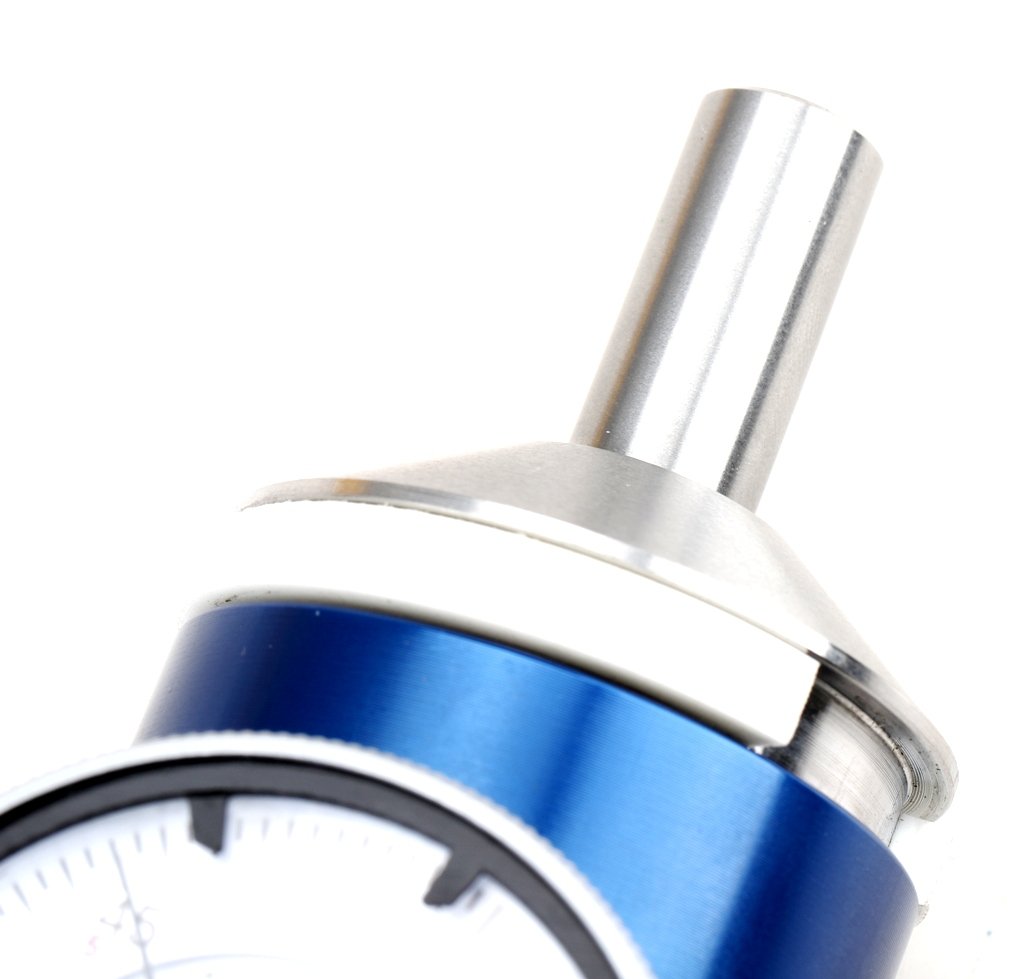

| Shank Diameter | 3/8″ |
| Max Operating Speed | 250 RPM |

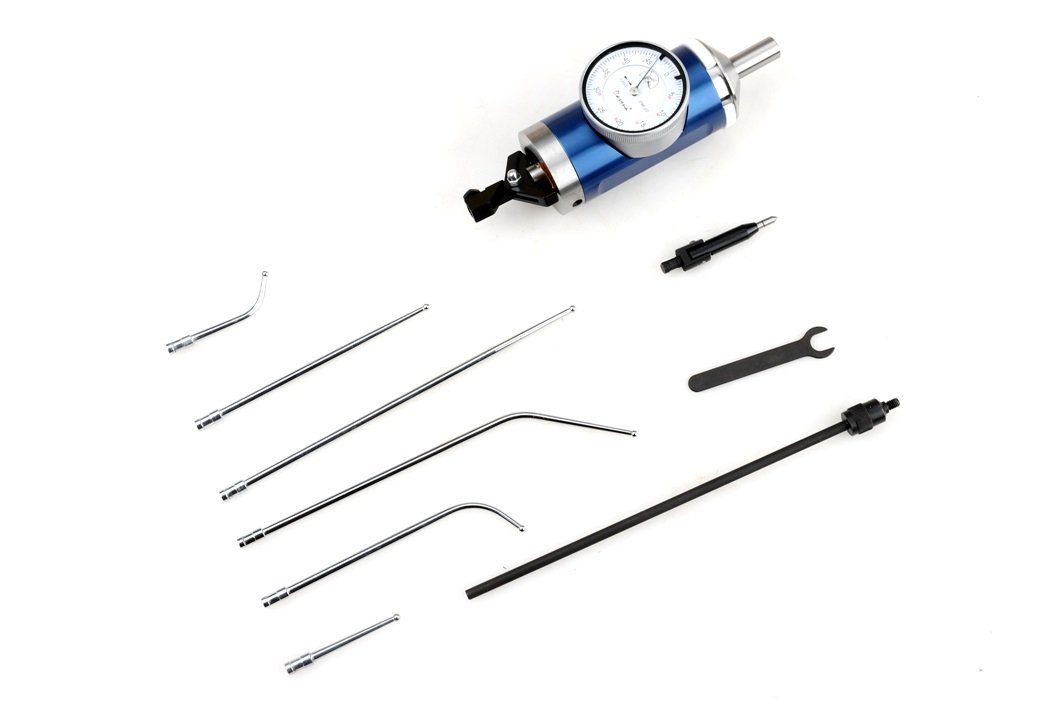

| Feeler Set Included | 3 Straight (Internal) / 3 Curved (External) |

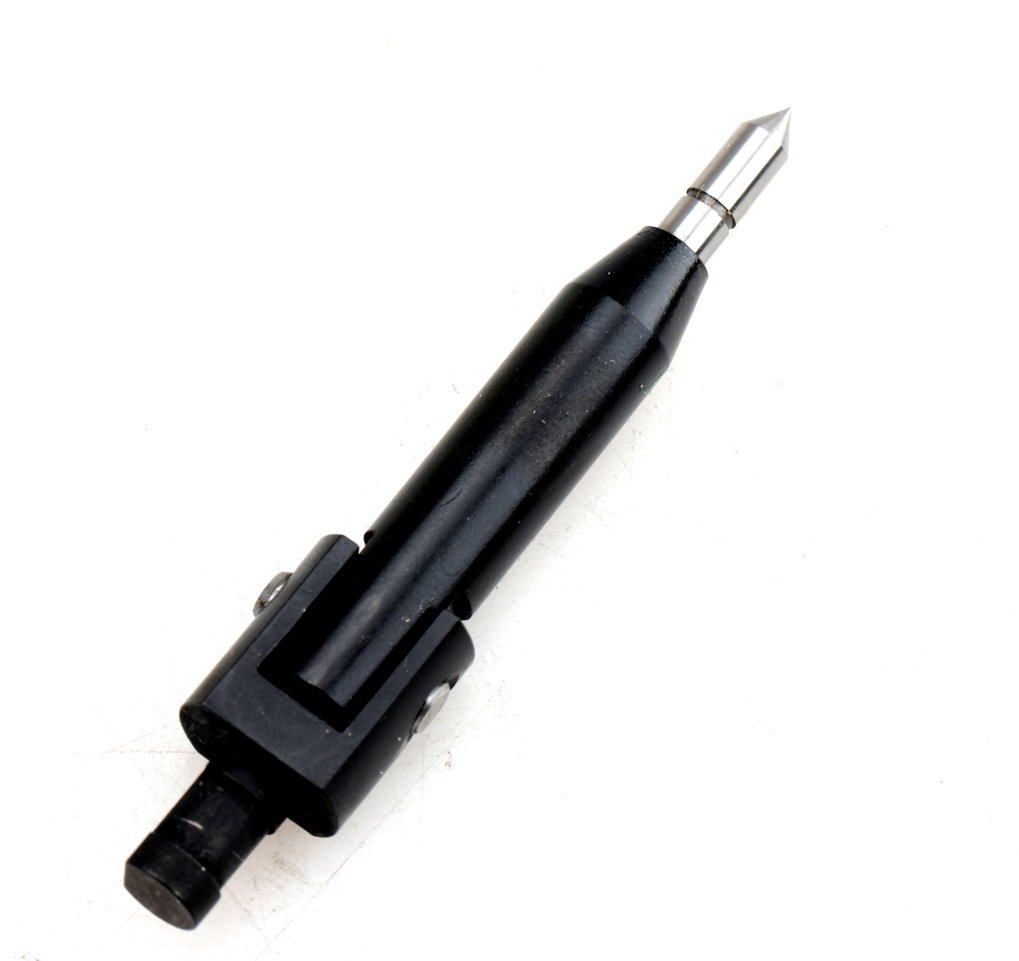

| Center Point Feeler | Included |
| Case Type | Fitted Wooden Case |
Frequently Asked Questions
Q: What is the maximum spindle speed recommended for this indicator?
A: We recommend a maximum speed of 250 RPM. Operating above this speed can cause excessive vibration and may damage the internal gears.
Q: Does this kit include feelers for large diameter bores?
A: Yes, the 5711-6100 comes with a complete set of six feelers, covering both internal and external diameters, including an extra-long feeler for larger workpieces.
Q: Can I use this on a CNC machine?
A: Absolutely. It is widely used in CNC setups for manual alignment of the machine’s work offset (G54-G59) to a specific workpiece feature.
