PRO-SERIES 0-3MM CENTERING INDICATOR (4400-0121)

PRO-SERIES 0-3MM CENTERING INDICATOR (4400-0121) (SKU: 4400-0121)

0-3MM Pro-Series Centering Indicator

• Length is 6-7/8″
• Shank diameter is 3/8″
• Feeler diameter is 1/8″
• Locating accuracy is within .0002″ of true center
• Operating speed not to exceed 800 RPM

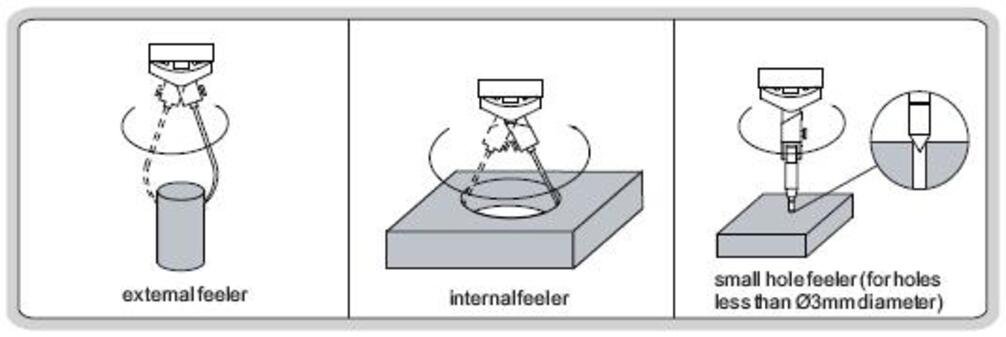

• Capacity is 5/32″-12″ internally and up to 12″ externally

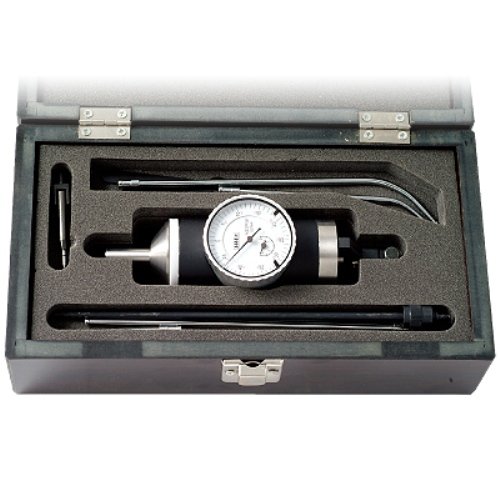

• Supplied in a fitted case
• Kit Includes a 3 ID feelers that are 2, 3 & 4″ long and 3 OD feelers that are 2, 3, & 4″ long
• Also includes is a center locating feeler

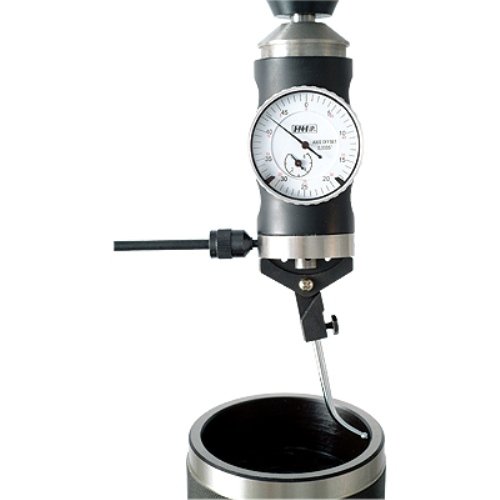

• Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters
• Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table

Specifications

• 0-3MM Pro-Series Centering Indicator
• Length is 6-7/8″.
• Shank diameter is 3/8″.
• Feeler diameter is 1/8″.
• Locating accuracy is within .0002″ of true center.
• Operating speed not to exceed 800 RPM.
• Capacity is 5/32″-12″ internally and up to 12″ externally.
• Supplied in a fitted case.
• Kit Includes a 3 ID feelers that are 2, 3 & 4″ long and 3 OD feelers that are 2, 3, & 4″ long.
• Also includes is a center locating feeler.
• Provides a simplified method of centering a workpiece or fixture on horizontal or vertical machines, internal or external diameters.
• Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.
• Weight: 2.55
• Dimensions: L 3, W 6, H 3

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
