DASQUA 0-1″ BALL SPHERICAL FACE MICROMETER (4510-2305)

DASQUA 0-1″ BALL SPHERICAL FACE MICROMETER (4510-2305) (SKU: 4510-2305)

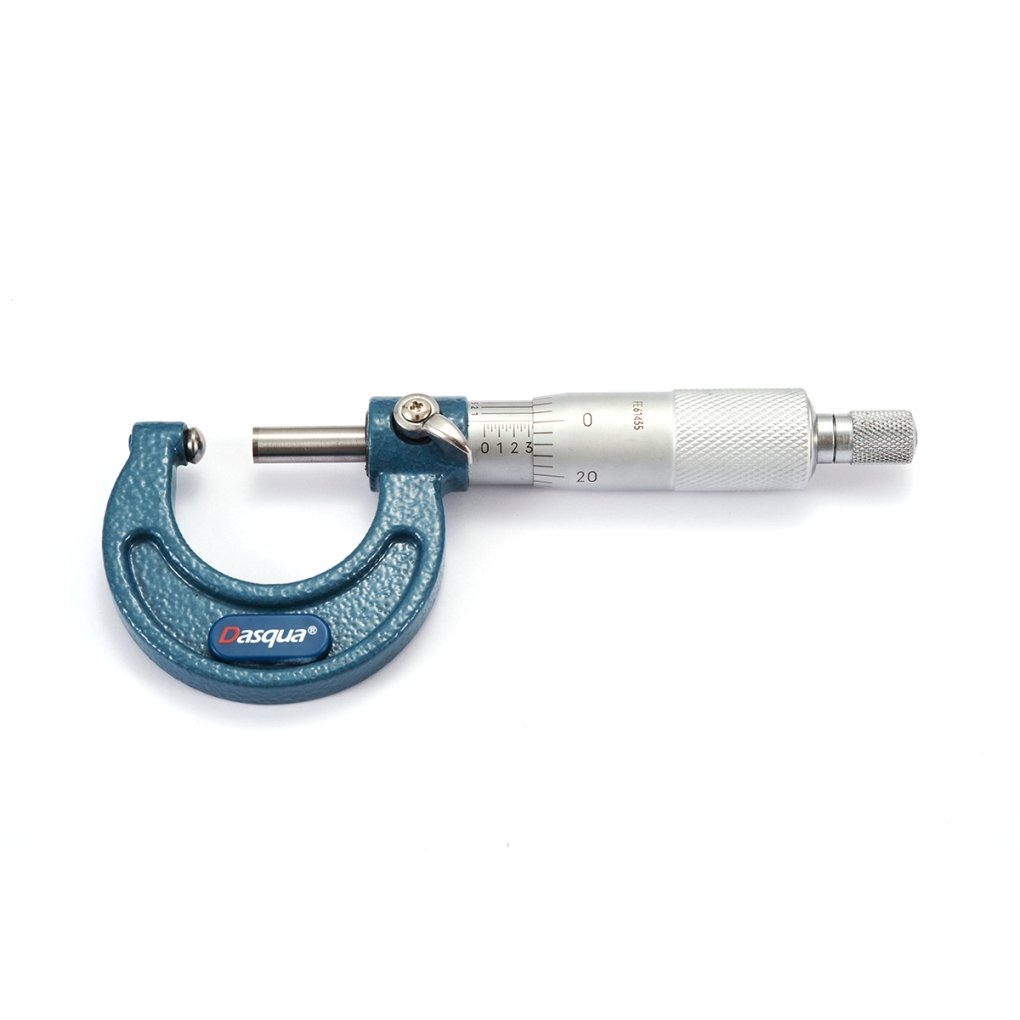

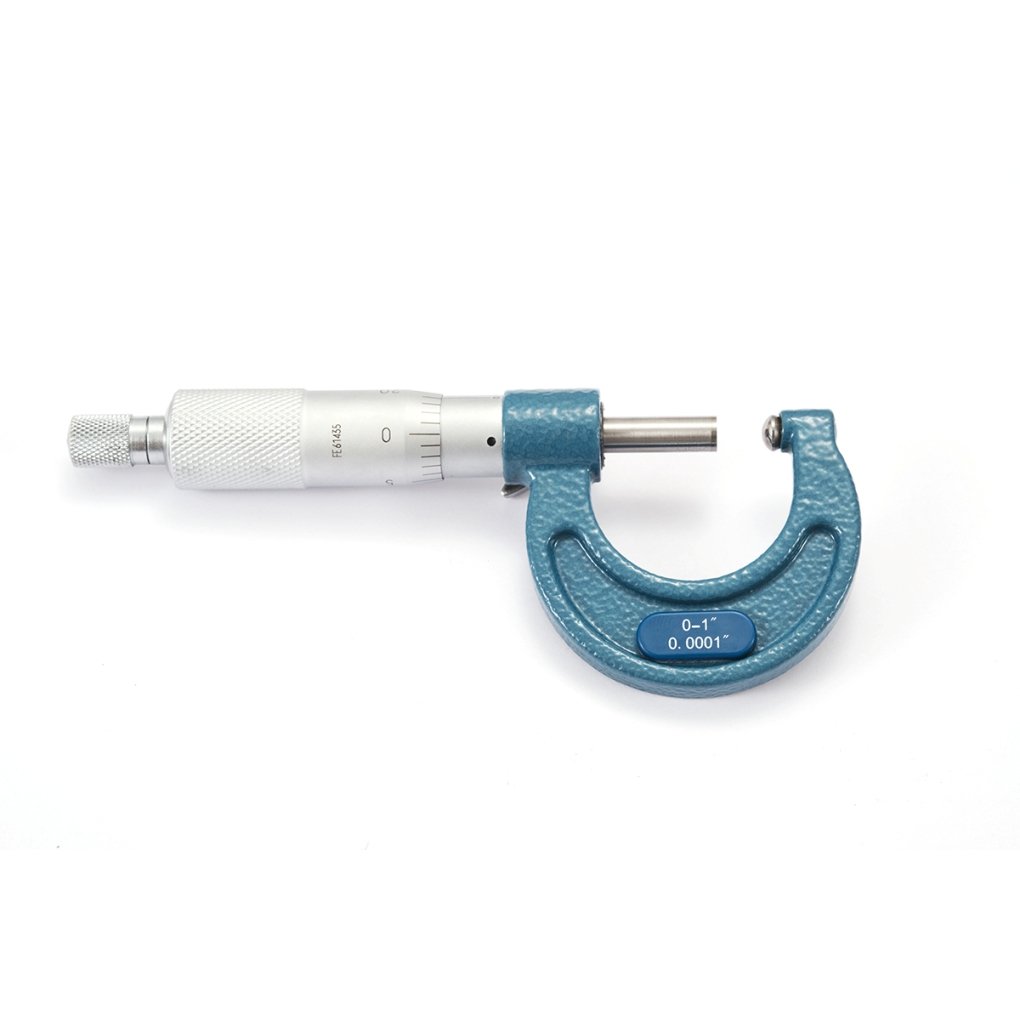

Dasqua 0-1″ Ball Spherical Face Micrometer

• Accuracy is 0.0001″/0.004mm
• For measuring wall thickness of various curved parts & tubes, including bearings, sleeves, collars, rings, cylinders and from a hole to an edge
• Strictly made in accordance with DIN863
• Spindle thread is hardened, ground and lapped for ultimate accuracy
• Barrel and thimble have a satin chrome finish
• Carbide measuring face
• Clear graduations on satin chrome finish for easy reading
• Quick and easy zero adjustment on sleeve
• Positive lever locking clamp and ratchet stop
• Ideal for measuring convex curves directly without having to subtract the diameter of the ball

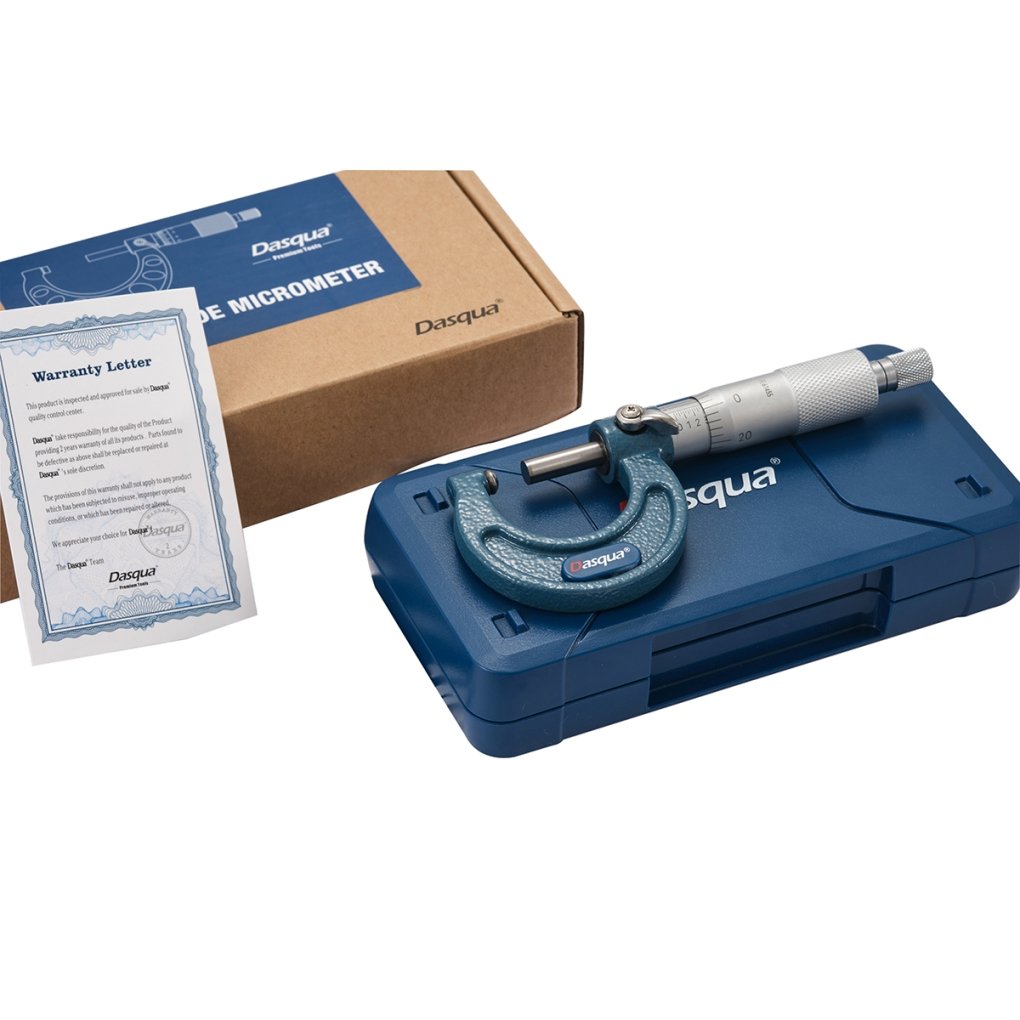

• Supplied with fitted case

Specifications

• Dasqua 0-1″ Ball Spherical Face Micrometer
• Accuracy is 0.0001″/0.004mm.
• Strictly made in accordance with DIN863.
• Spindle thread is hardened, ground and lapped for ultimate accuracy.
• Barrel and thimble have a satin chrome finish.
• Carbide measuring face.
• Clear graduations on satin chrome finish for easy reading.
• Quick and easy zero adjustment on sleeve.
• Positive lever locking clamp and ratchet stop.
• Supplied with fitted case.
• Ideal for measuring convex curves directly without having to subtract the diameter of the ball.
• For measuring wall thickness of various curved parts & tubes, including bearings, sleeves, collars, rings, cylinders and from a hole to an edge.
• Weight: 0.62

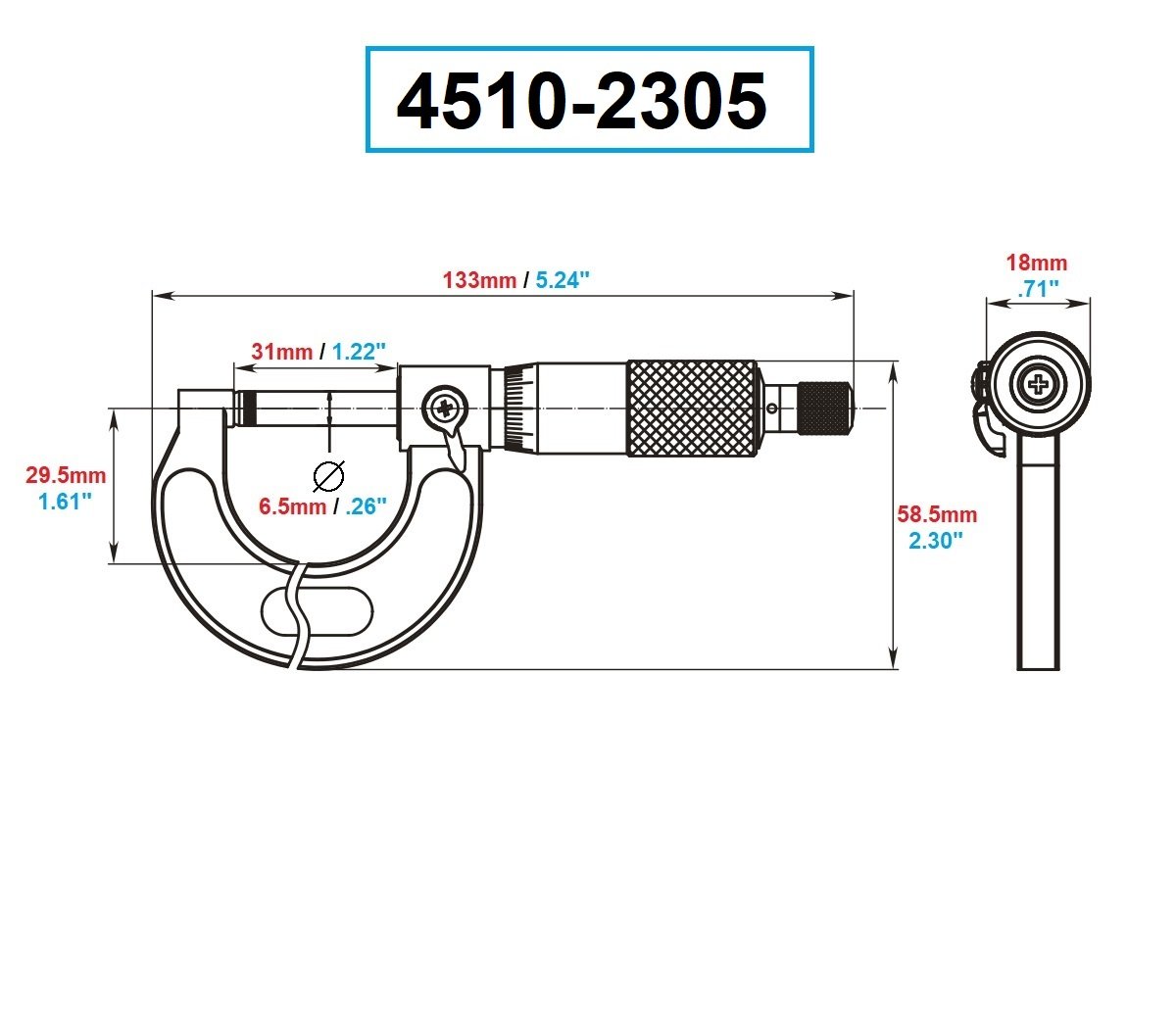

• Dimensions: L 7, W 3, H 2

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
