DASQUA 0-1″ INDICATOR WITH MAGNETIC BACK & FLEX CHROME MAG BASE (7611-2005)

DASQUA 0-1″ INDICATOR WITH MAGNETIC BACK & FLEX CHROME MAG BASE (7611-2005) (SKU: 7611-2005)

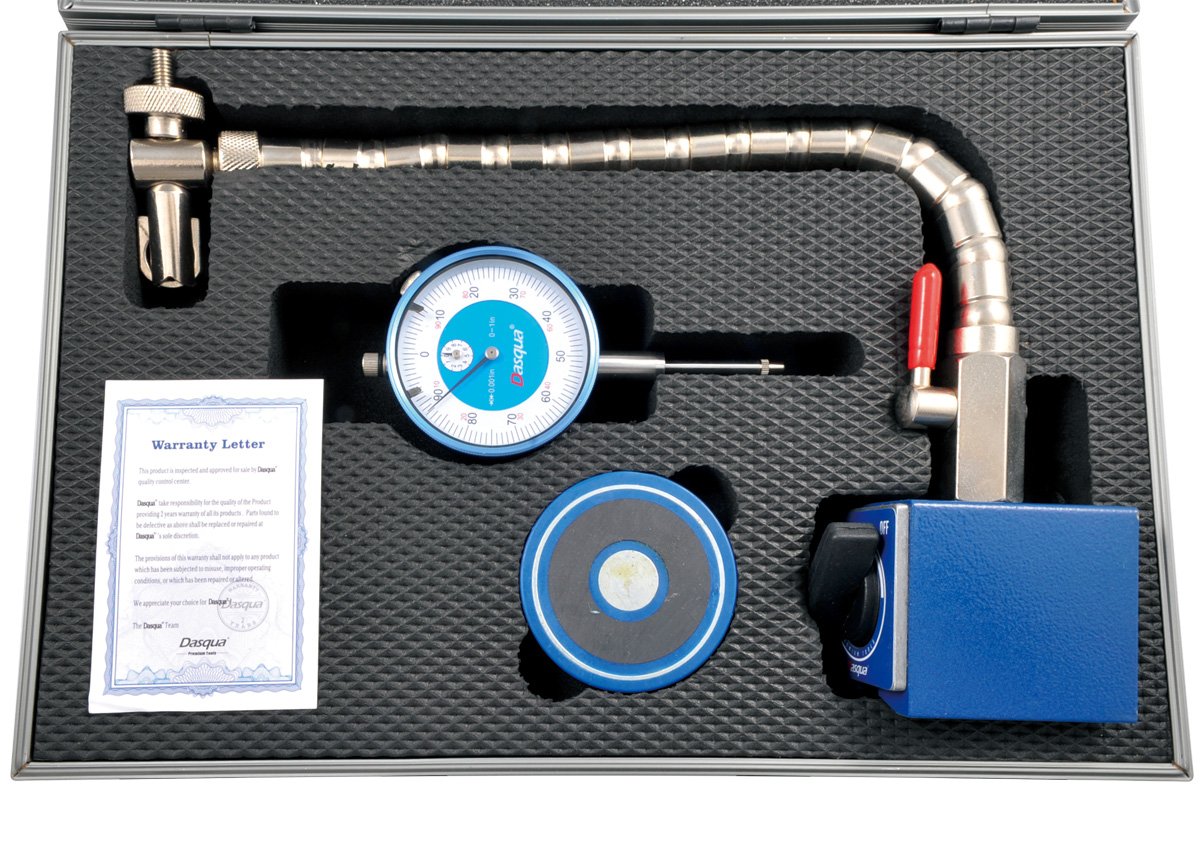

Dasqua 0-1″ Indicator With Magnetic Back & Flex Chrome Mag Base The indicator has a resolution of 0.001″, the stem is 3/8″ and the dial face is 2″. It also has lug back and a 4-48 thread. The indicator is also made with a hardened metal construction for longer life. Made in accordance to ASME B89.1.10M-2001. The mag base has a permanent magnet with an on/off switch. A cam lever operates the cable which is tension adjustable. It can be locked rigid at any desired position and the stem flexes a full 360 degrees. The mag base accepts all A.G.D. dial indicators. It has an overall length of 13″ with a power pull of 130 lbs. The base is 2″ wide X 2-1/2″ depth. The magnetic back is a screw on/off back. It has a protective coating and is used to position indicator of most metal surfaces. It is 2-1/4″ in diameter with a magnetic force of 20kg. The set includes an extra flannelette bag to protect the dial indicator during repeated usage. This set is packed in a fitted case.

Specifications

• Dasqua 0-1″ Indicator With Magnetic Back & Flex Chrome Mag Base
• The indicator has a resolution of 0.001″, the stem is 3/8″ and the dial face is 2″. It also has lug back and a 4-48 thread.
• The indicator is also made with a hardened metal construction for longer life. Made in accordance to ASME B89.1.10M-2001.

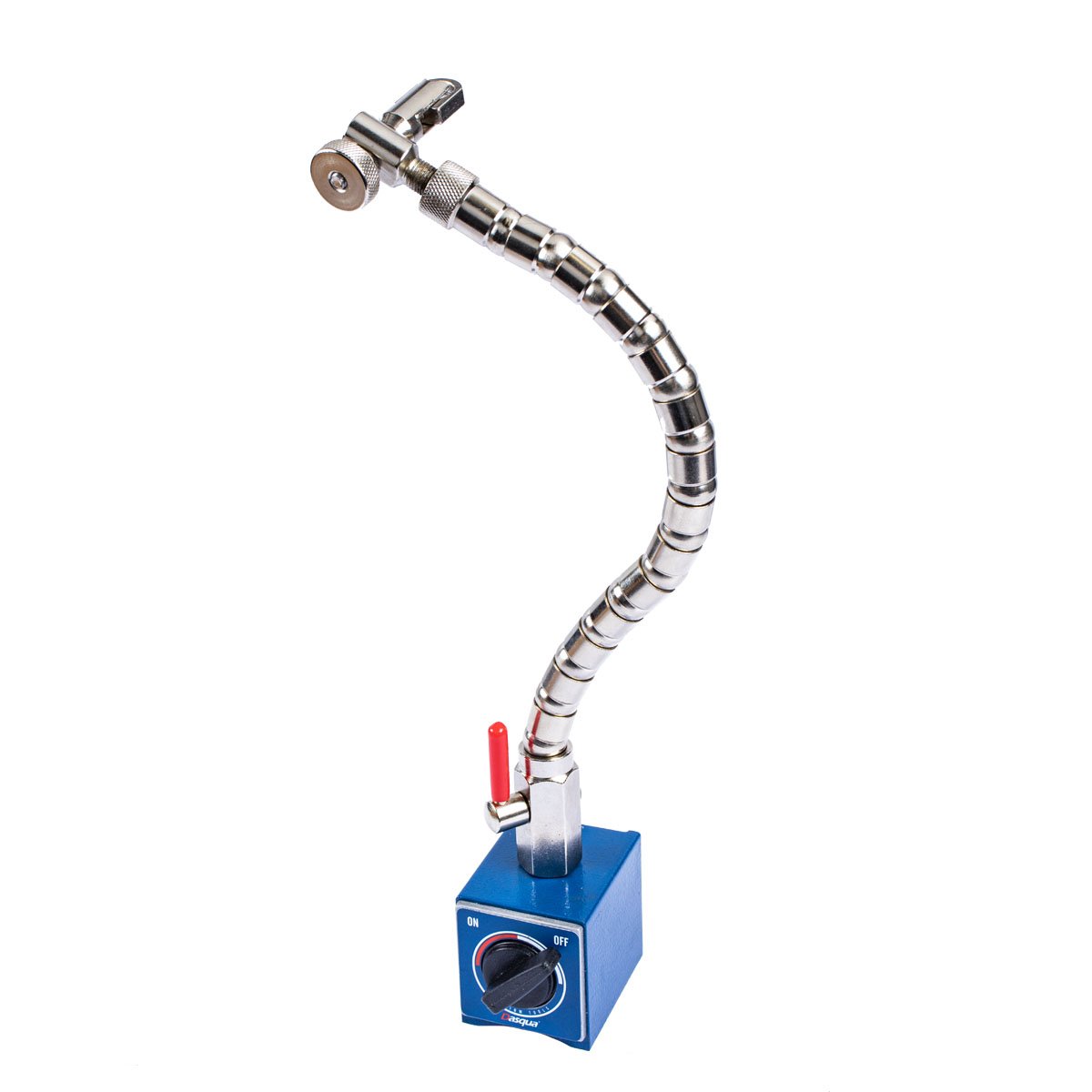

• The mag base has a permanent magnet with an on/off switch. A cam lever operates the cable which is tension adjustable. It can be locked rigid at any desired position and the stem flexes a full 360 degrees.
• The mag base accepts all A.G.D. dial indicators. It has an overall length of 13″ with a power pull of 130 lbs. The base is 2″ wide X 2-1/2″ depth.

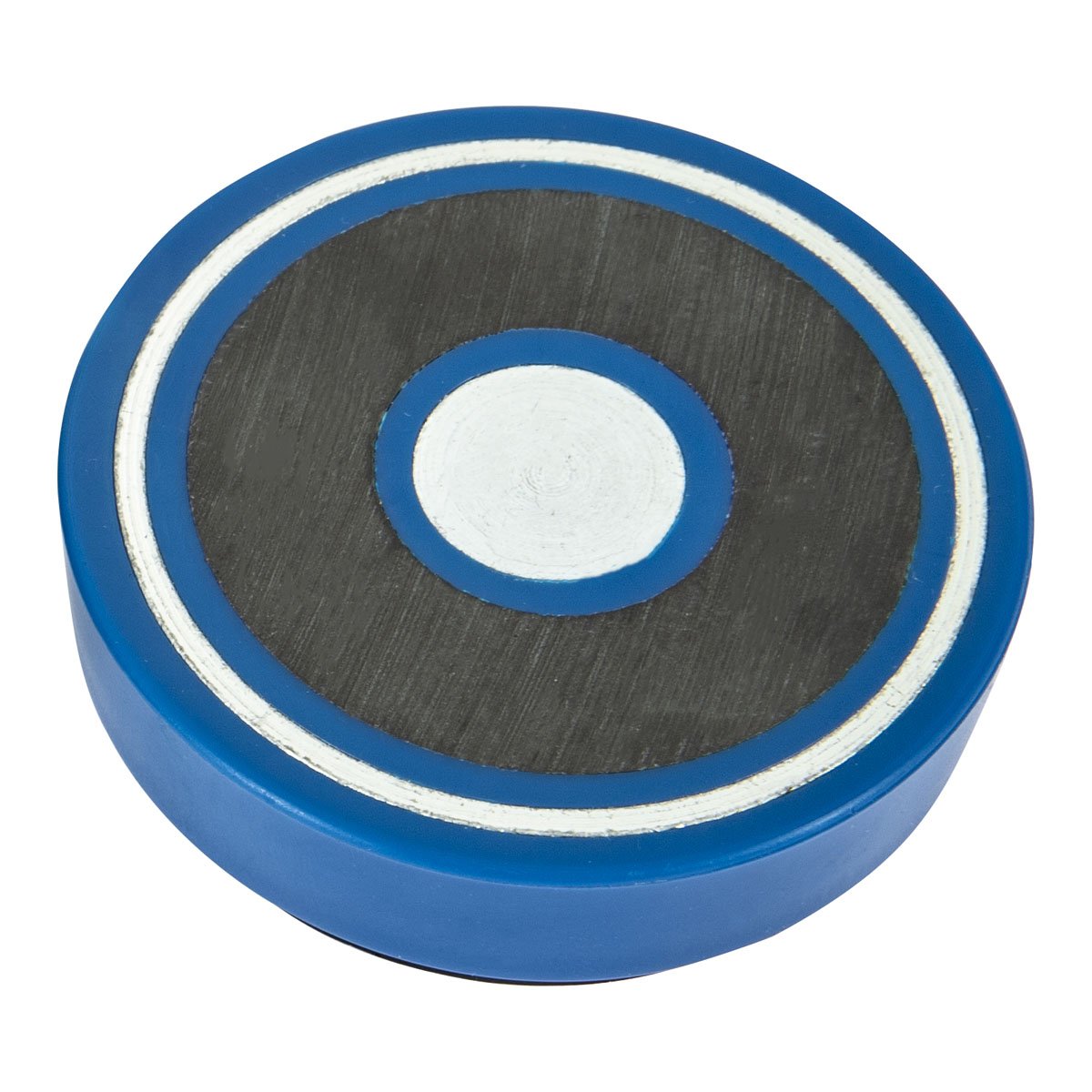

• The magnetic back is a screw on/off back. It has a protective coating and is used to position indicator of most metal surfaces. It is 2-1/4″ in diameter with a magnetic force of 20kg.
• The set includes an extra flannelette bag to protect the dial indicator during repeated usage.
• This set is packed in a fitted case.
• Weight: 5.1
• Dimensions: L 12, W 8, H 3

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.

USA Warehouse Stock — Fast U.S. fulfillment.
