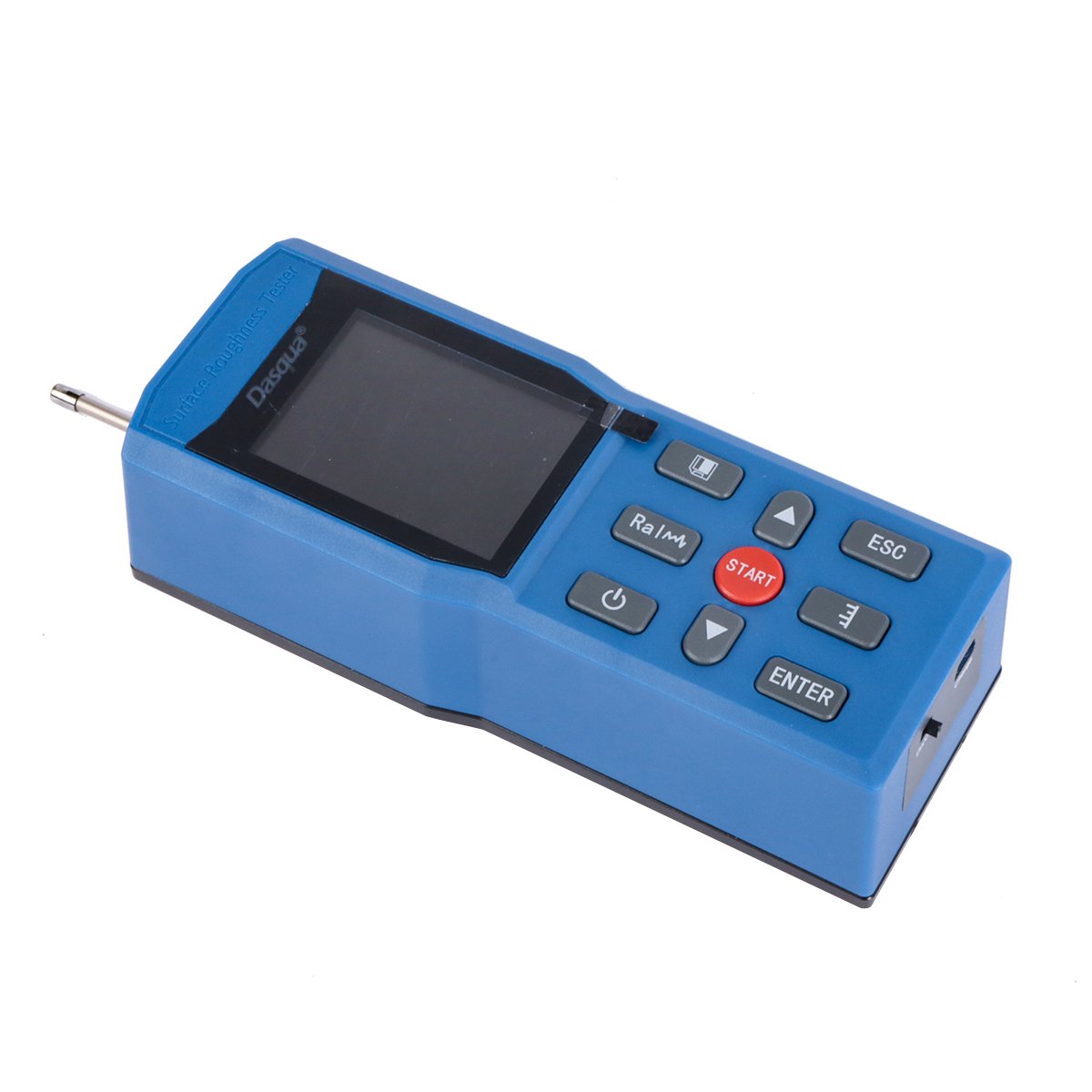

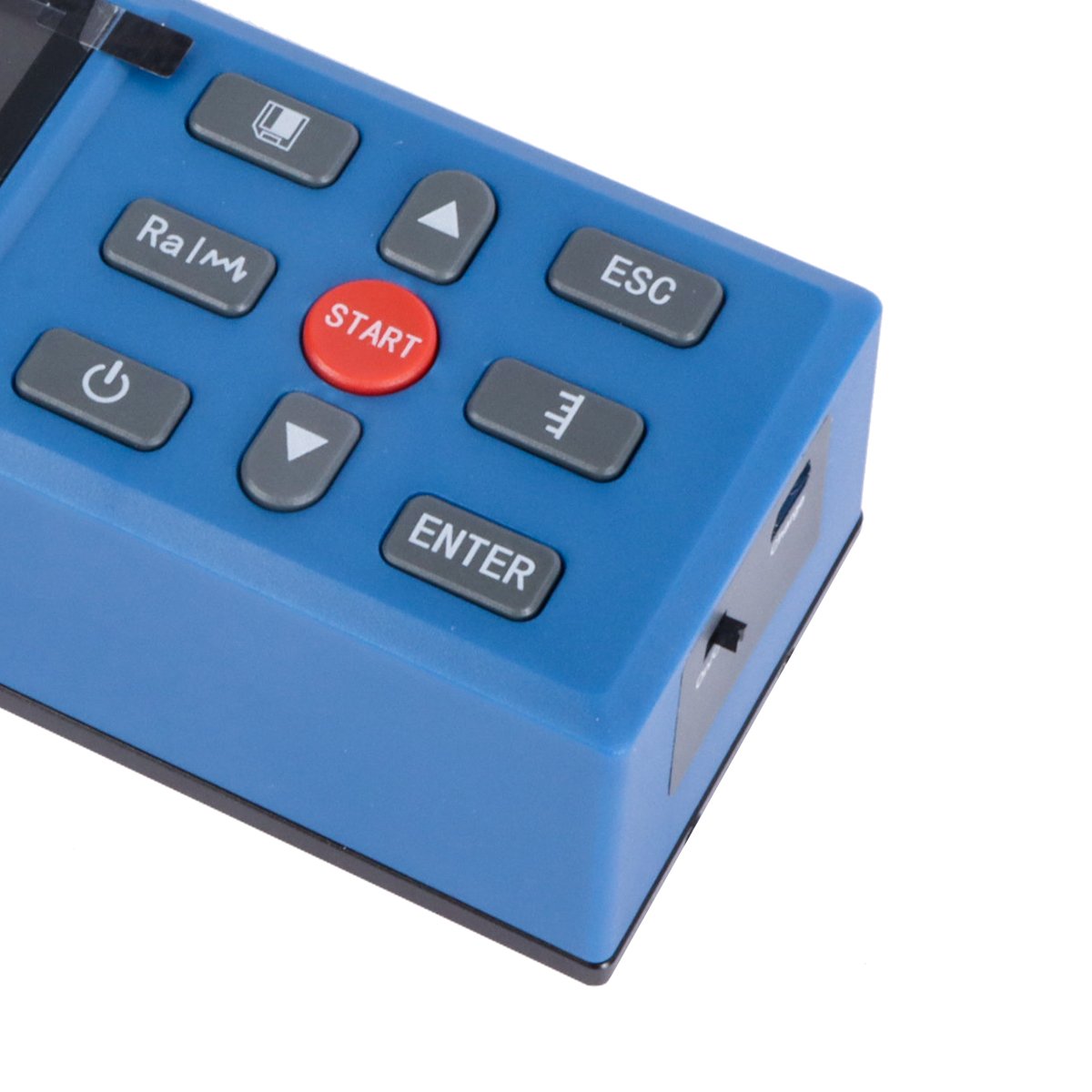

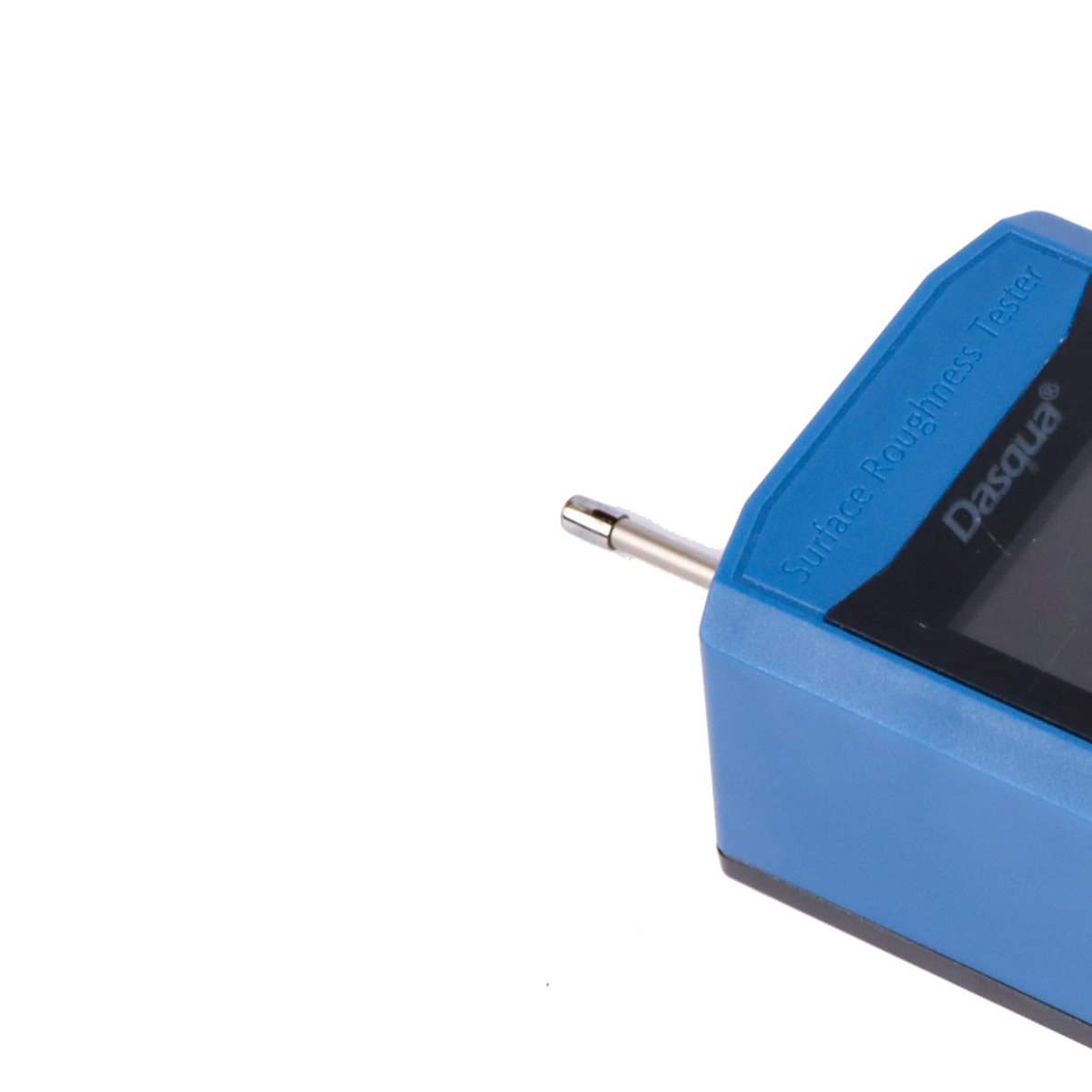

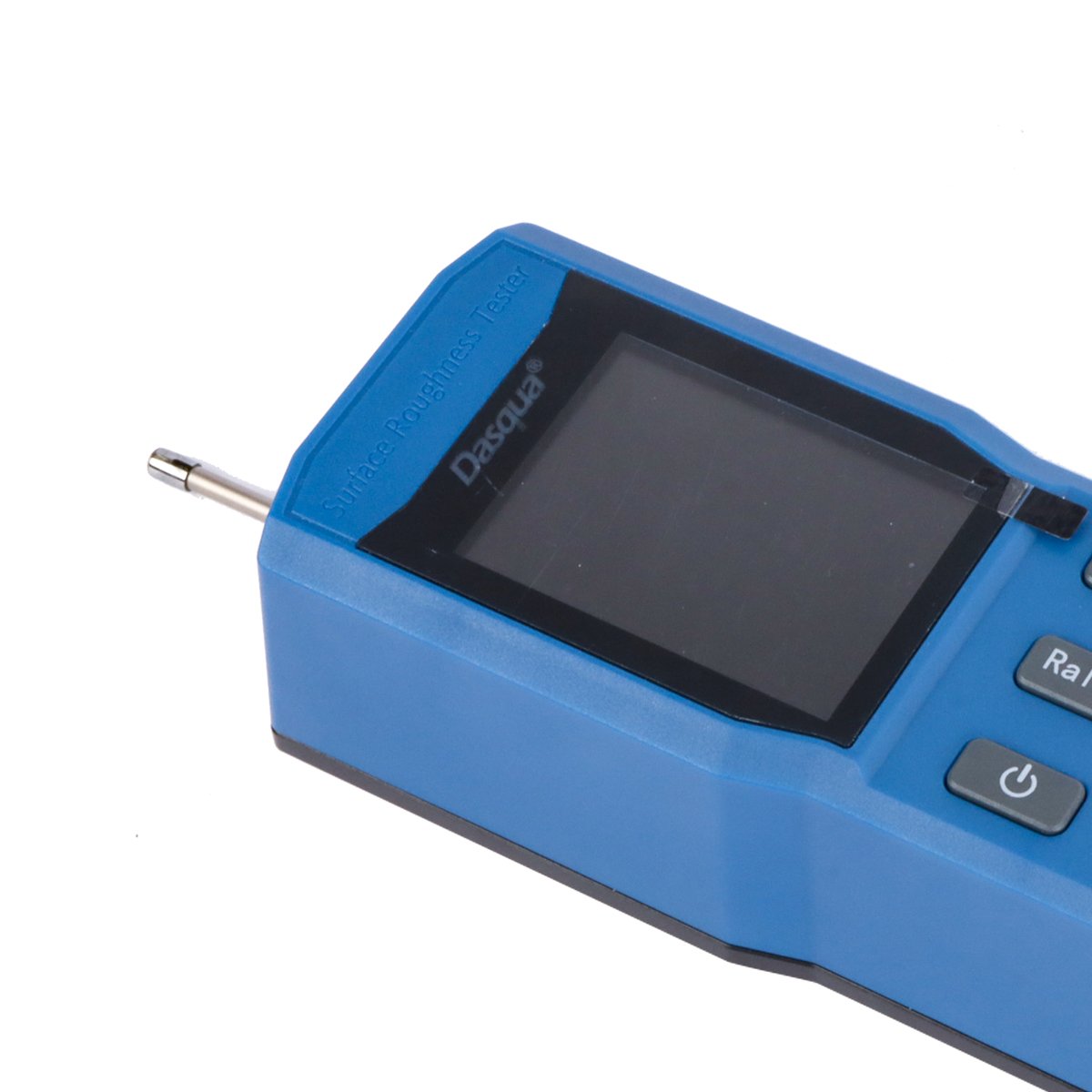

DASQUA DIGITAL SURFACE ROUGHNESS TESTER (SKU: 1804-6302)
Professional Metrology-Grade Surface Finish Analysis
The Dasqua Surface Roughness Tester delivers lab-quality measurements in a portable, user-friendly package. Designed for the rigorous demands of modern manufacturing, this tester provides critical data on surface texture, ensuring your components meet strict engineering tolerances and international standards.
Advanced Integrated Design
Utilizing a sophisticated electro-mechanical integration, this unit is compact enough for shop-floor inspections while remaining accurate enough for the QC lab. The lightweight housing protects high-precision internal sensors, while the intuitive digital interface provides clear, instant results.
Key Performance Features
- Multi-Parameter Measurement: Evaluates Ra, Rz, Rq, and Rt parameters for comprehensive surface profile analysis.
- Wide Measuring Range: Capable of measuring up to 320μm, suitable for a vast array of machining processes.
- Global Standard Compliance: Fully compatible with ISO, DIN, ANSI, and JIS national standards, ensuring your reports are valid worldwide.
- Extended Battery Life: Optimized power management allows for more than 20 hours of continuous operation on a single charge.
- Data Connectivity: Built-in ports allow for direct connection to a computer or printer for professional documentation and statistical analysis.
Technical Specifications
| Part Number | 1804-6302 |
|---|---|
| Brand | Dasqua |
| Parameters | Ra, Rz, Rq, Rt |
| Measuring Range | Up to 320μm |
| Standards Compliance | ISO, DIN, ANSI, JIS |
| Battery Life | > 20 Hours (Continuous) |
| Connectivity | PC and Printer Compatible |
| Shipping Weight | 4 lbs |
Shop-Floor Benefits
- Process Validation: Instantly verify that your milling, turning, or grinding processes meet surface finish requirements.
- Portability: Move easily between CNC machines for in-process inspection without bulky setups.
- Data Integrity: Connect to your PC to export data, reducing manual entry errors and streamlining quality reports.
Product FAQ
Q: Can this tester measure inside bores or holes?
A: Depending on the optional stylus accessories used, it is designed for flat and external cylindrical surfaces. For deep bores, please check for specialized probe attachments.
Q: Does the unit come with a calibration block?
A: Standard professional kits typically include a precision reference specimen for field calibration. [TO BE VERIFIED BY SKU]
Q: What software is used for PC connection?
A: The unit typically uses proprietary data acquisition software for Windows to manage and print measurement data.
