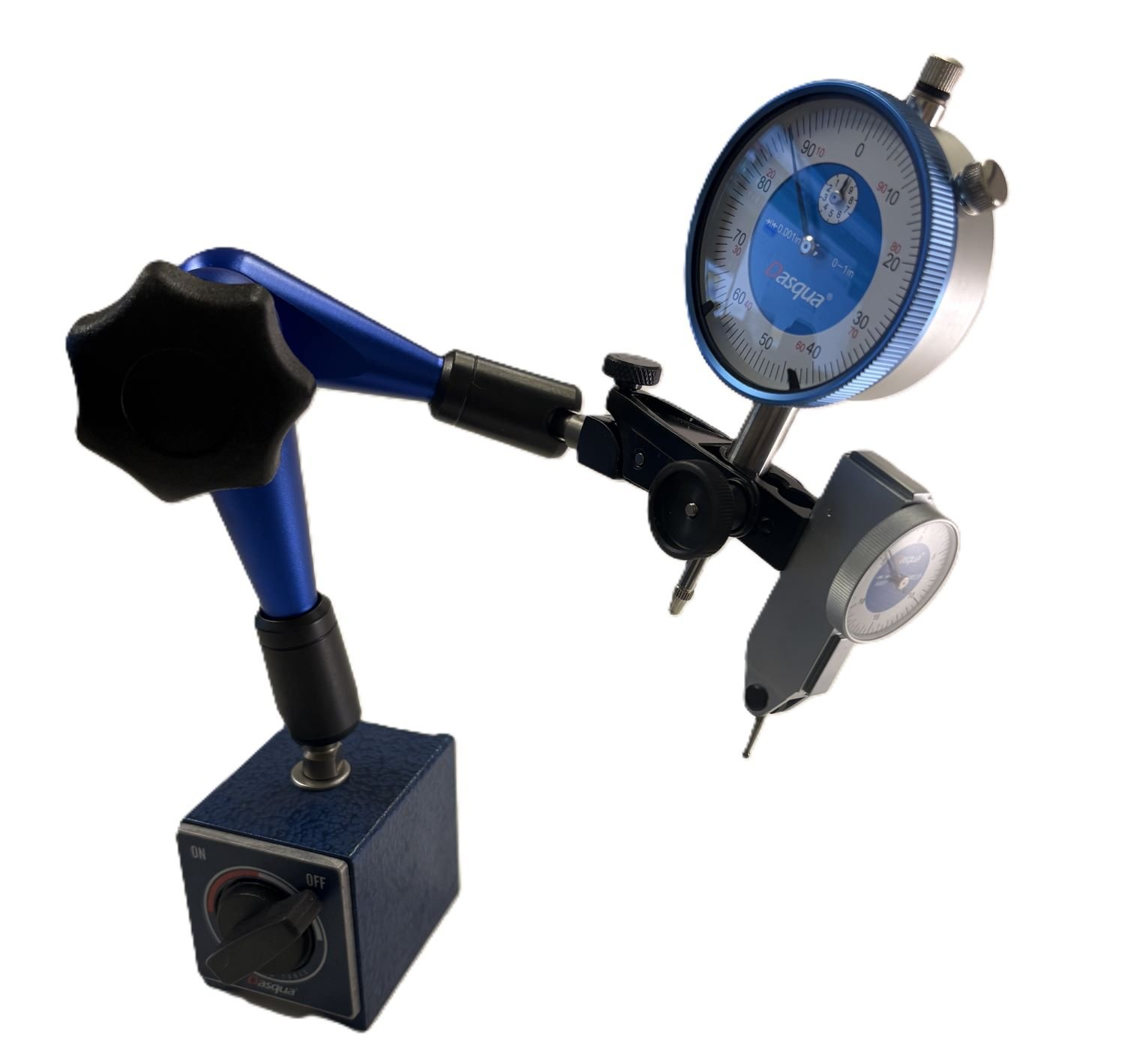

Professional Precision Inspection: The Dasqua Indicator & Magnetic Base Set
Achieve professional accuracy and consistent results in your machine shop with the Dasqua Precision Test Indicator, Dial Indicator & Magnetic Base Set. This comprehensive inspection kit is engineered for machinists, toolmakers, and quality control technicians who demand reliable, repeatable measurements for CNC machine setup, fixture alignment, and surface inspection.
Why Choose This Dasqua Set?
This kit eliminates the guesswork of sourcing individual components. By combining a precision test indicator, a standard dial indicator, and a high-stability magnetic base, Dasqua provides an all-in-one solution that ensures process stability and tight-tolerance control in any industrial environment.
Technical Specifications

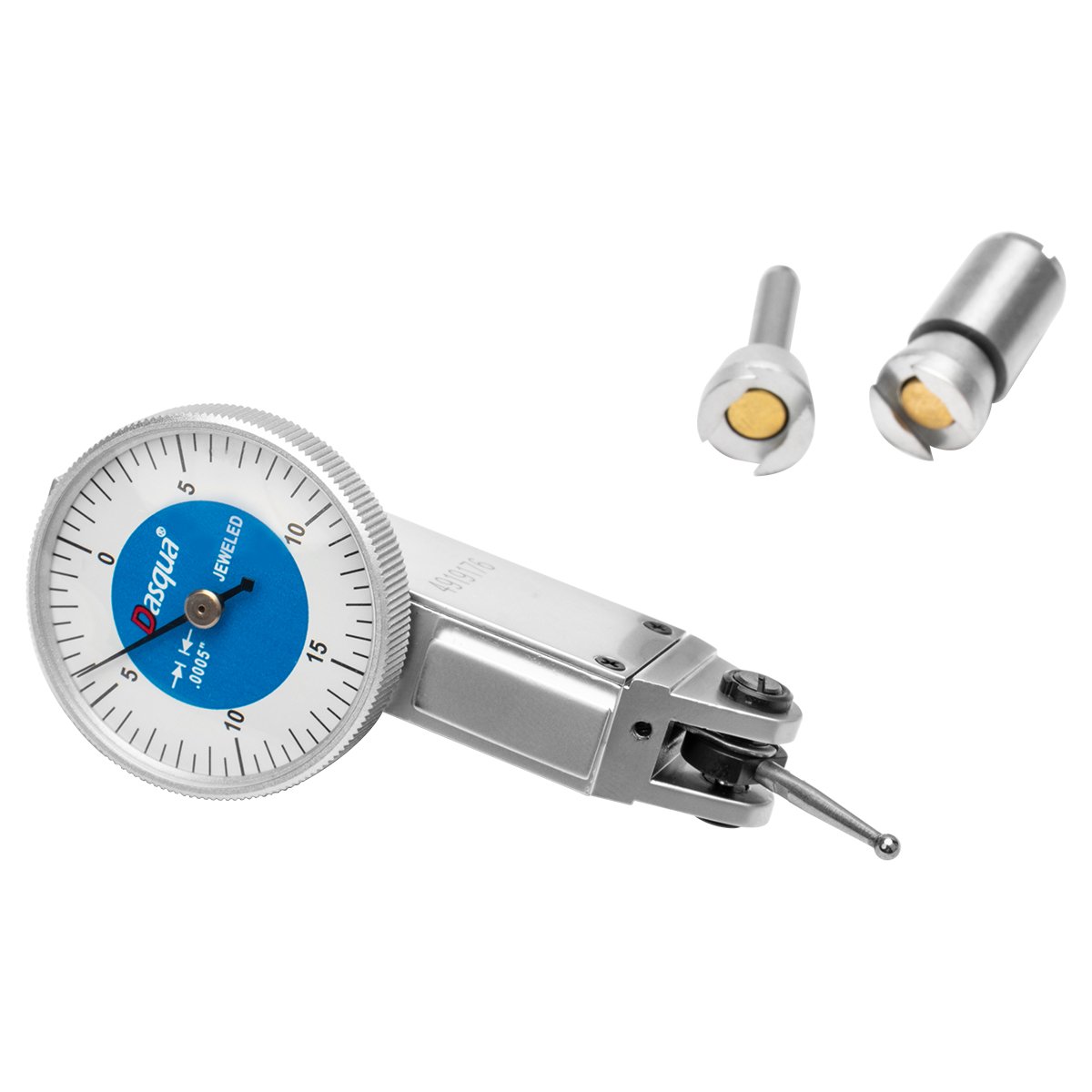

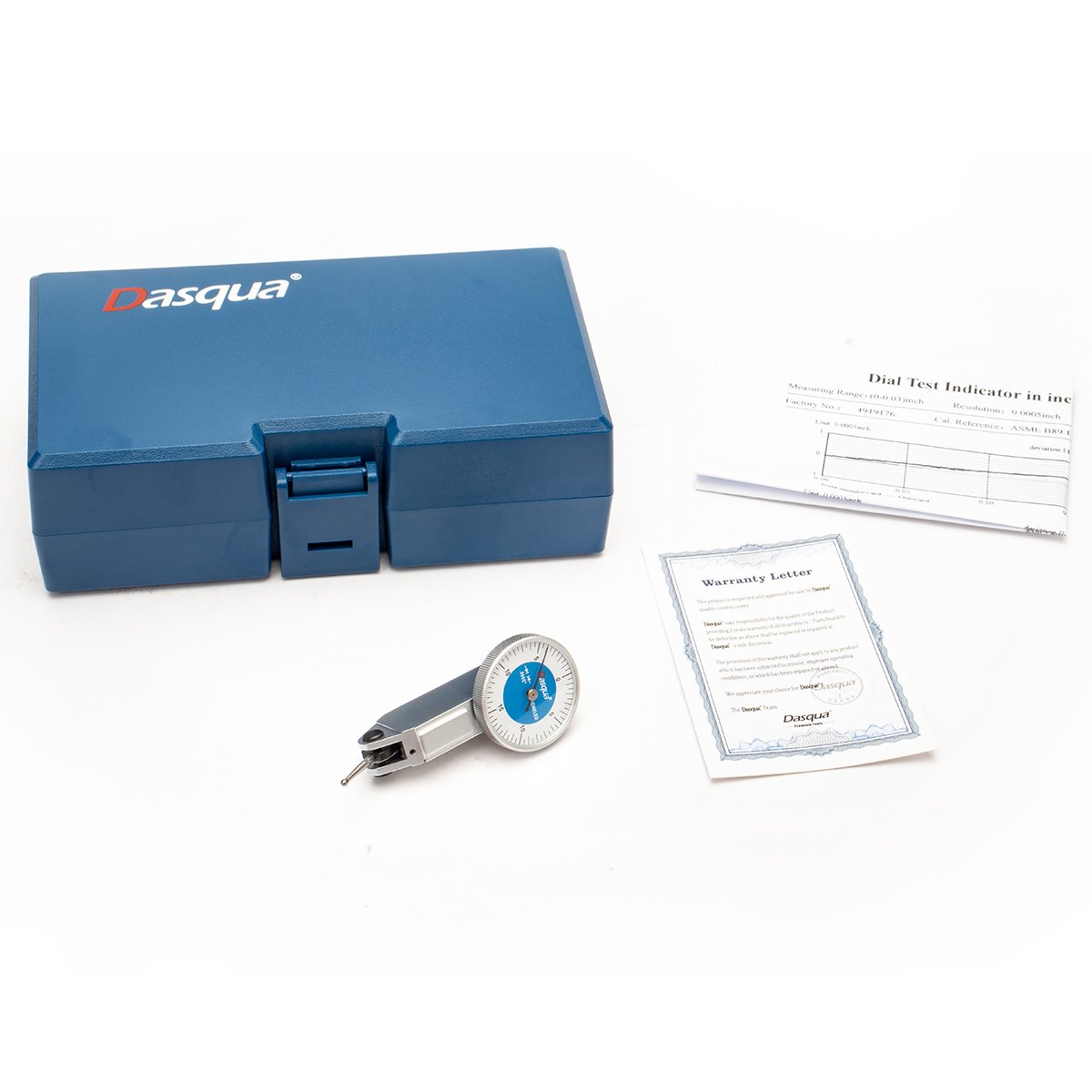

- Dasqua 5610-0165 Test Indicator: Features a 0.03″ measuring range with 0.0005″ graduations. The jeweled, gear-driven movement ensures ultra-smooth operation, while the dual dovetail mounts (5/32″ & 3/8″) provide versatile integration with most indicator holders.

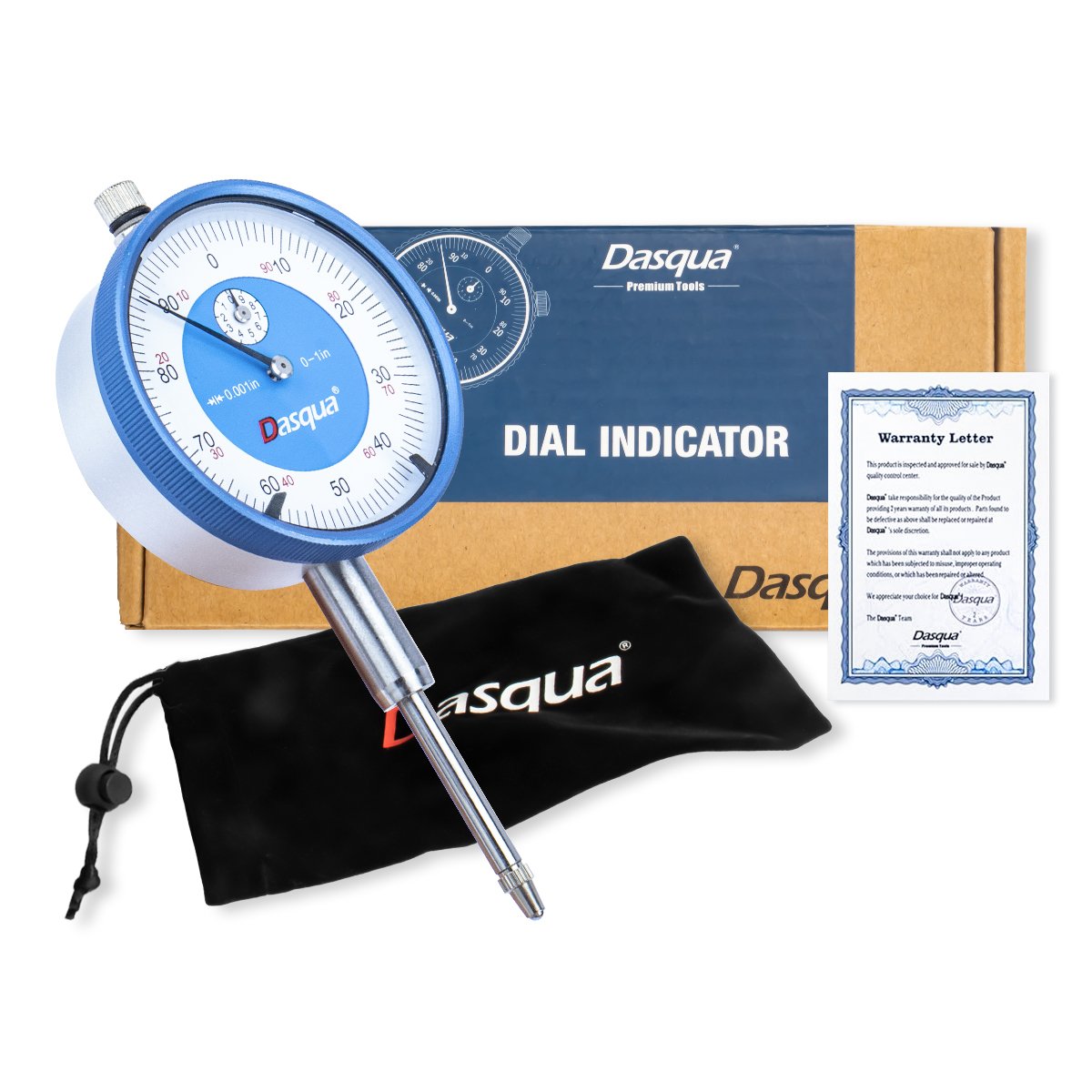

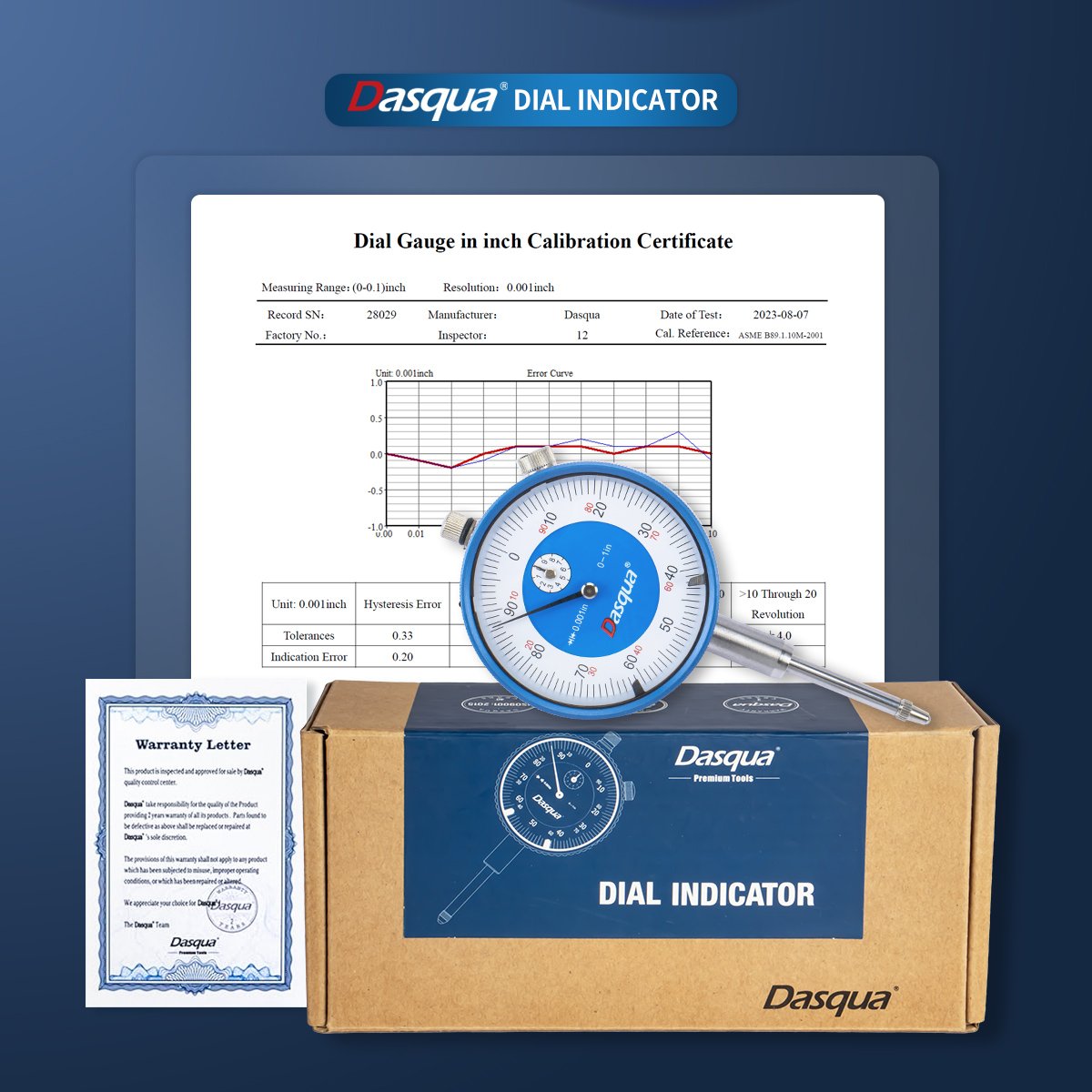

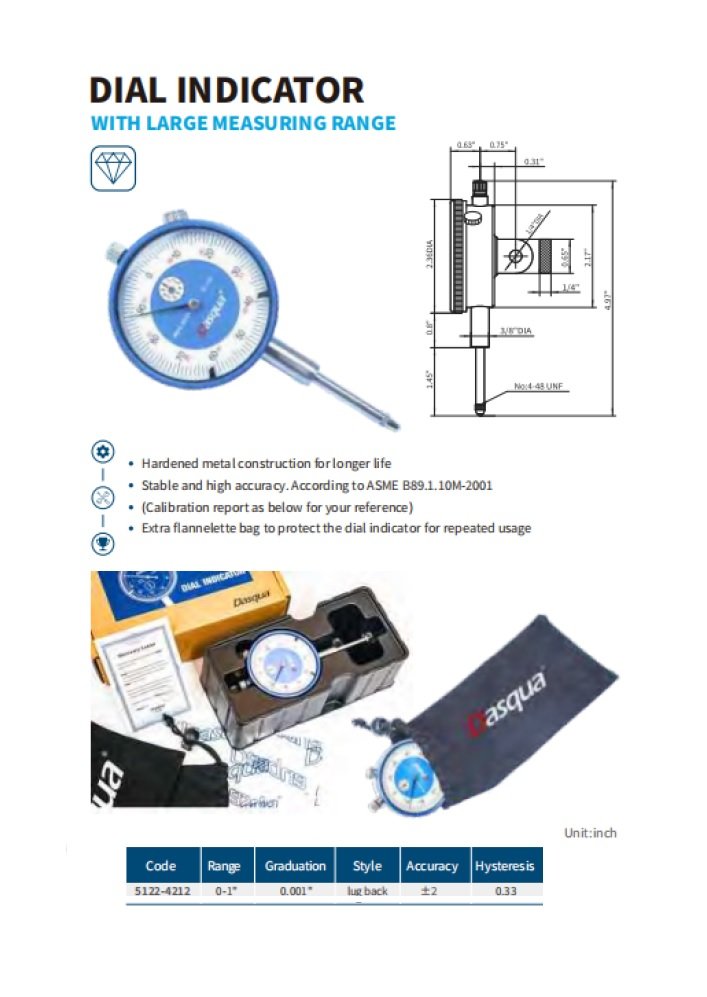

- Dasqua 5122-4212 0-1″ Dial Indicator: Manufactured to strict DIN878 standards. It offers 0.001″ divisions and 0.00033″ hysteresis, delivering the consistency required for production environments.

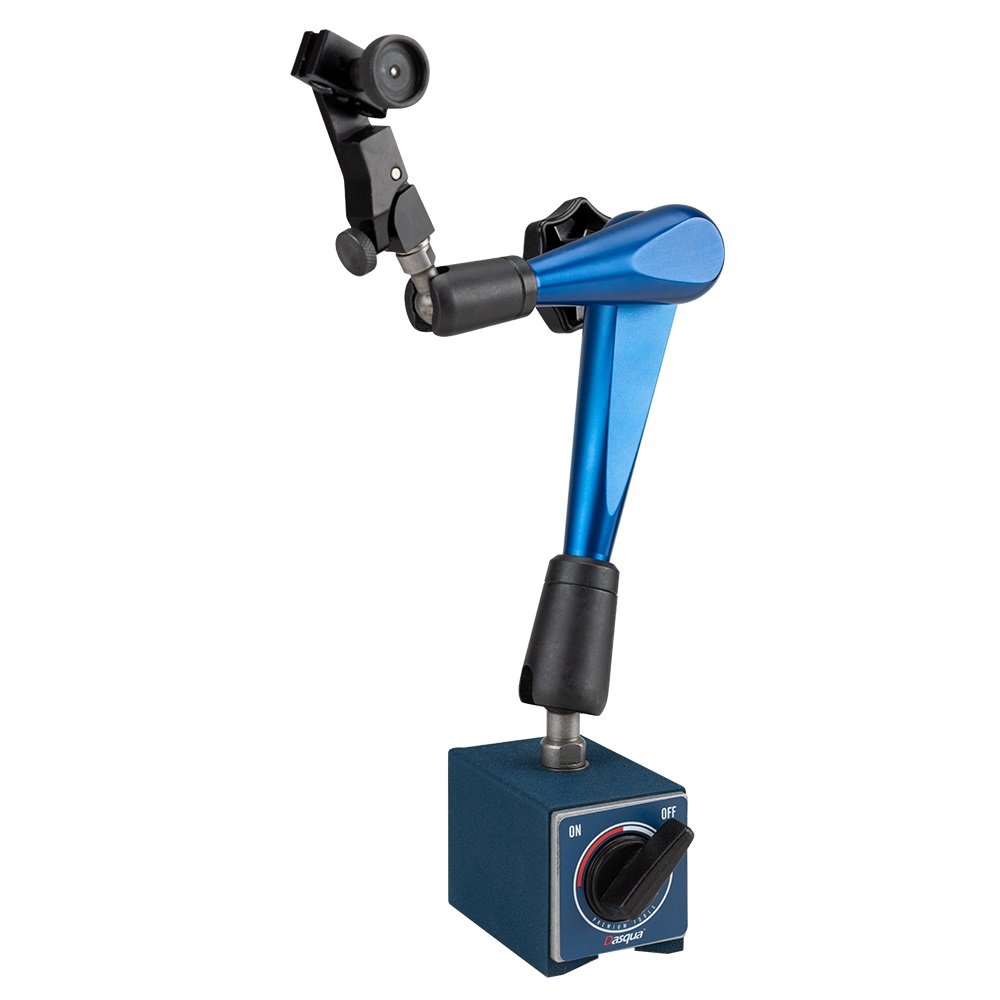

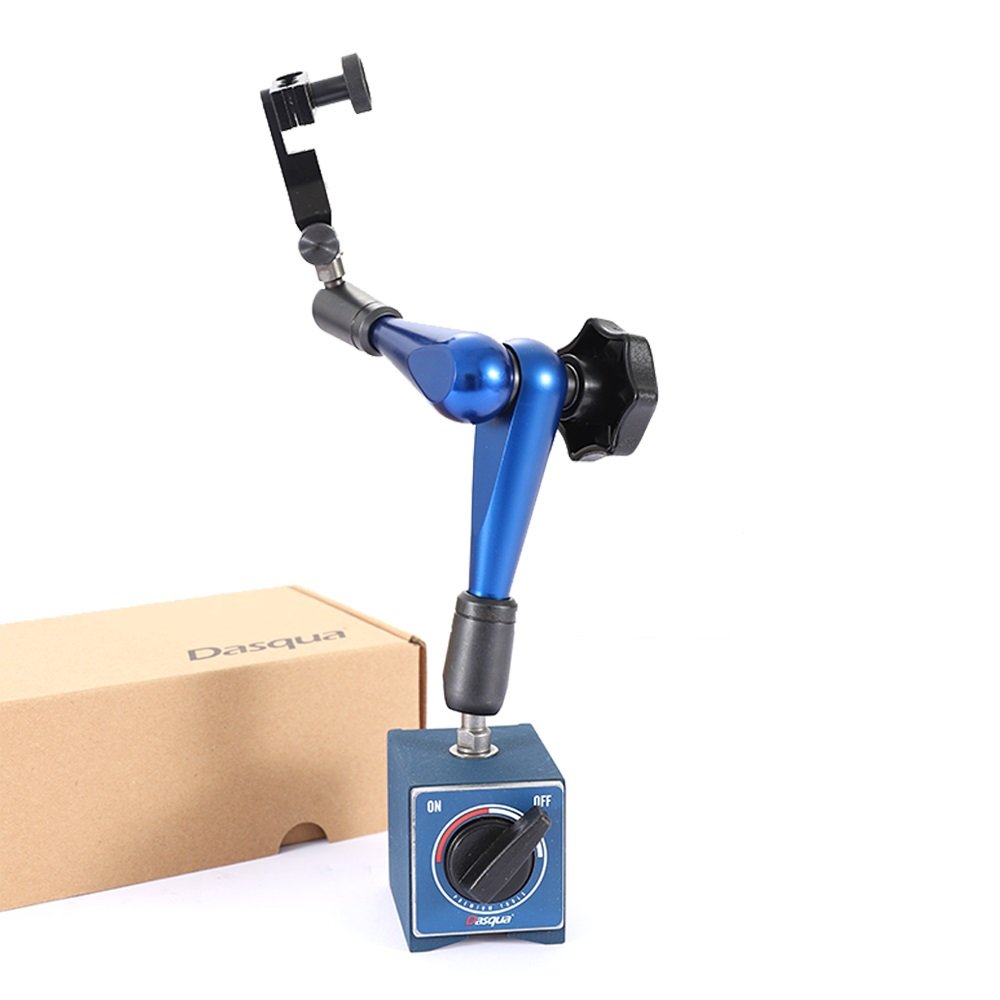

- Dasqua 7121-0025 Magnetic Base: The foundation of this set, featuring a powerful 176 lbs (80kg) holding force. Constructed from hardened steel (HRC 58°+) with CNC-machined components, it provides the rigid stability needed to prevent reading drift.
Shop-Floor Benefits
- Repeatable Accuracy: DIN878 compliance guarantees that your measurements are consistent across different shifts and operators.
- Enhanced Stability: The heavy-duty magnetic base with a 275mm arm length minimizes vibration, ensuring reliable readings even in demanding CNC or manual machining setups.

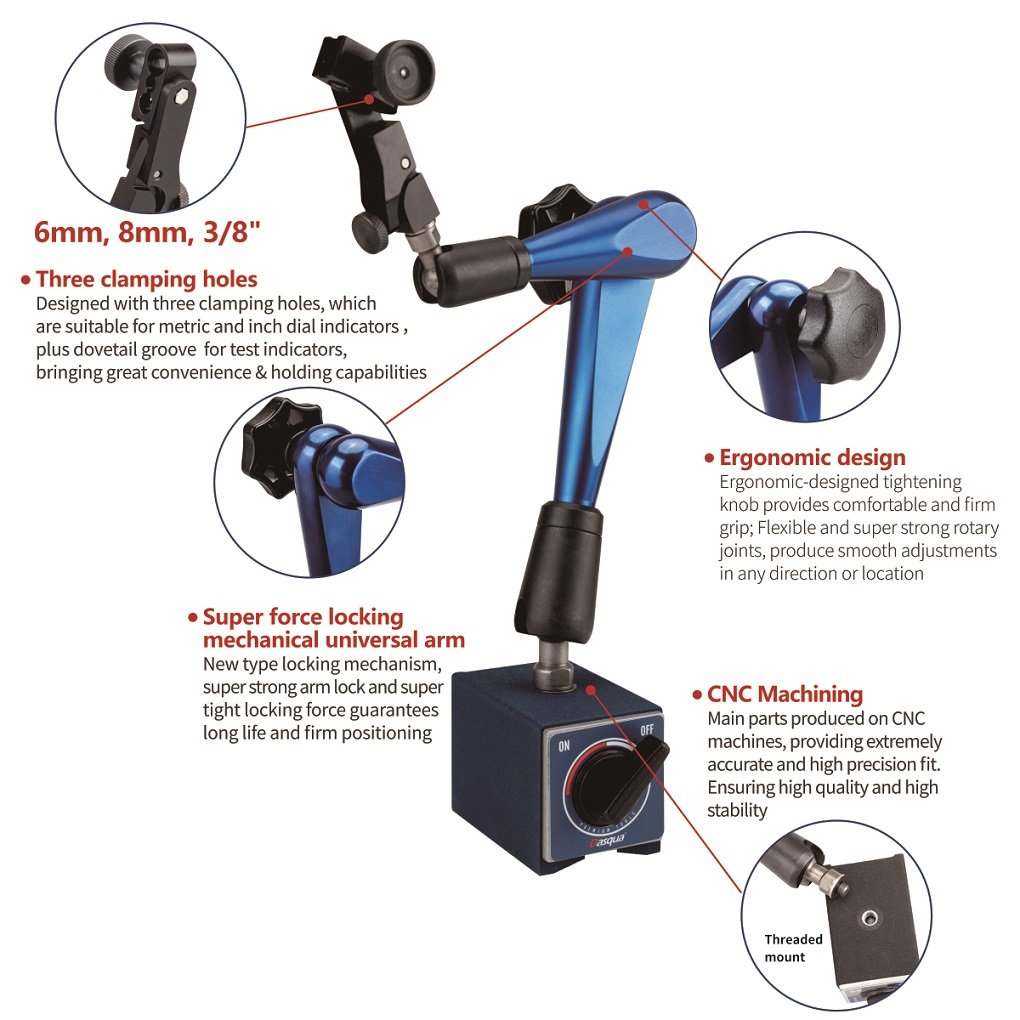

- Versatility: With multi-hole clamping (6mm, 8mm, 3/8″) and dovetail grooves, this set is compatible with a wide array of existing shop tools and machines.
- Improved Readability: The 1.18″ high-contrast dial face with a blue insert allows for fast, error-free reading, reducing fatigue during long inspection sessions.
Recommended Applications
This kit is a staple for aerospace, automotive, and general-purpose job shops. Use it for:
- Checking TIR (Total Indicated Runout) on lathe spindles and chucks.
- Aligning vises and fixtures on milling machines.
- Quality control and final part inspection.
- Machine maintenance and troubleshooting.
| Part Numbers | 5610-0165 (Test), 5122-4212 (Dial), 7121-0025 (Base) |
|---|---|
| Brand | Dasqua |
| Category | Precision Measuring Tools |
| Test Indicator Range | 0.03″ |
| Dial Indicator Range | 0-1″ |
| Magnetic Base Force | 176 lbs (80kg) |
| Magnetic Base Arm Length | 275mm |
| Tool Material | Hardened Steel / Jeweled Movement |
| Base Hardness | HRC 58°+ |
| Clamping Options | 6mm, 8mm, 3/8″, Dovetail |
| Cutting Data | N/A |
| Country of Origin | [TO BE COMPLETED] |
Frequently Asked Questions
Q: Is this set compatible with metric and imperial tools?
A: Yes. The magnetic base includes 6mm, 8mm, and 3/8″ clamping holes, ensuring compatibility with a wide range of both metric and imperial indicator stems.
Q: Is the magnetic base rigid enough for heavy-duty CNC work?
A: Absolutely. With a 176 lbs holding force and hardened steel construction, this base is designed to resist vibration and movement, providing the stability necessary for precise CNC shop operations.
Q: How does this set compare to high-end brands?
A: Dasqua offers professional-grade precision and DIN878 compliance at a competitive price point, making it an excellent choice for shops that need high-quality performance without the premium markup of tier-one brands.
