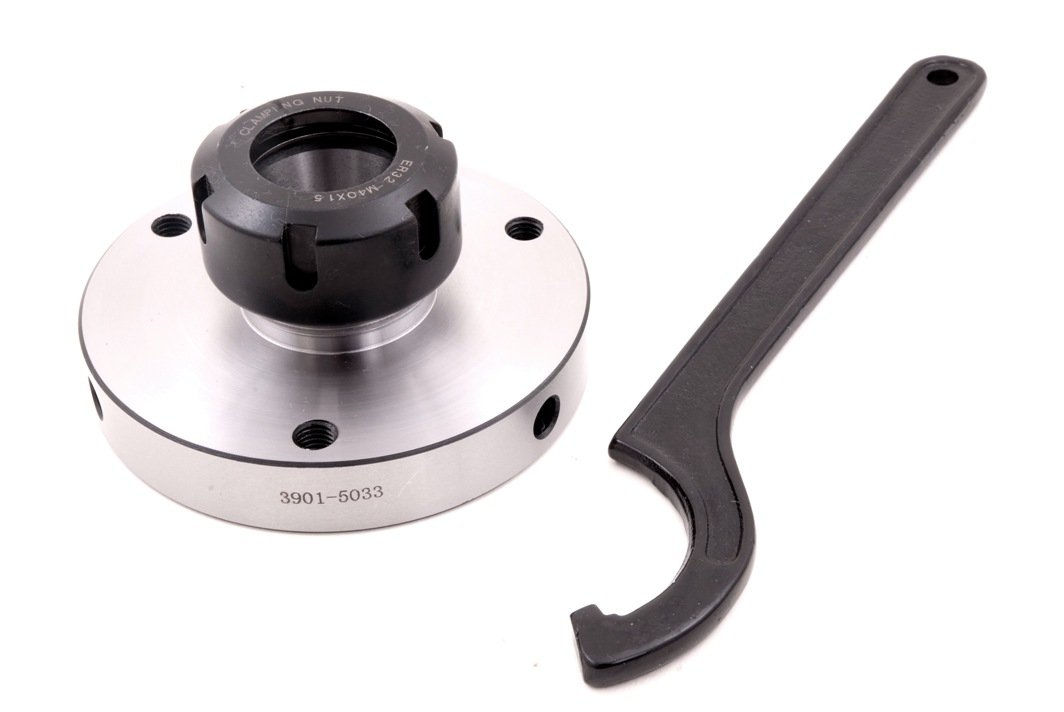

ER-32 Collet Chuck Adapter Backplate 100mm Plain Back

$175.99

DELIVERY 3 – 5 DAYS

Availability: In stock

SKU: 3901-5033 Category:

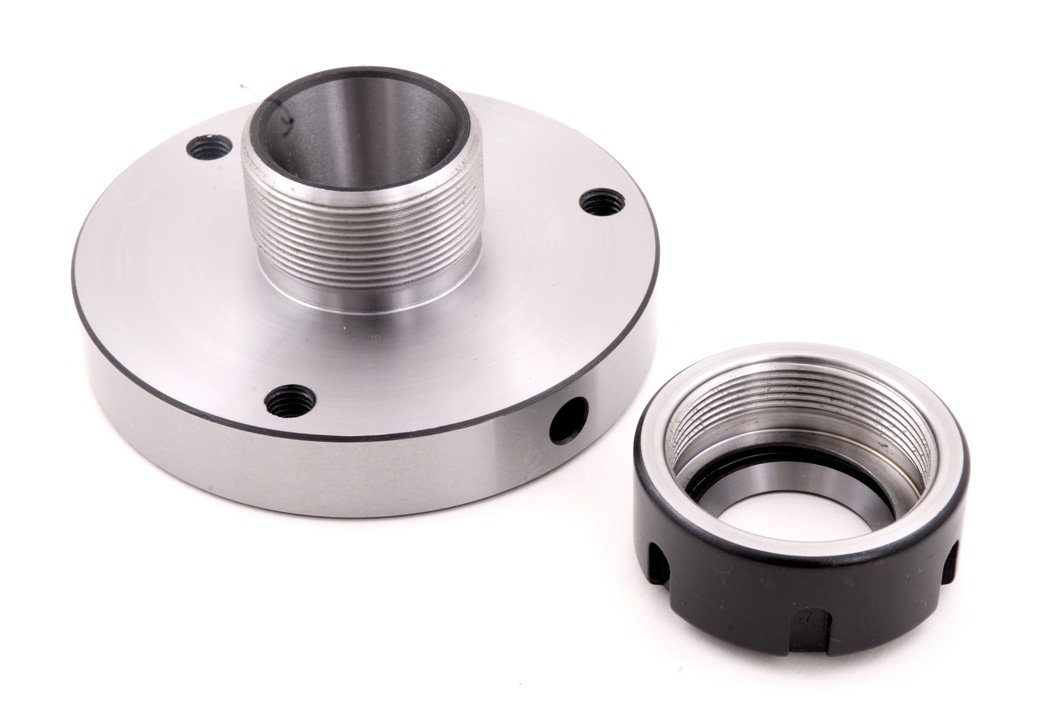

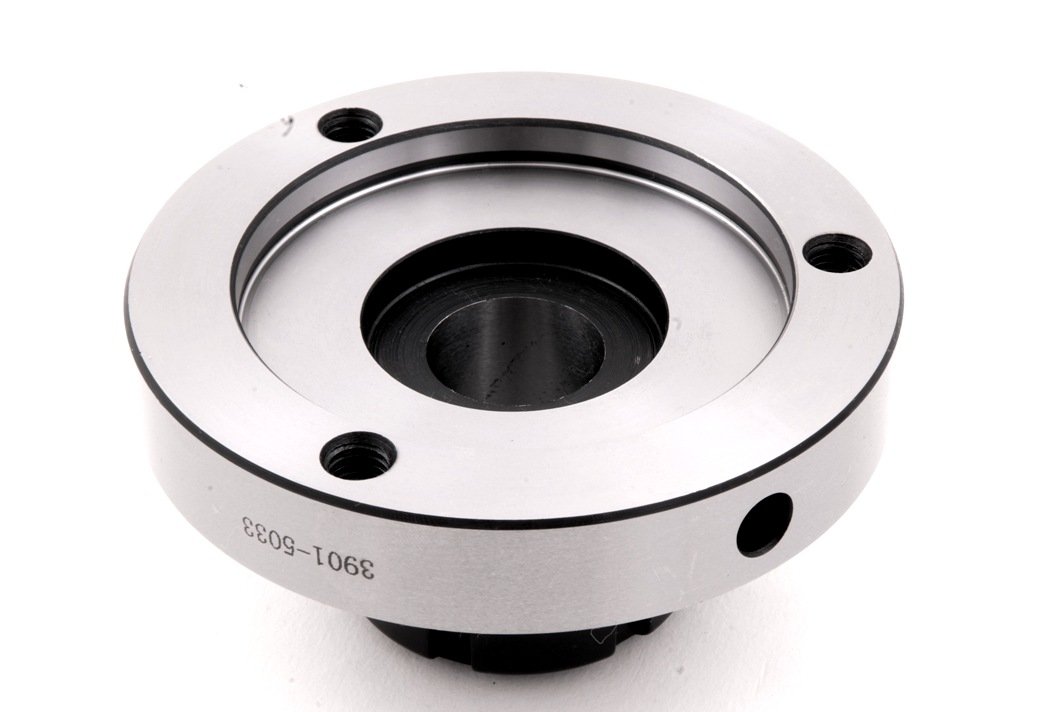

ER-32 Collet Chuck Adapter Backplate 100mm Plain Back
For Lathe or Milling Rotary table used.

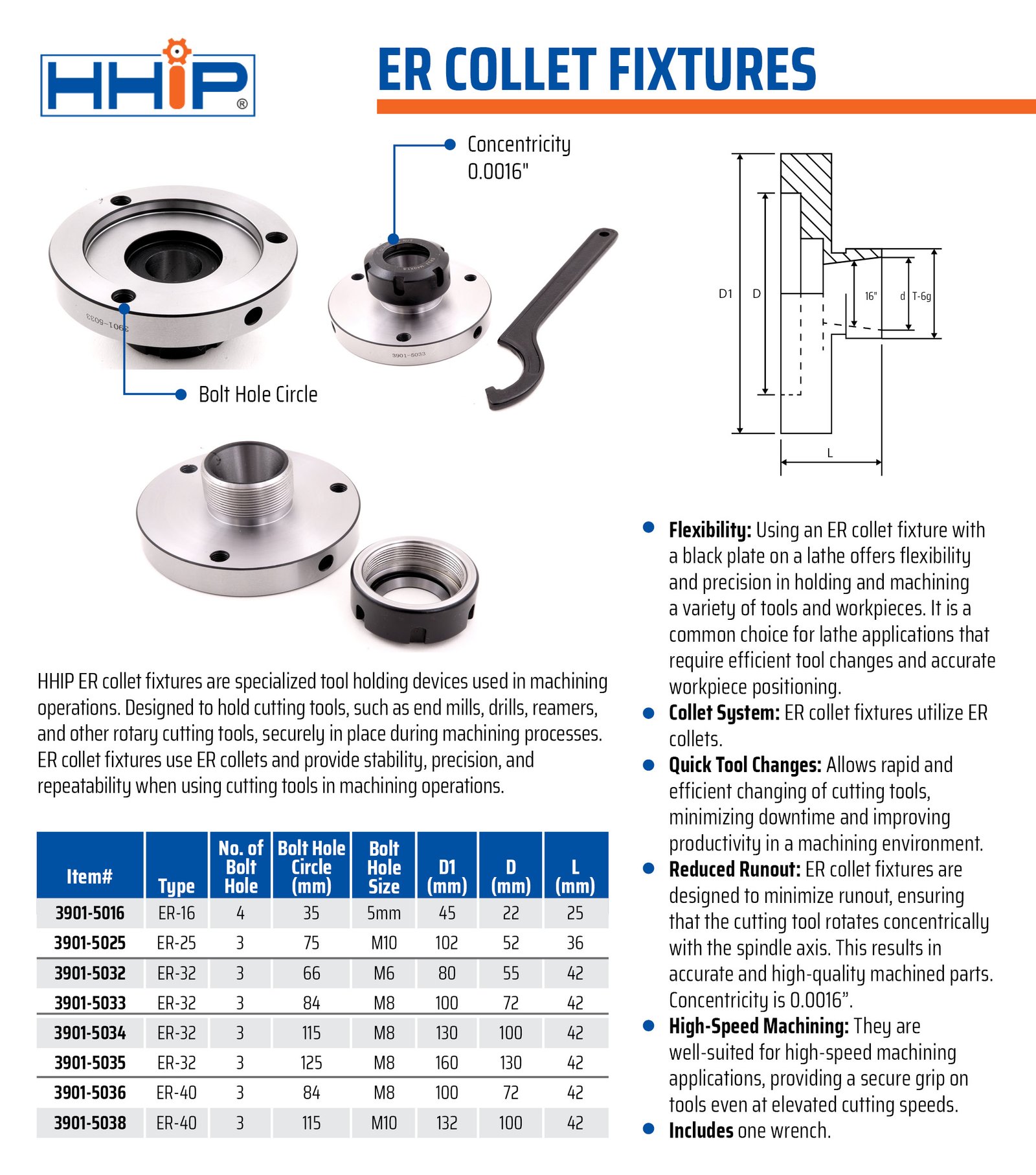

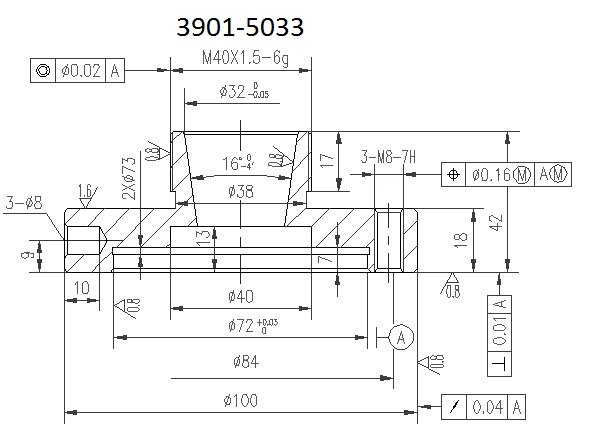

Specification and Dimension

100MM Diameter ER-32 Collet Chuck
Mount to your choice of backplate to use on a lathe.
Can also be used as a fixture on a milling table.
Concentricity is .0016″.
D1 is 100mm.
D is 72mm.
L is 42mm.
3 bolt holes.
Bolt hole circle is 84mm.
Supplied with a wrench.



Weight 6 lbs
Brand

Not Available

UPC

769053032122

MPN

3901-5033
