HARLINGEN SCLCR123 INDEXABLE TURNING TOOL HOLDER (9710-0018)

HARLINGEN SCLCR123 INDEXABLE TURNING TOOL HOLDER (9710-0018) (SKU: 9710-0018)

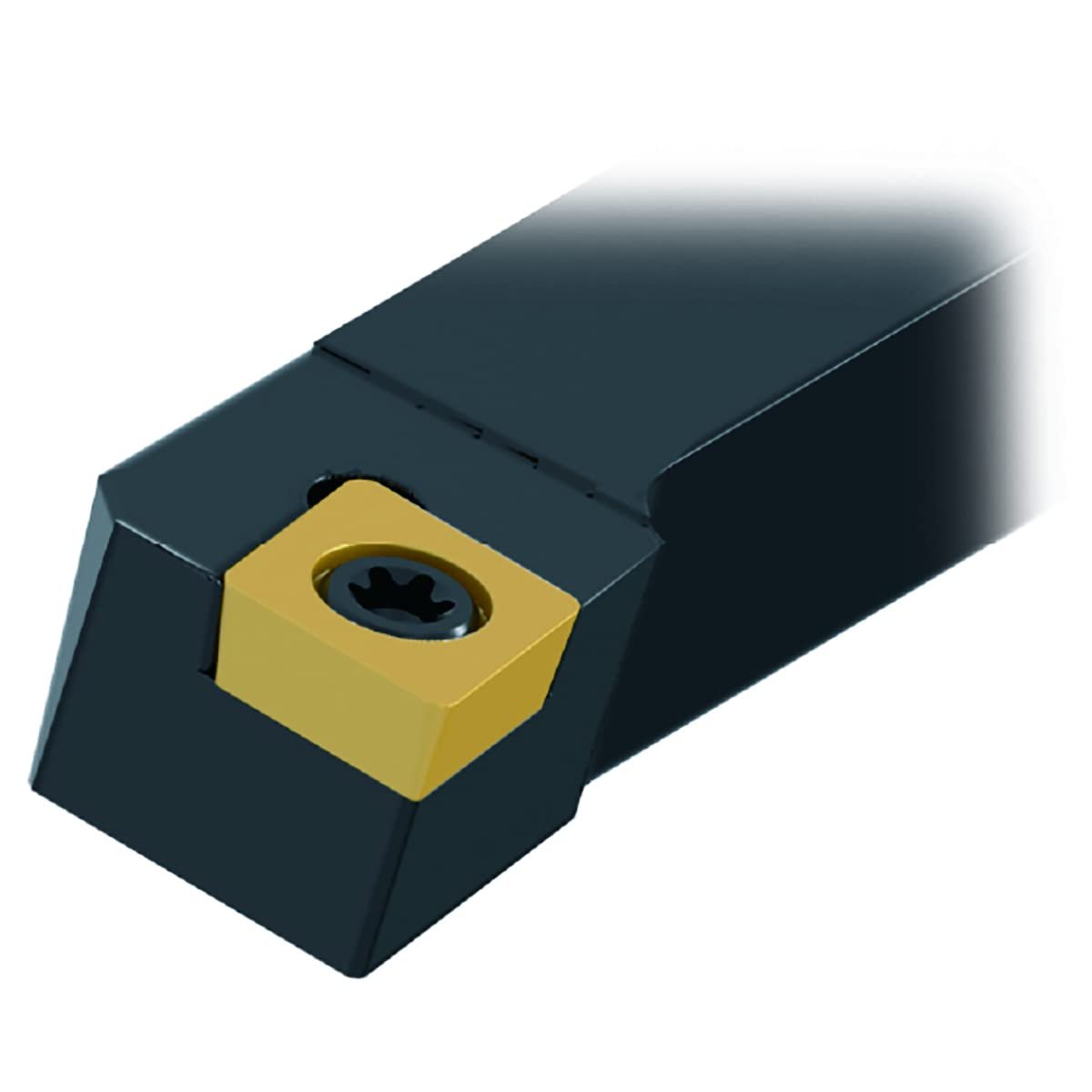

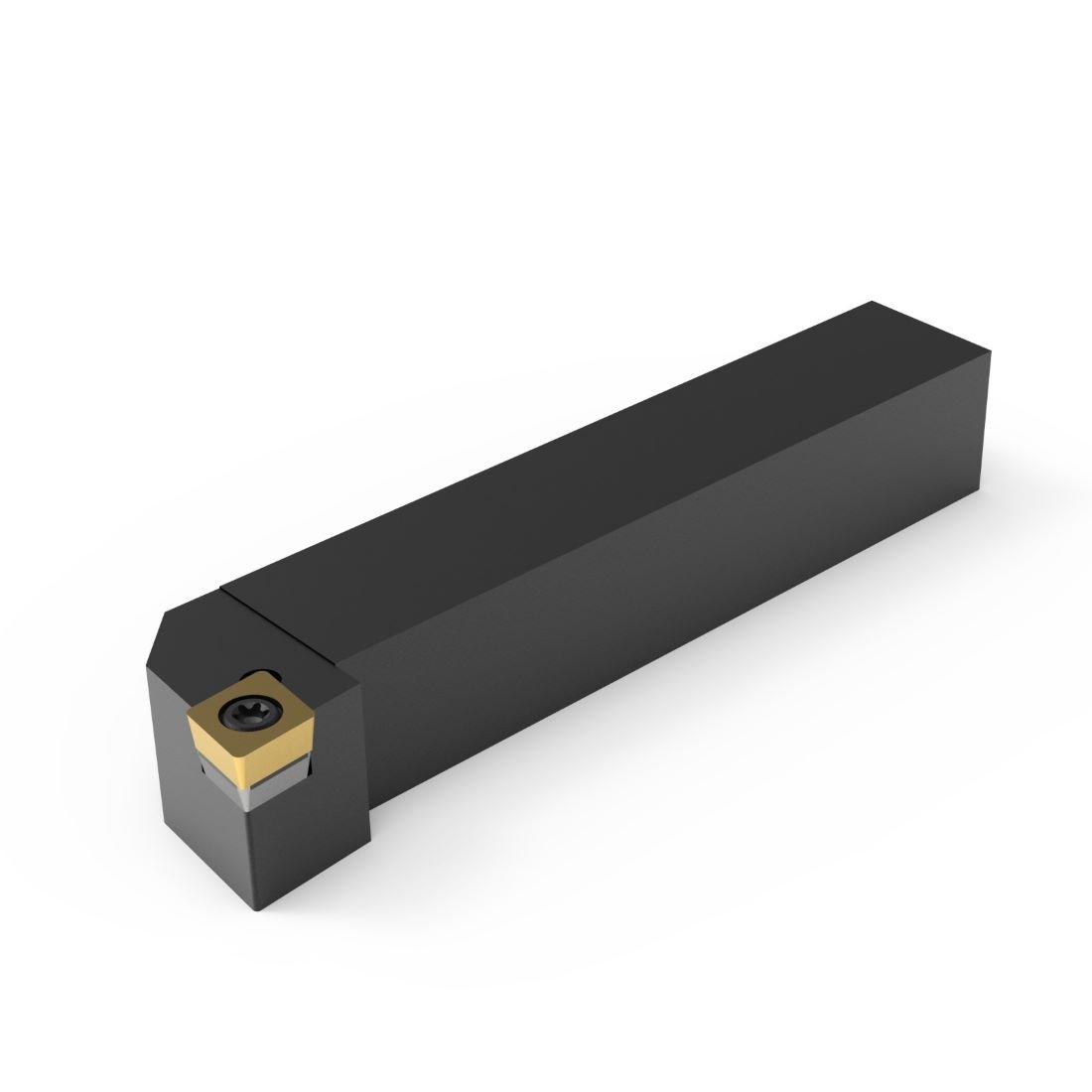

Harlingen SCLCR123 Indexable Turning Tool Holder

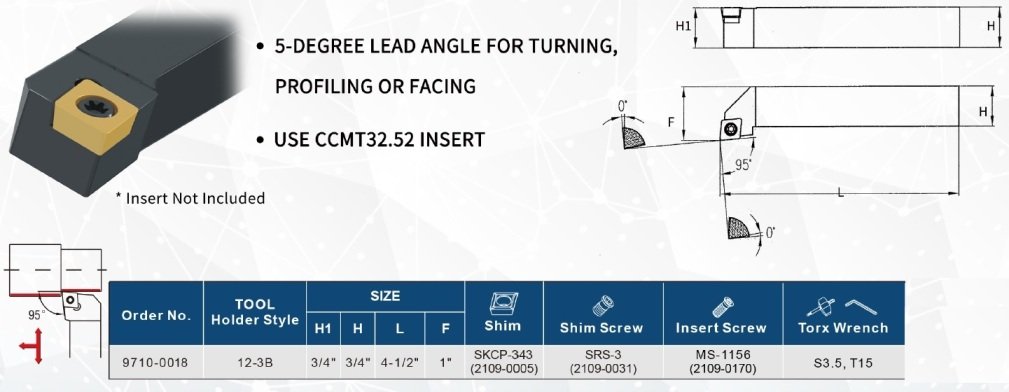

• 5-degree lead angle for turning, profiling or facing
• Superior edge toughness
• Excellent wear and depth-of-cut notch resistance
• For use in all finishing, medium, and roughing applications

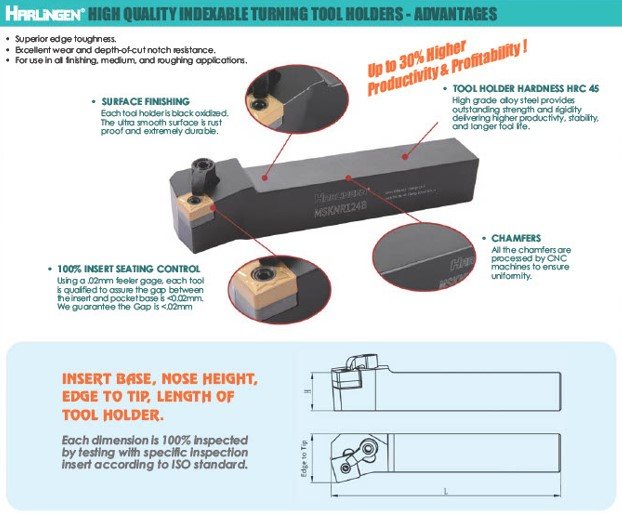

• Each tool holder is black oxidized. The ultra smooth surface is rust proof and extremely durable
• HRC 65, hardened high grade alloy steel provides outstanding strength and rigidity delivering higher productivty, stability, and longer tool life
• Using a .02 mm feeler gage, each tool is qualified to assure the gap between the insert and pocket base is <0.02 mm. We guarantee the gap is <.02 mm providing 100% insert seating control
• All of the chamfers are processed by CNC machines to ensure uniformity
• Use with CCMT32.52 inserts
• Inserts are not included

Specifications

• Harlingen SCLCR123 Indexable Turning Tool Holder
• 5-degree lead angle for turning, profiling or facing.
• Superior edge toughness.
• Excellent wear and depth-of-cut notch resistance.
• For use in all finishing, medium, and roughing applications.
• Each tool holder is black oxidized. The ultra smooth surface is rust proof and extremely durable.
• HRC 65, hardened high grade alloy steel provides outstanding strength and rigidity delivering higher productivty, stability, and longer tool life.
• Using a .02 mm feeler gage, each tool is qualified to assure the gap between the insert and pocket base is <0.02 mm. We guarantee the gap is <.02 mm providing 100% insert seating control.
• All of the chamfers are processed by CNC machines to ensure uniformity.
• Use with CCMT32.52 inserts.
• Inserts are not included.
• Weight: 0.85
• Dimensions: L 5, W 3, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
