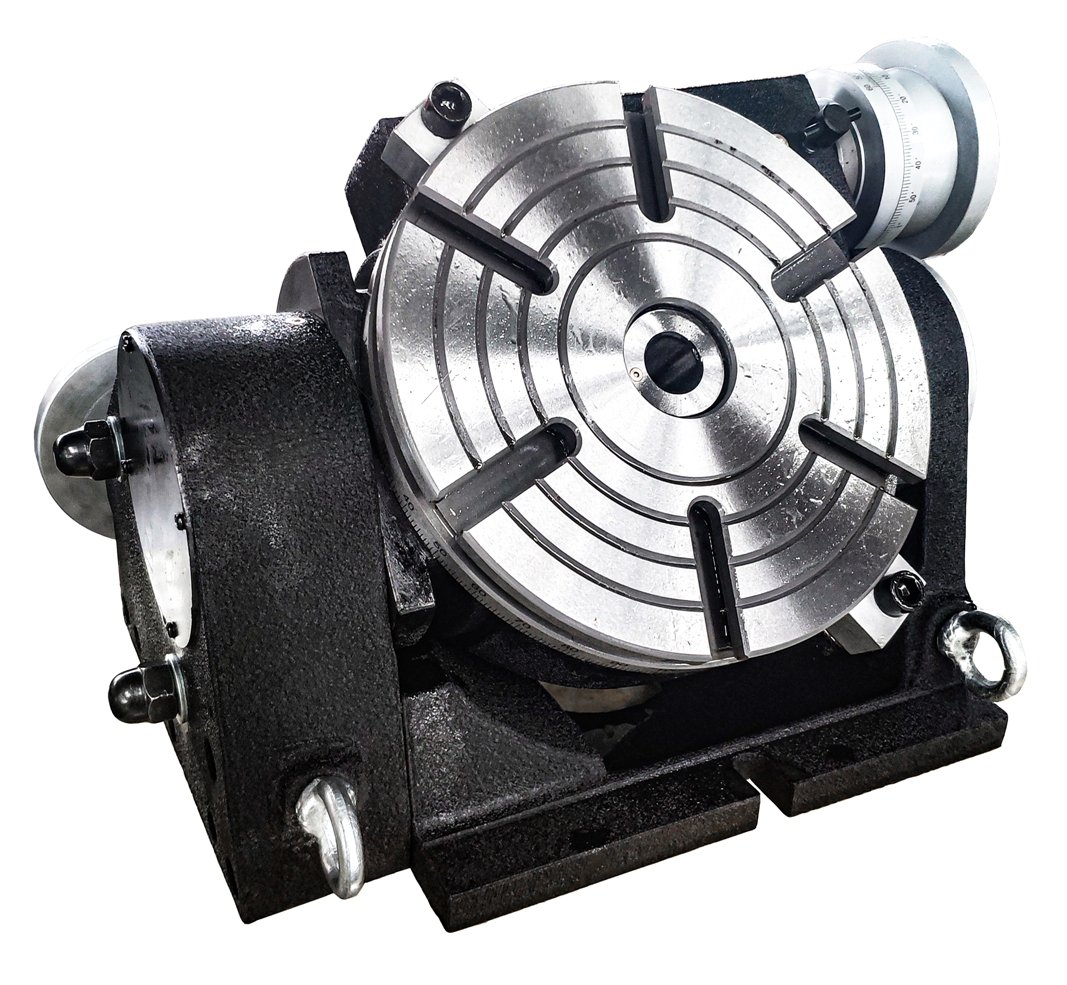

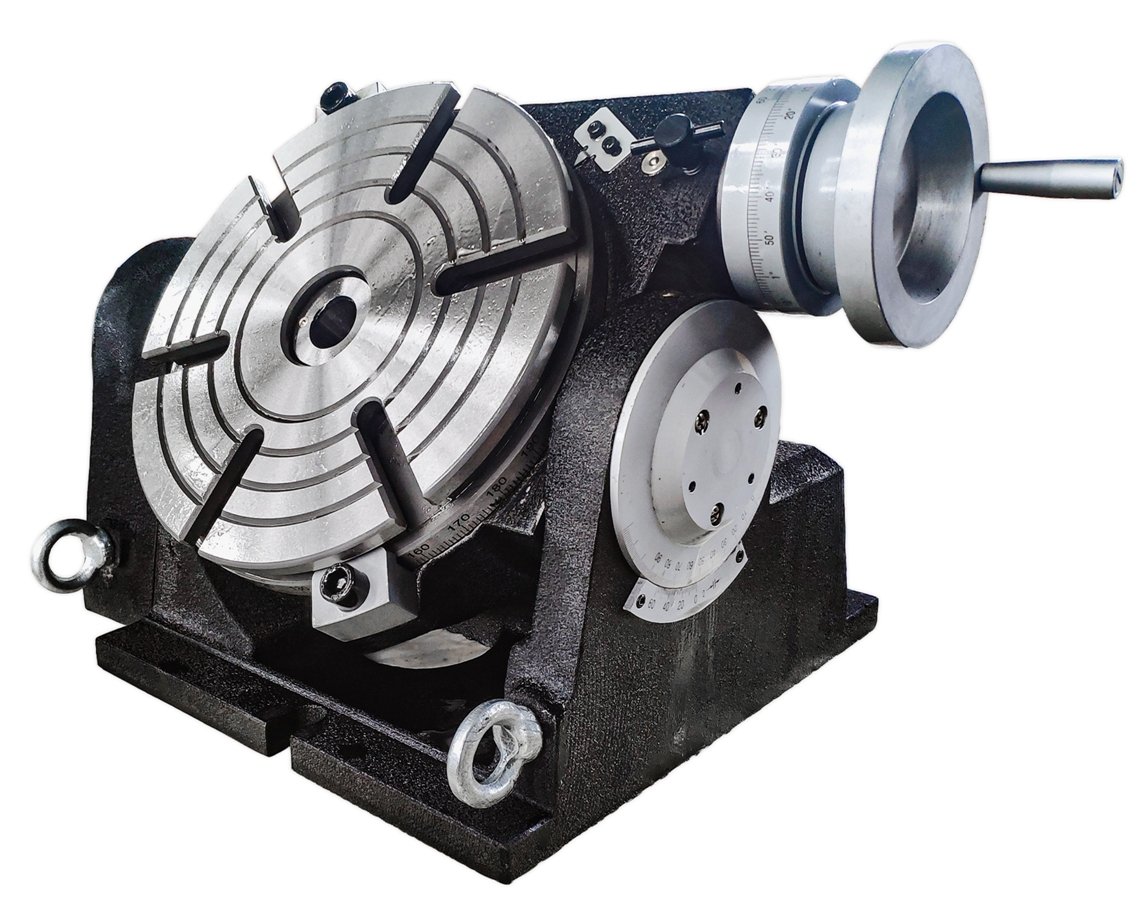

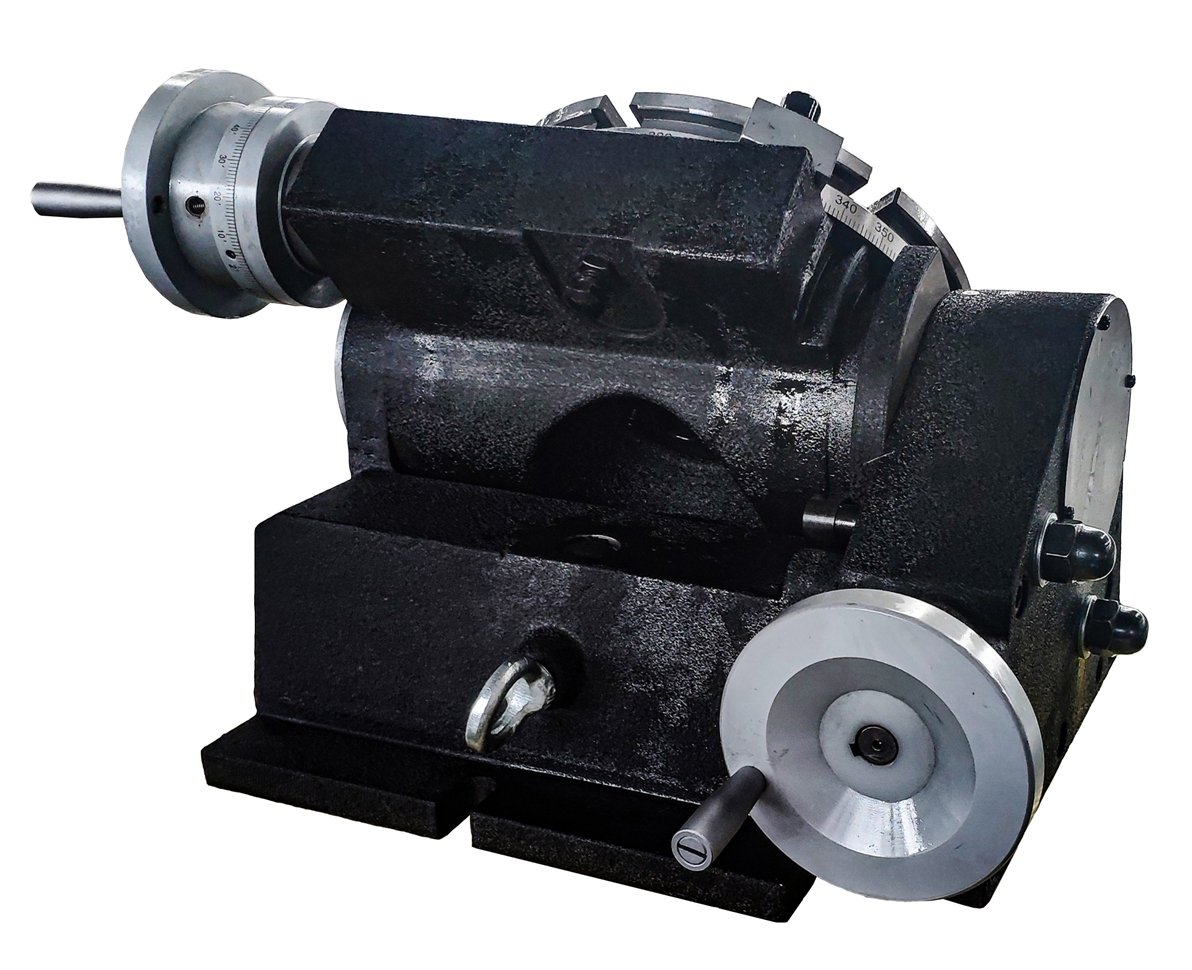

HHIP 10″ TILTING ROTARY TABLE (3900-2315)

HHIP 10″ TILTING ROTARY TABLE (3900-2315) (SKU: 3900-2315)

HHIP 10″ Tilting Rotary Table 10 second vernier reading. Gear ratio is 90:1. Dual positive action locks. Low profile. Gear drive is immersed in oil. Maximum cumulative spacing error is 45 seconds. Tilting height is 8″. Range is 90 degrees. Center height is 5-1/2″. Hole size is 3MT. T-slot size is 1/2″. Base size is 10 X 12″. Weight capacity is 200kg horizontally and 100kg vertically.

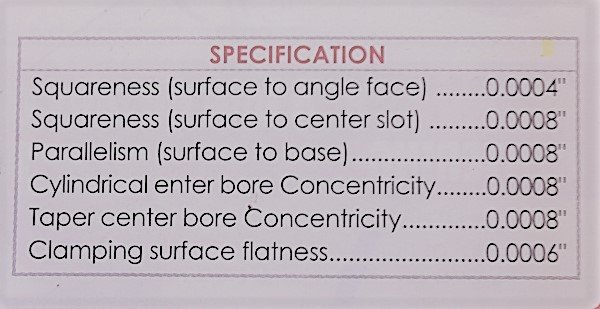

Specifications

• 10″ Tilting Rotary Table
• 10 second vernier reading.
• Gear ratio is 90:1.
• Dual positive action locks.
• Low profile.
• Gear drive is immersed in oil.
• Maximum cumulative spacing error is 45 seconds.
• Tilting height is 8″.
• Range is 90 degrees.
• Center height is 5-1/2″.
• Hole size is 3MT.
• T-slot size is 1/2″.
• Base size is 10 X 12″.
• Weight capacity is 200kg horizontally and 100kg vertically.
• Weight: 182

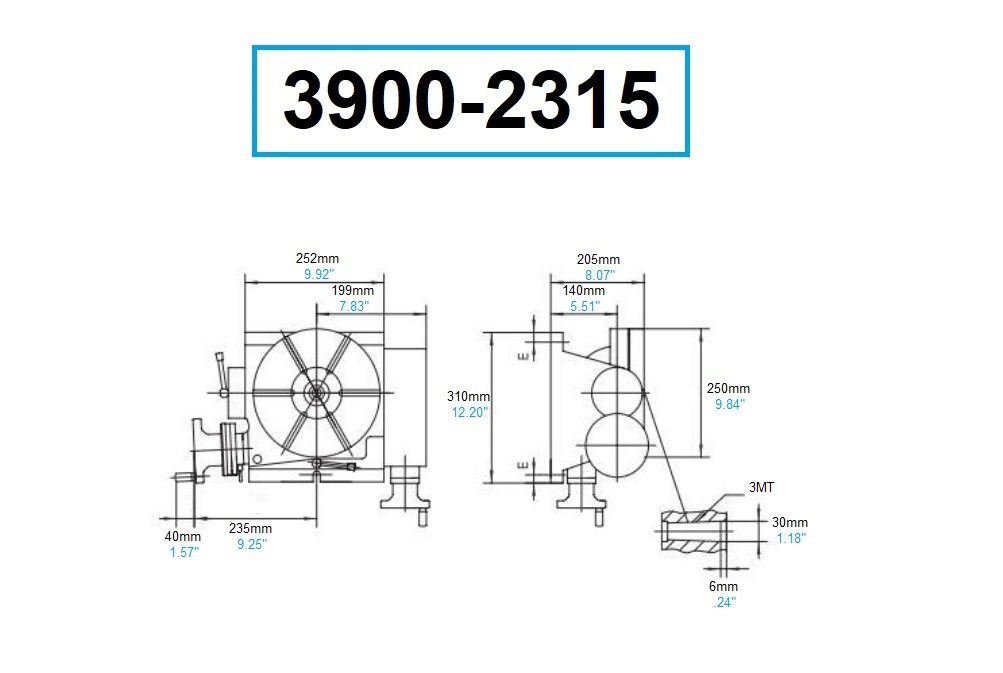

• Dimensions: L 16, W 20, H 16

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
