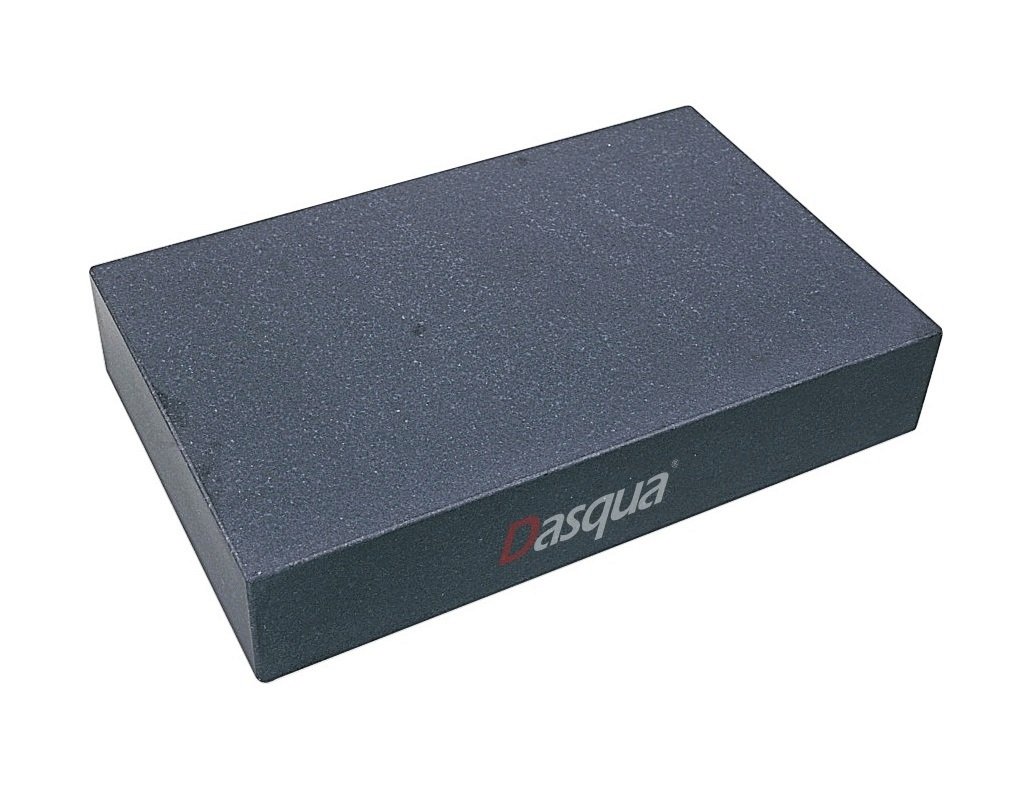

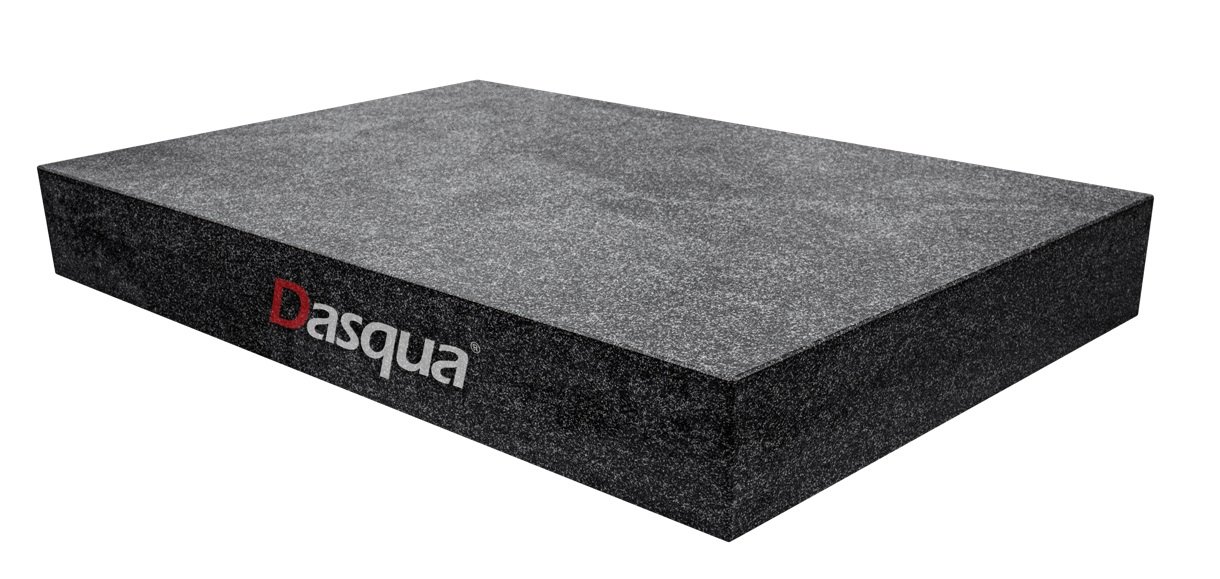

HHIP 24.8 X 24.8 X 3.94″ GRADE A GRANITE SURFACE PLATE (4401-6363)

HHIP 24.8 X 24.8 X 3.94″ GRADE A GRANITE SURFACE PLATE (4401-6363) (SKU: 4401-6363)

HHIP 24.8 X 24.8 X 3.94″ Grade A Granite Surface Plate The top surface of this plate is precision ground to achieve a high degree of flatness and the accuracy is +/-.0001″. It is a Grade A (Grade 0) plate. Granite surface plates meet or exceed Federal Specifications GGG-P-463C and it includes a certificate of inspection. (Note that these are not NIST traceable.) Granite plates are used for measuring the flatness and squareness of other objects, laying out parts, calibrating instruments, setting up tools, checking parallelism and perpendicularity, and measuring heights with the use of a height gage. They are also used as a work surface for assembling, inspecting, and marking parts. Non-magnetic and non-conductive. Harder than steel and does not nick or burr. Surface plates are offered by HHIP in various sizes and brands, with different levels of flatness and accuracy and are checked by an auto collimator for overall accuracy assurance.

Specifications

• HHIP 24.8 X 24.8 X 3.94″ Grade A Granite Surface Plate
• The top surface of this plate is precision ground to achieve a high degree of flatness and the accuracy is +/-.0001″. It is a Grade A (Grade 0) plate.
• Granite surface plates meet or exceed Federal Specifications GGG-P-463C and it includes a certificate of inspection. (Note that these are not NIST traceable.)
• Granite plates are used for measuring the flatness and squareness of other objects, laying out parts, calibrating instruments, setting up tools, checking parallelism and perpendicularity, and measuring heights with the use of a height gage.
• They are also used as a work surface for assembling, inspecting, and marking parts. Non-magnetic and non-conductive. Harder than steel and does not nick or burr.
• Surface plates are offered by HHIP in various sizes and brands, with different levels of flatness and accuracy and are checked by an auto collimator for overall accuracy assurance.
• Non-magnetic and non-conductive.
• 100% corrosion proof.
• Note that this plate is not NIST traceable.
• Weight: 269
• Dimensions: L 48, W 40, H 12

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
