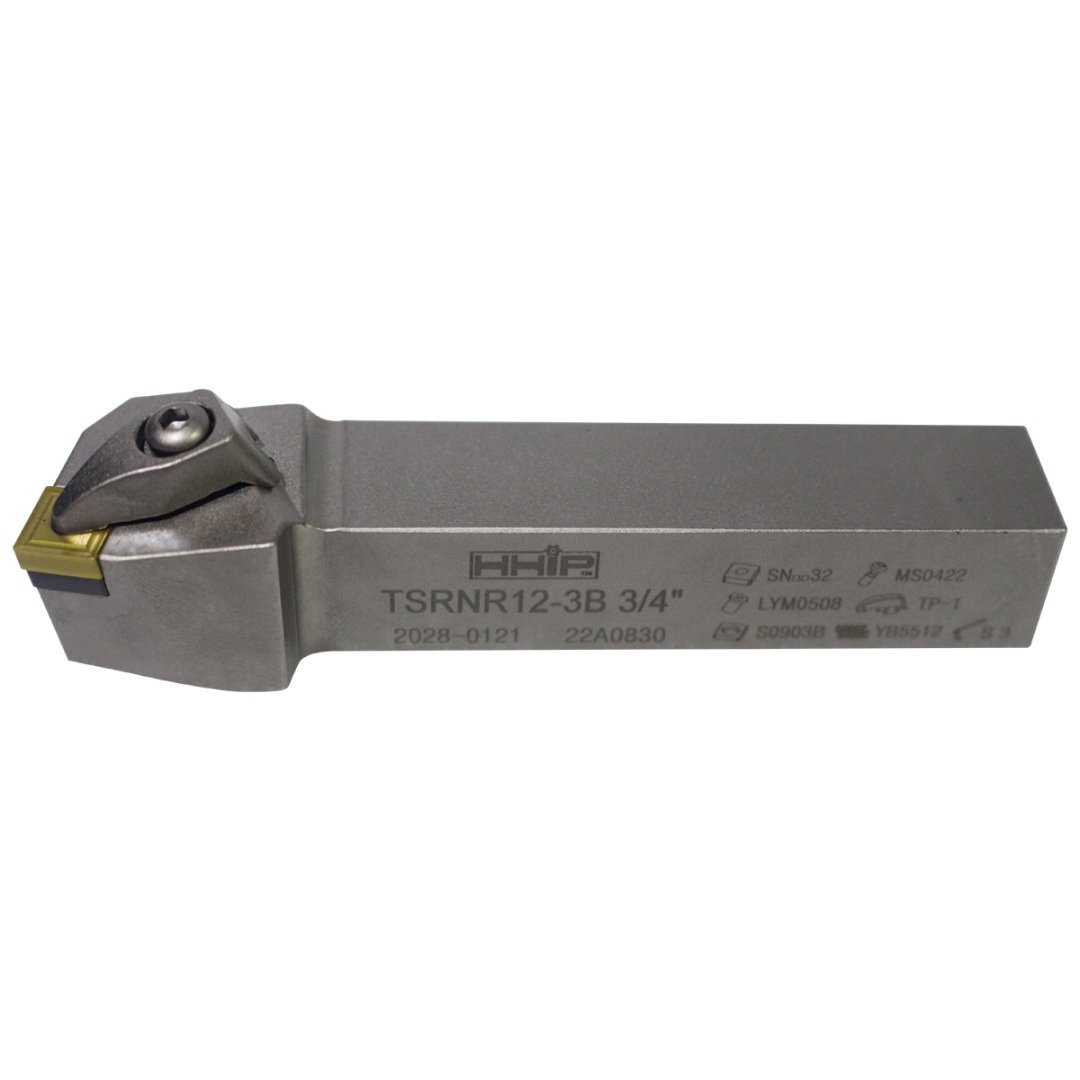

MSRNR 12-3B TURNING TOOL HOLDER – NEW RIGID CLAMP DESIGN (2028-0121)

MSRNR 12-3B TURNING TOOL HOLDER – NEW RIGID CLAMP DESIGN (2028-0121) (SKU: 2028-0121)

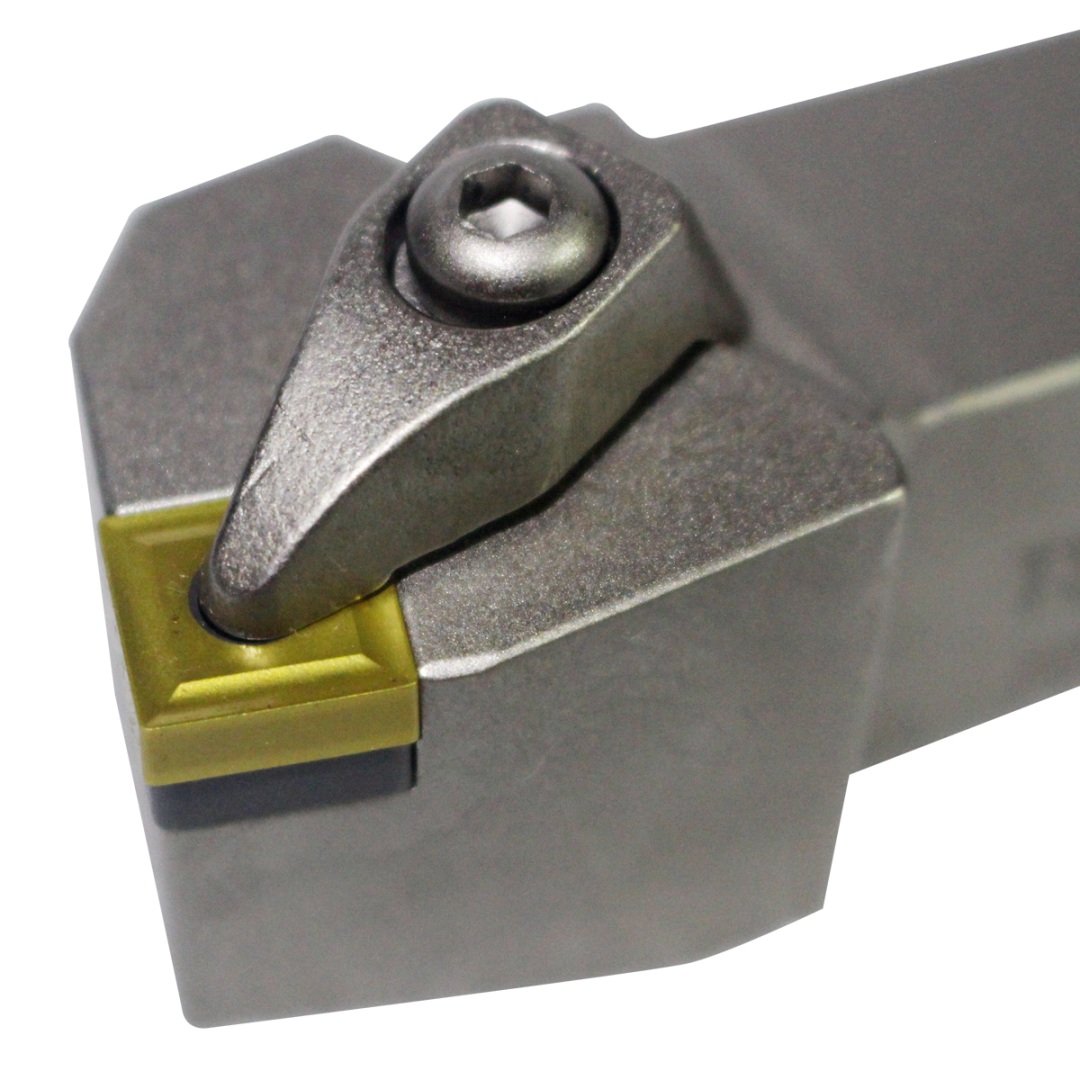

HHIP MSRNR 12-3B Turning Tool Holder – New Rigid Clamp Design 15 Degree lead angle. Right hand. Zero degree relief. Use with SNMA, SNMG, or SNMM 32 inserts. New rigid style top & hole clamping design provides increased stability & security for productive turning of large components and heavy machining. Shim is #2100-0905. Shim screw is #2100-4300. Clamp is #2100-2901. Clamp screw is #2100-4350. Spring is #2100-4384. Please see the diagram for size information. When replacing the insert, apply enough pressure to push the clamp forward and align it with the hole as you tighten it. Please see the video of the installation process.

Specifications

• HHIP MSRNR 12-3B Turning Tool Holder – New Rigid Clamp Design
• 15 Degree lead angle.
• Right hand.
• Zero degree relief.
• Use with SNMA, SNMG, or SNMM 32 inserts.

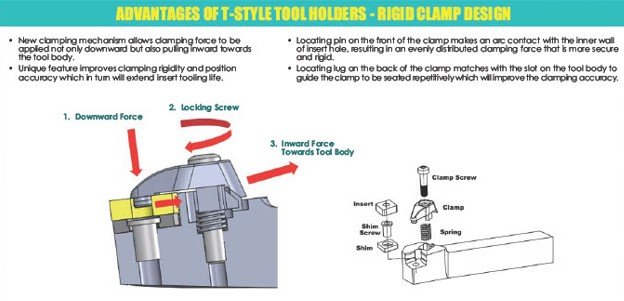

• New rigid style top & hole clamping design provides increased stability & security for productive turning of large components and heavy machining.
• Shim is #2100-0905.
• Shim screw is #2100-4300.
• Clamp is #2100-2901.
• Clamp screw is #2100-4350.
• Spring is #2100-4384.

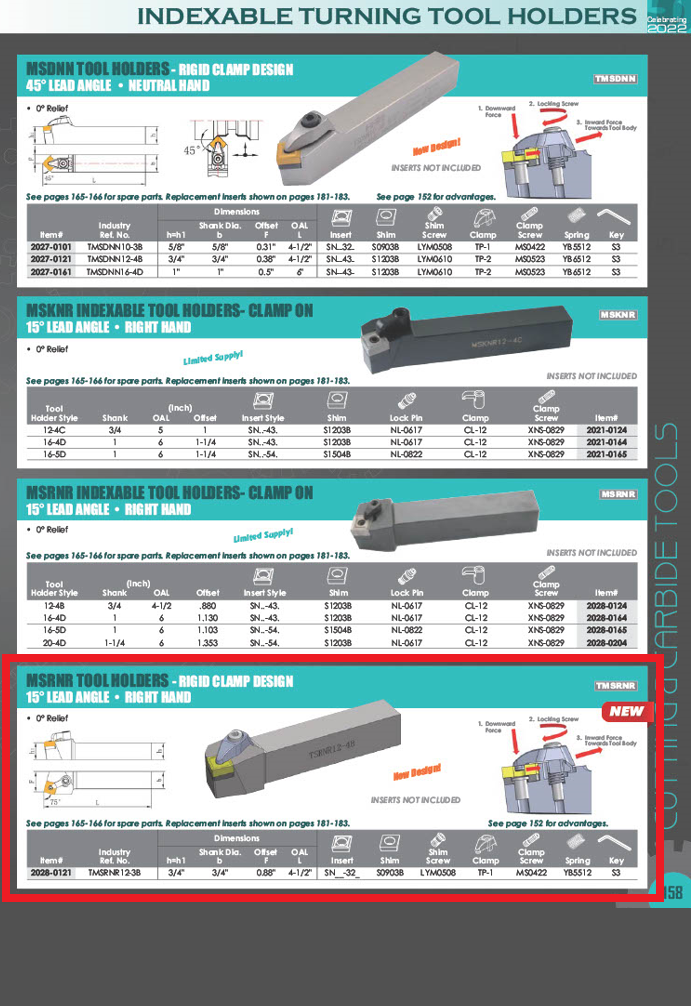

• Please see the diagram for size information.
• Weight: 0.9
• Dimensions: L 5, W 1, H 1

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
