MT2 7 PIECE INTERCHANGEABLE BULL NOSE LIVE CENTER SET (3900-5052)

MT2 7 PIECE INTERCHANGEABLE BULL NOSE LIVE CENTER SET (3900-5052) (SKU: 3900-5052)

MT2 7 Piece Interchangeable Bull Nose Live Center Set

• Used for CNC machines
• Fine adjustment for better grip
• Made of hardened tool steel and ground to high accuracy
• Two special designed high-quality bearings
• Can be lubricated through a hole on head for smooth operation and longer bearing life
• Heat treated to HRC 60

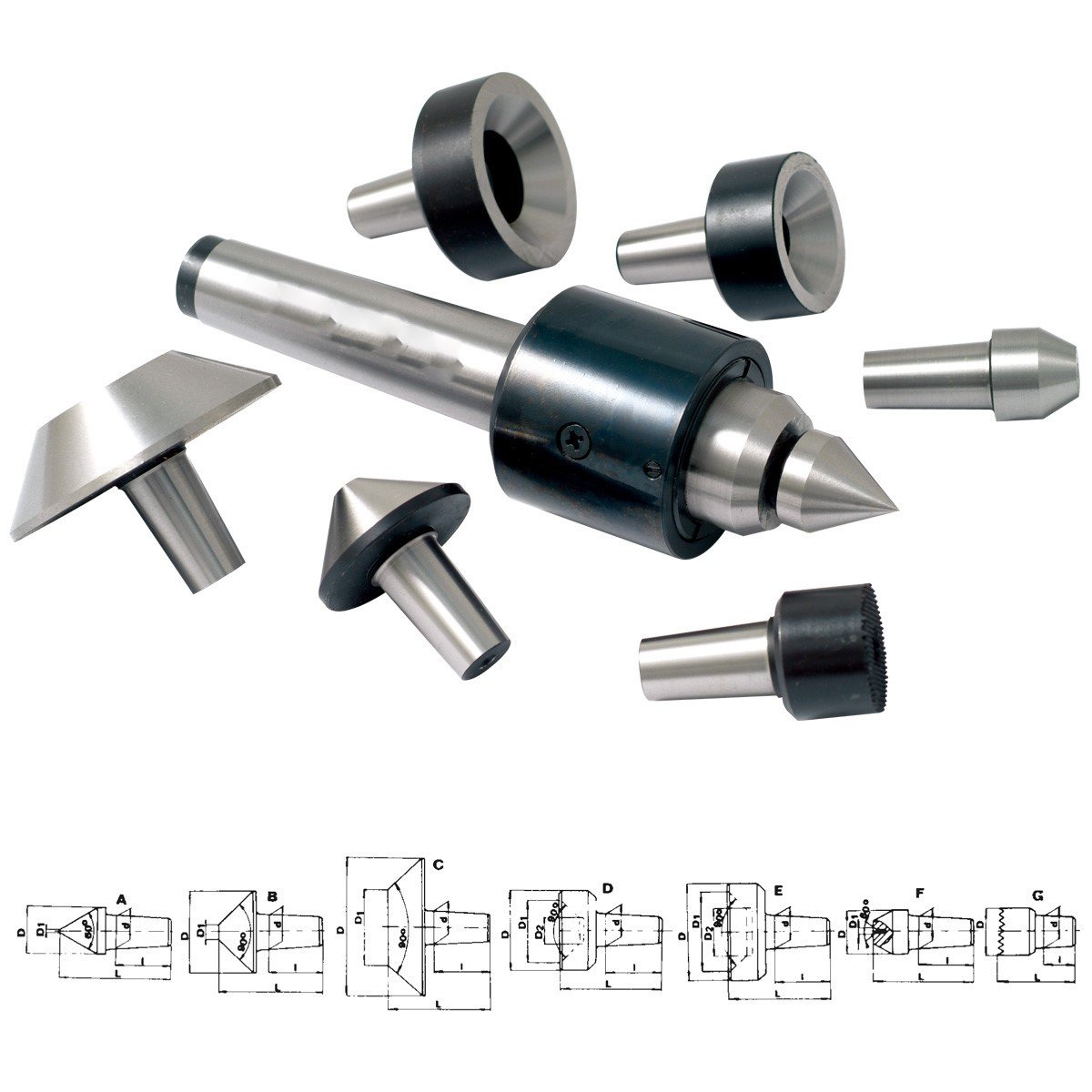

• Kit includes the live center body, 3 bull nose points, 2 cone shaped points, 1 serrated point and 1 wrench
• Maximum RPM is 5,400
• Load rate is 660 lbs

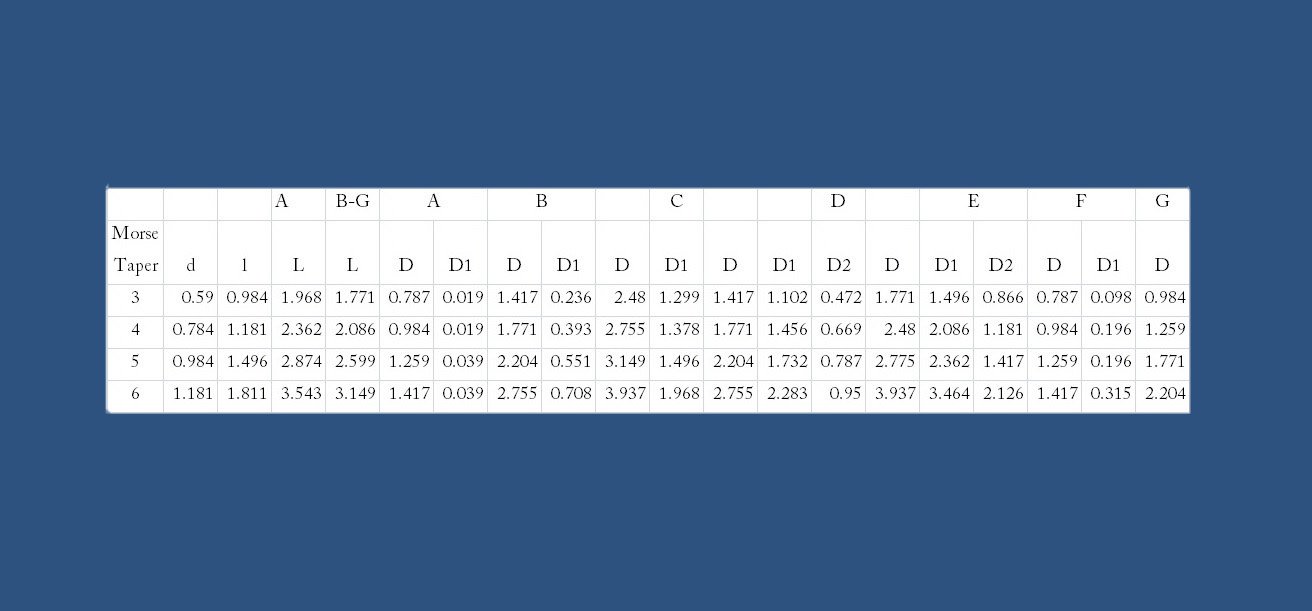

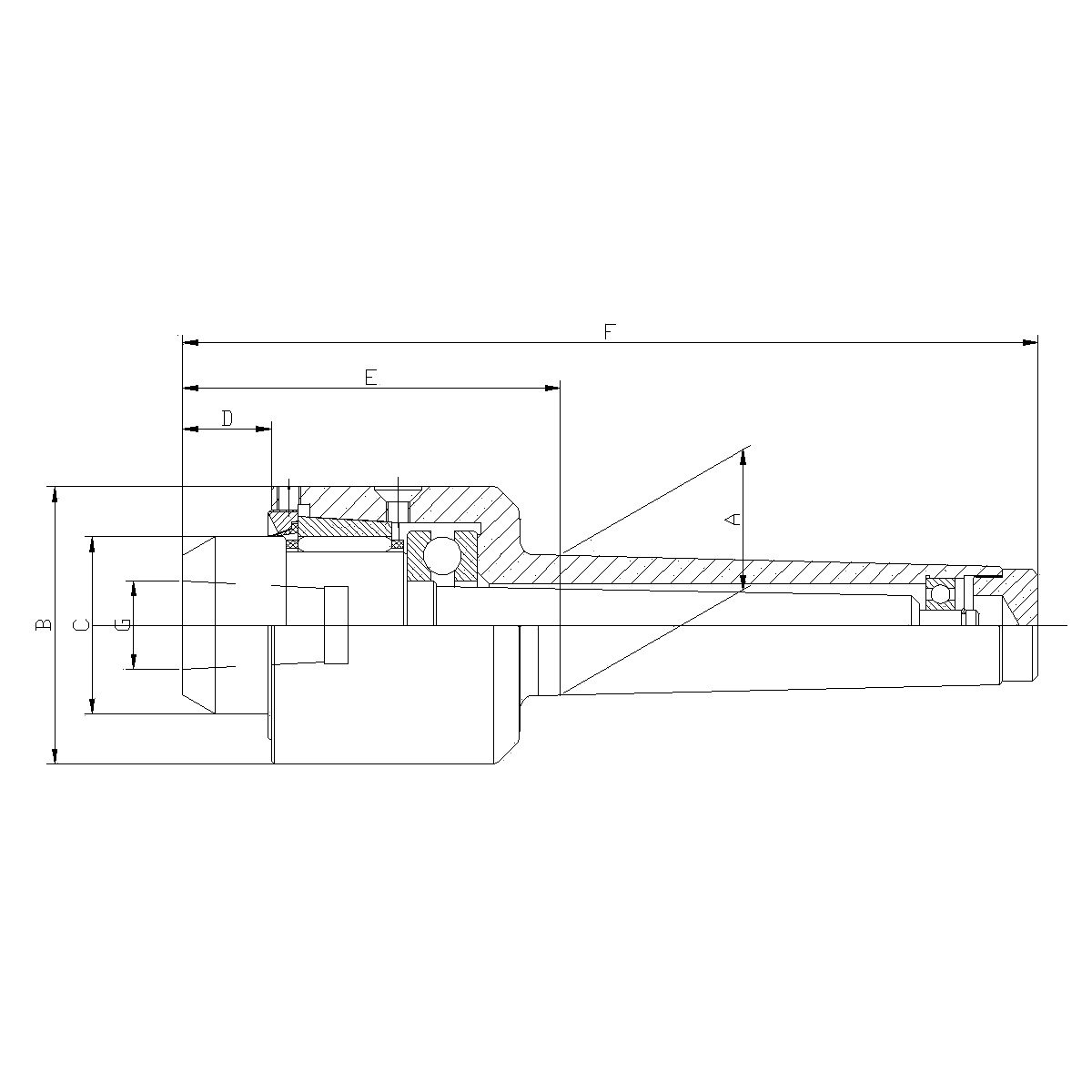

• A is 17.78mm
• B is 36mm
• C is 22mm
• D is 10.5mm
• E is 68.5mm
• F is 110mm
• G is 10mm

Specifications

• MT2 7 Piece Interchangeable Bull Nose Live Center Set
• Used for CNC machines.
• Fine adjustment for better grip.
• Made of hardened tool steel and ground to high accuracy.
• Heat treated to HRC 60.
• Two special designed high-quality bearings.
• Can be lubricated through a hole on head for smooth operation and longer bearing life.
• Kit includes the live center body, 3 bull nose points, 2 cone shaped points, 1 serrated point and 1 wrench.
• Maximum RPM is 5,400.
• Load rate is 660 lbs.
• A is 17.78mm. ~ B is 36mm.
• C is 22mm. ~ D is 10.5mm
• E is 68.5mm. ~ F is 110mm.
• G is 10mm.
• Weight: 3.5
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
