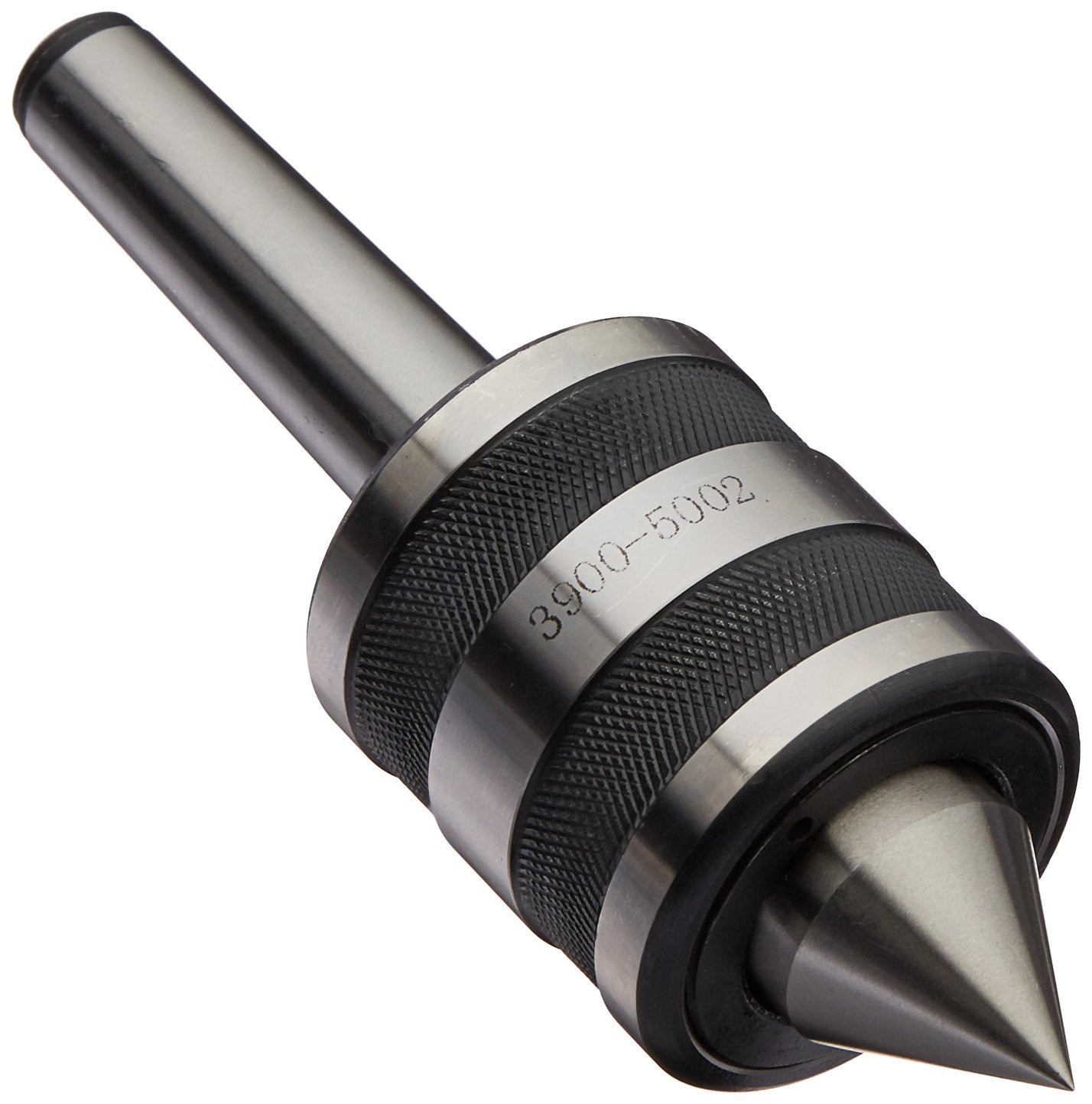

MT2 MEDIUM DUTY LIVE CENTER (3900-5002)

MT2 MEDIUM DUTY LIVE CENTER (3900-5002) (SKU: 3900-5002)

MT2 Medium Duty Live Center

• Central spindle is made of hardened alloy steel and ground for high accuracy
• Precision high quality bearings with a combination of ball bearings and thrust bearings
• Dustproof seal on the front end
• Accuracy load of .0004″
• Radial Load is 1,500N / 337.5 lbf
• Maximum RPM’s is 3,500

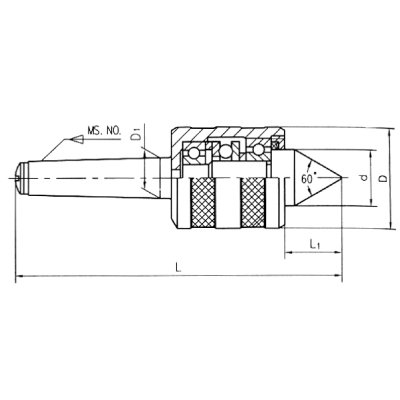

• d is .98
• D is 1.8
• D1 is .700
• L1 is 1.02
• Overall length is 5.71

Specifications

• MT2 Medium Duty Live Center
• Central spindle is made of hardened alloy steel and ground for high accuracy.
• Precision high quality bearings with a combination of ball bearings and thrust bearings.
• Dustproof seal on the front end.
• Accuracy load of .0004″.
• Radial Load is 1,500N / 337.5 lbf
• Maximum RPM’s is 3,500.
• d is .98.
• D is 1.8.
• D1 is .700
• L1 is 1.02.
• Overall length is 5.71.
• Weight: 2
• Dimensions: L 3, W 6, H 3

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
