MT3-75 DEGREE 5″ BULL NOSE LIVE CENTER (3900-5008)

MT3-75 DEGREE 5″ BULL NOSE LIVE CENTER (3900-5008) (SKU: 3900-5008)

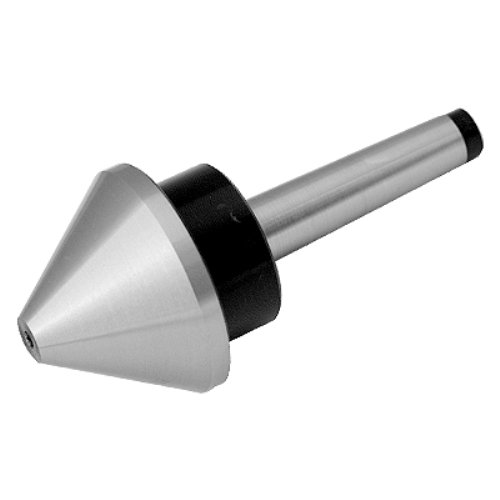

5″ MT3 75 Degree Bull Nose Live Center

• Used for pipe and other hollow-shaped work machining
• Drawbar end thread is 3/8″-16

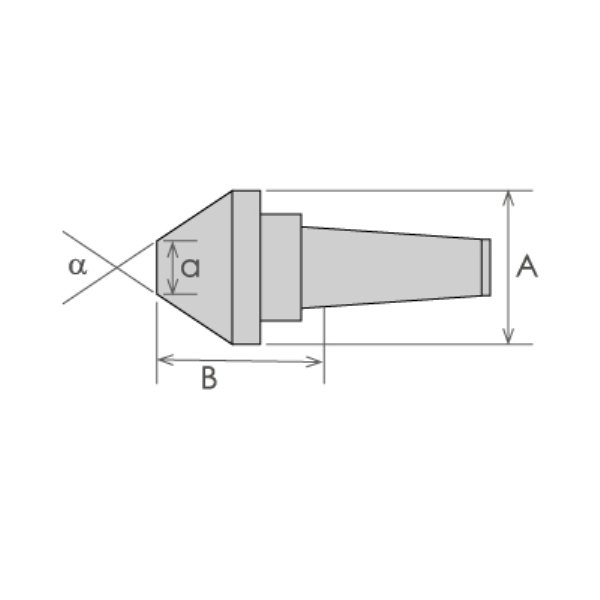

• a is 1.38″ (35mm)
• A is 5.12″ (130mm)
• B is 3.66″ (93mm)
• Overall length is 6.85″ (174mm)
• Load rate is 1,433 lbs
• RPM is 2,000
• T.I.R. is 0.00047/0.012

Specifications

• 5″ MT3 75 Degree Bull Nose Live Center
• Used for pipe and other hollow-shaped work machining.
• Drawbar end thread is 3/8″-16.
• a is 1.38″ (35mm).
• A is 5.12″ (130mm).
• B is 3.66″ (93mm).
• Overall length is 6.85″ (174mm).
• Load rate is 1,433 lbs.
• RPM is 2,000.
• T.I.R. is 0.00047/0.012.
• Weight: 11.8
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
