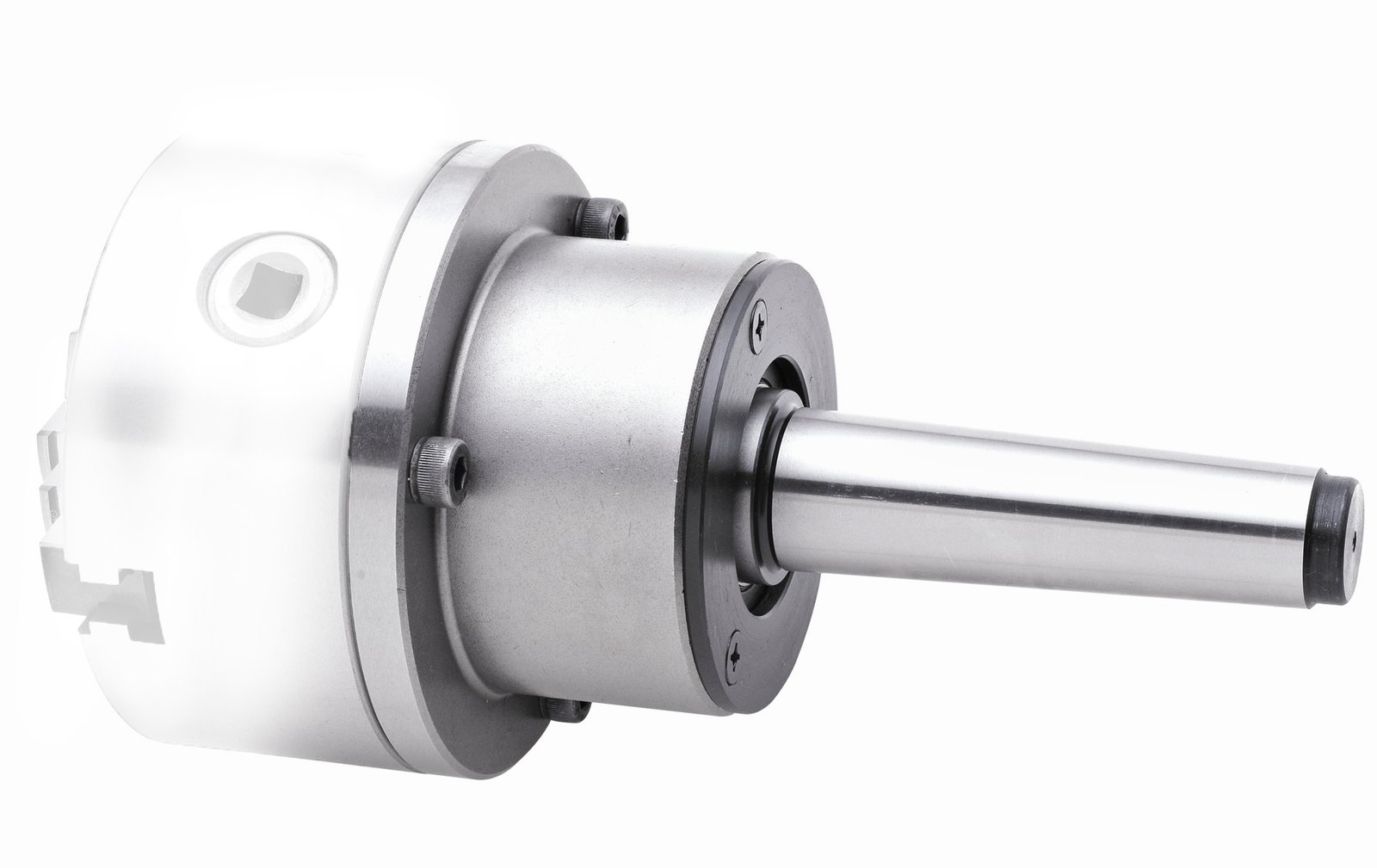

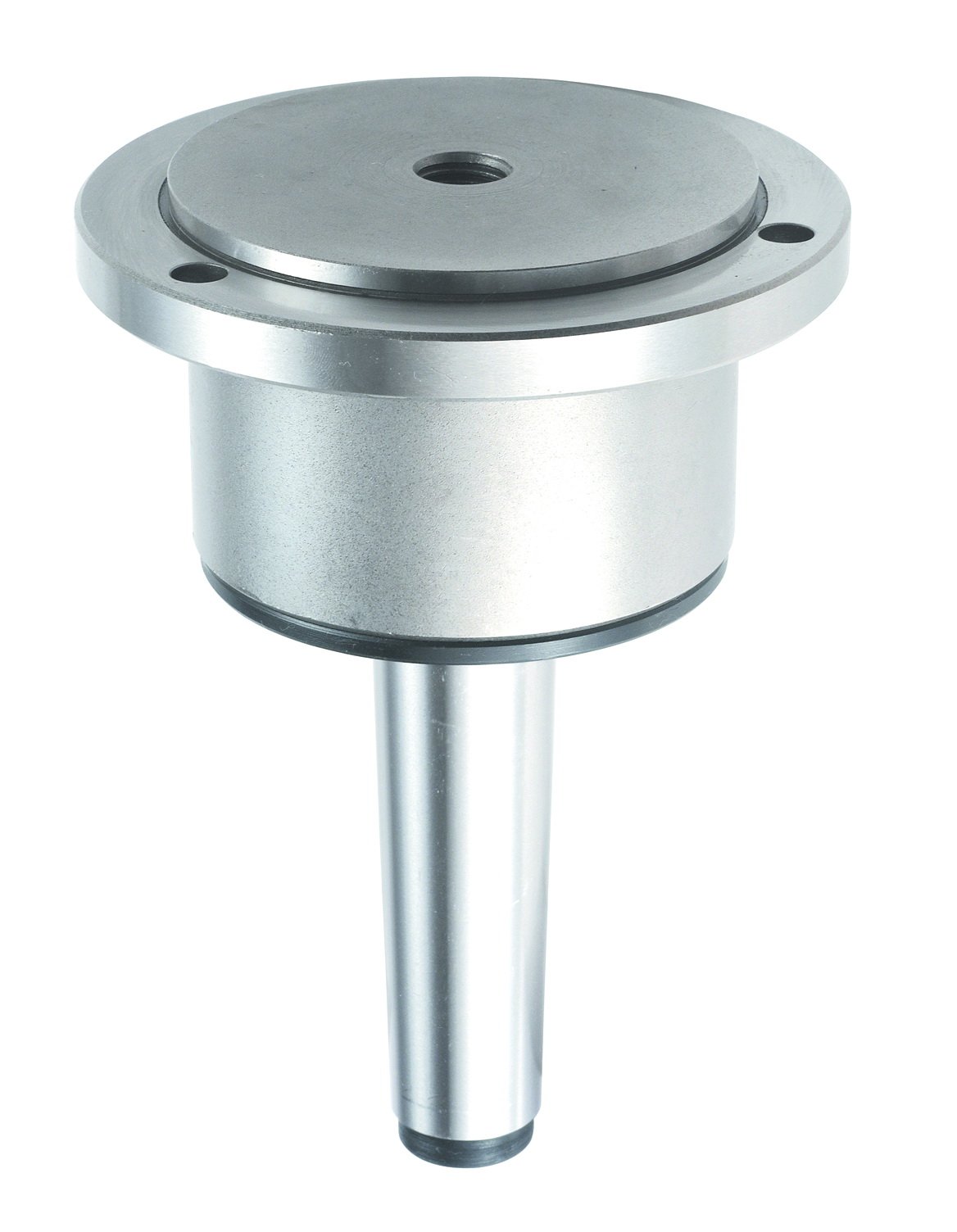

MT3 X 100MM REVOLVING TAILSTOCK FOR 4″ PLAIN BACK CHUCKS (3900-6026)

MT3 X 100MM REVOLVING TAILSTOCK FOR 4″ PLAIN BACK CHUCKS (3900-6026) (SKU: 3900-6026)

MT3 X 100MM Taper Shank Chuck Revolving Bed For 4″ Chucks

• Used for calibrating or supporting work pieces during processing. Three ball bearings for heavy duty loads and relatively high speed
• Maximum Load is 1,760 lbs
• Maximum RPM is 3,000
• T.I.R. is < .0002"
• Lathe chucks are an option and don’t come with the rotating body

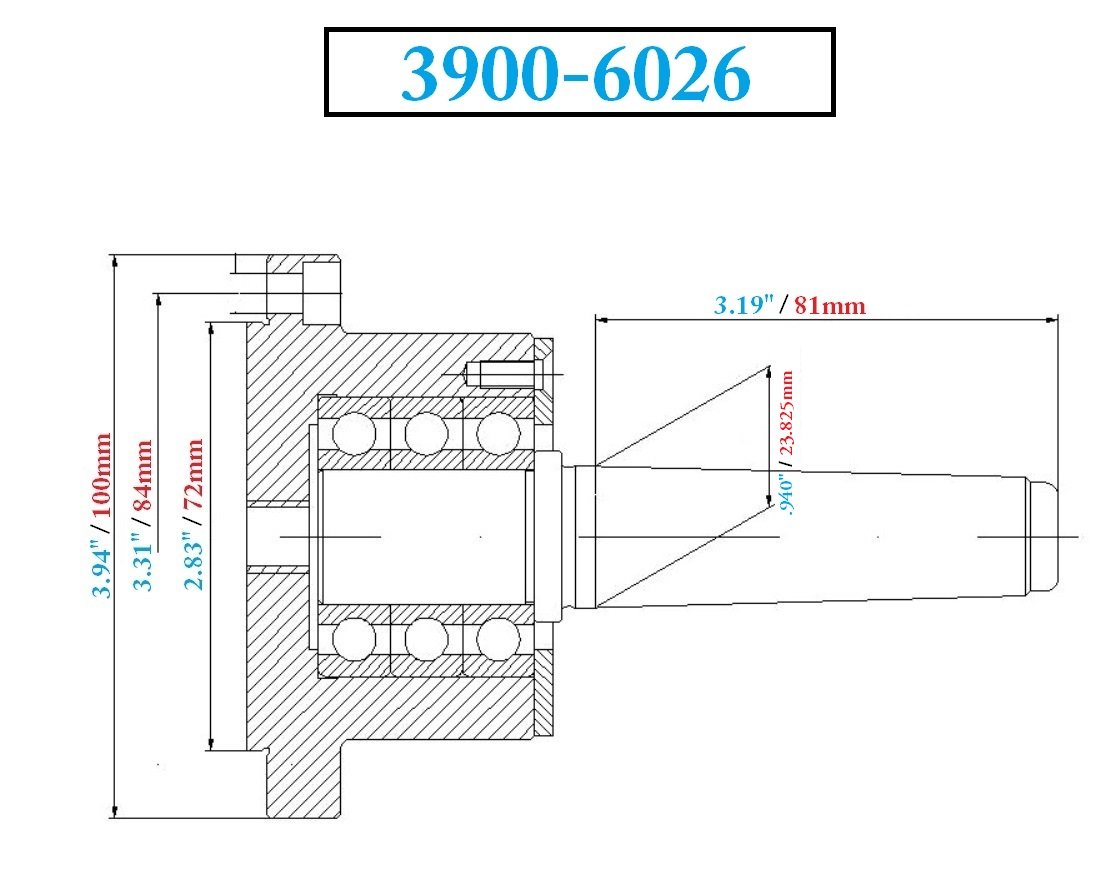

• Please see diagram for dimensions

Specifications

• MT3 X 100MM Revolving Tailstock for 4″ Plain Back Chucks
• Used for calibrating or supporting work pieces during processing.
• Three ball bearings for heavy duty loads and relatively high speed.
• Maximum Load is 1,760 lbs.
• Maximum RPM is 3,000.
• T.I.R. is < .0002".
• Lathe chucks are an option and don’t come with the rotating body.
• Please see diagram for dimensions.
• Weight: 5.45
• Dimensions: L 8, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
