MT4 STEEL HALF-NOTCHED DEAD CENTER (3900-6054)

MT4 STEEL HALF-NOTCHED DEAD CENTER (3900-6054) (SKU: 3900-6054)

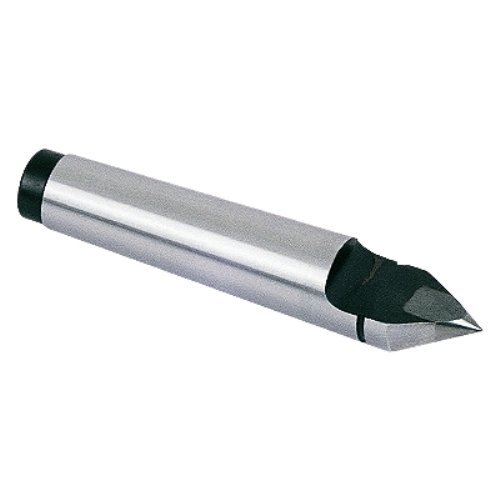

MT4 Steel Half-Notched Dead Center

• Made of tool steel, hardened and ground
• +/- .0002″ TIR

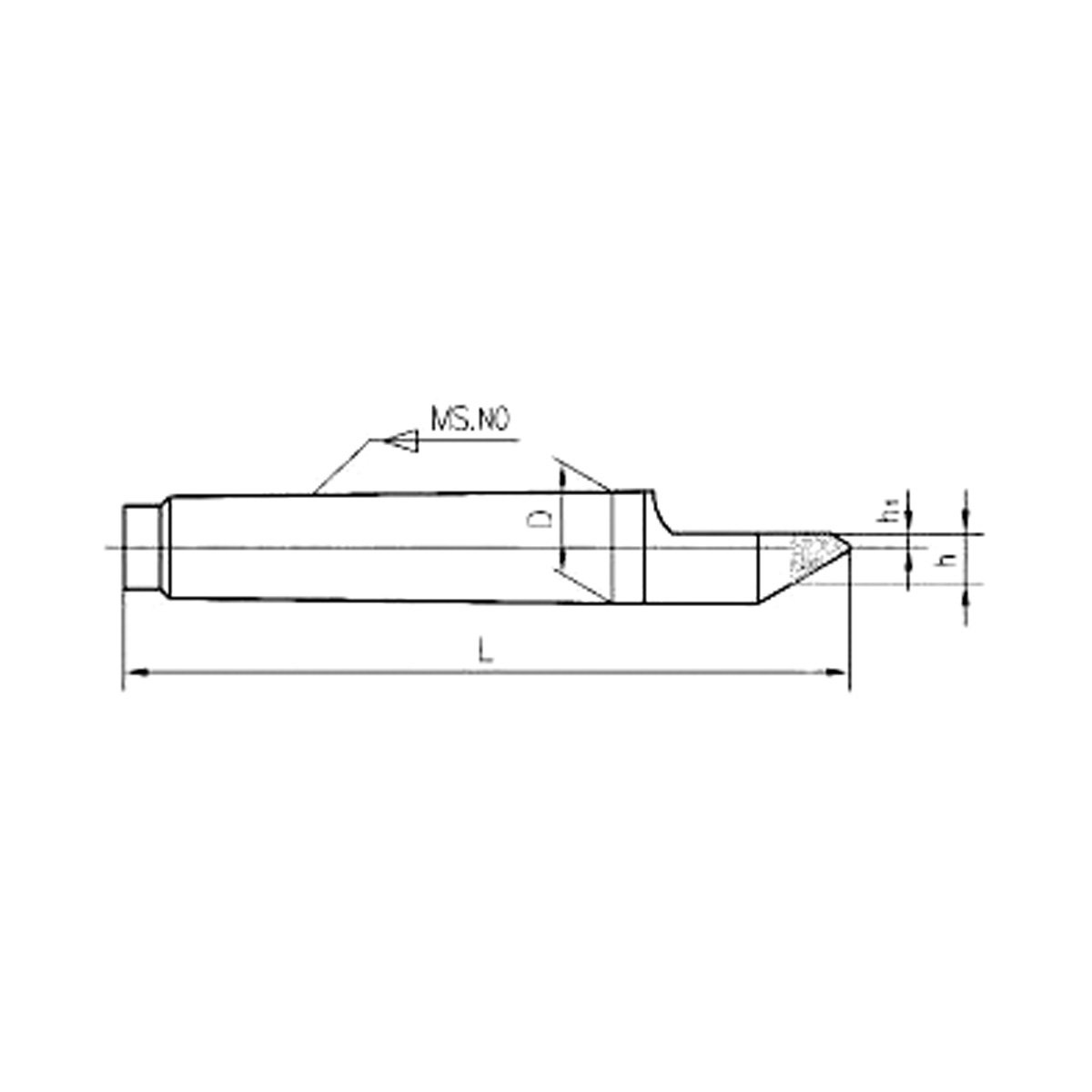

• Overall length (L) is 6.3″
• Height of the notch (h1) is .82″
• Widest diameter of the taper (H) is 1.23″
• D is 31.267mm

Specifications

• MT4 Steel Half-Notched Dead Center
• Made of tool steel, hardened and ground.
• +/- .0002″ TIR
• Overall length (L) is 6.3″
• Height of the notch (h1) is .82″
• Widest diameter of the taper (H) is 1.23″
• D is 31.267mm.
• Weight: 1.7
• Dimensions: L 6, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
