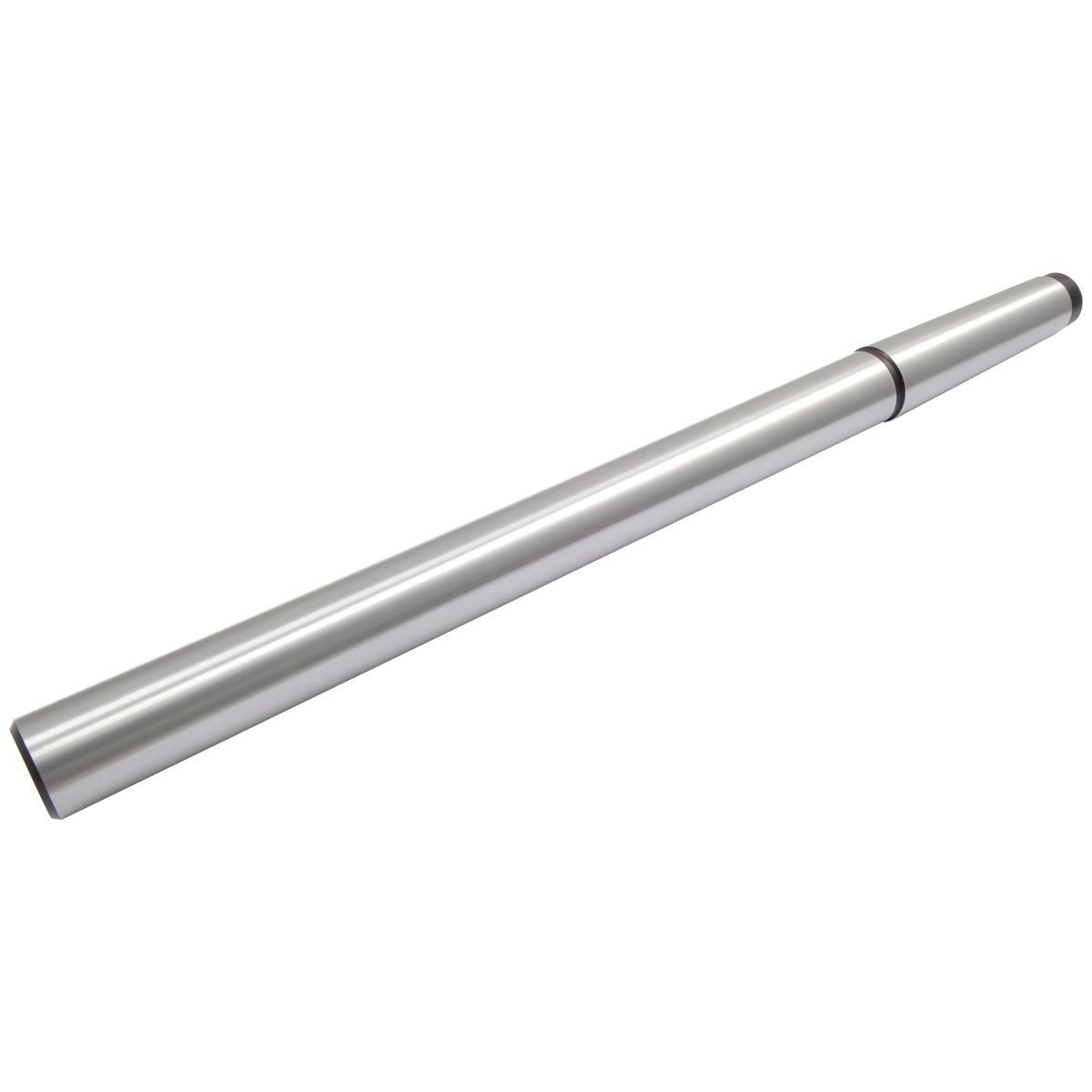

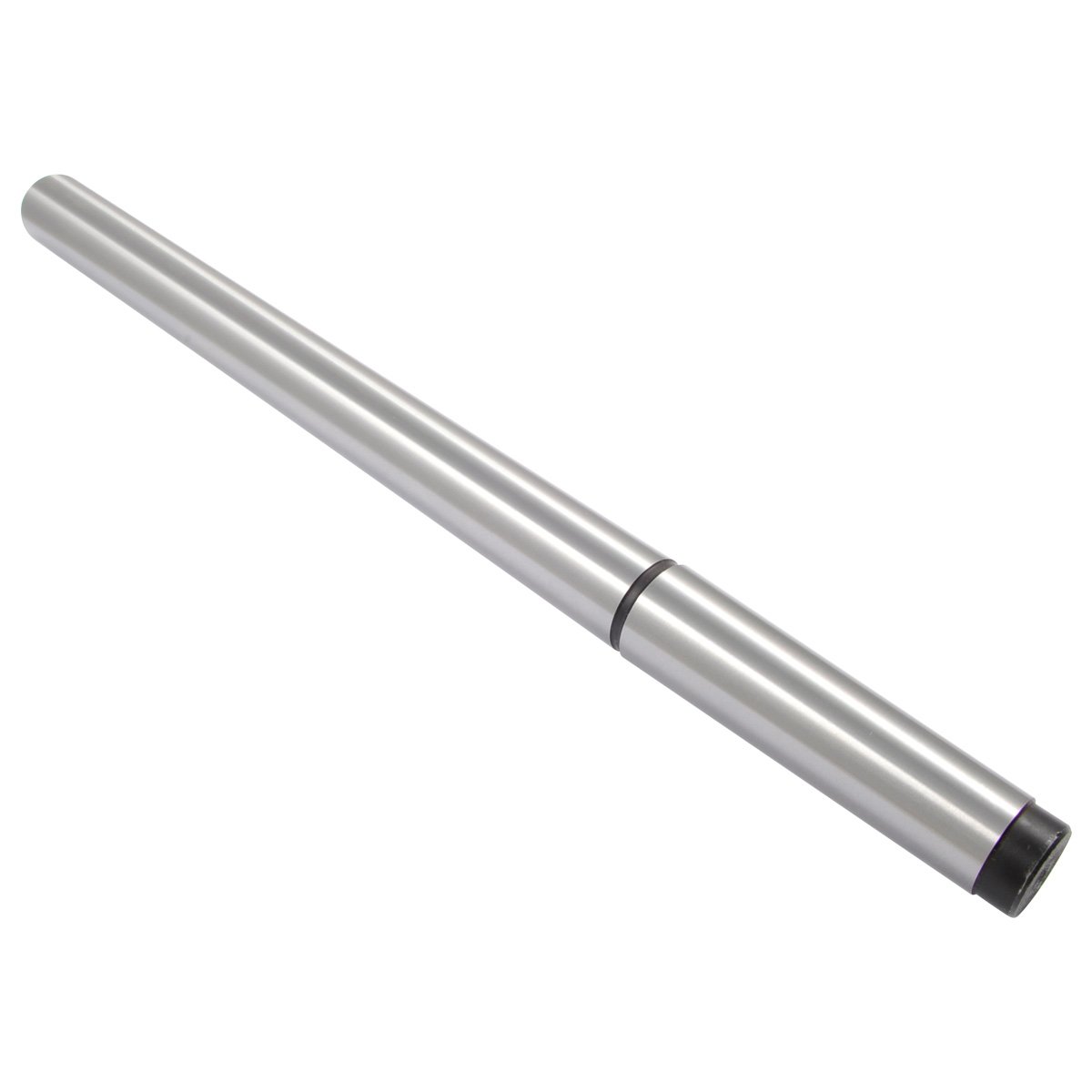

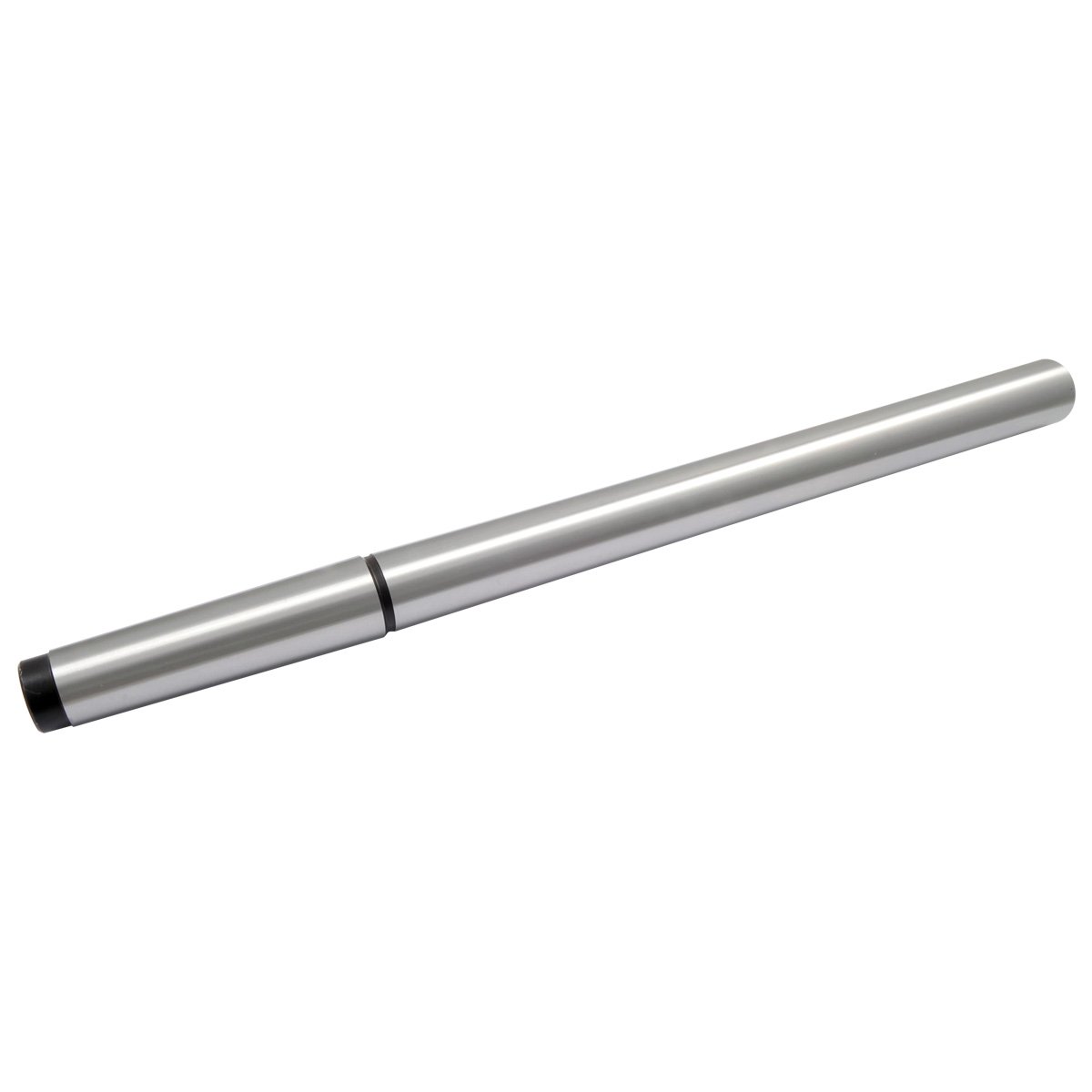

MT4 X 386MM TEST/ALIGNMENT MANDREL (3906-4124)

MT4 X 386MM TEST/ALIGNMENT MANDREL (3906-4124) (SKU: 3906-4124)

HHIP MT4 X 386mm Test/Alignment Mandrel Used for checking the alignment of machine spindle axis. Made of high grade tool steel. Precision ground and heat treated for maximum concentricity. Serves to represent materially an axis of rotation, so that the axis can be checked for alignment. A mandrel mounted between centers provides a straight-line reference joining the two points (centers), so you can check the alignment of the centers. T.I.R. is less than 5 microns per 6″.

Specifications

• HHIP MT4 X 386mm Test/Alignment Mandrel
• Used for checking the alignment of machine spindle axis.
• Made of high grade tool steel. .
• Precision ground and heat treated for maximum concentricity.
• Serves to represent materially an axis of rotation, so that the axis can be checked for alignment.
• A mandrel mounted between centers provides a straight-line reference joining the two points (centers), so you can check the alignment of the centers
• T.I.R. is less than 5 microns per 6″.
• Weight: 4.9
• Dimensions: L 16, W 2, H 2

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
