MT5 CARBIDE TIPPED HALF-NOTCHED DEAD CENTER (3900-6060)

MT5 CARBIDE TIPPED HALF-NOTCHED DEAD CENTER (3900-6060) (SKU: 3900-6060)

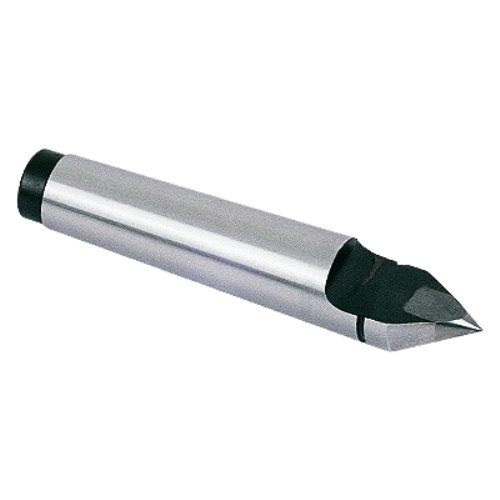

MT5 Carbide Tipped, Half-Notched Dead Center

• Made of tool steel, hardened and ground
• +/- .0002″ TIR

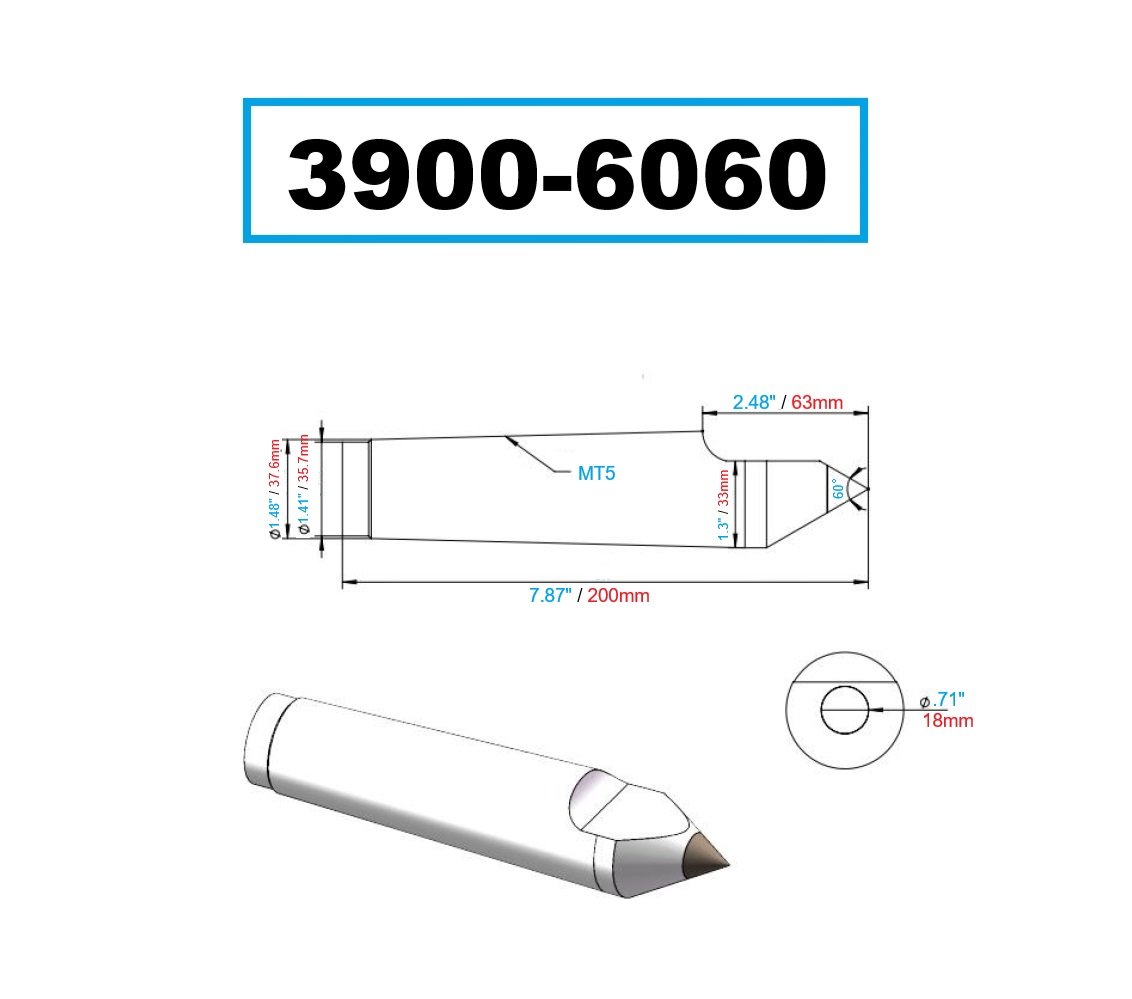

• Overall length (L) is 7.9″
• Height of the notch (h1) is 1.19″
• Widest diameter of the taper (H) is 1.75″
• D is 44.399mm

Specifications

• MT5 Carbide Tipped, Half-Notched Dead Center
• Made of tool steel, hardened and ground.
• +/- .0002″ TIR
• Overall length (L) is 7.9″
• Height of the notch (h1) is 1.19″
• Widest diameter of the taper (H) is 1.75″
• D is 44.399mm.
• Weight: 4
• Dimensions: L 4, W 8, H 4

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
