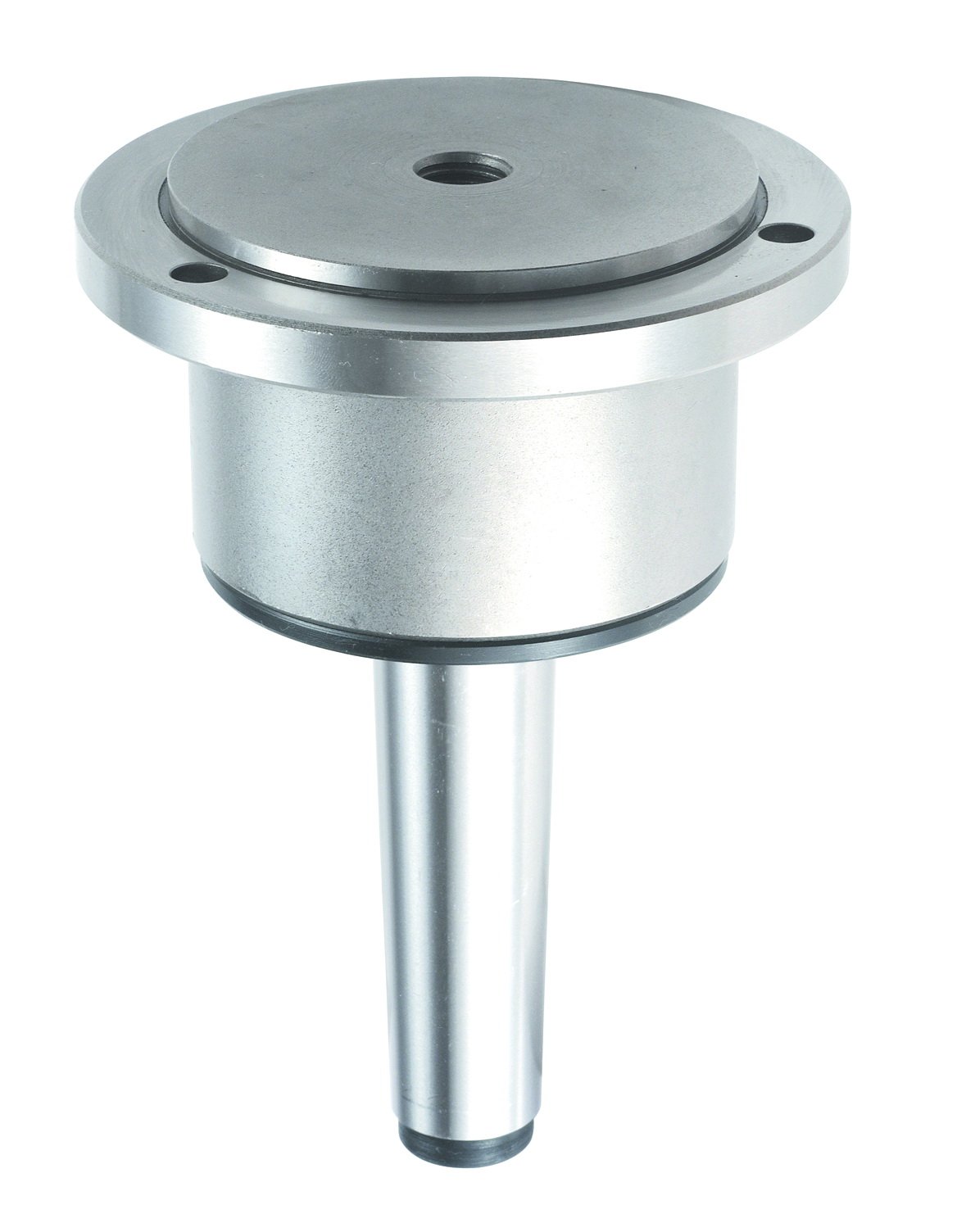

MT5 X 125MM REVOLVING TAILSTOCK FOR 5″ PLAIN BACK CHUCKS (3900-6025)

MT5 X 125MM REVOLVING TAILSTOCK FOR 5″ PLAIN BACK CHUCKS (3900-6025) (SKU: 3900-6025)

MT5 X 125mm Taper Shank Chuck Revolving Bed For 5″ Chucks

• Used for calibrating or supporting work pieces during processing
• Three ball bearings for heavy duty loads and relatively high speed
• Maximum Load is 1,500 lbs
• Maximum RPM is 2,500

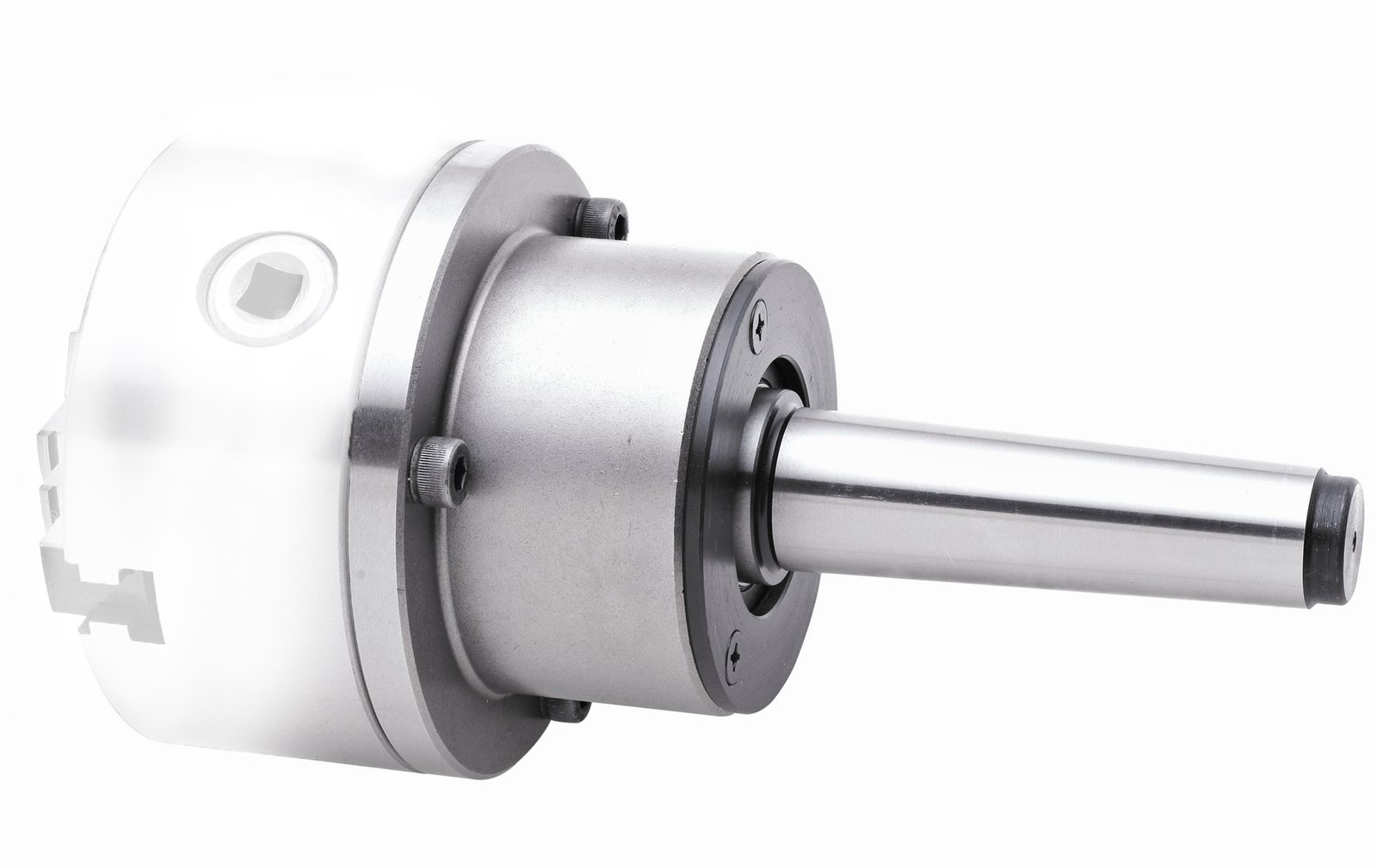

• Lathe chucks are an option and don’t come with the rotating body
• T.I.R. is < .0004"

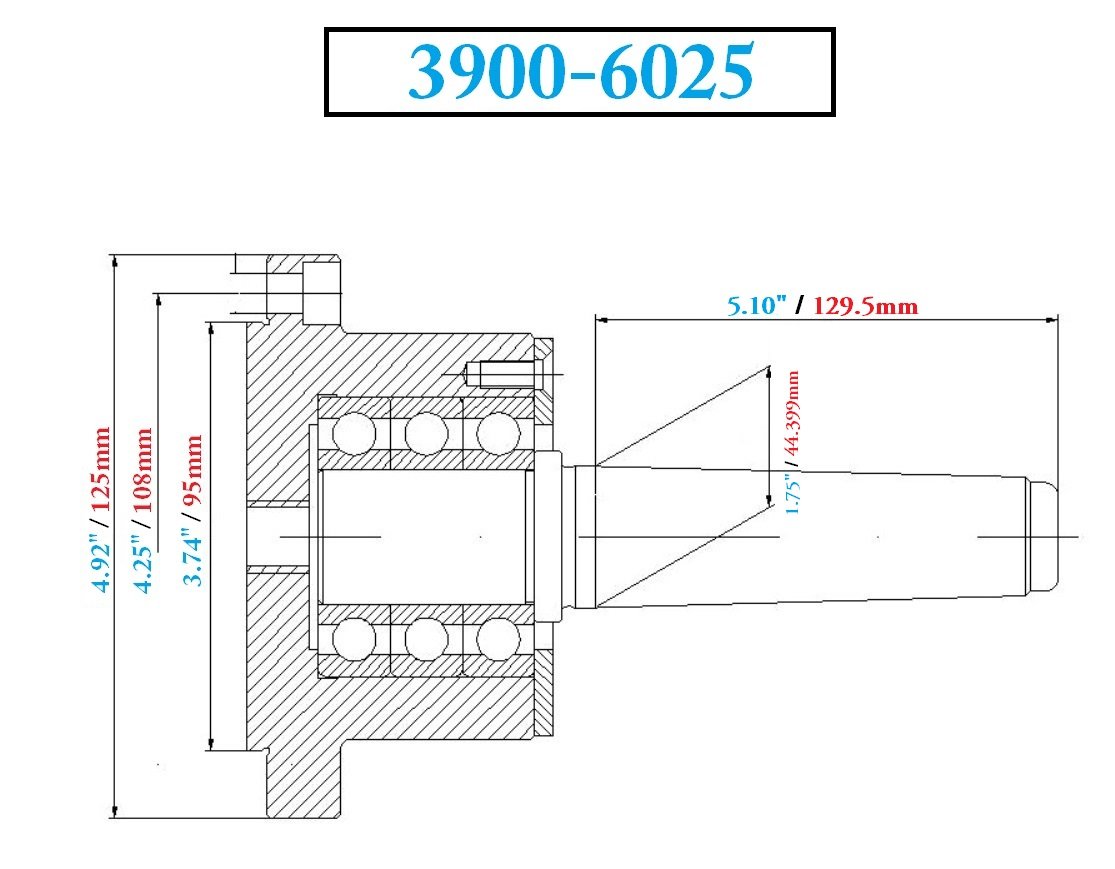

• Please see diagram for dimensions

Specifications

• MT5 X 125mm Taper Shank Chuck Revolving Bed For 5″ Chucks
• Used for calibrating or supporting work pieces during processing.
• Three ball bearings for heavy duty loads and relatively high speed.
• Maximum Load is 1,500 lbs.
• Maximum RPM is 2,500.
• Lathe chucks are an option and don’t come with the rotating body.
• T.I.R. is < .0004".
• Please see diagram for dimensions.
• Weight: 11.4
• Dimensions: L 5, W 8, H 5

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
