MVVNN 16-3D TURNING TOOL HOLDER – NEW RIGID CLAMP DESIGN (2030-0160)

MVVNN 16-3D TURNING TOOL HOLDER – NEW RIGID CLAMP DESIGN (2030-0160) (SKU: 2030-0160)

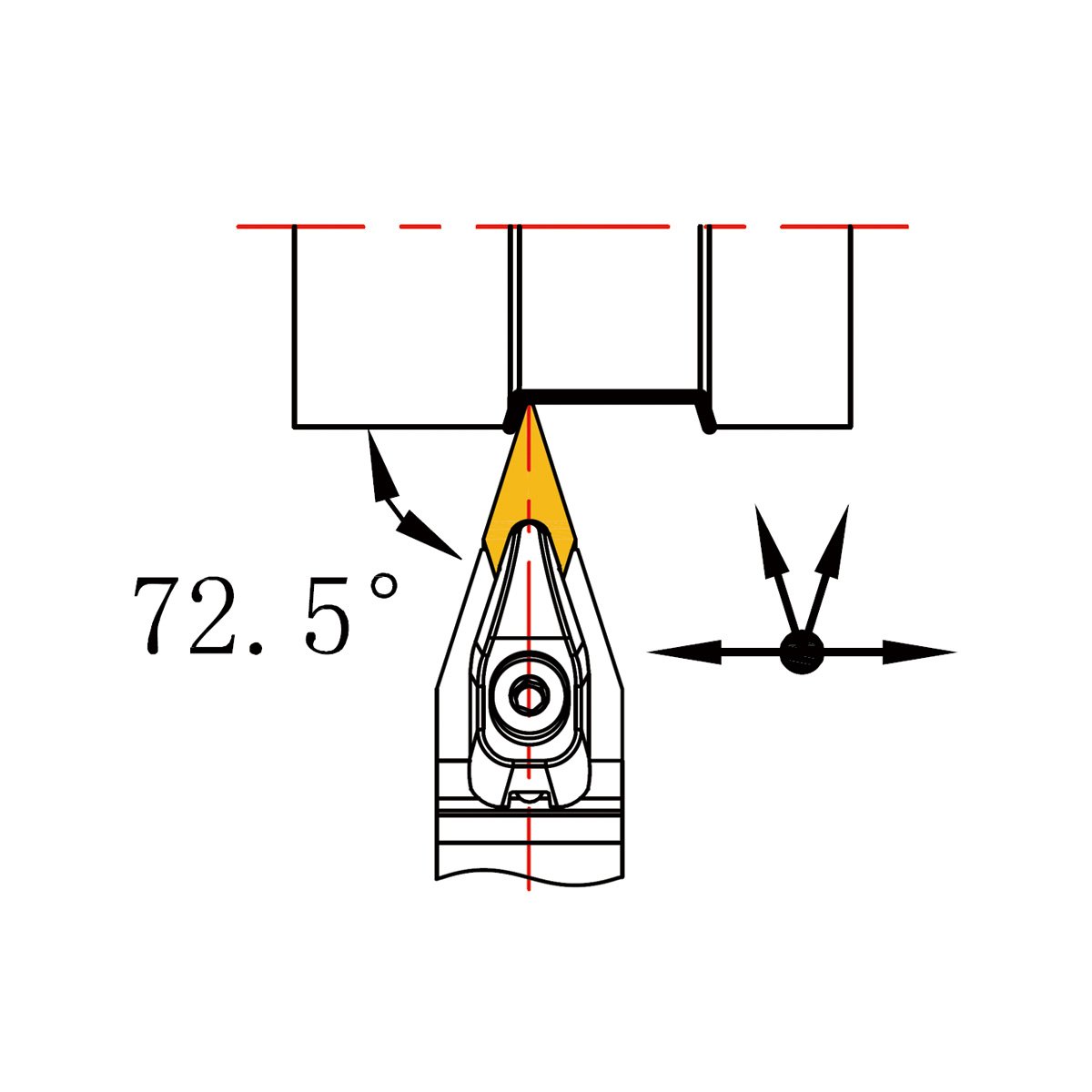

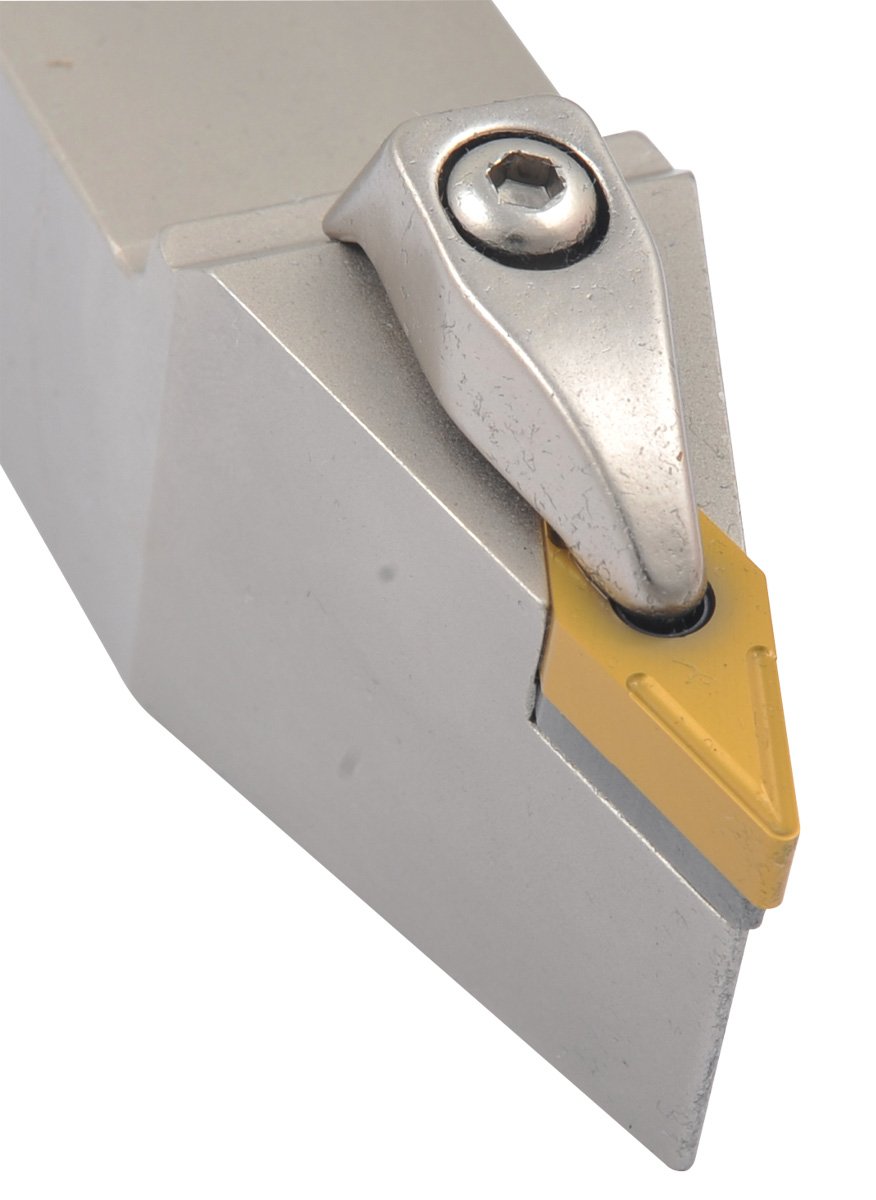

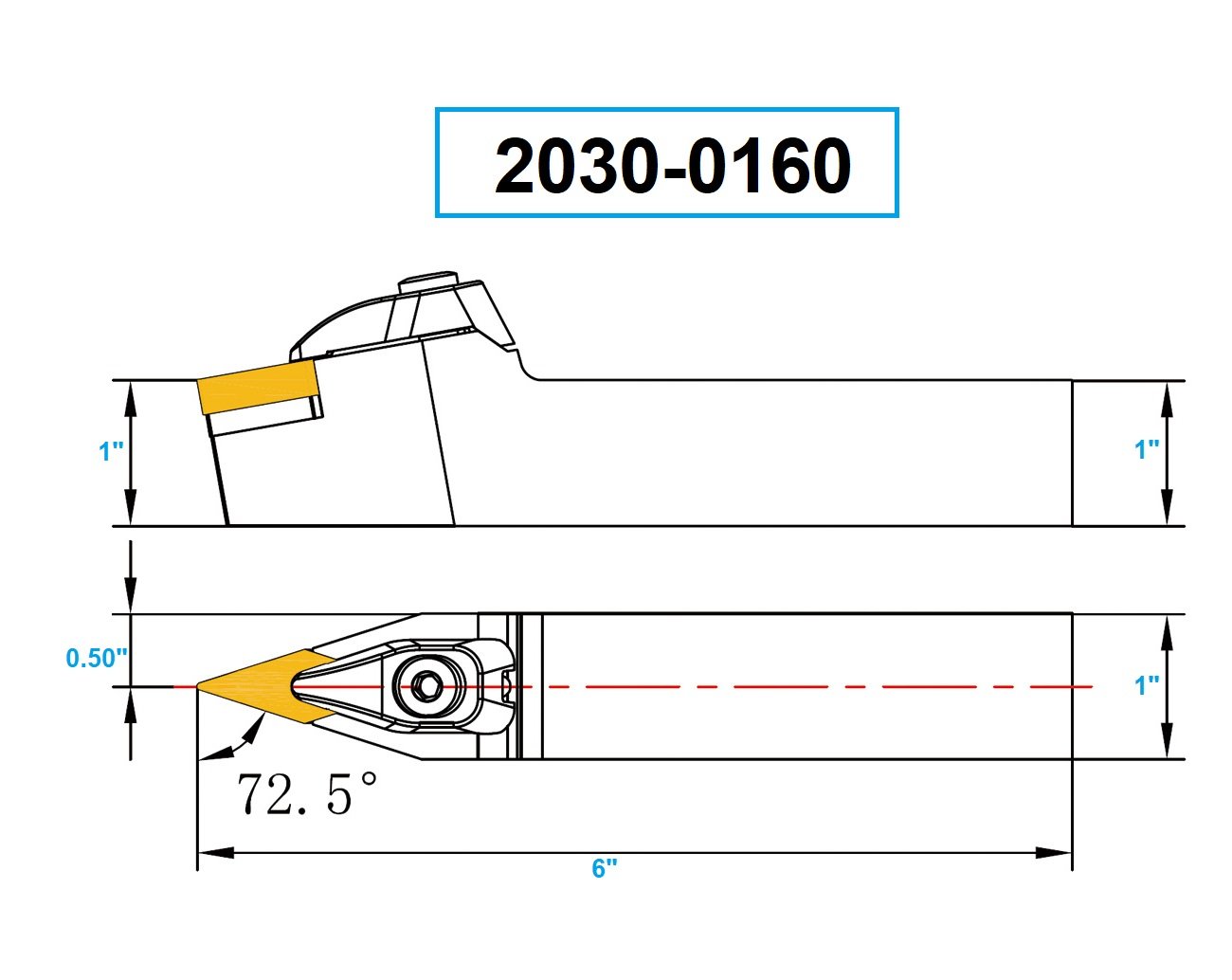

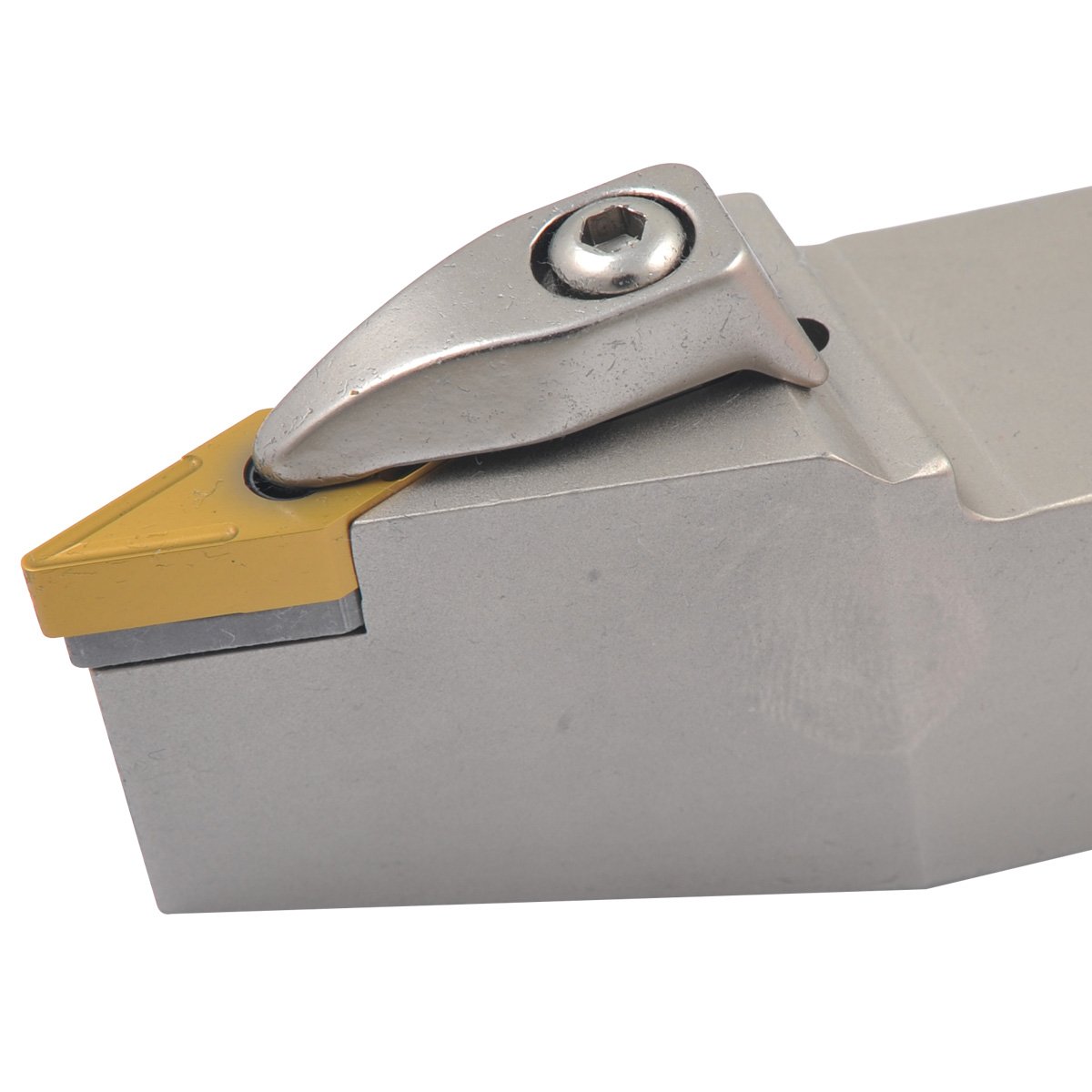

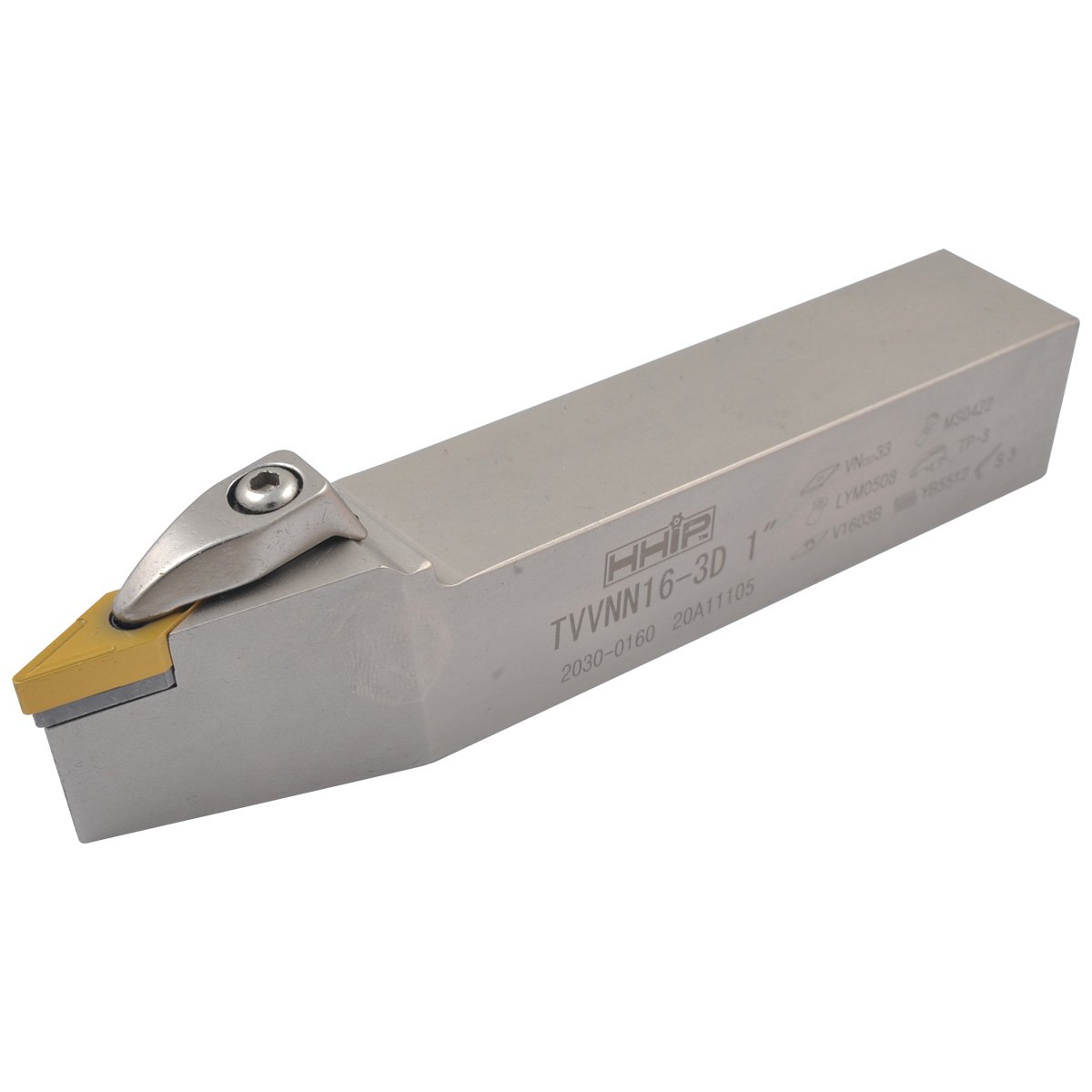

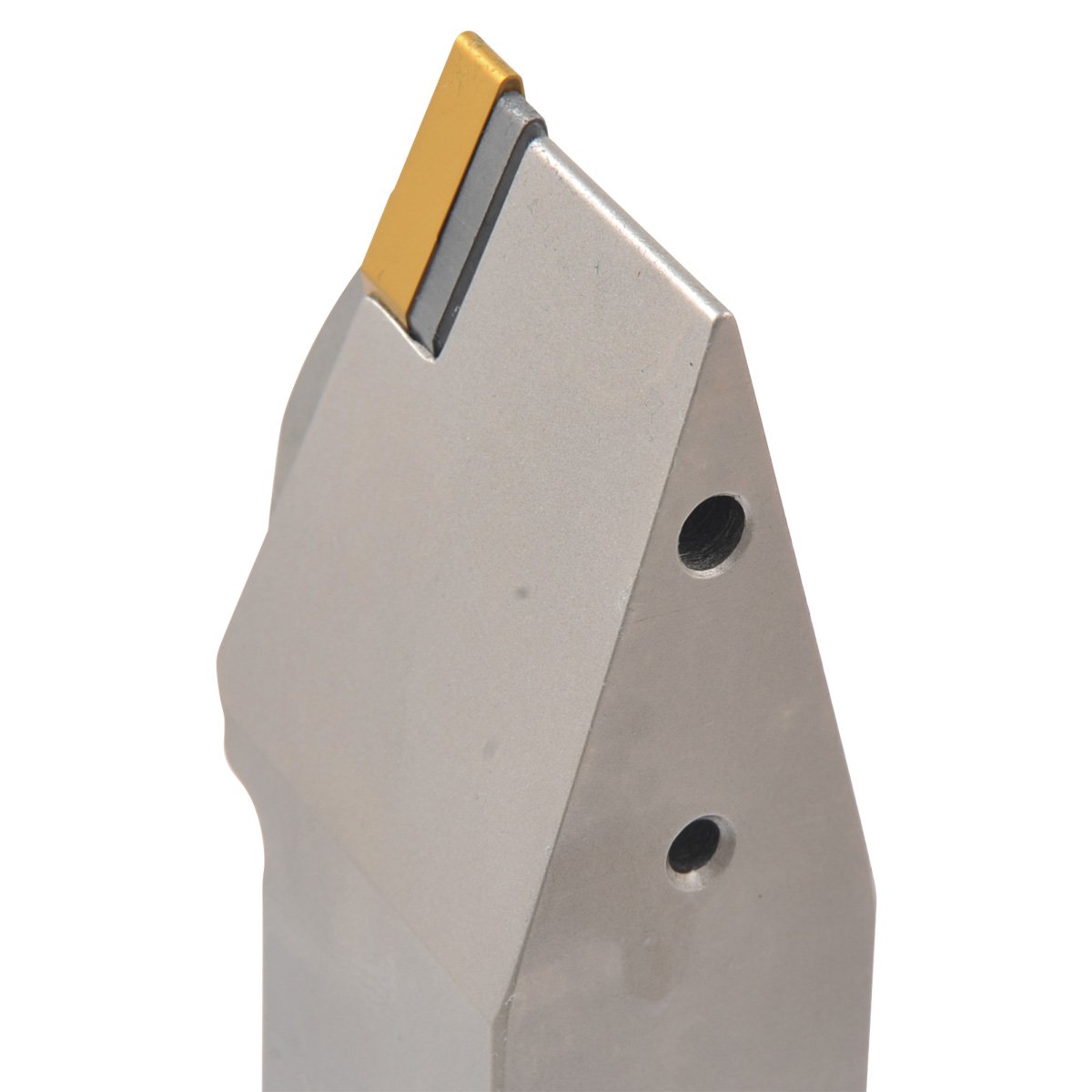

HHIP MVVNN 16-3D Turning Tool Holder – New Rigid Clamp Design 17.5 Degree lead angle. Right hand. Zero degree relief. Use with VNMA or VNMG inserts. New rigid style top & hole clamping design provides increased stability & security for productive turning of large components and heavy machining. Shim is #2100-1602. Shim screw is #2100-4300. Clamp is #2100-2903. Clamp screw is #2100-4350. Spring is #2100-4384. When replacing the insert, apply enough pressure to push the clamp forward and align it with the hole as you tighten it. Please see the video of the installation process.

Specifications

• 17.5 Degree lead angle.
• Right hand.
• Zero degree relief.
• Use with VNMA or VNMG inserts.

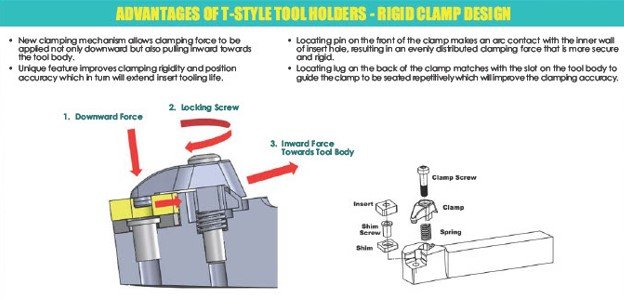

• New rigid style top & hole clamping design provides increased stability & security for productive turning of large components and heavy machining.
• Shim is #2100-1602.
• Shim screw is #2100-4300.
• Clamp is #2100-2903.
• Clamp screw is #2100-4350.
• Spring is #2100-4384.
• Weight: 1.65
• Dimensions: L 7, W 1, H 1
