ONHU08 T508-PM COATED CARBIDE INSERT (6063-0008)

ONHU08 T508-PM COATED CARBIDE INSERT (6063-0008) (SKU: 6063-0008)

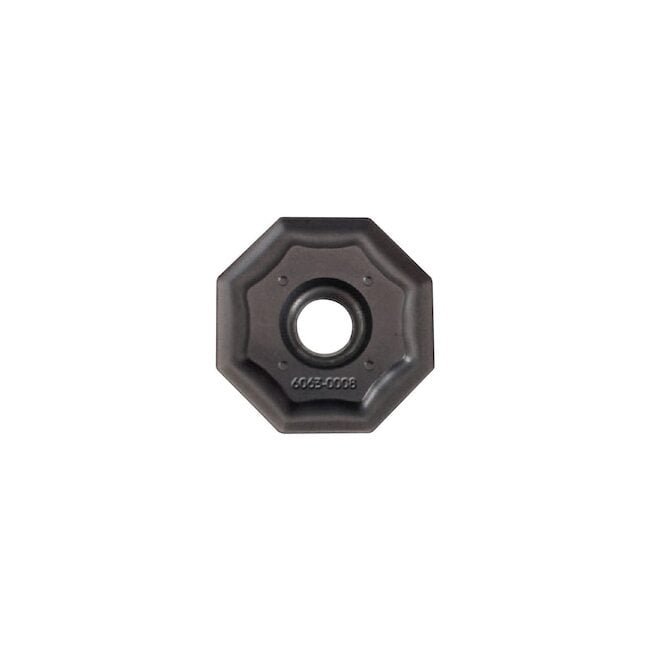

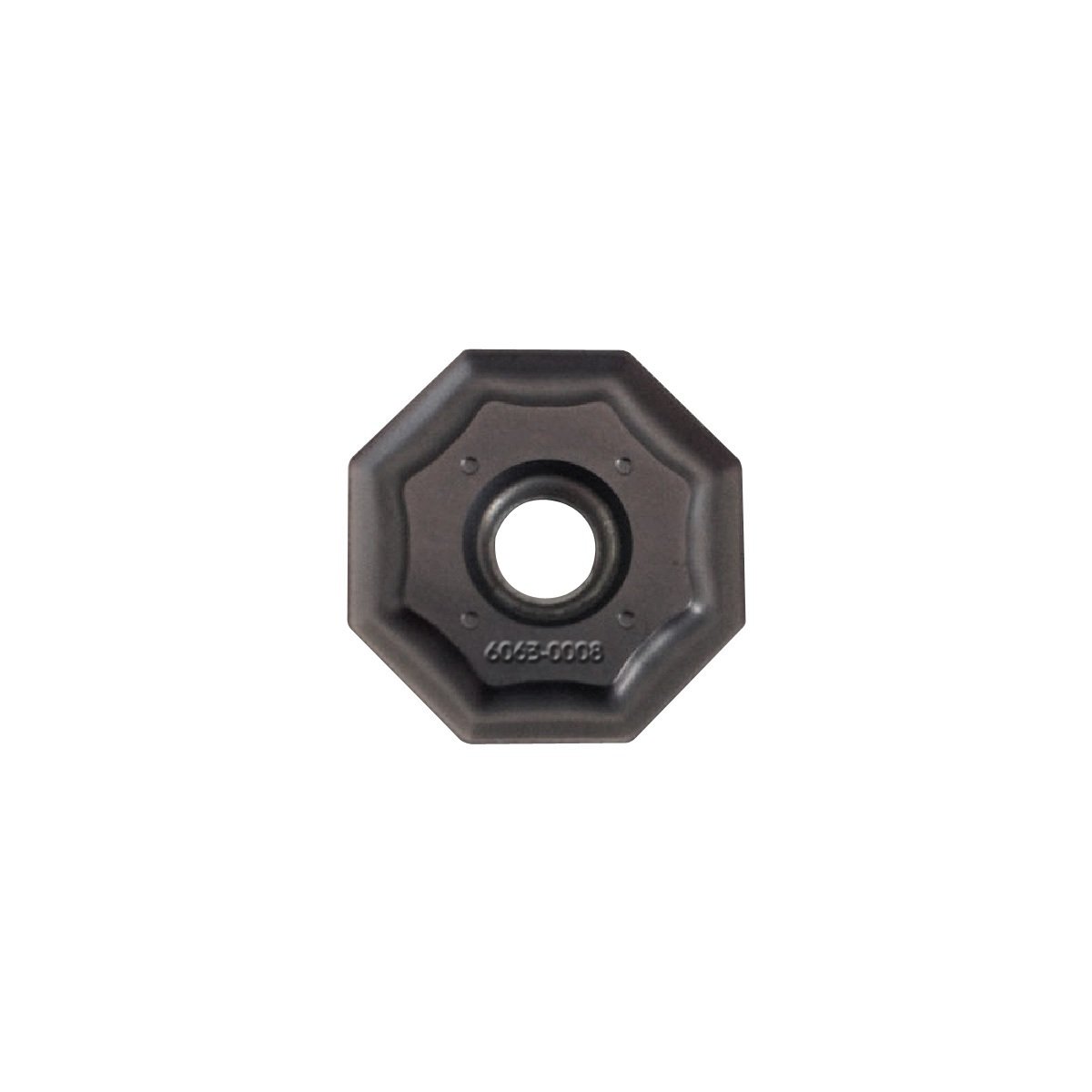

ONHU08T508-PM Octagon Carbide Insert

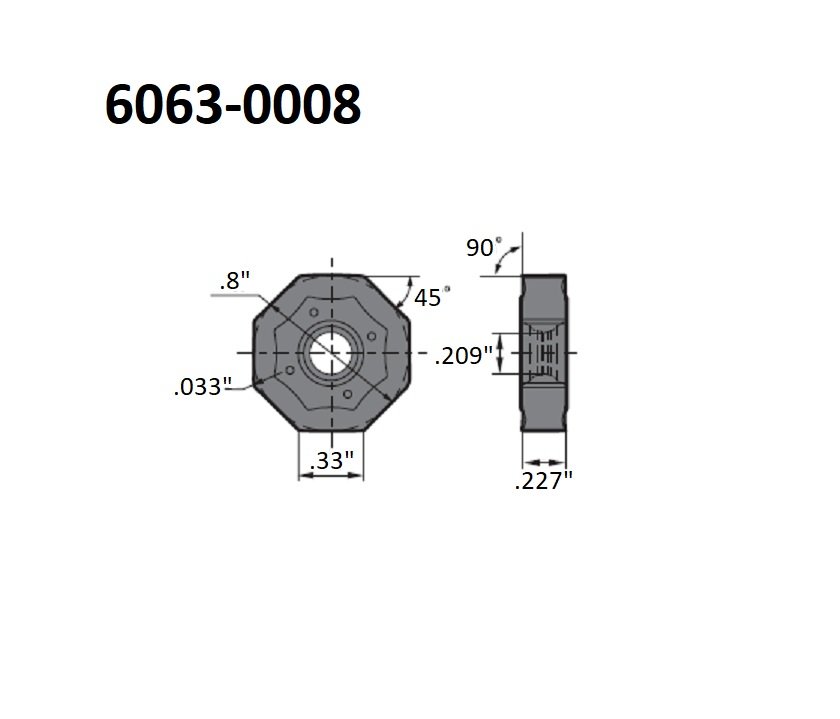

• r is 1/32″
• IC is .795″
• T is .228″
• Octagonal double sided insert with 16 cutting edes provides the most economic face machining results
• Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
• Grade is XAB698 which possesses an excellent thermal and chemical stability with a optimized combination of high performance Nano coating and a highly tough substrate of ultra fine grains aimed at materials hard to machine, such as stainless steel, heat resistant alloys, titanium alloys,high temperature alloys, etc. It is especially suitable for finishing and semi-finishing

Specifications

• ONHU08T508-PM Coated Carbide Insert
• r is 1/32″.
• IC is .795″.
• T is .228″.
• Octagonal double sided insert with 16 cutting edes provides the most economic face machining results.
• Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
• Grade is XAB698 which possesses an excellent thermal and chemical stability with a optimized combination of high performance Nano coating and a highly tough substrate of ultra fine grains aimed at materials hard to machine, such as stainless steel, heat resistant alloys, titanium alloys,high temperature alloys, etc. It is especially suitable for finishing and semi-finishing.
• Weight: 0.01
• Dimensions: L 3, W 1, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
