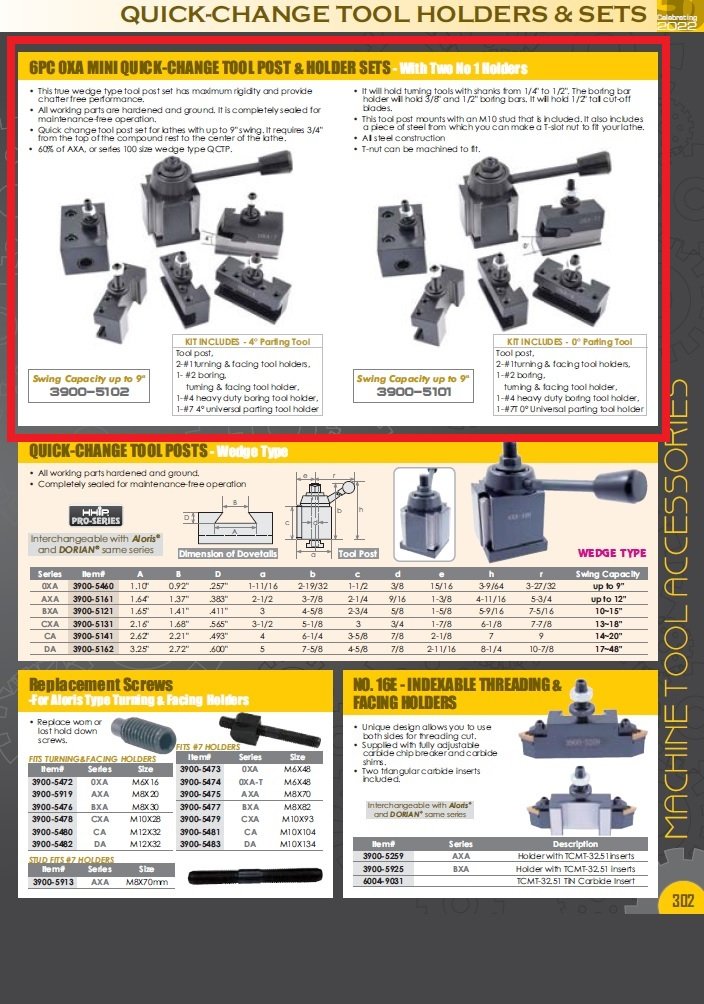

OXA SERIES MINI QUICK CHANGE TOOL POST & HOLDER SET (3900-5101)

OXA SERIES MINI QUICK CHANGE TOOL POST & HOLDER SET (3900-5101) (SKU: 3900-5101)

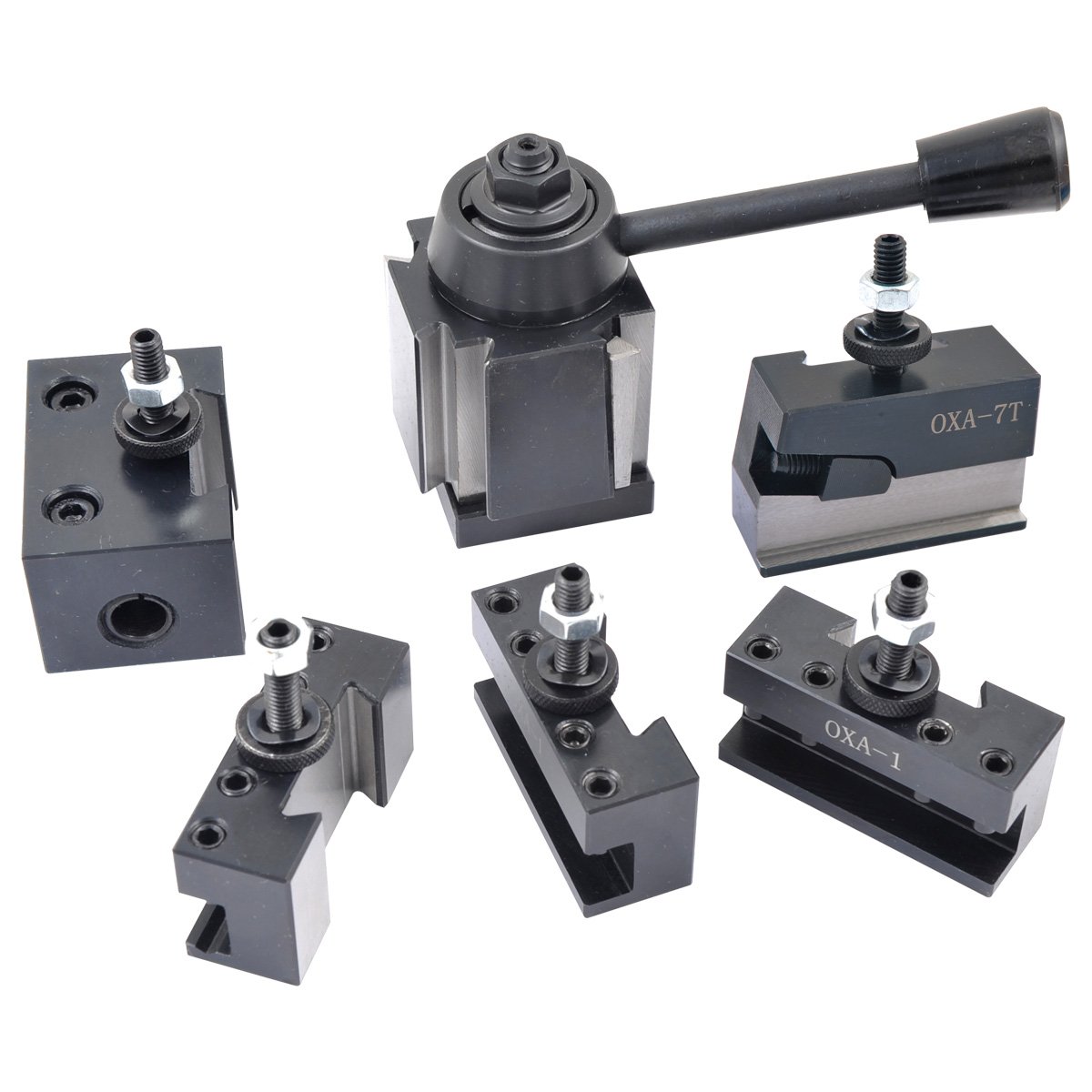

OXA Series Mini Quick Change Tool Post & Holder Set

• This true wedge type tool post set has maximum rigidity and provides chatter free performance
• All working parts are hardened and ground
• It is completely sealed for maintenance-free operation
• Suitable for lathes with up to 8″ swing
• All steel construction
• It requires 5/8″ from the top of the compound rest to the center of the lathe
• 60% of the size of the AXA, or series 100 size wedge type tool post set
• This lathe quick change pool post set includes a 0-degree cut-off tool holder that will hold 1/2″ tall cut-off blades
• The holders take turning tools with shanks from 1/4″ to 1/2″
• The boring bar holder will hold 3/8″ and 1/2″ boring bars
• This tool post mounts with an M10 stud that is included
• Also included is a piece of steel from which you can make a T-slot nut to fit your lathe

Specifications

• OXA Series Mini Quick Change Tool Post & Holder Set
• This true wedge type tool post set has maximum rigidity and provides chatter free performance.
• All working parts are hardened and ground.
• It is completely sealed for maintenance-free operation.
• Suitable for lathes with up to 8″ swing.
• All steel construction.
• It requires 5/8″ from the top of the compound rest to the center of the lathe.
• 60% of the size of the AXA, or series 100 size wedge type tool post set.
• This lathe quick change pool post set includes a 0-degree cut-off tool holder that will hold 1/2″ tall cut-off blades.
• The holders take turning tools with shanks from 1/4″ to 1/2″.
• The boring bar holder will hold 3/8″ and 1/2″ boring bars.
• This tool post mounts with an M10 stud that is included.
• Also included is a piece of steel from which you can make a T-slot nut to fit your lathe.
• Weight: 4.5
• Dimensions: L 4, W 4, H 8

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.
