PRO-SERIES 3 PIECE CALIPER & MICROMETER & INDICATOR INSPECTION KIT (4902-0003)

PRO-SERIES 3 PIECE CALIPER & MICROMETER & INDICATOR INSPECTION KIT (4902-0003) (SKU: 4902-0003)

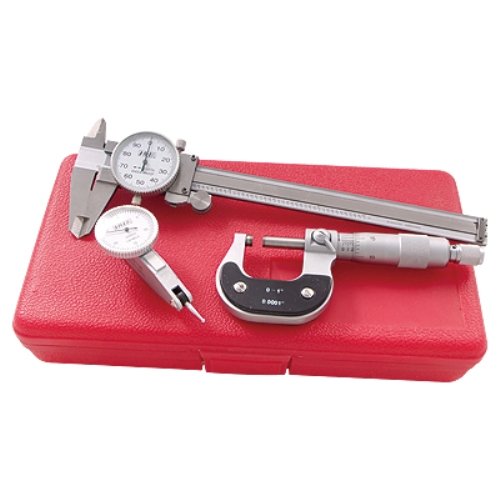

Pro-Series Dial Caliper & Micrometer & Indicator Inspection Tool Kit

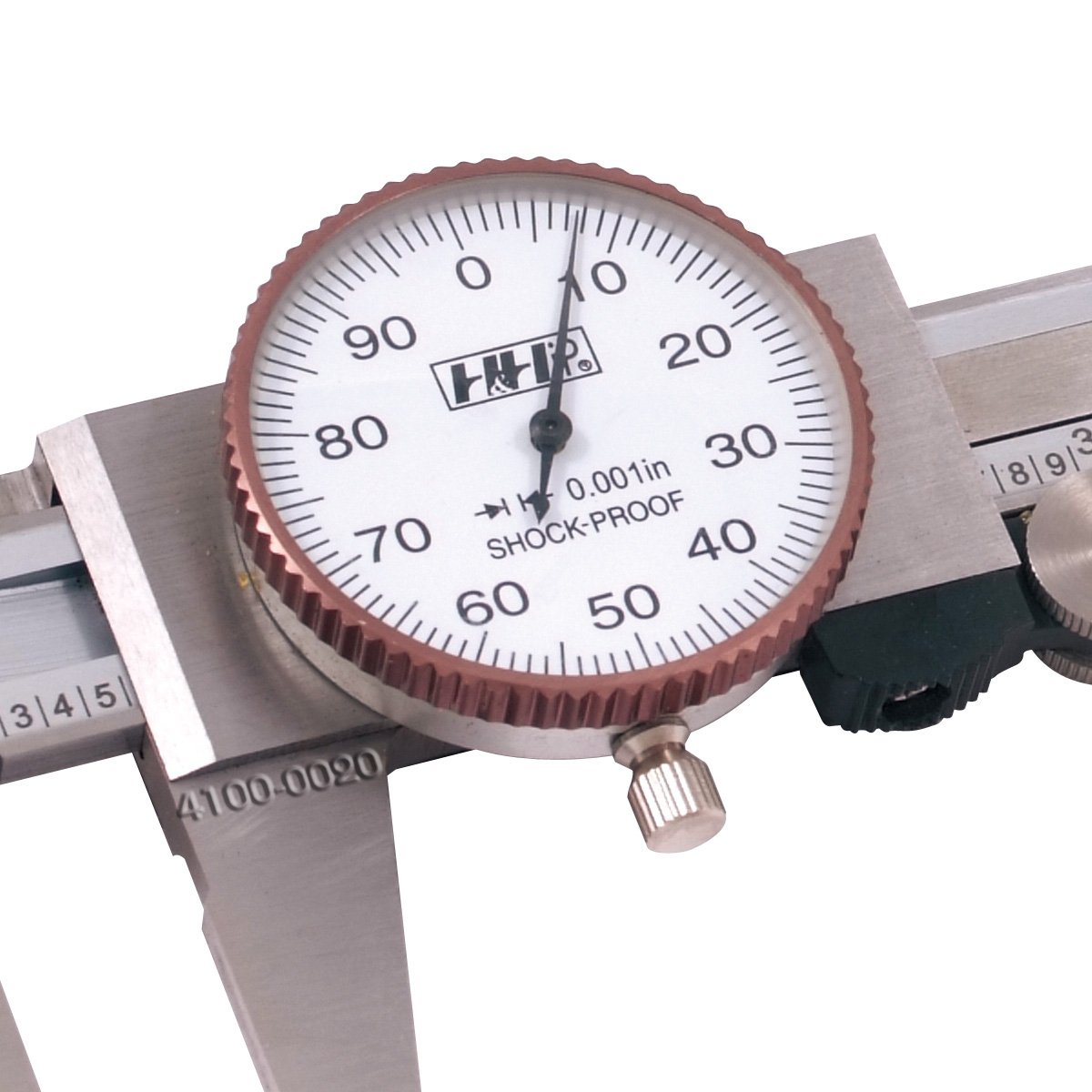

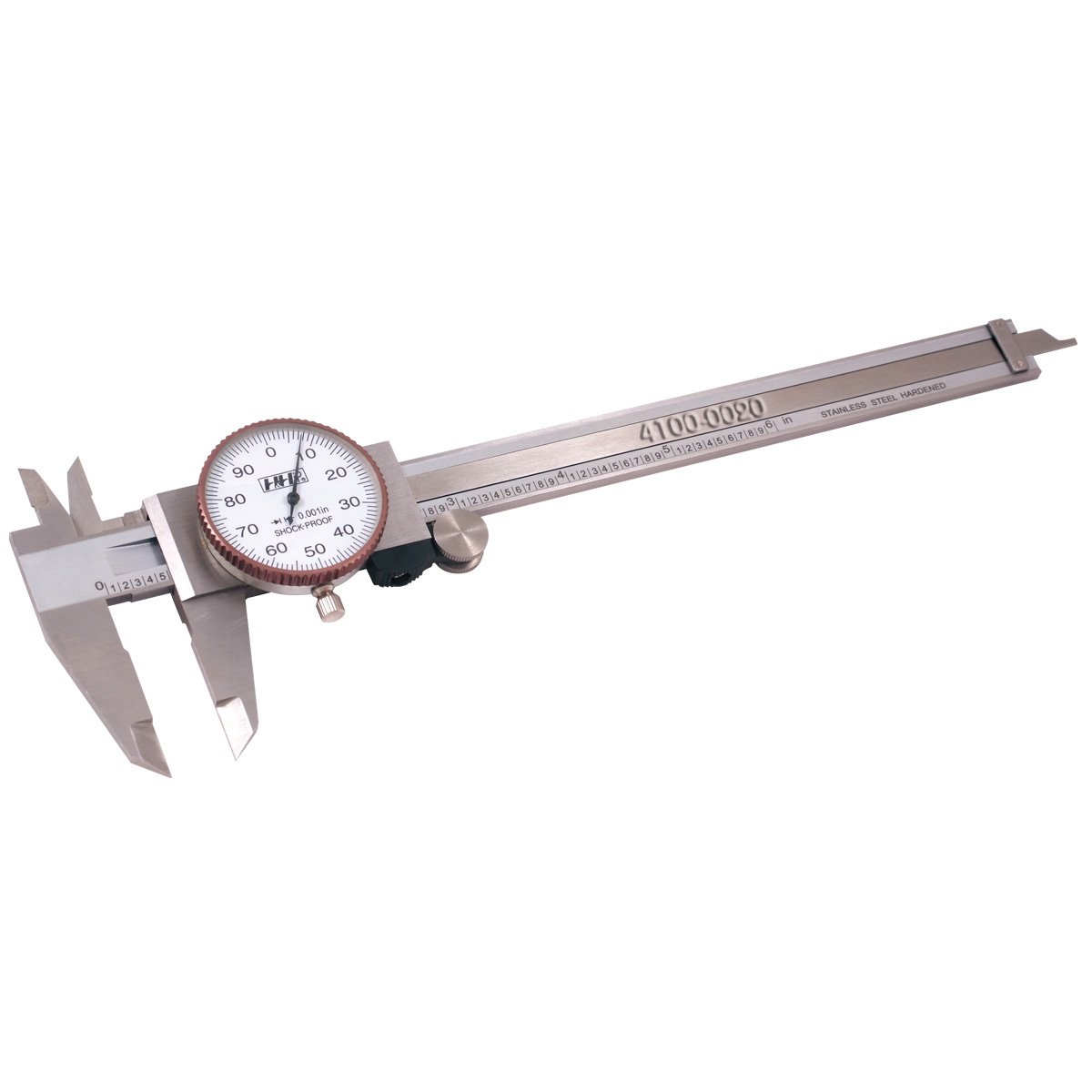

• The caliper is a 6″ reliable and accurate direct reading caliper with .001″ accuracy
• This caliper has graduations of .001″ in one revolution and a hardened stainless steel bar, rack, gears, depth rod and measuring faces
• The caliper also has a covered screw on rack for chip free operation and is shock proof
• The caliper includes knife-edge contacts for both inside and outside measurements
• The caliper jaw Length is 2.0″ and has a decimal, fraction conversion chart on the back
• This caliper meets DIN 862

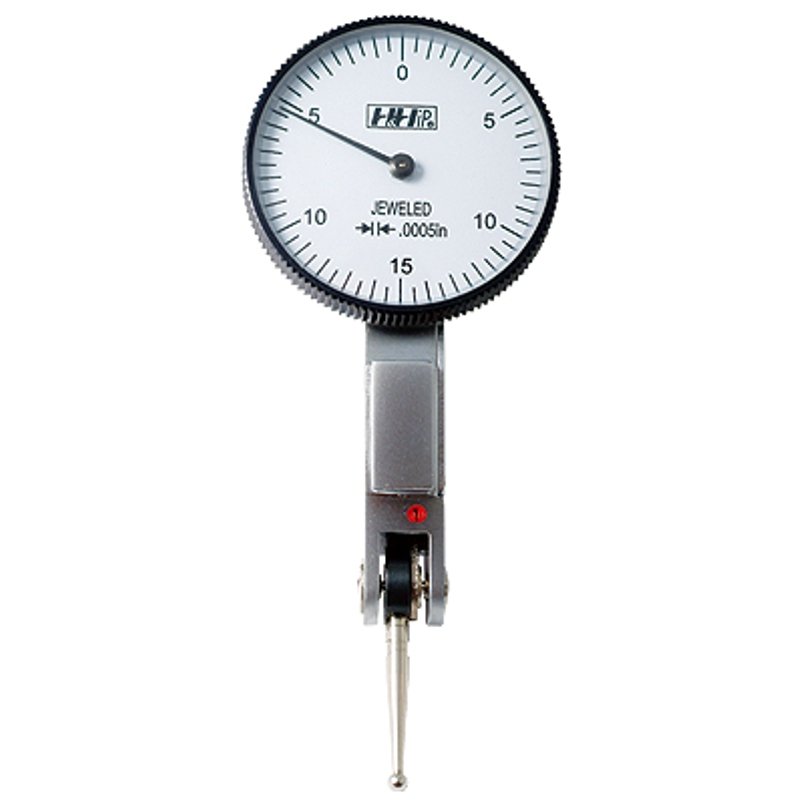

• The 0-.03″ dial test indicator has a .0005″ graduation with 0-15-0 reading
• The indicator has a dovetail mount on top, back & front and includes 2 stems that are 7/32″ & 1/4″
• This indicator also has a precision pivot bearing, a 0.098″ contact point, satin chrome finish, jeweled movements and automatic reversing

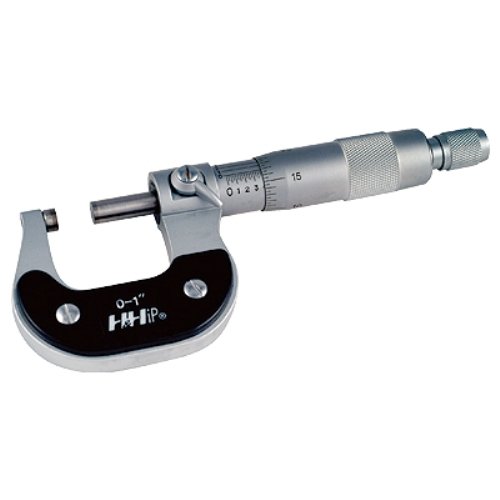

• The included 0-1″ outside micrometer has a hardened and precision ground anvil spindle thread with microlap finish on ends
• This micrometer meets or exceeds federal specifications
• The micrometer has micro fine graduations, spindle lock, carbide faces, ratchet stop and the graduation is 0.0001″

Specifications

• Pro-Series Dial Caliper & Micrometer & Indicator Inspection Tool Kit
• The caliper is a 6″ reliable and accurate direct reading caliper with .001″ accuracy.
• This caliper has graduations of .001″ in one revolution and a hardened stainless steel bar, rack, gears, depth rod and measuring faces.
• The caliper also has a covered screw on rack for chip free operation and is shock proof.
• The caliper includes knife-edge contacts for both inside and outside measurements.
• The caliper jaw Length is 2.0″ and has a decimal, fraction conversion chart on the back.
• This caliper meets DIN 862.
• The 0-.03″ dial test indicator has a .0005″ graduation with 0-15-0 reading.
• The indicator has a dovetail mount on top, back & front and includes 2 stems that are 7/32″ & 1/4″.
• This indicator also has a precision pivot bearing, a 0.098″ contact point, satin chrome finish, jeweled movements and automatic reversing.
• The included 0-1″ outside micrometer has a hardened and precision ground anvil spindle thread with microlap finish on ends.
• This micrometer meets or exceeds federal specifications.
• The micrometer has micro fine graduations, spindle lock, carbide faces, ratchet stop and the graduation is 0.0001″.
• Weight: 2
• Dimensions: L 8, W 10, H 6

Benefits

• Supports faster setup verification and in-process inspection.
• Helps reduce measurement errors and rework in the shop.
• Appropriate for quality-control routines and repeatability.

Recommended use

• Verify power and connection compatibility before installation.
• Mount securely and protect cables from moving parts.
• Zero and verify readings before critical measurements.
