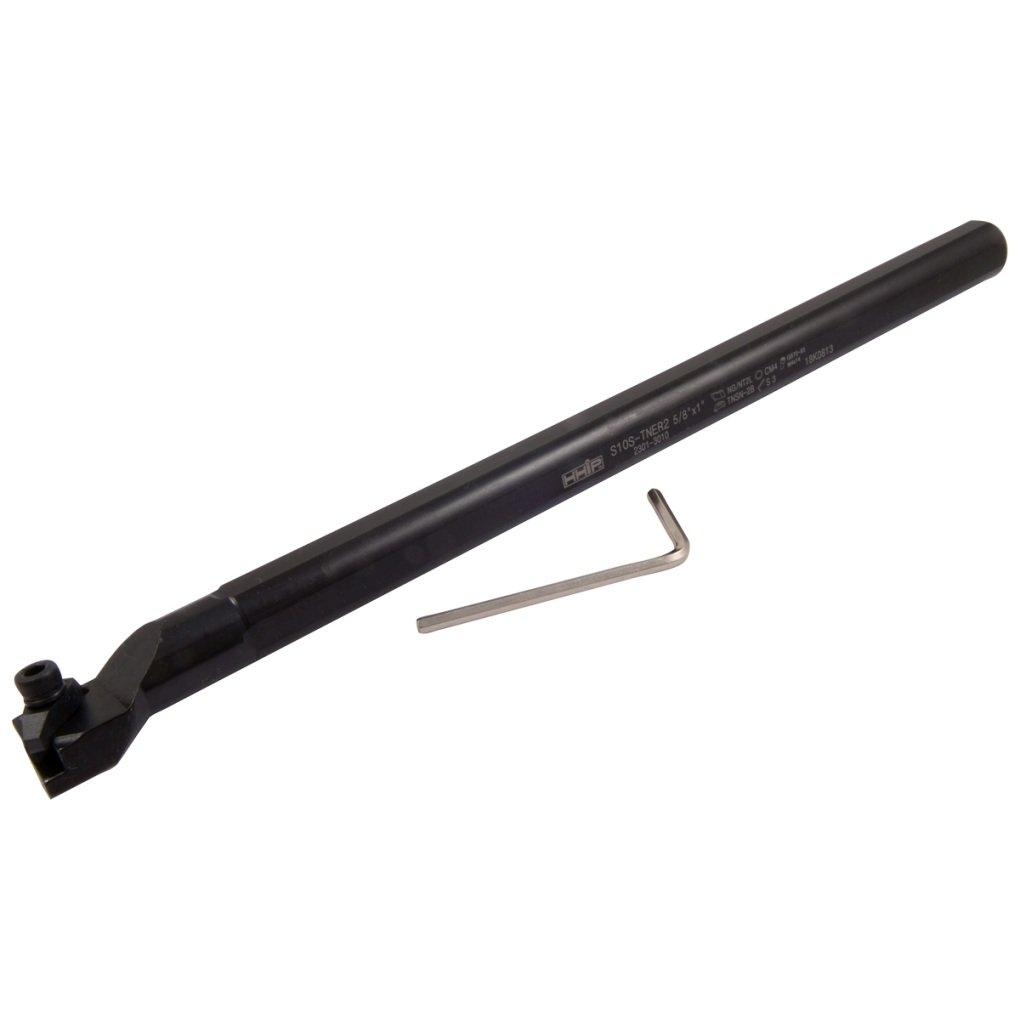

S10S-TNER2 RIGHT HAND INTERNAL THREADING & GROOVING TOOL HOLDER (2301-3010)

S10S-TNER2 RIGHT HAND INTERNAL THREADING & GROOVING TOOL HOLDER (2301-3010) (SKU: 2301-3010)

S10S-TNER2 Notch Style Internal Threading & Grooving Tool Holder (2301-3016)

• Right hand
• Excellent all-purpose system for threading and grooving
• Very strong insert design and wide insert selection and range

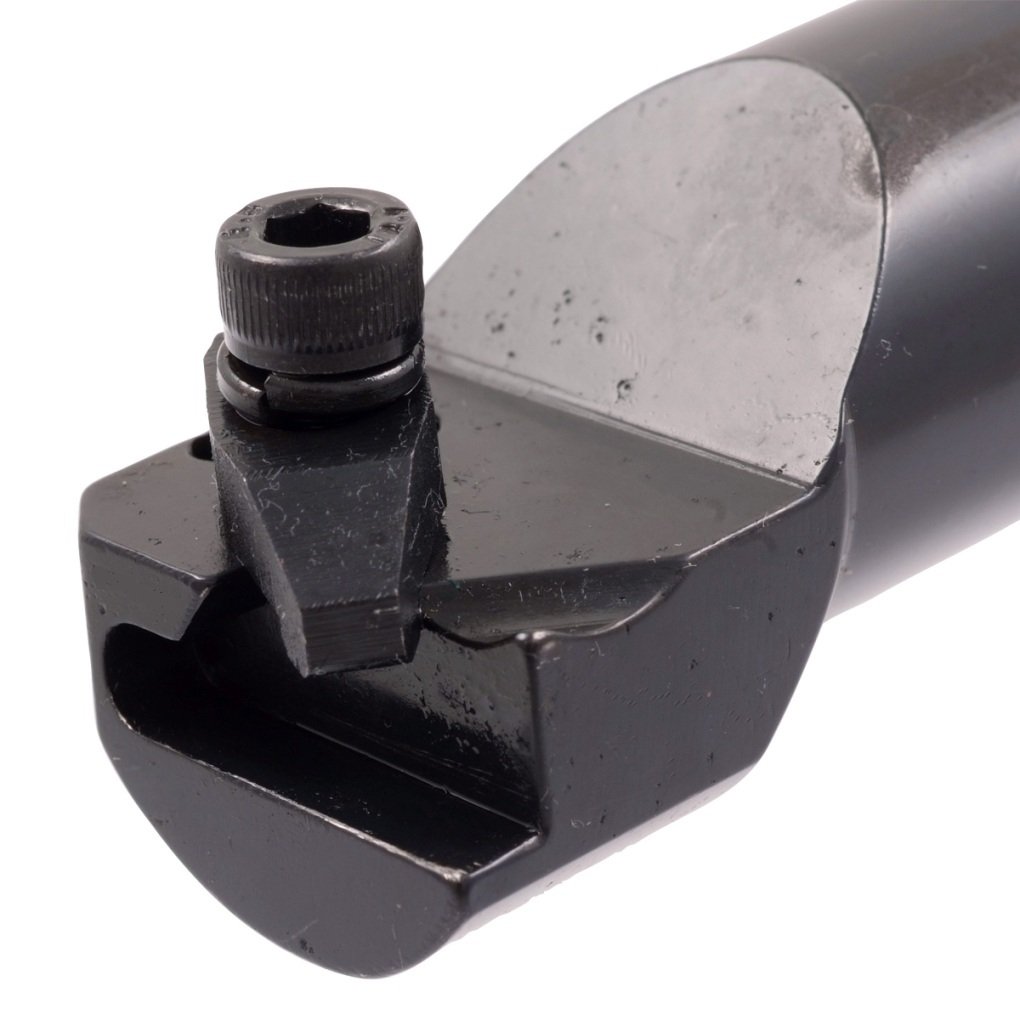

• Clamping system draws the insert consistently back into the pocket for superior repeatability
• Fully interchangeable with other similar “notch” type tools and inserts

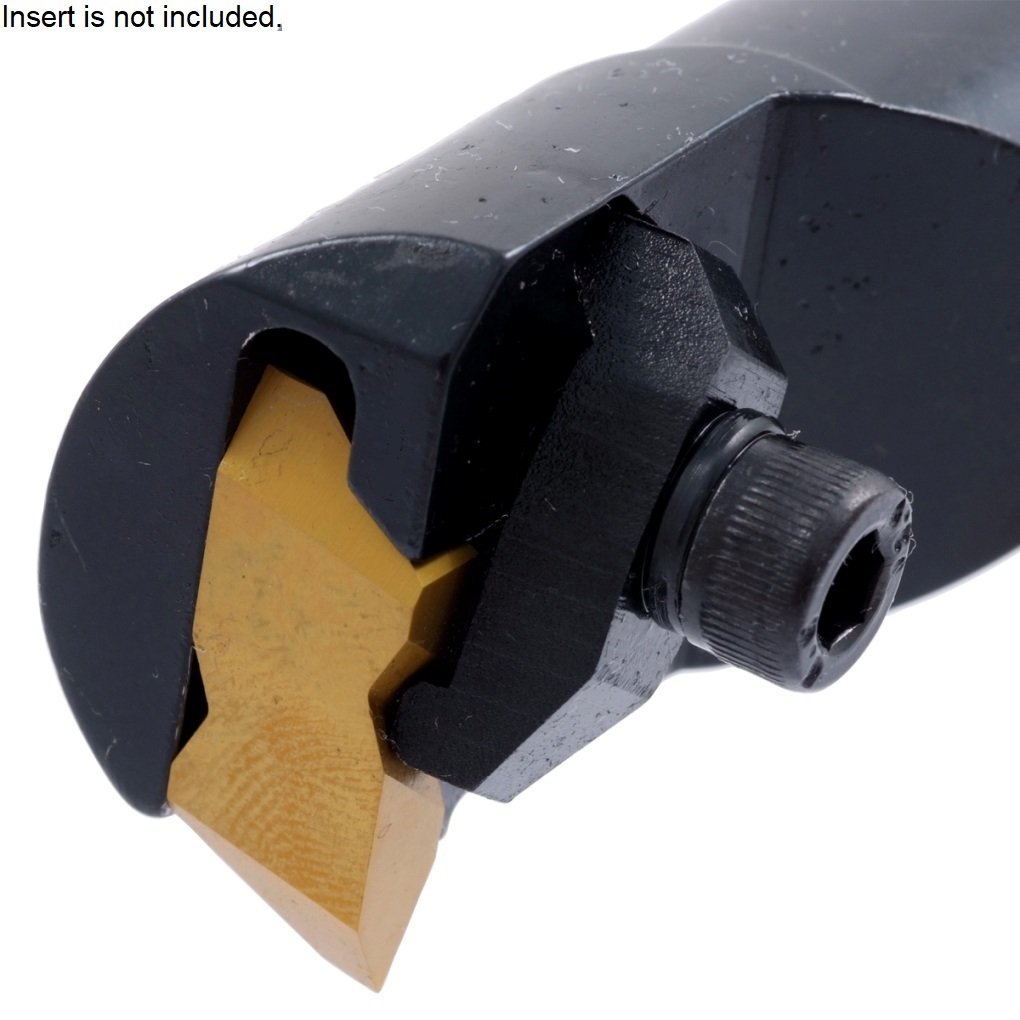

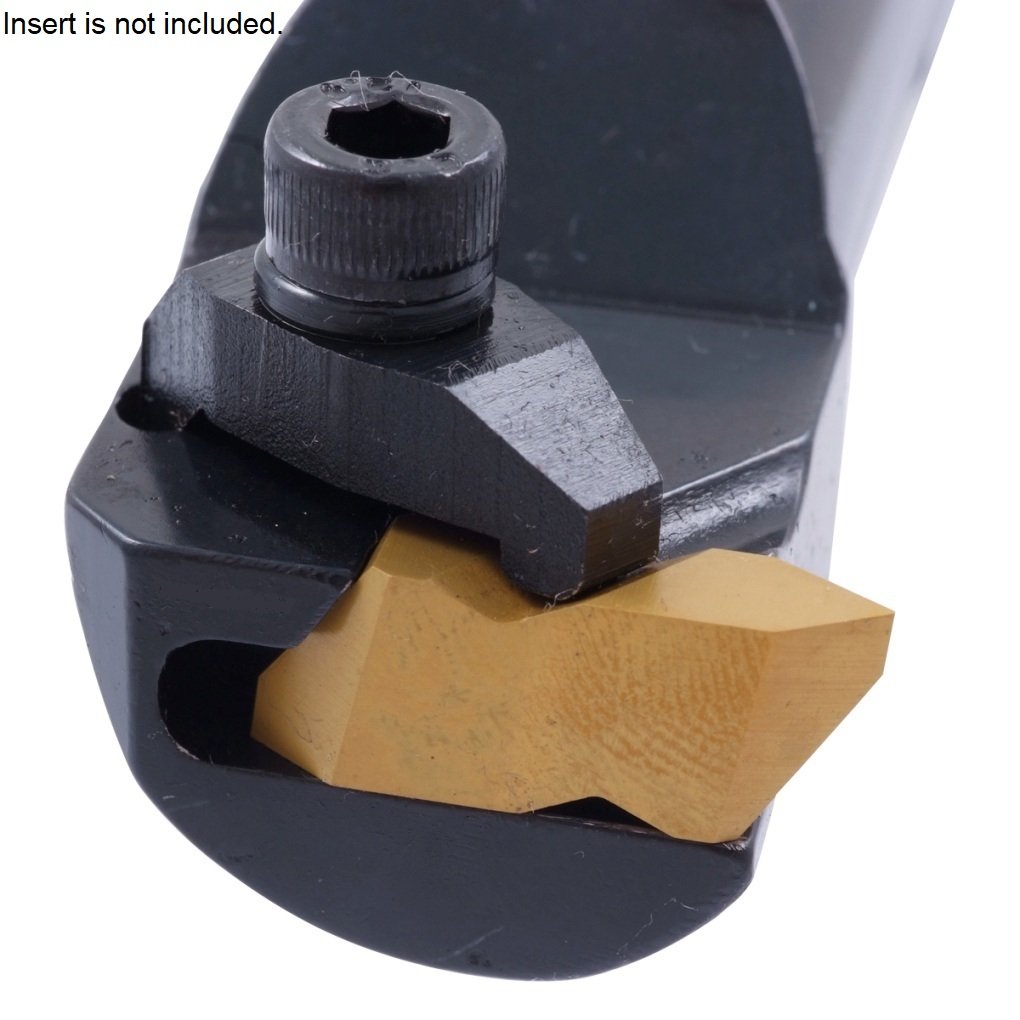

• Insert not included

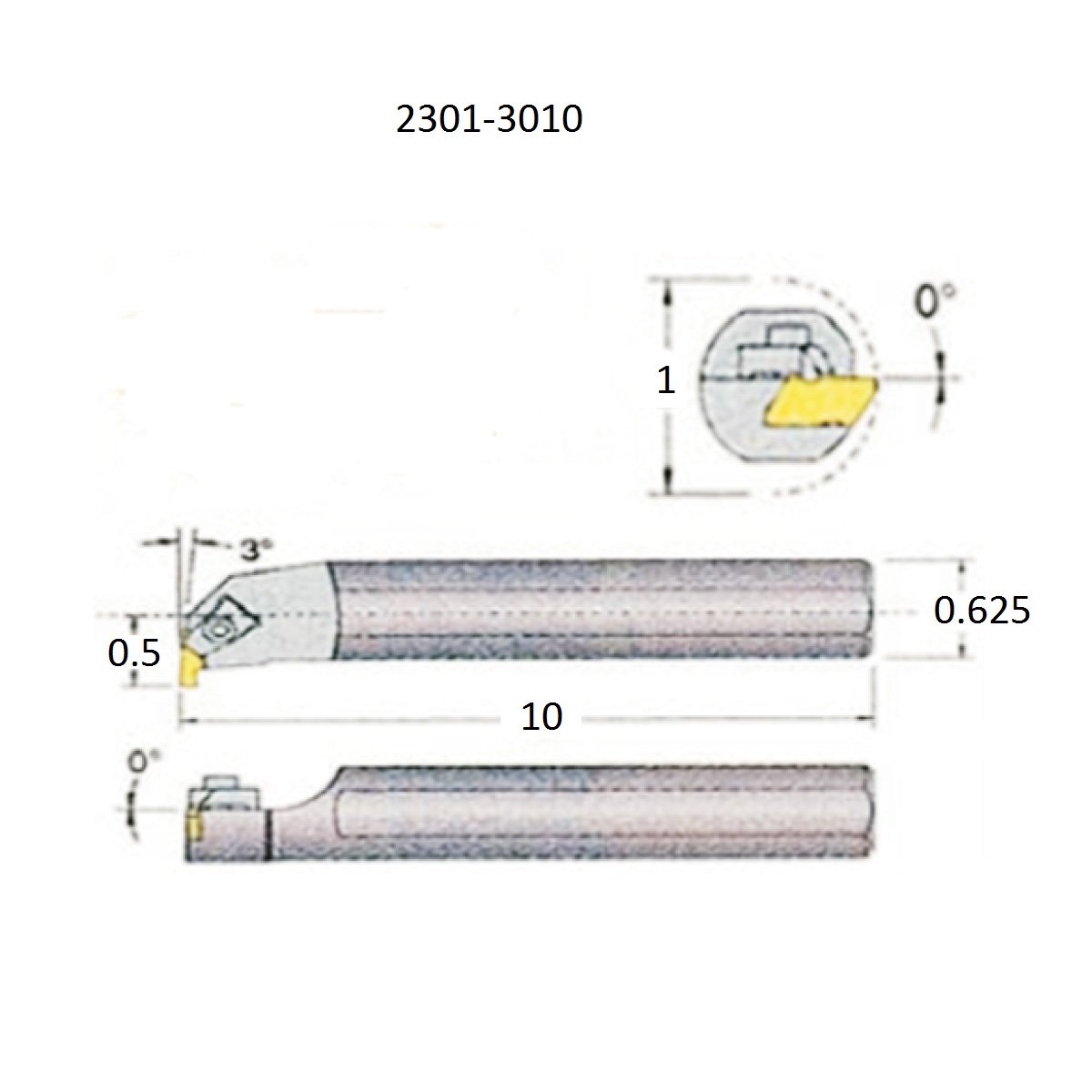

• B is 1″
• C is 10″
• D is .625″
• F is .500″
• Clamp is a TNSN-2B #2100-0011
• Screw is an M4 X 12 #2100-0081
• Gage insert size is T/NG-2

Specifications

• S10S-TNER2 Notch Style Internal Threading & Grooving Tool Holder (2301-3016)
• Right hand.
• Excellent all-purpose system for threading and grooving.
• Very strong insert design and wide insert selection and range.
• Clamping system draws the insert consistently back into the pocket for superior repeatability.
• Fully interchangeable with other similar “notch” type tools and inserts.
• Insert not included.
• B is 1″.
• C is 10″.
• D is .625″.
• F is .500″.
• Clamp is a TNSN-2B #2100-0011..
• Screw is an M4 X 12 #2100-0081.
• Gage insert size is T/NG-2.
• Weight: 0.9
• Dimensions: L 12, W 6, H 6

Benefits

• Industrial-grade tooling designed for dependable shop performance.
• Supports consistent results when applied with correct setup practices.
• A practical choice for U.S. machine shops and maintenance work.

Recommended use

• Confirm compatibility (size, interface, machine capacity) before ordering.
• Follow safe operating practices and use appropriate PPE.
• Optimize setup rigidity and process parameters for best results.

USA Warehouse Stock — Fast U.S. fulfillment.
